Swagger 与 Spring Boot REST API 集成

一、Swagger介绍

            Swagger（Swagger 2）是描述和记录REST API的一个规范。它指定了REST Web服务的格式，包括URL，资源，方法等。Swagger将从应用程序代码生成文档，并处理渲染部分。

二、引入依赖



		<!-- 配置swagger2 -->
		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger2</artifactId>
			<version>2.7.0</version>
		</dependency>

		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger-ui</artifactId>
			<version>2.7.0</version>
		</dependency>

三、配置Swagger的配置类

        新建SwaggerConfig 类

package com.example.demo.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;

/**
 * @Author : Licf
 * @Description :  Swagger2配置类
 *      在与spring boot集成时，放在与Application.java同级的目录下。
 *      通过@Configuration注解，让Spring来加载该类配置。
 *      再通过@EnableSwagger2注解来启用Swagger2。
 * @Date : Created in 17:02 2018/4/12
 * @Modified By : Licf
 */

/**
     @Api：修饰整个类，描述Controller的作用
     @ApiOperation：描述一个类的一个方法，或者说一个接口
     @ApiParam：单个参数描述
     @ApiModel：用对象来接收参数
     @ApiProperty：用对象接收参数时，描述对象的一个字段
     @ApiResponse：HTTP响应其中1个描述
     @ApiResponses：HTTP响应整体描述
     @ApiIgnore：使用该注解忽略这个API
     @ApiError ：发生错误返回的信息
     @ApiImplicitParam：一个请求参数
     @ApiImplicitParams：多个请求参数
 */
@Configuration
public class SwaggerConfig {
    /**
     * 创建API应用
     * apiInfo() 增加API相关信息
     * 通过select()函数返回一个ApiSelectorBuilder实例,用来控制哪些接口暴露给Swagger来展现，
     * 本例采用指定扫描的包路径来定义指定要建立API的目录。
     *
     * @return
     */
    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.example.demo.controller")) //Swagger的扫描包
                .paths(PathSelectors.any())
                .build();
    }

    /**
     * 创建该API的基本信息（这些基本信息会展现在文档页面中）
     * 访问地址：http://项目实际地址/swagger-ui.html
     * @return
     */
    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                //页面标题
                .title("Spring Boot 结合 Swagger2 构建RESTful API")
                //创建人
                .contact(new Contact("Licf", "http://www.loveyoursmile.top", "canfengli@126.com"))
                //描述
                .description("简单优雅的Restful风格，博客地址:http://blog.youkuaiyun.com/canfengli")
                .termsOfServiceUrl("http://blog.youkuaiyun.com/canfengli")
                //版本号
                .version("1.0")
                .build();
    }
}

    配置类完成以后还需要再Spring Boot的main方法里面启用Swagger 2；添加注解EnableSwagger2即可。如下：



package com.example.demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import springfox.documentation.swagger2.annotations.EnableSwagger2;


@SpringBootApplication
@EnableSwagger2
public class DemoApplication {
	public static void main(String[] args) {
		SpringApplication.run(DemoApplication.class, args);
	}
}

 四、代码中使用Swagger

    1.新建控制器类UserController.java



package com.example.demo.controller;

/**
 * @Author : Licf
 * @Description : 这个类的作用是
 * @Date : Created in 18:28 2018/4/12
 * @Modified By : Licf
 */
import com.example.demo.bean.JsonResult;
import com.example.demo.bean.User;
import io.swagger.annotations.ApiImplicitParam;
import io.swagger.annotations.ApiImplicitParams;
import io.swagger.annotations.ApiOperation;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;
import springfox.documentation.annotations.ApiIgnore;

import java.util.ArrayList;
import java.util.Collections;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

@RestController
public class UserController {

    // 创建线程安全的Map
    static Map<Integer, User> users = Collections.synchronizedMap(new HashMap<Integer, User>());

    /**
     * 根据ID查询用户
     * @param id
     * @return
     */
    @ApiOperation(value="获取用户详细信息", notes="根据url的id来获取用户详细信息")
    @ApiImplicitParam(name = "id", value = "用户ID", required = true, dataType = "Integer", paramType = "path")
    @RequestMapping(value = "user/{id}", method = RequestMethod.GET)
    public ResponseEntity<JsonResult> getUserById (@PathVariable(value = "id") Integer id){
        JsonResult r = new JsonResult();
        try {
            User user = users.get(id);
            r.setResult(user);
            r.setStatus("ok");
        } catch (Exception e) {
            r.setResult(e.getClass().getName() + ":" + e.getMessage());
            r.setStatus("error");
            e.printStackTrace();
        }
        return ResponseEntity.ok(r);
    }

    /**
     * 查询用户列表
     * @return
     */
    @ApiOperation(value="获取用户列表", notes="获取用户列表")
    @RequestMapping(value = "users", method = RequestMethod.GET)
    public ResponseEntity<JsonResult> getUserList (){
        JsonResult r = new JsonResult();
        try {
            List<User> userList = new ArrayList<User>(users.values());
            r.setResult(userList);
            r.setStatus("ok");
        } catch (Exception e) {
            r.setResult(e.getClass().getName() + ":" + e.getMessage());
            r.setStatus("error");
            e.printStackTrace();
        }
        return ResponseEntity.ok(r);
    }

    /**
     * 添加用户
     * @param user
     * @return
     */
    @ApiOperation(value="创建用户", notes="根据User对象创建用户")
    @ApiImplicitParam(name = "user", value = "用户详细实体user", required = true, dataType = "User")
    @RequestMapping(value = "user", method = RequestMethod.POST)
    public ResponseEntity<JsonResult> add (@RequestBody User user){
        JsonResult r = new JsonResult();
        try {
            users.put(user.getId(), user);
            r.setResult(user.getId());
            r.setStatus("ok");
        } catch (Exception e) {
            r.setResult(e.getClass().getName() + ":" + e.getMessage());
            r.setStatus("error");

            e.printStackTrace();
        }
        return ResponseEntity.ok(r);
    }

    /**
     * 根据id删除用户
     * @param id
     * @return
     */
    @ApiOperation(value="删除用户", notes="根据url的id来指定删除用户")
    @ApiImplicitParam(name = "id", value = "用户ID", required = true, dataType = "Long", paramType = "path")
    @RequestMapping(value = "user/{id}", method = RequestMethod.DELETE)
    public ResponseEntity<JsonResult> delete (@PathVariable(value = "id") Integer id){
        JsonResult r = new JsonResult();
        try {
            users.remove(id);
            r.setResult(id);
            r.setStatus("ok");
        } catch (Exception e) {
            r.setResult(e.getClass().getName() + ":" + e.getMessage());
            r.setStatus("error");

            e.printStackTrace();
        }
        return ResponseEntity.ok(r);
    }

    /**
     * 根据id修改用户信息
     * @param user
     * @return
     */
    @ApiOperation(value="更新信息", notes="根据url的id来指定更新用户信息")
    @ApiImplicitParams({
            @ApiImplicitParam(name = "id", value = "用户ID", required = true, dataType = "Long",paramType = "path"),
            @ApiImplicitParam(name = "user", value = "用户实体user", required = true, dataType = "User")
    })
    @RequestMapping(value = "user/{id}", method = RequestMethod.PUT)
    public ResponseEntity<JsonResult> update (@PathVariable("id") Integer id, @RequestBody User user){
        JsonResult r = new JsonResult();
        try {
            User u = users.get(id);
            u.setUsername(user.getUsername());
            u.setAge(user.getAge());
            users.put(id, u);
            r.setResult(u);
            r.setStatus("ok");
        } catch (Exception e) {
            r.setResult(e.getClass().getName() + ":" + e.getMessage());
            r.setStatus("error");

            e.printStackTrace();
        }
        return ResponseEntity.ok(r);
    }

    @ApiIgnore//使用该注解忽略这个API
    @RequestMapping(value = "/hi", method = RequestMethod.GET)
    public String  jsonTest() {
        return " hi you!";
    }
}

    2.新建返回类JsonResult。



package com.example.demo.bean;

/**
 * @Author : Licf
 * @Description : 这个类的作用是
 * @Date : Created in 18:33 2018/4/12
 * @Modified By : Licf
 */
public class JsonResult {

    private String status = null;
    private Object result = null;

    public String getStatus() {
        return status;
    }

    public void setStatus(String status) {
        this.status = status;
    }

    public Object getResult() {
        return result;
    }

    public void setResult(Object result) {
        this.result = result;
    }
}

    3.新建User类



package com.example.demo.bean;

import java.util.Date;

/**
 * @Author : Licf
 * @Description : 这个类的作用是
 * @Date : Created in 18:31 2018/4/12
 * @Modified By : Licf
 */
public class User {
    private int id;
    private String username;
    private int age;
    private Date ctm;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public int getAge() {
        return age;
    }

    public void setAge(int age) {
        this.age = age;
    }

    public Date getCtm() {
        return ctm;
    }

    public void setCtm(Date ctm) {
        this.ctm = ctm;
    }

}

五、访问方式

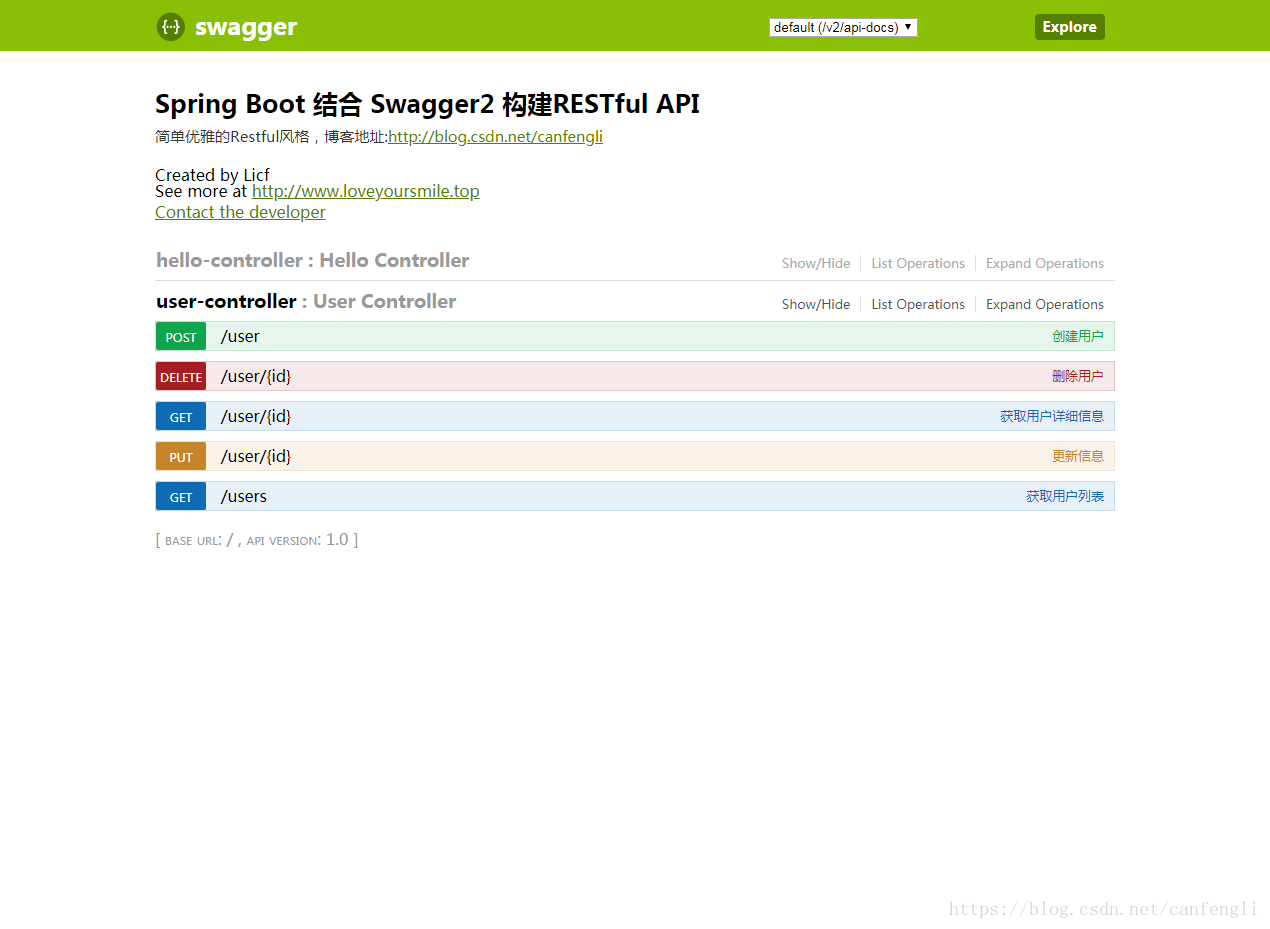

    http://127.0.0.1:8080/swagger-ui.html 端口是默认tomcat的http端口。结果如下如所示：
