springboot+druid+mybatis基于注解切换数据源

原创已于 2022-04-26 13:22:20 修改 · 850 阅读

1 ·

CC 4.0 BY-SA版权

文章标签：

#java

于 2022-04-26 10:29:48 首次发布

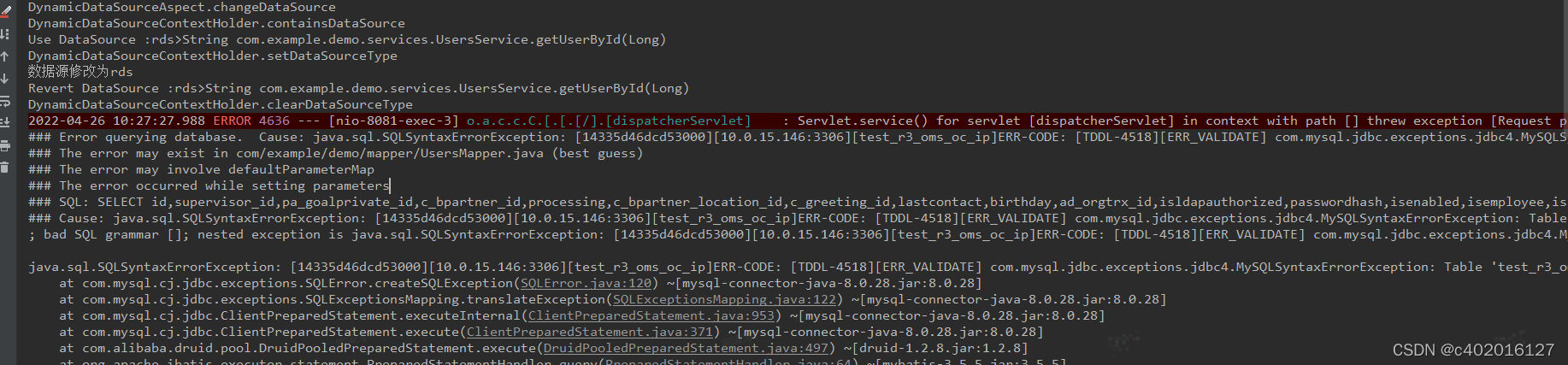

本文介绍了如何在SpringBoot环境中结合Druid和Mybatis使用注解实现数据源的动态切换。作者遇到的问题是数据源切换无效，原因是Druid的数据源配置与自定义配置冲突。通过设置`spring.main.allow-bean-definition-overriding: true`解决了这个问题，允许覆盖默认数据源。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

环境：

jdk 1.8

maven 3.6.0

springboot 2.6.6

druid 1.2.8

1.实现思路
DataSource是和线程绑定的，动态数据源的配置主要是通过继承AbstractRoutingDataSource类实现的，实现在AbstractRoutingDataSource类中的 protected Object determineCurrentLookupKey()方法来获取数据源，所以我们需要先创建一个多线程线程数据隔离的类来存放DataSource，然后在determineCurrentLookupKey()方法中通过这个类获取当前线程的DataSource，在=AbstractRoutingDataSource类中，DataSource是通过Key-value的方式保存的，我们可以通过ThreadLocal来保存Key，从而实现数据源的动态切换。

2.配置信息

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.6.6</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.4.0</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-aop</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.2.8</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.70</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

3.具体代码

public class DynamicDataSourceContextHolder {
    private static ThreadLocal<String> threadLocal = new ThreadLocal<>();
    public static List<String> dataSourceIds = new ArrayList<>();


    public static void setDataSourceType(String dataSourceType){
        System.out.println("DynamicDataSourceContextHolder.setDataSourceType");
        threadLocal.set(dataSourceType);
        System.out.println("数据源修改为"+dataSourceType);
    }

    public static String getDataSourceType(){
        System.out.println("DynamicDataSourceContextHolder.getDataSourceType");
        return threadLocal.get();
    }

    public static void clearDataSourceType() {
        System.out.println("DynamicDataSourceContextHolder.clearDataSourceType");
        threadLocal.remove();
    }

    public static boolean containsDataSource(String dataSourceId) {
        System.out.println("DynamicDataSourceContextHolder.containsDataSource");
        return dataSourceIds.contains(dataSourceId);
    }

}

public class DynamicDataSource extends AbstractRoutingDataSource {
    @Override
    protected Object determineCurrentLookupKey() {
        System.out.println("DynamicDataSource.determineCurrentLookupKey");
        return DynamicDataSourceContextHolder.getDataSourceType();
    }
}

/**
 *  动态数据源注册
 *  启动动态数据源请在启动类中 添加 @Import(DynamicDataSourceRegister.class)
 */
@Component
public class DynamicDataSourceRegister implements BeanDefinitionRegistryPostProcessor, EnvironmentAware {

    // 如配置文件中未指定数据源类型，使用该默认值
    private static final Object DATASOURCE_TYPE_DEFAULT = "org.apache.tomcat.jdbc.pool.DataSource";

    // 数据源
    private DataSource defaultDataSource;
    private Map<String, DataSource> customDataSources = new HashMap();

    @Override
    public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry beanDefinitionRegistry) throws BeansException {
        System.out.println("DynamicDataSourceRegister.postProcessBeanDefinitionRegistry");

        Map<Object, Object> targetDataSources = new HashMap();
        targetDataSources.put("datasource", defaultDataSource);
        targetDataSources.putAll(customDataSources);
        DynamicDataSourceContextHolder.dataSourceIds.add("datasource");

        for (Map.Entry<String, DataSource> stringDataSourceEntry : customDataSources.entrySet()) {
            DynamicDataSourceContextHolder.dataSourceIds.add(stringDataSourceEntry.getKey());
        }

        GenericBeanDefinition beanDefinition = new GenericBeanDefinition();
        beanDefinition.setBeanClass(DynamicDataSource.class);
        beanDefinition.setSynthetic(true);
        MutablePropertyValues mpv = beanDefinition.getPropertyValues();
        mpv.add("defaultTargetDataSource", defaultDataSource);
        mpv.add("targetDataSources", targetDataSources);
        beanDefinitionRegistry.registerBeanDefinition("datasource", beanDefinition);
        System.out.println("Dynamic DataSource Registry");
    }

    @Override
    public void postProcessBeanFactory(ConfigurableListableBeanFactory configurableListableBeanFactory) throws BeansException {

    }

    //加载多数据源配置
    @Override
    public void setEnvironment(Environment environment) {
        System.out.println("DynamicDataSourceRegister.setEnvironment");
        initDefaultDataSource(environment);
        initCustomDataSources(environment);
    }

    private void initDefaultDataSource(Environment env) {
        System.out.println("DynamicDataSourceRegister.initDefaultDataSource");
        Binder binder = Binder.get(env);
        Map properties = binder.bind("spring.datasource", Map.class).orElseThrow(() -> {
            return new RuntimeException("raincloud-jdbc：主数据源未配置");
        });

        try {
            defaultDataSource = buildDataSource(properties);
            dataBinder(defaultDataSource, env,"");
        } catch (Exception var5) {
            throw new RuntimeException("raincloud-jdbc：主数据源配置错误");
        }
    }

    //创建DataSource
    public DataSource buildDataSource(Map<String, Object> dsMap) {
        System.out.println("DynamicDataSourceRegister.buildDataSource");
        try {
            Object type = dsMap.get("type");
            if (type == null) {
                type = DATASOURCE_TYPE_DEFAULT;// 默认DataSource
            }

            Class<? extends DataSource> dataSourceType = (Class<? extends DataSource>)Class.forName((String)type);
            String driverClassName = dsMap.get("driverClassName").toString();
            String url = dsMap.get("url").toString();
            String username = dsMap.get("username").toString();
            String password = dsMap.get("password").toString();
            DataSourceBuilder factory = DataSourceBuilder.create().driverClassName(driverClassName).url(url).username(username).password(password).type(dataSourceType);
            return factory.build();
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        }
        return null;
    }

    private void dataBinder(DataSource dataSource, Environment env,String dsPrefix) {
        System.out.println("DynamicDataSourceRegister.dataBinder");
        Map properties = (Map)Binder.get(env).bind("spring.datasource", Map.class).get();
        if (TypeUtils.castToString(properties.get("type")).contains("com.alibaba.druid.pool.DruidDataSource")) {
            Binder.get(env).bind("spring.datasource.druid"+dsPrefix, Bindable.ofInstance(dataSource));
        } else if (TypeUtils.castToString(properties.get("type")).contains("com.zaxxer.hikari.HikariDataSource")) {
            Binder.get(env).bind("spring.datasource.hikari", Bindable.ofInstance(dataSource));
        }
    }

    private void initCustomDataSources(Environment env) {
        System.out.println("DynamicDataSourceRegister.initCustomDataSources");
        Binder binder = Binder.get(env);
        Map properties = null;
        properties = (Map)binder.bind("slaver.datasource", Map.class).orElse(properties);
        if (properties != null) {
            String dsPrefixs = (String)properties.get("names");
            if (dsPrefixs != null) {
                String[] dsPrefixsSplit = dsPrefixs.split(",");
                int prefixLength = dsPrefixsSplit.length;

                for(int i = 0; i < prefixLength; ++i) {
                    String dsPrefix = dsPrefixsSplit[i];

                    try {
                        Map<String, Object> dsMap = (Map)properties.get(dsPrefix);
                        DataSource ds = buildDataSource(dsMap);
                        customDataSources.put(dsPrefix, ds);
                        dataBinder(ds, env,dsPrefix);
                    } catch (Exception var11) {
                        throw new RuntimeException("raincloud-jdbc：从数据源" + dsPrefix + "配置错误");
                    }
                }
            }
        }
    }

    public void putDataSouce(String name, DataSource dataSource) {
        System.out.println("DynamicDataSourceRegister.putDataSouce");
        customDataSources.put(name, dataSource);
        DynamicDataSourceContextHolder.dataSourceIds.add(name);
        ((DynamicDataSource) ApplicationContextHandle.getBean(DynamicDataSource.class)).afterPropertiesSet();
    }

}

@Component
@Aspect
@Order(-1)
public class DynamicDataSourceAspect {
    @Before("@annotation(ds)")
    public void changeDataSource(JoinPoint point, TargetDataSource ds) {
        System.out.println("DynamicDataSourceAspect.changeDataSource");
        String dsId = ds.name();
        if (!DynamicDataSourceContextHolder.containsDataSource(dsId)) {
            System.out.println("数据源"+ds.name()+"不存在，使用默认数据源 > "+point.getSignature());
        } else {
            System.out.println("Use DataSource :"+ds.name()+">"+point.getSignature());
            DynamicDataSourceContextHolder.setDataSourceType(ds.name());
        }

    }

    @After("@annotation(ds)")
    public void restoreDataSource(JoinPoint point, TargetDataSource ds) {
        System.out.println("Revert DataSource :"+ds.name()+">"+point.getSignature());
        DynamicDataSourceContextHolder.clearDataSourceType();
    }
}

@Target({ElementType.METHOD, ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface TargetDataSource {
    String name();
}

4.调用

@Data
public class Users {

    private Long id;


    private Long supervisorId;


    private Long paGoalprivateId;


    private Long cBpartnerId;


    private String processing;


    private Long cBpartnerLocationId;


    private Long cGreetingId;


    private Integer lastcontact;


    private Integer birthday;


    private Long adOrgtrxId;


    private String isldapauthorized;


    private String passwordhash;


    private Integer isenabled;


    private Integer isemployee;


    private Integer isadmin;


    private Integer usertype;


    private String truename;


    private String name;


    private String description;


    private String password;


    private String email;


    private String emailuser;


    private String emailuserpw;


    private String title;


    private String comments;


    private String phone;


    private String phone2;


    private String fax;


    private String lastresult;


    private String emailverify;


    private Long cDepartmentId;


    private String language;


    private String isOtp;


    private Integer otpLength;


    private Integer otpSeconds;


    private String otpSecret;


    private BigDecimal otpCounter;


    private String isOtpOnly;


    private Date otpCdate;


    private String loginIpRule;


    private String issms;


    private String isOut;


    private Long assigneeId;


    private String issaler;


    private Long cStoreId;


    private BigDecimal discountlimit;


    private String isopr;


    private String saasvendor;


    private String saasuser;


    private Long hrEmployeeId;


    private Long cCustomerId;


    private Long cCustomerupId;


    private Long areamngId;


    private Integer sgrade;


    private Long cPriceregionId;


    private Long cSupplierId;


    private String subsystems;


    private Date passwordexpirationdate;


    private String passwordreset;


    private String isret;


    private String webposPer;


    private String issys;


    private String isSysUser;


    private String smslogin;


    private Long cMbrId;


    private String pwdrand;


    private Date lastlogindate;


    private String lastloginip;


    private String loginip;


    private Date logindate;


    private Long failedloginattempts;


    private Long cAreaId;


    private String wechatAuth;


    private String qqAuth;


    private String sinaAuth;


    private String headimg;


    private String employeeno;


    private Integer ismanager;


    private Integer groupsgrade;


    private Long cpCHrorgId;


    private String ecode;


    private String ename;


    private Long cpCDistribId;


    private Long cpCStoreId;


    private Long cpCSupplierId;


    private String userstype;


    private String f4;


    private String rf;


    private String pb1;


    private String pb2;


    private String pb3;


    private String pb4;


    private String pb5;


    private String pb6;


    private String remark;


    private String mobil;


    private String openid;


    private Long cpCEmpId;


    private String sex;


    private String modifierename;


    private String ownerename;


    private Integer isdev;


    private String wechat;


    private String adyu;


    private Long cpCPhyWarehouseId;


    private String mac;
}

@Mapper
public interface UsersMapper extends BaseMapper<Users> {

    @Select("select email_title as processing from ip_b_email where id = #{id}")
    String getUser(@Param("id")Long id);


}

@Service
public class UsersService {

    @Autowired
    private UsersMapper usersMapper;

    @TargetDataSource(name = "rds")
    public String getUserById(Long id){
        Users users = usersMapper.selectById(id);
        String name = "";
        if (null != users) {
            name = users.getName();
        }
        return name;
    }

    @TargetDataSource(name = "mysql")
    public String getUser(Long id){
        return usersMapper.getUser(id);
    }


}

@RestController
public class UserController {

    @Autowired
    private UsersService usersService;


    @RequestMapping("/c/getUserName/{id}")
    public String getUsersById(@PathVariable Long id){
        return usersService.getUserById(id);
    }

    @RequestMapping("/c/getUser/{id}")
    public String getUsers(@PathVariable Long id){
        return usersService.getUser(id);
    }

}

5.存在问题

工程启动正常，数据源切换不了，还是使用的默认数据源
