[3.3] 阻塞与非阻塞通信 理论+代码

1. 阻塞通信的发生和解决

MPI的p2p中包括两种模式：

a. 阻塞通信（Blocking）
MPI_Send 和 MPI_Recv 在返回前，必须满足以下条件之一：MPI_Send 完成消息的发送（或在缓冲区中完成存储）和MPI_Recv 完成消息的接收（数据已经被复制到接收缓冲区中）。此时，直到完成发送和接收，这两个函数会让进程在此处“停住”。

b. 非阻塞通信（Non-blocking）
发送和接收操作被立即返回，通信操作在后台继续进行。需要通过 MPI_Test 或 MPI_Wait 等函数来判断通信是否完成。

2. 点对点通信应用程序案例 - 随机步行（Random Walk）

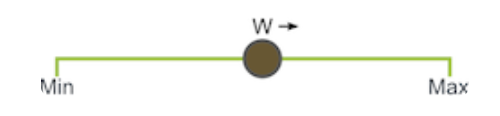

问题描述：给定左右边界Min，Max和游走器Walker。游走器 W 向右以任意长度的 S 随机移动。 如果该过程越过边界，它就会绕回。如何并行化随机游走问题？

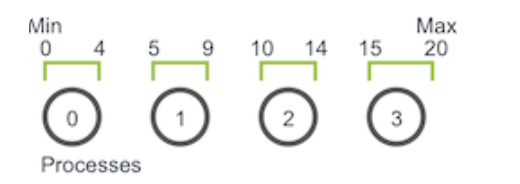

首先在各个进程之间划分域。 并将域的大小定义为Max - Min + 1，（因为游走器包含 Max 和 Min）。 假设游走器只能采取整数大小的步长，我们可以轻松地将域在每个进程中划分为大小近乎相等的块。 例如，如果 Min 为 0，Max 为 20，并且我们有四个进程，则将像这样拆分域。

012每个域有五个单元，最后一个域有6个单元。例如，如果游走器在进程 0（使用先前的分解域）上进行了移动总数为 6 的游走，则游走器的执行将如下所示：

1. 游走器的步行长度开始增加。但是，当它的值达到 4 时，它已到达进程 0 的边界。因此，进程 0 必须与进程 1 交流游走器的信息。
2. 进程 1 接收游走器，并继续移动，直到达到移动总数 6。然后，游走器可以继续进行新的随机移动。

W 仅需从进程 0 到进程 1 进行一次通信。

#include <iostream>
#include <mpi.h>
#include <vector>
#include <cstdlib>
#include <time.h>

using namespace std;

void decompose_domain (int domain_size, int world_rank, int world_size,
                       int * subdomain_start, int * subdomain_size) {
    /* 将域分割成偶数个块，函数返回子域开始和子域大小 */
    if (world_size > domain_size) {
        MPI_Abort(MPI_COMM_WORLD, 1);
    }
    *subdomain_start = domain_size / world_size * world_rank;
    *subdomain_size = domain_size / world_size;
    if (world_rank == world_size - 1) {
        *subdomain_size += domain_size % world_size;
    }
}

typedef struct {
    int location;
    int num_step_left_in_walk;
} Walker;

void initialize_walker (int num_walker_per_proc, int max_walk_size, int subdomain_start,
                        vector<Walker> *incoming_walkers) {
    Walker walker;
    for (int i = 0; i < num_walker_per_proc; i++) {
        // Initialize walkers in the middle of the subdomain
        walker.location = subdomain_start;
        walker.num_step_left_in_walk = (rand() / (float)RAND_MAX) * max_walk_size;
        incoming_walkers->push_back(walker);
    }
}

void walk(Walker* walker, int subdomain_start, int subdomain_size,
    int domain_size, vector<Walker>* outgoing_walkers) {
    while (walker->num_step_left_in_walk > 0) {
        if (walker->location >= subdomain_start + subdomain_size) {
        // Take care of the case when the walker is at the end
        // of the domain by wrapping it around to the beginning
            if (walker->location == domain_size) {
                walker->location = 0;
            }
            outgoing_walkers->push_back(*walker);
            break;
        } else {
            walker->num_step_left_in_walk--;
            walker->location++;
        }
    }
}

void send_outgoing_walkers(vector<Walker>* outgoing_walkers,
                     int world_rank, int world_size) {
    // Send the data as an array of MPI_BYTEs to the next process.
    // The last process sends to process zero.
    MPI_Send((void*)outgoing_walkers->data(),
        outgoing_walkers->size() * sizeof(Walker), MPI_BYTE,
        (world_rank + 1) % world_size, 0, MPI_COMM_WORLD);
    // Clear the outgoing walkers list
    outgoing_walkers->clear();
}

void receive_incoming_walkers(vector<Walker>* incoming_walkers,
                        int world_rank, int world_size) {
    // Probe for new incoming walkers
    MPI_Status status;
    // Receive from the process before you. If you are process zero,
    // receive from the last process
    int incoming_rank = (world_rank == 0) ? world_size - 1 : world_rank - 1;
    MPI_Probe(incoming_rank, 0, MPI_COMM_WORLD, &status);
    // Resize your incoming walker buffer based on how much data is
    // being received
    int incoming_walkers_size;
    MPI_Get_count(&status, MPI_BYTE, &incoming_walkers_size);
    incoming_walkers->resize(incoming_walkers_size / sizeof(Walker));
    MPI_Recv((void*)incoming_walkers->data(), incoming_walkers_size,
        MPI_BYTE, incoming_rank, 0, MPI_COMM_WORLD,
        MPI_STATUS_IGNORE);
}

int main(int argc, char** argv) {
    int domain_size;
    int max_walk_size;
    int num_walkers_per_proc;

    if (argc < 4) {
        cerr << "Usage: random_walk domain_size max_walk_size "
             << "num_walkers_per_proc" << endl;
        exit(1);
    }

    domain_size = atoi(argv[1]);
    max_walk_size = atoi(argv[2]);
    num_walkers_per_proc = atoi(argv[3]);

    MPI_Init(NULL, NULL);
    int world_size;
    MPI_Comm_size(MPI_COMM_WORLD, &world_size);
    int world_rank;
    MPI_Comm_rank(MPI_COMM_WORLD, &world_rank);

    srand(time(NULL) * world_rank);

    int subdomain_start, subdomain_size;
    vector<Walker> incoming_walkers, outgoing_walkers;

    // Find your part of the domain
    decompose_domain(domain_size, world_rank, world_size,
                     &subdomain_start, &subdomain_size);

    // Initialize walkers in your subdomain
    initialize_walker(num_walkers_per_proc, max_walk_size, subdomain_start,
                      &incoming_walkers);

    cout << "Process " << world_rank << " initiated " << num_walkers_per_proc
         << " walkers in subdomain " << subdomain_start << " - "
         << subdomain_start + subdomain_size - 1 << endl;

    // Determine the maximum amount of sends and receives needed to
    // complete all walkers
    int maximum_sends_recvs = max_walk_size / (domain_size / world_size) + 1;
    for (int m = 0; m < maximum_sends_recvs; m++) {
        // Process all incoming walkers
        for (int i = 0; i < incoming_walkers.size(); i++) {
            walk(&incoming_walkers[i], subdomain_start, subdomain_size,
                 domain_size, &outgoing_walkers);
        }

        cout << "Process " << world_rank << " sending " << outgoing_walkers.size()
             << " outgoing walkers to process " << (world_rank + 1) % world_size
             << endl;

        if (world_rank % 2 == 0) {
            // Send all outgoing walkers to the next process.
            send_outgoing_walkers(&outgoing_walkers, world_rank,
                                  world_size);
            // Receive all the new incoming walkers
            receive_incoming_walkers(&incoming_walkers, world_rank,
                                     world_size);
        } else {
            // Receive all the new incoming walkers
            receive_incoming_walkers(&incoming_walkers, world_rank,
                                     world_size);
            // Send all outgoing walkers to the next process.
            send_outgoing_walkers(&outgoing_walkers, world_rank,
                                  world_size);
        }

        cout << "Process " << world_rank << " received " << incoming_walkers.size()
             << " incoming walkers" << endl;
    }

    cout << "Process " << world_rank << " done" << endl;

    MPI_Finalize();
    return 0;
}
// instruction
// mpic++ random_walk.cc -o random_walk
// mpirun -np 5 ./random_walk 100 500 20

下一节将会说集合通信
