DOM操作 045

本文深入讲解了DOM(文档对象模型)的基本概念与操作方法,包括获取DOM元素的各种方式,如通过ID、标签名、类名等,以及如何利用JS进行元素的值、样式、属性的修改,展示了丰富的代码实例。

DOM操作 045

一 什么是DOM




  DOM : 文档对象模型 它为文档提供了结构化表示 并定义了如何通过脚本来访问文档结构 . 目的就是为了能让js操作HTML元素而制定的一个规范 .

  DOM树(一切都是节点):

    元素节点 : HTML标签

    文本节点 : 标签中的文字(比如标签之间的空格 换行)

    属性节点 : 标签的属性

  DOM可以做什么 : 找对象(元素节点)  设置对象的值  设置元素的样式 动他创建和删除元素  事件的触发响应 : 事件源 事件 事件的驱动程序

  获取DOM的方式:

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
    <div class="box" id="box">
        <p>alex</p>
    </div>
    <p class="box">吴老板</p>

    <script type="text/javascript">
        console.log(window);
        console.dir(document);
        console.log(document.documentElement);
        console.log(document.body)
        //1.通过id获取
        var oDiv = document.getElementById('box');
        console.log(oDiv);
    //    2.通过标签获取 获取是伪数组 多个DOM对象
        var oTag = document.getElementsByTagName('div')[0]; //HTMLCollection 伪数组 有数组的索引和length,但是没有数组的方法
        console.log(oTag);
        oTag.style.color = 'red';
    //    3.通过类名获取 获取的也是伪数组 多个DOM对象
        var oActives = document.getElementsByClassName('box');
        console.log(oActives);
        for(var i = 0; i < oActives.length; i ++){
            //样式设置
            oActives[i].style.backgroundColor = 'green';
        }
        //救命稻草

        var oD = document.querySelectorAll('div p')
        console.log(oD);

        oD.forEach(function (item,index) {
            console.log(item);
        })


    </script>

</body>
</html>



二 DOM中的操作:

  1 js对值的处理:

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
    <div id="box">
        wusir
        <p>alex</p>
    </div>
    <input type="text" value="" id="user">
    <script>
        var oDiv = document.getElementById('box');
        // oDiv.innerText= '<h1>哈哈哈哈</h1>';
        // oDiv.innerHTML = '嘿嘿嘿嘿';
        // oDiv.innerHTML = '<h3>嘿嘿嘿</h3>'

        //只获取所有(当前标签和子标签)文本内容
        // console.log(oDiv.innerText);
        //获取父标签中所有的标签元素 (子标签,空格,换行,文本)
        console.log(oDiv.innerHTML);
        //设置value值  只适用于表单控件元素
        document.getElementById('user').value = 'alex';
        console.log(document.getElementById('user').value);
    </script>

</body>
</html>

  2 对 css 的操作:

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <style>
        .box {
            width: 200px;
            height: 300px;
            background-color: red;
        }
    </style>
</head>
<body>
<div class="box"></div>
<script>
    var oDiv = document.getElementsByClassName('box')[0];

    var isRed = true;
    oDiv.onclick = function () {
        if (isRed) {
            console.log(this.style);
            //this  谁做的事件操作 this指向谁
            this.style.backgroundColor = 'green';
            this.style.width = '400px';
            isRed = false;
        } else {
            this.style.backgroundColor = 'red';
            isRed = true;
        }

    }
</script>

</body>

  3 对标签属性操作:

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <style>
        .box {
            width: 200px;
            height: 300px;
            background-color: red;
        }

        #box {
            background-color: yellow;
        }

        .active {
            display: none;
        }
    </style>
</head>
<body>
<button id="btn">切换</button>
<div class="box"></div>
<script>
    var oDiv = document.getElementsByClassName('box')[0];
    var oBtn = document.getElementById('btn');
    var isShow = true;
    //不等待
    oBtn.onclick = function () {
        if (isShow) {
            //   对id 对标签赋值id
            // oDiv.id = 'box';
            // oDiv.title = '哈哈哈';
            // console.log(oDiv.className); //box
            //设置类名的时候 一定要用className 因为class是个关键字
            oDiv.className = oDiv.className + ' active';
            isShow = false;
        }else{
             oDiv.className = 'box';
            isShow = true;
        }

    }
    console.log(11111);

</script>

</body>
</html>

  4 .img标签属性的操作:

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <style>
        /*重置样式*/
        *{
            padding: 0;
            margin: 0;
        }
        .swiper{
            width: 1000px;
            height: 460px;
            margin: 0 auto;
            background-color: red;
            position: relative;
        }
        .swiper span{
            position: absolute;
            right: 0;
            top: 50%;
            width: 41px;
            height: 69px;
            background: green url("./icon-slides.png") no-repeat -125px 0;
        }
    </style>
</head>
<body>
    <div class="swiper">
        <span id="next"></span>
        <img src="./1.png" alt="" id="meinv">
    </div>
    <script>
        var oImg = document.getElementById('meinv');
        console.dir(oImg);
        var oNext = document.getElementById('next');
        oImg.onmouseover = function () {
            //this.src 获取的是DOM对象的属性
            //console.log(this.src); //绝对路径
            //获取出来的就是标签上的属性 通过getAttribute('');获取的标签上的属性
            console.log(this.getAttribute('src'));
            this.src = '1_hover.png';
            this.alt = '哈哈哈'
        }
        oImg.onmouseout = function () {
            this.src = '1.png'
            //console.log(this.getAttribute('src'))
        }
        oNext.onmouseover = function () {
            // console.log( this.style);
            this.style.backgroundPositionX = '-42px';
            this.style.backgroundPositionY = '0';
        }
    </script>
</body>
</html>

  5 .属性方法设置和获取

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
    <div id="box">alex</div>
    <script>
        // document.getElementsByTagName('div')[0].setAttribute()
    </script>

</body>
</html>

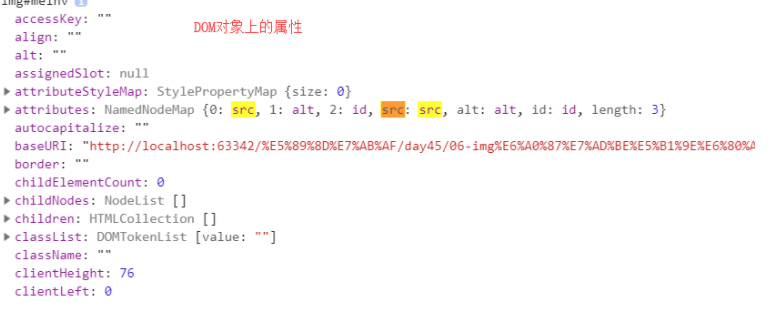

  6 .对象属性和标签属性区分


# 区分DOM对象属性 和 标签属性
//this.src 获取的是DOM对象的属性
console.log(this.src); //绝对路径
//获取出来的就是标签上的属性 通过getAttribute('');获取的标签上的属性
console.log(this.getAttribute('src'));
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
<input type="text" name="user" id="user">
<img src="./1.png" alt="" id="aImg"><input type="radio" name="sex" checked="xxxxx" id="nan"><input type="radio" name="sex" id="nv">
<script>

    function  $(idName) {

        return document.getElementById(idName);
    }

    var oInput = document.getElementById('user');
    var oImg = document.getElementById('aImg');

    console.dir(oInput);//DOM对象
    console.log(oInput.type);
    console.log(oInput.getAttribute('type'));


    console.dir(oImg);
    console.log(oImg.src);
    console.log(oImg.getAttribute('src'));

    console.log(  $('nan').checked); //对象的属性   单选框 提交后台 建议使用对象属性checked
    console.log(  $('nan').getAttribute('checked')); //标签上属性
</script>

</body>
</html>
View Code
