kubernetes部署traefik1.7

1、镜像

docker pull traefik:v1.7.33-alpine

2、tag

docker images | grep traefik
traefik   v1.7.33-alpine   d2edc46527be   3 months ago    89MB

docker tag d2edc46527be registry.cn-shenzhen.aliyuncs.com/hqyinfra/traefik:v1.7.33-alpine

3、推送

docker push registry.cn-shenzhen.aliyuncs.com/hqyinfra/traefik:v1.7.33-alpine

4、rbac.yaml

kubectl apply -f rbac.yaml

kind: ServiceAccount
apiVersion: v1
metadata:
  name: traefik
  namespace: kube-system
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: traefik
rules:
  - apiGroups:
      - ""
    resources:
      - services
      - endpoints
      - secrets
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
    - extensions
    resources:
    - ingresses/status
    verbs:
    - update
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: traefik
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: traefik
subjects:
- kind: ServiceAccount
  name: traefik
  namespace: kube-system

5、ds.yaml

kubectl apply -f ds.yaml

kind: DaemonSet
apiVersion: apps/v1
metadata:
  name: traefik
  namespace: kube-system
  labels:
    app: traefik
spec:
  selector:
    matchLabels:
      app: traefik
  template:
    metadata:
      labels:
        app: traefik
        name: traefik
    spec:
      serviceAccountName: traefik
      terminationGracePeriodSeconds: 60
      containers:
      - image: registry.cn-shenzhen.aliyuncs.com/hqyinfra/traefik:v1.7.33-alpine
        name: traefik
        ports:
        - name: http
          containerPort: 80
          hostPort: 8848
        - name: admin
          containerPort: 8080
        securityContext:
          capabilities:
            drop:
            - ALL
            add:
            - NET_BIND_SERVICE
        args:
        - --api
        - --kubernetes
        - --logLevel=INFO
        - --insecureskipverify=true
        - --metrics.prometheus

6、svc.yaml

kubectl apply -f svc.yaml

kind: Service
apiVersion: v1
metadata:
  name: traefik
  namespace: kube-system
spec:
  selector:
    app: traefik
  ports:
    - protocol: TCP
      port: 80
      name: http
    - protocol: TCP
      port: 8080
      name: admin

7、ingress.yaml

kubectl apply -f ingress.yaml

kind: Ingress
apiVersion: networking.k8s.io/v1
metadata:
  name: traefik
  namespace: kube-system
spec:
  rules:
  - host: traefik.candy.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: traefik
            port:
              number: 8080

8、配置hosts

vi /etc/hosts
127.0.0.1 traefik.candy.com

9、部署转发的nginx

docker pull nginx:1.21.5-alpine

docker images | grep nginx
nginx   1.21.5-alpine   cc44224bfe20   2 weeks ago     23.5MB

docker tag cc44224bfe20 registry.cn-shenzhen.aliyuncs.com/hqyinfra/nginx:v1.21.5-alpine

docker push registry.cn-shenzhen.aliyuncs.com/hqyinfra/nginx:v1.21.5-alpine

docker run -d -p 80:80 -p 443:443 --name nginx registry.cn-shenzhen.aliyuncs.com/hqyinfra/nginx:v1.21.5-alpine

10、修改nginx配置

kubectl get nodes -o wide
NAME             STATUS   ROLES                  AGE   VERSION   INTERNAL-IP    EXTERNAL-IP   OS-IMAGE         KERNEL-VERSION     CONTAINER-RUNTIME
docker-desktop   Ready    control-plane,master   91d   v1.21.5   192.168.65.4   <none>        Docker Desktop   5.10.47-linuxkit   docker://20.10.8

docker exec -it nginx sh
vi /etc/nginx/conf.d/candy.com.conf

candy.com.conf

upstream default_backend_traefik {
    # node ip
    server 192.168.65.4:8848;
}
server {
    server_name *.candy.com;
    location / {
        proxy_pass http://default_backend_traefik;
        proxy_set_header Host $http_host;
        proxy_set_header x-forwarded-for $proxy_add_x_forwarded_for;
    }
}

nginx -s reload
exit

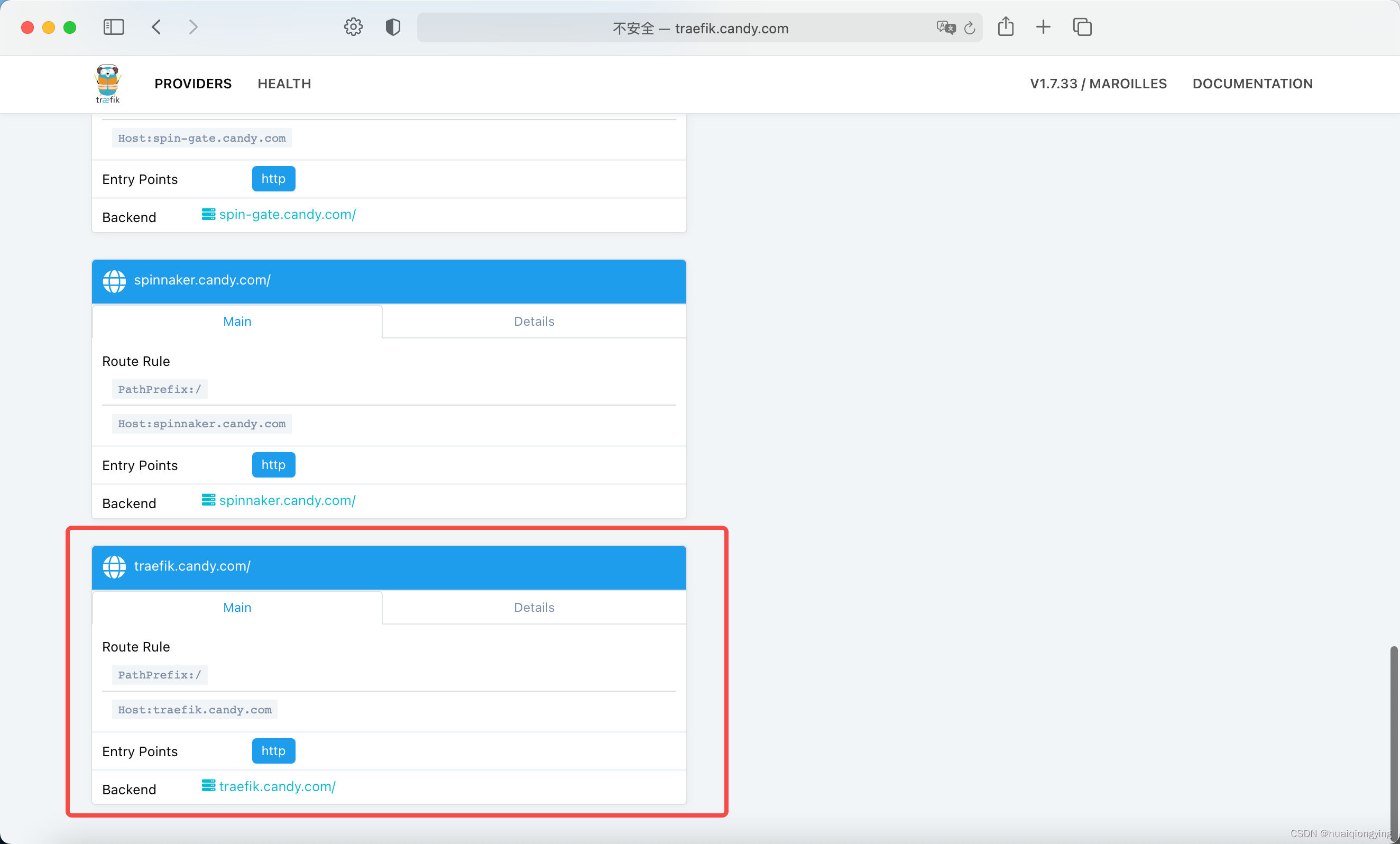

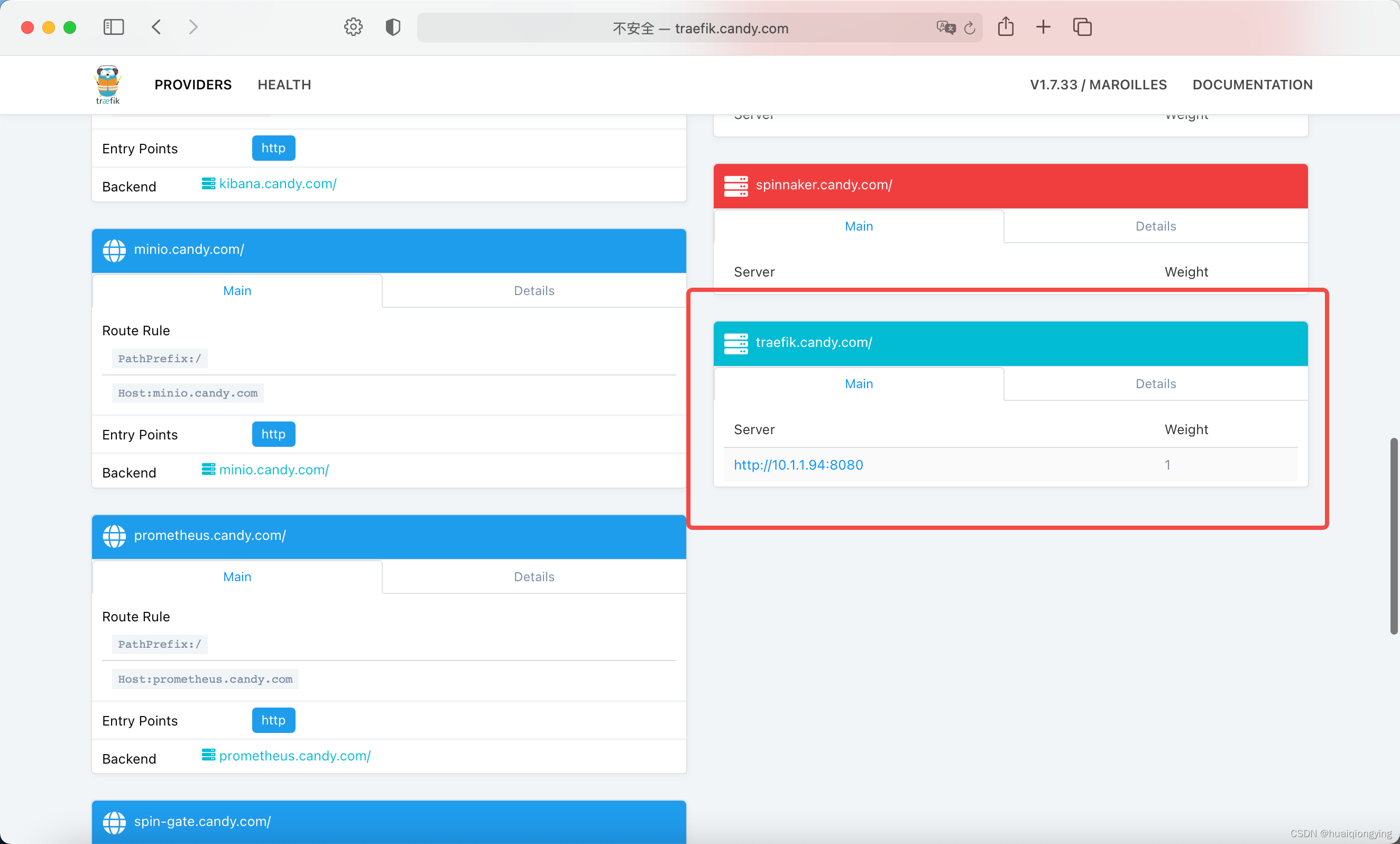

11、浏览器访问：traefik.candy.com
