搜索算法网页演示

文字说明

采用GPT生成的常用搜索算法的网页动画演示效果，帮助理解常用的一些搜索算法的实现思路

核心代码

DFS搜索算法

const ROWS = 20;
const COLS = 20;
let grid = [];
let startCell = null;
let endCell = null;
let isRunning = false;

function createGrid() {
    const gridContainer = document.getElementById('grid-container');
    for (let row = 0; row < ROWS; row++) {
        const rowArray = [];
        for (let col = 0; col < COLS; col++) {
            const cell = document.createElement('div');
            cell.classList.add('cell');
            cell.dataset.row = row;
            cell.dataset.col = col;
            cell.addEventListener('click', handleCellClick);
            gridContainer.appendChild(cell);
            rowArray.push(cell);
        }
        grid.push(rowArray);
    }
}

function handleCellClick(event) {
    const cell = event.target;
    if (!startCell && !cell.classList.contains('end')) {
        cell.classList.add('start');
        startCell = cell;
    } else if (!endCell && cell !== startCell) {
        cell.classList.add('end');
        endCell = cell;
    }
}

async function dfs(start, end) {
    if (isRunning) return;
    isRunning = true;

    resetGrid();

    const stack = [start];
    const visited = new Set();
    const parentMap = {};
    let found = false;

    while (stack.length > 0) {
        const current = stack.pop();
        const [row, col] = current;

        if (visited.has(`${row},${col}`)) continue;
        visited.add(`${row},${col}`);
        grid[row][col].classList.add('visited');

        if (grid[row][col] === endCell) {
            found = true;
            break;
        }

        const neighbors = getNeighbors(row, col).reverse(); // Reverse to prioritize up, left, down, right
        for (const neighbor of neighbors) {
            const [nRow, nCol] = neighbor;
            if (!visited.has(`${nRow},${nCol}`)) {
                stack.push([nRow, nCol]);
                parentMap[`${nRow},${nCol}`] = [row, col];
            }
        }

        // Animation delay
        await sleep(100); // Wait for 1 second between steps
    }

    if (found) {
        reconstructPath(parentMap, end);
    }

    isRunning = false;
    enableStartButton();
}

function getNeighbors(row, col) {
    const neighbors = [];
    const directions = [
        [0, 1], // right
        [1, 0], // down
        [0, -1], // left
        [-1, 0] // up
    ];

    for (const [dr, dc] of directions) {
        const newRow = row + dr;
        const newCol = col + dc;
        if (newRow >= 0 && newRow < ROWS && newCol >= 0 && newCol < COLS) {
            neighbors.push([newRow, newCol]);
        }
    }

    return neighbors;
}

function reconstructPath(parentMap, end) {
    let path = [];
    let current = end;
    while (current) {
        path.unshift(current);
        current = parentMap[current.join(',')] || null;
    }

    for (const [row, col] of path) {
        if (grid[row][col] !== startCell && grid[row][col] !== endCell) {
            grid[row][col].classList.add('path');
        }
    }
}

document.getElementById('start-btn').addEventListener('click', async () => {
    disableStartButton();
    if (startCell && endCell) {
        await dfs([parseInt(startCell.dataset.row), parseInt(startCell.dataset.col)], [parseInt(endCell.dataset.row), parseInt(endCell.dataset.col)]);
    } else {
        alert('Please select both start and end cells.');
        enableStartButton();
    }
});

createGrid();

// Helper function to create a delay
function sleep(ms) {
    return new Promise(resolve => setTimeout(resolve, ms));
}

function disableStartButton() {
    const startBtn = document.getElementById('start-btn');
    startBtn.disabled = true;
    startBtn.textContent = 'Running...';
}

function enableStartButton() {
    const startBtn = document.getElementById('start-btn');
    startBtn.disabled = false;
    startBtn.textContent = 'Start DFS';
}

function resetGrid() {
    // Clear all cells' classes except 'start' and 'end'
    for (let row = 0; row < ROWS; row++) {
        for (let col = 0; col < COLS; col++) {
            const cell = grid[row][col];
            cell.classList.remove('visited', 'path');
        }
    }
}

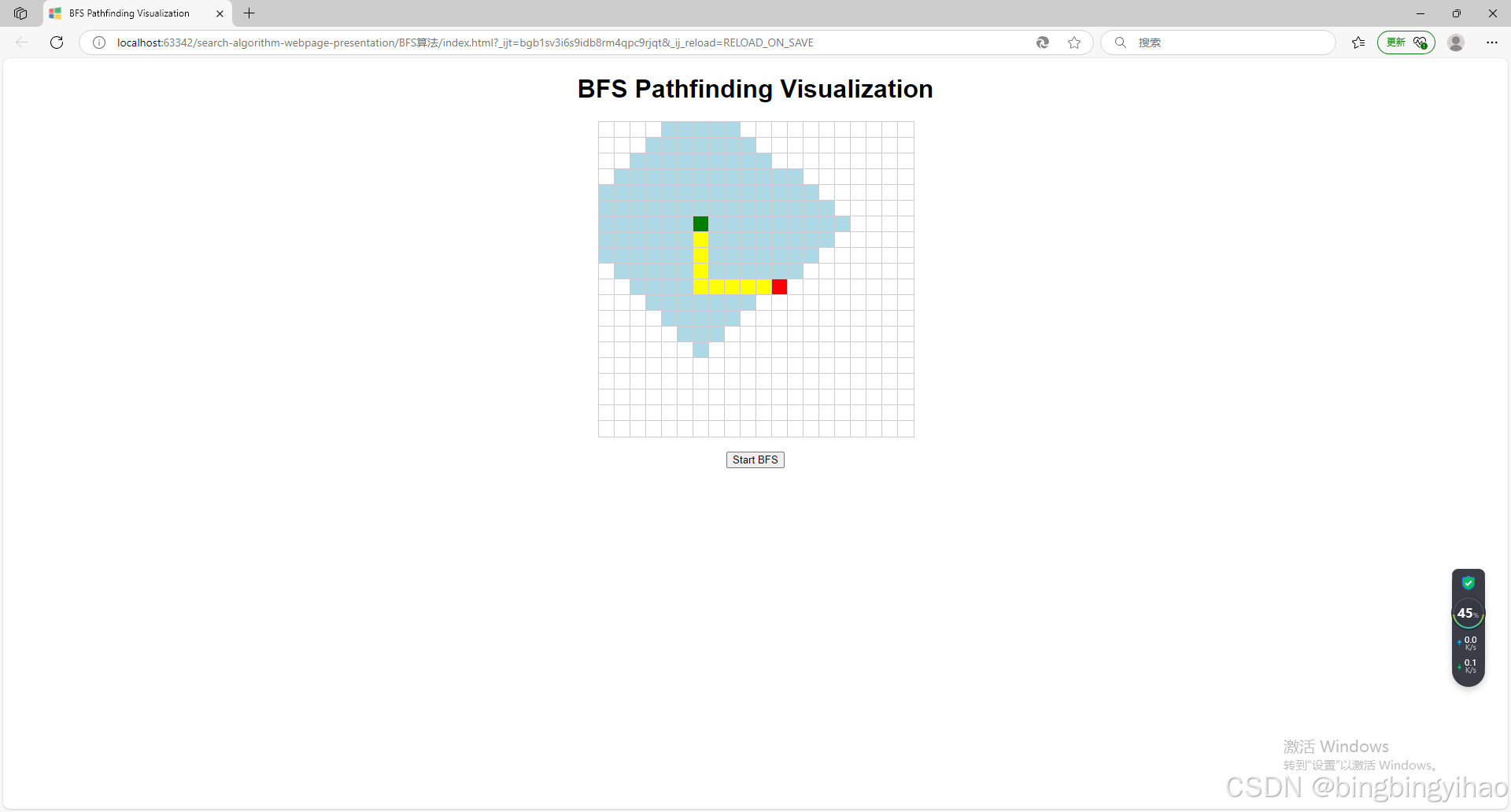

BFS搜索算法

const ROWS = 20;
const COLS = 20;
let grid = [];
let startCell = null;
let endCell = null;
let isRunning = false;

function createGrid() {
    const gridContainer = document.getElementById('grid-container');
    for (let row = 0; row < ROWS; row++) {
        const rowArray = [];
        for (let col = 0; col < COLS; col++) {
            const cell = document.createElement('div');
            cell.classList.add('cell');
            cell.dataset.row = row;
            cell.dataset.col = col;
            cell.addEventListener('click', handleCellClick);
            gridContainer.appendChild(cell);
            rowArray.push(cell);
        }
        grid.push(rowArray);
    }
}

function handleCellClick(event) {
    const cell = event.target;
    if (!startCell) {
        cell.classList.add('start');
        startCell = cell;
    } else if (!endCell && cell !== startCell) {
        cell.classList.add('end');
        endCell = cell;
    }
}

async function bfs(start, end) {
    if (isRunning) return;
    isRunning = true;

    resetGrid();

    const queue = [start];
    const visited = new Set();
    const parentMap = {};
    let found = false;

    while (queue.length > 0) {
        const current = queue.shift();
        const [row, col] = current;

        if (visited.has(`${row},${col}`)) continue;
        visited.add(`${row},${col}`);
        grid[row][col].classList.add('visited');

        if (grid[row][col] === endCell) {
            found = true;
            break;
        }

        const neighbors = getNeighbors(row, col);
        for (const neighbor of neighbors) {
            const [nRow, nCol] = neighbor;
            if (!visited.has(`${nRow},${nCol}`)) {
                queue.push([nRow, nCol]);
                parentMap[`${nRow},${nCol}`] = [row, col];
            }
        }

        // Animation delay
        await sleep(100); // Wait for 100ms between steps
    }

    if (found) {
        await reconstructPath(parentMap, [parseInt(endCell.dataset.row), parseInt(endCell.dataset.col)]);
    }

    isRunning = false;
    enableStartButton();
}

function getNeighbors(row, col) {
    const neighbors = [];
    const directions = [
        [0, 1], // right
        [1, 0], // down
        [0, -1], // left
        [-1, 0] // up
    ];

    for (const [dr, dc] of directions) {
        const newRow = row + dr;
        const newCol = col + dc;
        if (newRow >= 0 && newRow < ROWS && newCol >= 0 && newCol < COLS) {
            neighbors.push([newRow, newCol]);
        }
    }

    return neighbors;
}

async function reconstructPath(parentMap, end) {
    let path = [];
    let current = end.join(',');

    // Build the path from end to start
    while (current) {
        const [row, col] = current.split(',').map(Number);
        path.unshift([row, col]);
        current = parentMap[current] ? parentMap[current].join(',') : null;
    }

    // Highlight each cell in the path with a delay
    for (const [row, col] of path) {
        if (grid[row][col] !== startCell && grid[row][col] !== endCell) {
            grid[row][col].classList.add('path');
            await sleep(100); // Wait for 100ms between highlighting each cell
        }
    }
}

document.getElementById('start-btn').addEventListener('click', async () => {
    disableStartButton();
    if (startCell && endCell) {
        await bfs([parseInt(startCell.dataset.row), parseInt(startCell.dataset.col)], [parseInt(endCell.dataset.row), parseInt(endCell.dataset.col)]);
    } else {
        alert('Please select both start and end cells.');
        enableStartButton();
    }
});

createGrid();

// Helper function to create a delay
function sleep(ms) {
    return new Promise(resolve => setTimeout(resolve, ms));
}

function disableStartButton() {
    const startBtn = document.getElementById('start-btn');
    startBtn.disabled = true;
    startBtn.textContent = 'Running...';
}

function enableStartButton() {
    const startBtn = document.getElementById('start-btn');
    startBtn.disabled = false;
    startBtn.textContent = 'Start BFS';
}

function resetGrid() {
    // Clear all cells' classes except 'start' and 'end'
    for (let row = 0; row < ROWS; row++) {
        for (let col = 0; col < COLS; col++) {
            const cell = grid[row][col];
            cell.classList.remove('visited', 'path');
        }
    }
}

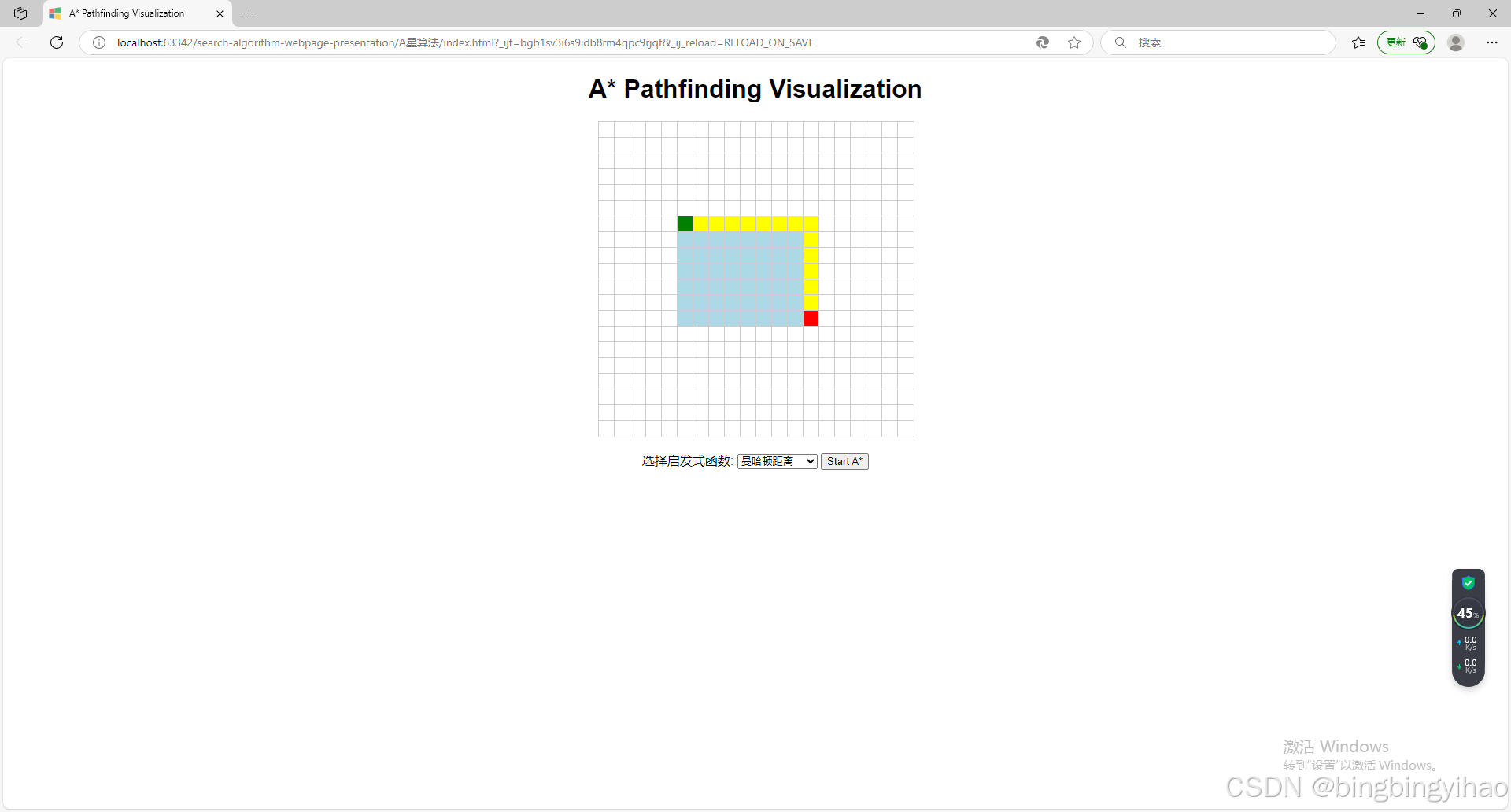

A*搜索算法

const ROWS = 20;
const COLS = 20;
let grid = [];
let startCell = null;
let endCell = null;
let isRunning = false;

function createGrid() {
    const gridContainer = document.getElementById('grid-container');
    for (let row = 0; row < ROWS; row++) {
        const rowArray = [];
        for (let col = 0; col < COLS; col++) {
            const cell = document.createElement('div');
            cell.classList.add('cell');
            cell.dataset.row = row;
            cell.dataset.col = col;
            cell.addEventListener('click', handleCellClick);
            gridContainer.appendChild(cell);
            rowArray.push(cell);
        }
        grid.push(rowArray);
    }
}

function handleCellClick(event) {
    const cell = event.target;
    if (!startCell) {
        cell.classList.add('start');
        startCell = cell;
    } else if (!endCell && cell !== startCell) {
        cell.classList.add('end');
        endCell = cell;
    }
}

async function aStar(start, end) {
    if (isRunning) return;
    isRunning = true;

    resetGrid();

    const openSet = new PriorityQueue();
    const cameFrom = {};
    const gScore = {};
    const fScore = {};

    gScore[start.join(',')] = 0;
    fScore[start.join(',')] = heuristic(start, end);

    openSet.enqueue(start, fScore[start.join(',')] || Infinity);

    while (!openSet.isEmpty()) {
        const current = openSet.dequeue().element;
        const [row, col] = current;

        if (current.join(',') === end.join(',')) {
            await reconstructPath(cameFrom, end);
            isRunning = false;
            enableStartButton();
            return;
        }

        grid[row][col].classList.add('visited');

        const neighbors = getNeighbors(row, col);
        for (const neighbor of neighbors) {
            const [nRow, nCol] = neighbor;
            const tentativeGScore = gScore[current.join(',')] + 1;

            if (tentativeGScore < (gScore[neighbor.join(',')] || Infinity)) {
                cameFrom[neighbor.join(',')] = current;
                gScore[neighbor.join(',')] = tentativeGScore;
                fScore[neighbor.join(',')] = tentativeGScore + heuristic(neighbor, end);

                if (!openSet.contains(neighbor)) {
                    openSet.enqueue(neighbor, fScore[neighbor.join(',')] || Infinity);
                }
            }
        }

        // Animation delay
        await sleep(100); // Wait for 1 second between steps
    }

    alert('No path found!');
    isRunning = false;
    enableStartButton();
}

function heuristic(a, b) {
    const [aRow, aCol] = a;
    const [bRow, bCol] = b;
    const selectedHeuristic = document.getElementById('heuristic-select').value;

    switch (selectedHeuristic) {
        case 'manhattan':
            return Math.abs(aRow - bRow) + Math.abs(aCol - bCol); // 曼哈顿距离
        case 'chebyshev':
            return Math.max(Math.abs(aRow - bRow), Math.abs(aCol - bCol)); // 切比雪夫距离
        case 'euclidean':
            return Math.sqrt(Math.pow(aRow - bRow, 2) + Math.pow(aCol - bCol, 2)); // 欧氏距离
        default:
            return Math.abs(aRow - bRow) + Math.abs(aCol - bCol); // 默认为曼哈顿距离
    }
}

function getNeighbors(row, col) {
    const neighbors = [];
    const directions = [
        [0, 1], // right
        [1, 0], // down
        [0, -1], // left
        [-1, 0] // up
    ];

    for (const [dr, dc] of directions) {
        const newRow = row + dr;
        const newCol = col + dc;
        if (newRow >= 0 && newRow < ROWS && newCol >= 0 && newCol < COLS) {
            neighbors.push([newRow, newCol]);
        }
    }

    return neighbors;
}

async function reconstructPath(cameFrom, end) {
    let path = [];
    let current = end.join(',');

    while (current) {
        const [row, col] = current.split(',').map(Number);
        path.unshift([row, col]);
        if (cameFrom[current] === undefined || cameFrom[current].join(',') === startCell.dataset.row + ',' + startCell.dataset.col) {
            break;
        }
        current = cameFrom[current].join(',');
    }

    for (const [row, col] of path) {
        if (grid[row][col] !== startCell && grid[row][col] !== endCell) {
            grid[row][col].classList.add('path');
        }
        await sleep(100); // Add delay to show each step in the path
    }
}

document.getElementById('start-btn').addEventListener('click', async () => {
    disableStartButton();
    if (startCell && endCell) {
        await aStar(
            [parseInt(startCell.dataset.row), parseInt(startCell.dataset.col)],
            [parseInt(endCell.dataset.row), parseInt(endCell.dataset.col)]
        );
    } else {
        alert('Please select both start and end cells.');
        enableStartButton();
    }
});

createGrid();

// Helper function to create a delay
function sleep(ms) {
    return new Promise(resolve => setTimeout(resolve, ms));
}

class PriorityQueue {
    constructor() {
        this.elements = [];
    }

    enqueue(element, priority) {
        this.elements.push({ element, priority });
        this.elements.sort((a, b) => a.priority - b.priority);
    }

    dequeue() {
        return this.elements.shift();
    }

    isEmpty() {
        return this.elements.length === 0;
    }

    contains(element) {
        return this.elements.some(e => e.element.join(',') === element.join(','));
    }
}

function disableStartButton() {
    const startBtn = document.getElementById('start-btn');
    startBtn.disabled = true;
    startBtn.textContent = 'Running...';
    const selectedHeuristic = document.getElementById('heuristic-select');
    selectedHeuristic.disabled = true;
}

function enableStartButton() {
    const startBtn = document.getElementById('start-btn');
    startBtn.disabled = false;
    startBtn.textContent = 'Start A*';
    const selectedHeuristic = document.getElementById('heuristic-select');
    selectedHeuristic.disabled = false;
}

function resetGrid() {
    // Clear all cells' classes except 'start' and 'end'
    for (let row = 0; row < ROWS; row++) {
        for (let col = 0; col < COLS; col++) {
            const cell = grid[row][col];
            cell.classList.remove('visited', 'path');
        }
    }
}

贪婪最佳优先搜索算法

const ROWS = 20;
const COLS = 20;
let grid = [];
let startCell = null;
let endCell = null;
let isRunning = false;

function createGrid() {
    const gridContainer = document.getElementById('grid-container');
    for (let row = 0; row < ROWS; row++) {
        const rowArray = [];
        for (let col = 0; col < COLS; col++) {
            const cell = document.createElement('div');
            cell.classList.add('cell');
            cell.dataset.row = row;
            cell.dataset.col = col;
            cell.addEventListener('click', handleCellClick);
            gridContainer.appendChild(cell);
            rowArray.push(cell);
        }
        grid.push(rowArray);
    }
}

function handleCellClick(event) {
    const cell = event.target;
    if (!startCell) {
        cell.classList.add('start');
        startCell = cell;
    } else if (!endCell && cell !== startCell) {
        cell.classList.add('end');
        endCell = cell;
    }
}

async function greedyBestFirstSearch(start, end) {
    if (isRunning) return;
    isRunning = true;

    resetGrid();

    const openSet = new PriorityQueue();
    const cameFrom = {};

    openSet.enqueue(start, heuristic(start, end));

    while (!openSet.isEmpty()) {
        const current = openSet.dequeue().element;
        const [row, col] = current;

        if (current.join(',') === end.join(',')) {
            await reconstructPath(cameFrom, end);
            isRunning = false;
            enableStartButton();
            return;
        }

        grid[row][col].classList.add('visited');

        const neighbors = getNeighbors(row, col);
        for (const neighbor of neighbors) {
            const [nRow, nCol] = neighbor;

            if (!cameFrom[neighbor.join(',')] && !openSet.contains(neighbor)) {
                cameFrom[neighbor.join(',')] = current;
                openSet.enqueue(neighbor, heuristic(neighbor, end));
            }
        }

        // Animation delay
        await sleep(100); // Wait for 1 second between steps
    }

    alert('No path found!');
    isRunning = false;
    enableStartButton();
}

function heuristic(a, b) {
    const [aRow, aCol] = a;
    const [bRow, bCol] = b;
    const selectedHeuristic = document.getElementById('heuristic-select').value;

    switch (selectedHeuristic) {
        case 'manhattan':
            return Math.abs(aRow - bRow) + Math.abs(aCol - bCol); // 曼哈顿距离
        case 'chebyshev':
            return Math.max(Math.abs(aRow - bRow), Math.abs(aCol - bCol)); // 切比雪夫距离
        case 'euclidean':
            return Math.sqrt(Math.pow(aRow - bRow, 2) + Math.pow(aCol - bCol, 2)); // 欧氏距离
        default:
            return Math.abs(aRow - bRow) + Math.abs(aCol - bCol); // 默认为曼哈顿距离
    }
}

function getNeighbors(row, col) {
    const neighbors = [];
    const directions = [
        [0, 1], // right
        [1, 0], // down
        [0, -1], // left
        [-1, 0] // up
    ];

    for (const [dr, dc] of directions) {
        const newRow = row + dr;
        const newCol = col + dc;
        if (newRow >= 0 && newRow < ROWS && newCol >= 0 && newCol < COLS) {
            neighbors.push([newRow, newCol]);
        }
    }

    return neighbors;
}

async function reconstructPath(cameFrom, end) {
    let path = [];
    let current = end.join(',');

    while (current) {
        const [row, col] = current.split(',').map(Number);
        path.unshift([row, col]);
        if (cameFrom[current] === undefined || cameFrom[current].join(',') === startCell.dataset.row + ',' + startCell.dataset.col) {
            break;
        }
        current = cameFrom[current].join(',');
    }

    for (const [row, col] of path) {
        if (grid[row][col] !== startCell && grid[row][col] !== endCell) {
            grid[row][col].classList.add('path');
        }
        await sleep(100); // Add delay to show each step in the path
    }
}

document.getElementById('start-btn').addEventListener('click', async () => {
    disableStartButton();
    if (startCell && endCell) {
        await greedyBestFirstSearch(
            [parseInt(startCell.dataset.row), parseInt(startCell.dataset.col)],
            [parseInt(endCell.dataset.row), parseInt(endCell.dataset.col)]
        );
    } else {
        alert('Please select both start and end cells.');
        enableStartButton();
    }
});

createGrid();

// Helper function to create a delay
function sleep(ms) {
    return new Promise(resolve => setTimeout(resolve, ms));
}

class PriorityQueue {
    constructor() {
        this.elements = [];
    }

    enqueue(element, priority) {
        this.elements.push({ element, priority });
        this.elements.sort((a, b) => a.priority - b.priority);
    }

    dequeue() {
        return this.elements.shift();
    }

    isEmpty() {
        return this.elements.length === 0;
    }

    contains(element) {
        return this.elements.some(e => e.element.join(',') === element.join(','));
    }
}

function disableStartButton() {
    const startBtn = document.getElementById('start-btn');
    startBtn.disabled = true;
    startBtn.textContent = 'Running...';
    const selectedHeuristic = document.getElementById('heuristic-select');
    selectedHeuristic.disabled = true;
}

function enableStartButton() {
    const startBtn = document.getElementById('start-btn');
    startBtn.disabled = false;
    startBtn.textContent = 'Start Greedy Best-First Search';
    const selectedHeuristic = document.getElementById('heuristic-select');
    selectedHeuristic.disabled = false;
}

function resetGrid() {
    // Clear all cells' classes except 'start' and 'end'
    for (let row = 0; row < ROWS; row++) {
        for (let col = 0; col < COLS; col++) {
            const cell = grid[row][col];
            cell.classList.remove('visited', 'path');
        }
    }
}

双向搜索-DFS搜索算法

const ROWS = 20;
const COLS = 20;
let grid = [];
let startCell = null;
let endCell = null;
let isRunning = false;

function createGrid() {
    const gridContainer = document.getElementById('grid-container');
    for (let row = 0; row < ROWS; row++) {
        const rowArray = [];
        for (let col = 0; col < COLS; col++) {
            const cell = document.createElement('div');
            cell.classList.add('cell');
            cell.dataset.row = row;
            cell.dataset.col = col;
            cell.addEventListener('click', handleCellClick);
            gridContainer.appendChild(cell);
            rowArray.push(cell);
        }
        grid.push(rowArray);
    }
}

function handleCellClick(event) {
    const cell = event.target;
    if (!startCell) {
        cell.classList.add('start');
        startCell = cell;
    } else if (!endCell && cell !== startCell) {
        cell.classList.add('end');
        endCell = cell;
    }
}

async function bidirectionalSearch(start, end) {
    if (isRunning) return;
    isRunning = true;

    resetGrid();

    const stackStart = [start];
    const stackEnd = [end];

    const visitedStart = new Set();
    const visitedEnd = new Set();

    const parentMapStart = {};
    const parentMapEnd = {};

    let found = false;
    const meetingPointRef = { meetingPoint: null };

    while (stackStart.length > 0 && stackEnd.length > 0) {
        if (await dfsStep(stackStart, visitedStart, parentMapStart, 'visited-start', end, visitedEnd, meetingPointRef)) {
            found = true;
            break;
        }

        if (await dfsStep(stackEnd, visitedEnd, parentMapEnd, 'visited-end', start, visitedStart, meetingPointRef)) {
            found = true;
            break;
        }

        // Animation delay
        await sleep(100); // Wait for 100ms between steps
    }

    if (found) {
        await reconstructPath(parentMapStart, parentMapEnd, start, end, meetingPointRef.meetingPoint);
    }

    isRunning = false;
    enableStartButton();
}

async function dfsStep(stack, visited, parentMap, visitClass, target, otherVisited, meetingPointRef) {
    if (stack.length === 0) return false;

    const current = stack.pop();
    const [row, col] = current;

    if (visited.has(`${row},${col}`)) return false;
    visited.add(`${row},${col}`);
    grid[row][col].classList.add(visitClass);

    if (otherVisited.has(`${row},${col}`)) {
        meetingPointRef.meetingPoint = [row, col];
        return true;
    }

    const neighbors = getNeighbors(row, col);
    for (const neighbor of neighbors) {
        const [nRow, nCol] = neighbor;
        if (!visited.has(`${nRow},${nCol}`)) {
            stack.push([nRow, nCol]);
            parentMap[`${nRow},${nCol}`] = [row, col];
        }
    }

    return false;
}

function getNeighbors(row, col) {
    const neighbors = [];
    const directions = [
        [0, 1], // right
        [1, 0], // down
        [0, -1], // left
        [-1, 0] // up
    ];

    for (const [dr, dc] of directions) {
        const newRow = row + dr;
        const newCol = col + dc;
        if (newRow >= 0 && newRow < ROWS && newCol >= 0 && newCol < COLS) {
            neighbors.push([newRow, newCol]);
        }
    }

    return neighbors;
}

async function reconstructPath(parentMapStart, parentMapEnd, start, end, meetingPoint) {
    if (!meetingPoint) return;

    let pathStart = [];
    let pathEnd = [];

    // Build the path from start to meeting point
    let currentStart = meetingPoint.join(',');
    while (currentStart !== start.join(',')) {
        pathStart.push(currentStart.split(',').map(Number));
        currentStart = parentMapStart[currentStart]?.join(',') || start.join(',');
    }
    pathStart.push(start);

    // Build the path from end to meeting point
    let currentEnd = meetingPoint.join(',');
    while (currentEnd !== end.join(',')) {
        pathEnd.push(currentEnd.split(',').map(Number));
        currentEnd = parentMapEnd[currentEnd]?.join(',') || end.join(',');
    }
    pathEnd.push(end);

    // Reverse the pathStart to get the correct order from start to meeting point
    pathStart.reverse();

    // Combine the paths and remove duplicate meeting point
    const fullPath = [...pathStart, ...pathEnd.slice(1)];

    // Highlight each cell in the path with a delay
    for (const [row, col] of fullPath) {
        const cell = grid[row][col];
        if (cell !== startCell && cell !== endCell) {
            cell.classList.add('path');
            await sleep(100); // Wait for 100ms between highlighting each cell
        }
    }
}

document.getElementById('start-btn').addEventListener('click', async () => {
    disableStartButton();
    if (startCell && endCell) {
        await bidirectionalSearch(
            [parseInt(startCell.dataset.row), parseInt(startCell.dataset.col)],
            [parseInt(endCell.dataset.row), parseInt(endCell.dataset.col)]
        );
    } else {
        alert('Please select both start and end cells.');
        enableStartButton();
    }
});

createGrid();

// Helper function to create a delay
function sleep(ms) {
    return new Promise(resolve => setTimeout(resolve, ms));
}

function disableStartButton() {
    const startBtn = document.getElementById('start-btn');
    startBtn.disabled = true;
    startBtn.textContent = 'Running...';
}

function enableStartButton() {
    const startBtn = document.getElementById('start-btn');
    startBtn.disabled = false;
    startBtn.textContent = 'Start DFS';
}

function resetGrid() {
    // Clear all cells' classes except 'start' and 'end'
    for (let row = 0; row < ROWS; row++) {
        for (let col = 0; col < COLS; col++) {
            const cell = grid[row][col];
            cell.classList.remove('visited', 'path', 'visited-start', 'visited-end');
        }
    }
}

效果展示

BFS搜索
在这里插入图片描述

DFS搜索
在这里插入图片描述

A星-曼哈顿距离
在这里插入图片描述

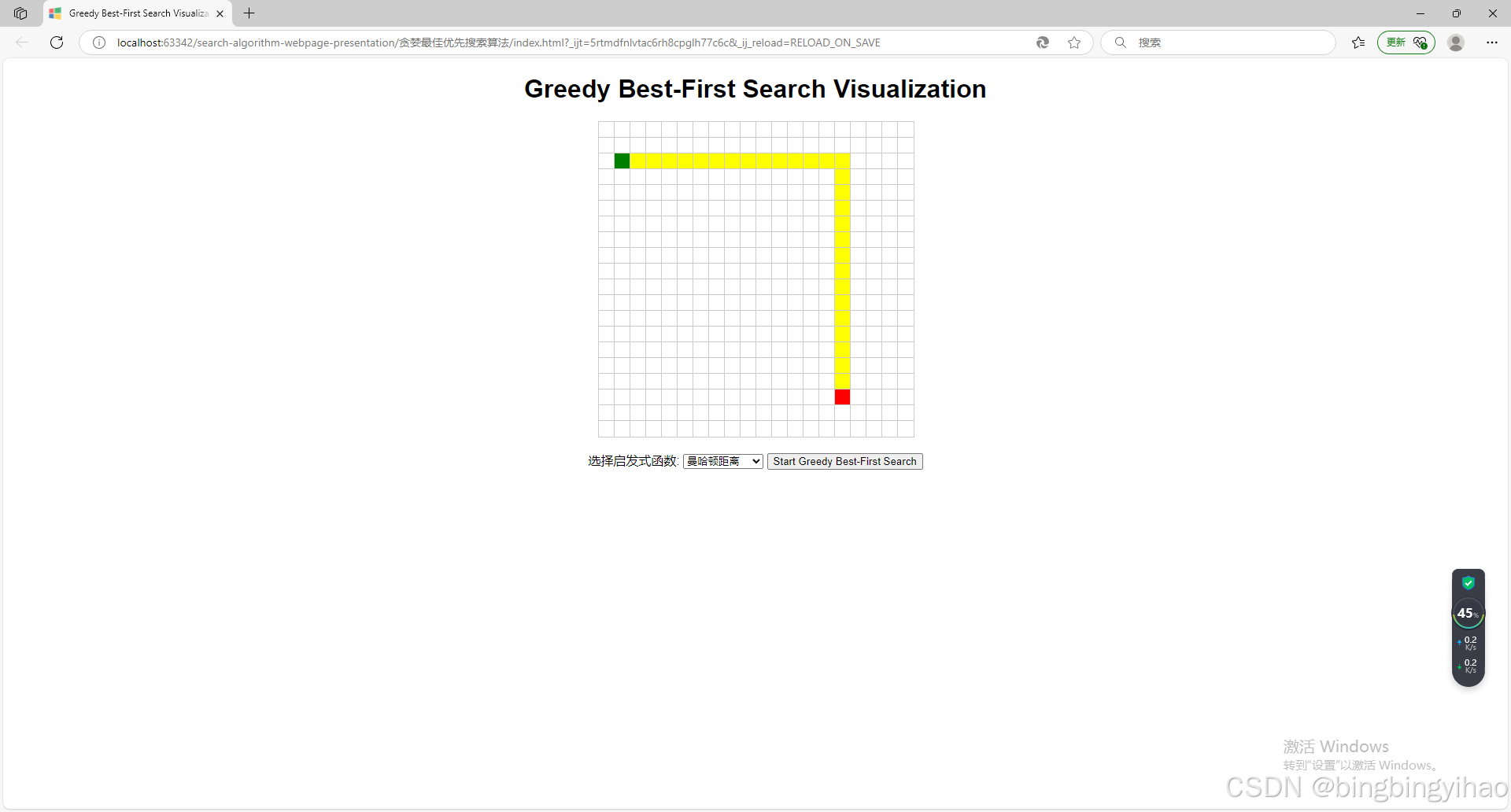

贪婪最佳优先搜索
在这里插入图片描述

双向搜索-DFS
在这里插入图片描述

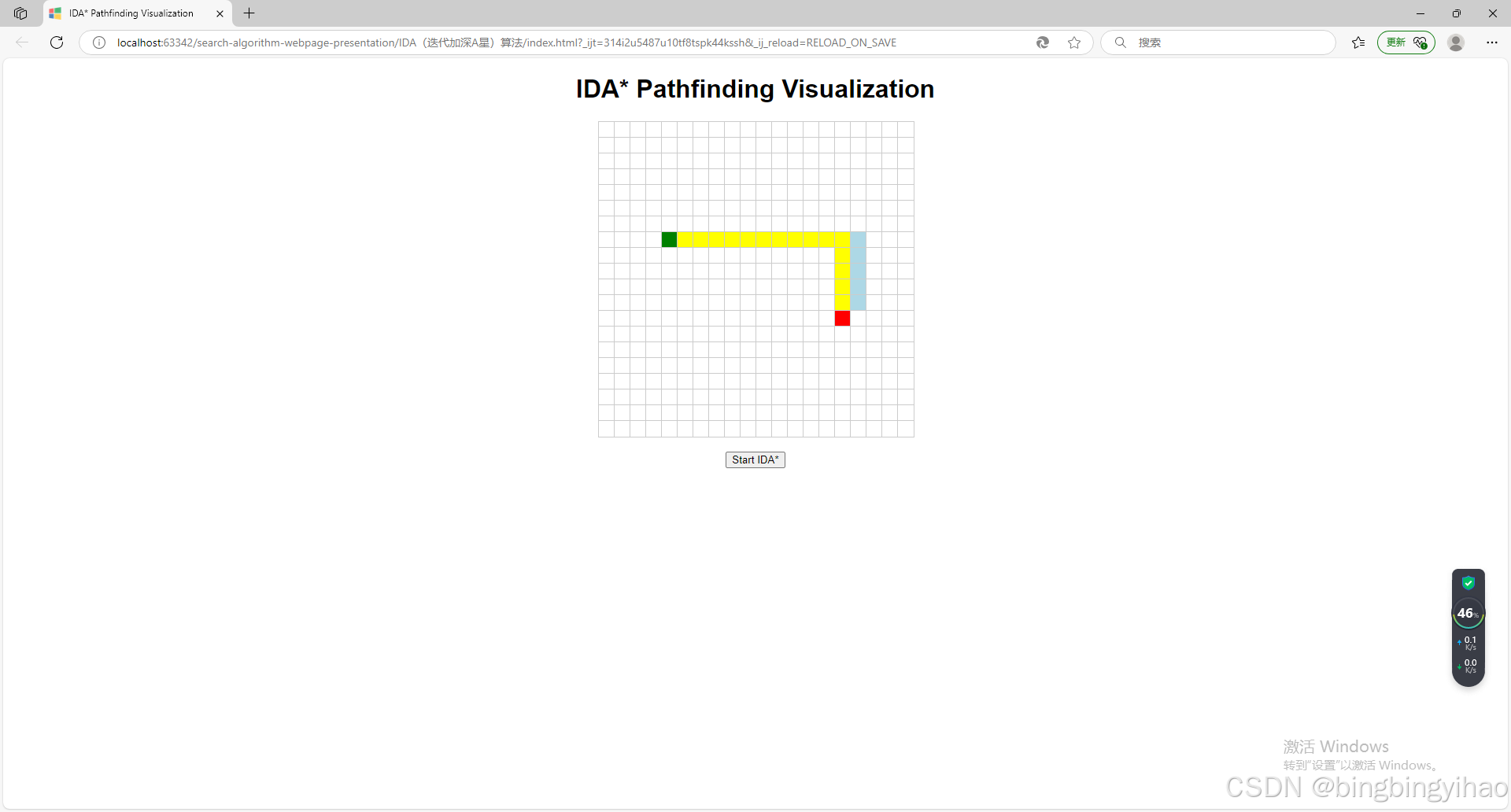

IDA*（迭代加深搜索A*）
在这里插入图片描述

源码下载

完整代码在gitee上，链接：搜索算法网页演示

评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
