Netty异步框架

同步、异步，阻塞、非阻塞

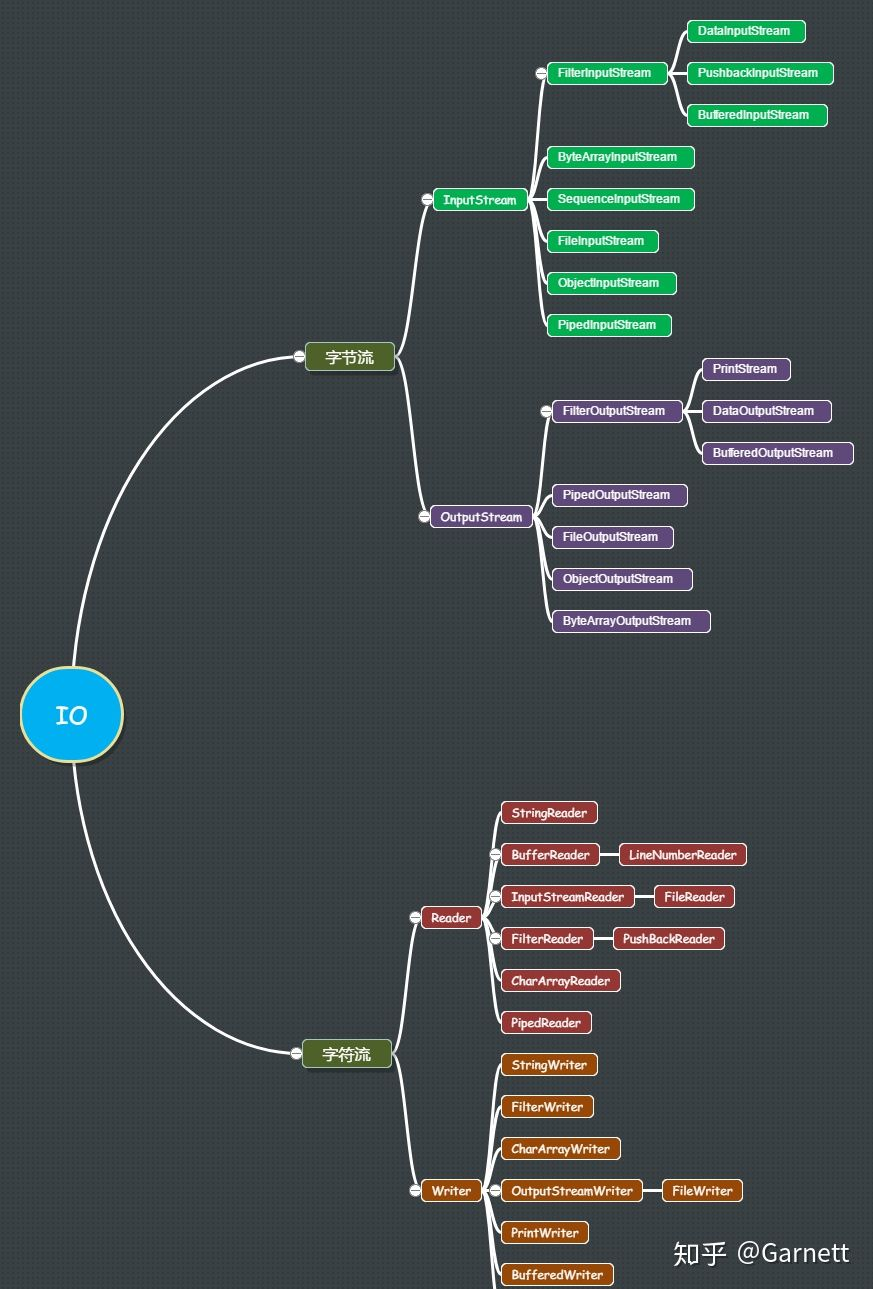

Java IO

BIO，NIO，AIO

Netty

Netty的底层框架原理 入门理解
45 张图深度解析 Netty 架构与原理
JAVA中BIO、NIO、AIO的分析理解
netty 面试
你要的Netty常见面试题总结，敖丙搞来了！Netty使用模板

package openflow;

import openflow.init.OFProperties;
import openflow.protocol.connection.service.ServerFacade;
import com.google.common.util.concurrent.ListenableFuture;
import com.google.common.util.concurrent.SettableFuture;
import io.netty.bootstrap.ServerBootstrap;
import io.netty.buffer.PooledByteBufAllocator;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelOption;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.epoll.EpollEventLoopGroup;
import io.netty.channel.epoll.EpollServerSocketChannel;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.ServerSocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.logging.LogLevel;
import io.netty.handler.logging.LoggingHandler;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.net.InetAddress;
import java.net.InetSocketAddress;

public class TcpHandler implements ServerFacade {

    private final Logger log = LoggerFactory.getLogger(getClass());

    private int port;
    private String address;
    private final InetAddress startupAddress;
    private EventLoopGroup workerGroup;
    private EventLoopGroup bossGroup;
    private final SettableFuture<Boolean> isOnlineFuture;

    private Class<? extends ServerSocketChannel> socketChannelClass;
    private TcpChannelInitializer channelInitializer;

    private OFProperties properties;

    public TcpHandler(OFProperties properties, int port) {
        this(properties, null, port);
    }

    private TcpHandler(OFProperties properties, InetAddress startupAddress , int port) {
        this.properties = properties;
        this.startupAddress = startupAddress;
        this.port = port;
        isOnlineFuture = SettableFuture.create();
    }

    @Override
    public void startServer() {
        final ChannelFuture f;
        try {
            ServerBootstrap b = new ServerBootstrap();
            b.group(bossGroup, workerGroup)
                    .channel(socketChannelClass)
                    .handler(new LoggingHandler(LogLevel.DEBUG))
                    .childHandler(channelInitializer)
                    .option(ChannelOption.SO_BACKLOG, 128)
                    .option(ChannelOption.SO_REUSEADDR, true)
                    .childOption(ChannelOption.SO_KEEPALIVE, true)
                    .childOption(ChannelOption.TCP_NODELAY , true)
                    .childOption(ChannelOption.ALLOCATOR, PooledByteBufAllocator.DEFAULT)
//                    .childOption(ChannelOption.WRITE_BUFFER_HIGH_WATER_MARK, getWriteHighWatermark() * 1024)
//                    .childOption(ChannelOption.WRITE_BUFFER_LOW_WATER_MARK, getWriteLowWatermark() * 1024)
                    .childOption(ChannelOption.WRITE_SPIN_COUNT, getWriteSpinCount());

//            InetAddress address = InetAddress.getByName("192.168.6.11");
//            f = b.bind(address,port).sync();
            f = b.bind(port).sync();
        } catch (InterruptedException e) {
            log.error("Interrupted while binding port {}", port, e);
            return;
        }
        try {
            InetSocketAddress isa = (InetSocketAddress) f.channel().localAddress();
            address = isa.getAddress().getHostAddress();

            // Update port, as it may have been specified as 0
            this.port = isa.getPort();

            log.info("address from tcphandler: {}", address);
            isOnlineFuture.set(true);
            log.info("Switch listener started and ready to accept incoming tcp/tls connections on port: {}", port);
            f.channel().closeFuture().sync();
        } catch (InterruptedException e) {
            log.error("Interrupted while waiting for port {} shutdown", port, e);
        } finally {
            shutdownServer();
        }
    }

    @Override
    public void shutdownServer() {
        // TODO Auto-generated method stub

    }

//	private int getWriteHighWatermark() {
//		return 64;
		return (int) Prop.get("",DEFAULT_WRITE_HIGH_WATERMARK);
//	}
//
//	private int getWriteLowWatermark() {
//		return 32;
		return (int) Prop.get("",DEFAULT_WRITE_LOW_WATERMARK);
//	}

    private int getWriteSpinCount() {
        return 16;
    }

    public TcpChannelInitializer getChannelInitializer() {
        return channelInitializer;
    }

    public void setChannelInitializer(TcpChannelInitializer channelInitializer) {
        this.channelInitializer = channelInitializer;
    }

    @Override
    public ListenableFuture<Boolean> getIsOnlineFuture() {
        // TODO Auto-generated method stub
        return null;
    }

    public void initiateEventLoopGroups(boolean isEpollEnabled) {

        if(isEpollEnabled) {
            initiateEpollEventLoopGroups();
        } else {
            initiateNioEventLoopGroups();
        }
    }

    public void initiateNioEventLoopGroups() {
        socketChannelClass = NioServerSocketChannel.class;
        if(properties.getNettyBossGroup() != null && properties.getNettyWorkGroup() != null) {
            bossGroup = new NioEventLoopGroup(properties.getNettyBossGroup());
            workerGroup = new NioEventLoopGroup(properties.getNettyWorkGroup());
        }else {
            bossGroup = new NioEventLoopGroup();
            workerGroup = new NioEventLoopGroup();
        }
        ((NioEventLoopGroup)workerGroup).setIoRatio(100);
    }

    protected void initiateEpollEventLoopGroups() {
        try {
            socketChannelClass = EpollServerSocketChannel.class;
            if(properties.getNettyBossGroup() != null && properties.getNettyWorkGroup() != null) {
                bossGroup = new EpollEventLoopGroup(properties.getNettyBossGroup());
                workerGroup = new EpollEventLoopGroup(properties.getNettyWorkGroup());
            }else {
                bossGroup = new EpollEventLoopGroup();
                workerGroup = new EpollEventLoopGroup();
            }
            ((EpollEventLoopGroup)workerGroup).setIoRatio(100);
            return;
        } catch (Throwable ex) {
            log.debug("Epoll initiation failed");
        }

        //Fallback mechanism
        initiateNioEventLoopGroups();
    }
}
