uniapp点击tab标签自动滚动对应位置，且滚动页面，对应tab标签自动高亮

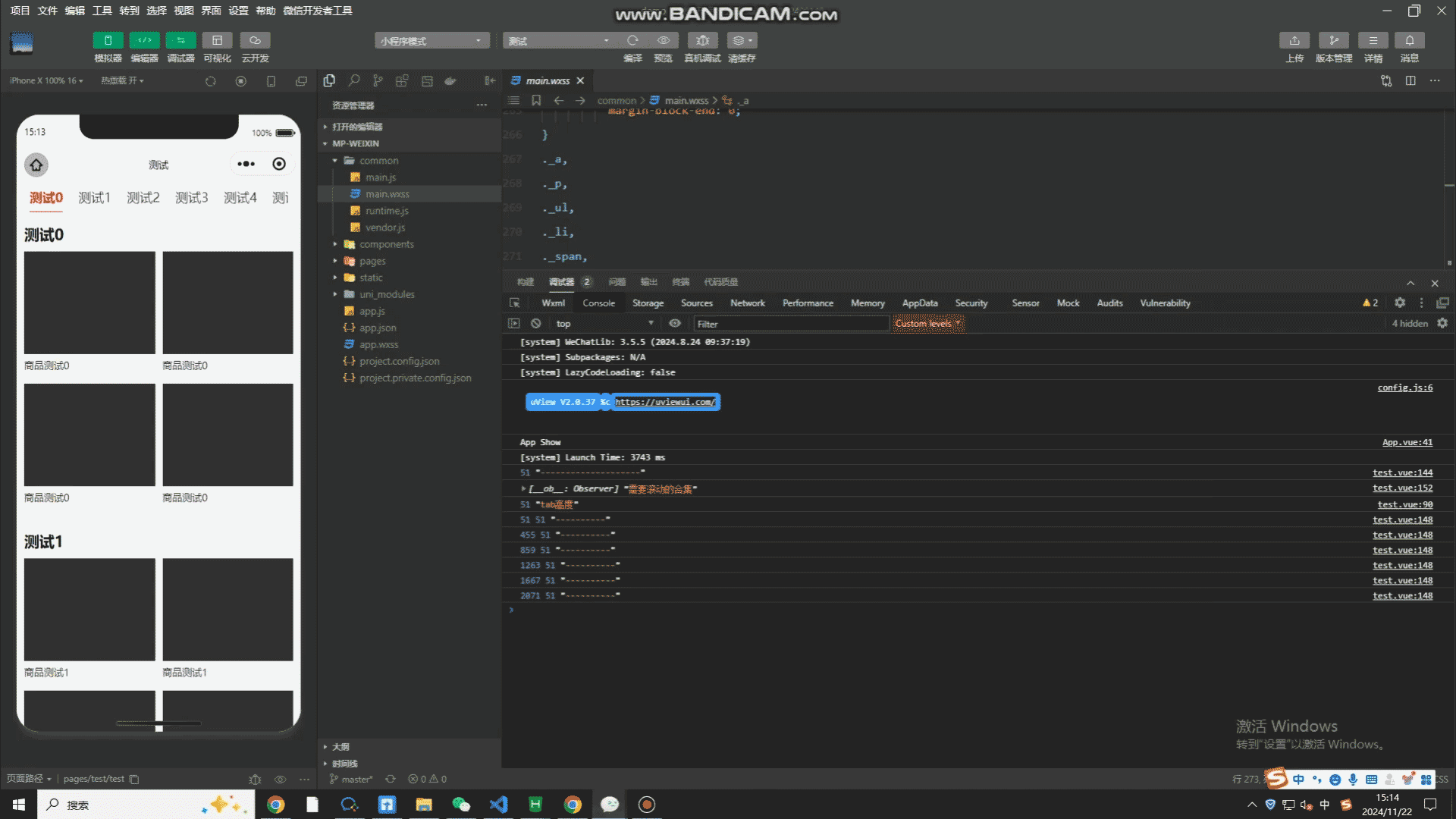

1.效果图

2.原理

利用uni.createSelectorQuery获取节点信息，从而获取每组商品距离顶部的距离及tab标签的高度从而实现联动滚动

3.完整代码

<template>
	<view class="wrap">
		<view class="tab_box" id="tabBox">
			<scroll-view scroll-x="true" :scroll-into-view="'tabs'+tabIndex">
				<view class="tab_item skeleton-rect" :id="'tabs'+index" :class="{'active':tabIndex==index}"
					v-for="(item,index) in tabList" @click="changeTab(index)" :key="index">
					{{item.name}}
				</view>
			</scroll-view>
		</view>
		<view class="goods_class" :id="'wrap'+index" v-for="(item,index) in goodsList" :key="index">
			<view class="goods_box">
				<view class="title_box">
					{{item.title}}
				</view>
				<view class="goods_list" v-if="item.good_item.length">
					<view class="goods_item goods_item_inline" v-for="(i,j) in item.good_item" :key="j"
						@click="$util.JumpPath(`/pages/goods/detail?id=${i.id}`)">
						<view class="goods_img">
							<!-- <image :src="i.slider[0]" mode="aspectFill"></image> -->
						</view>
						<view class="goods_title">
							{{i.title}}
						</view>
					</view>
				</view>
			</view>
		</view>

	</view>
</template>

<script>
	export default {
		data() {
			return {
				tabIndex: 0, //选择的tab索引
				tabList: [], //tab标签列表
				tabHeight: 0, //tab的整体高度
				goodsList: [], //商品列表
				scrollWarp: [], //点击tab，页面需要滚动的距离集合
				scrollInto: 0, //点击tab，页面自动滚动的距离
				lock: false, //点击tab，防止与页面滚动产生冲突导致tab高亮频闪的标识
			}
		},
		onLoad() {
			this.initData() //初始化数据
		},
		onPageScroll(e) {
			this.scrollSetTabIndex(e.scrollTop)
		},
		methods: {
            //模拟的数据函数
			initData() {
				let data = []
				for (let i = 0; i < 6; i++) {
					data.push({
						name: '测试',
						id: ''
					})
				}
				// 模拟顶部tab数据
				this.tabList = data.map((item, index) => {

					return {
						name: item.name + index,
						id: index
					}
				})
				// 模拟商品数据
				this.goodsList = this.tabList.map((item, index) => {
					let goodItem = {
						title: item.name,
						good_item: [{
							title: '商品' + item.name
						}, {
							title: '商品' + item.name
						}, {
							title: '商品' + item.name
						}, {
							title: '商品' + item.name
						}]
					}
					return goodItem
				})

				this.$nextTick(()=>{
					this.GetRect("#tabBox").then(res => {
						this.tabHeight = res.height
						this.barInit()
						console.log(this.tabHeight,"tab高度");
					})

				})


			},
			changeTab(e) {
				this.tabIndex = e
				this.$set(this, 'lock', true);
				this.scrollInto = this.scrollWarp[e]
				this.scrollTo()

			},
			// 滚动自动激活tab标签
			scrollSetTabIndex(top) {
				if (this.lock) {
					// 防止点击tab标签时和页面滚动造成冲突导致tab标签的选中状态会不停闪烁
					setTimeout(() => {
						this.$set(this, 'lock', false);
					}, 700)
					return;
				}
				if (top <= this.scrollWarp[0]) {
					this.tabIndex = 0
				} else if (top >= this.scrollWarp[this.scrollWarp.length - 1]) {
					this.tabIndex = this.scrollWarp.length - 1
				} else {
					for (let i = 0; i < this.scrollWarp.length - 1; i++) {
						if (top >= this.scrollWarp[i] && top < this.scrollWarp[i + 1]) {
							this.tabIndex = i
						}
					}
				}
			},
			scrollTo() {
				uni.pageScrollTo({
					scrollTop: this.scrollInto
				})
			},
			//获取节点信息
			GetRect(selector) {
				return new Promise((resolve, reject) => {
					let view = uni.createSelectorQuery().in(this)
					view.select(selector).boundingClientRect(rect => {
						resolve(rect)
					}).exec();
				})
			},
			//获取节点距离顶部距离
			barInit: async function(index) {
				let navTargetTop1 = [];

				let randoms = this.tabHeight; //顶部栏高度+tab高度+兼容值	（注，如果navbar是自定义的，还需要获取navbar的高度并减去此高度）
				console.log(randoms,"--------------------");
				for (let i = 0; i < this.goodsList.length; i++) {
					this.GetRect("#wrap" + i).then(res => {
						navTargetTop1.push(parseInt(res.top) - randoms) //滚动的距离：元素距离顶部的距离-tab标签的高度
						console.log(res.top,randoms,"----------");
					})
				}
				this.scrollWarp = navTargetTop1;
				console.log(this.scrollWarp, "需要滚动的合集");
			},
		},


	}
</script>

<style lang="scss" scoped>
	.goods_class {
		margin-bottom: 50rpx;

		.goods_box {
			margin-bottom: 50rpx;
			padding: 0 20rpx;

			.title_box {
				font-size: 40rpx;
				font-weight: 600;
				padding-top: 10rpx;
				margin-bottom: 20rpx;
			}

			.goods_list {
				display: grid;
				grid-template-columns: repeat(2, 1fr);
				gap: 20rpx;

				.goods_item_out {
					width: 270rpx;
					display: inline-block;
					vertical-align: top;
				}

				.scroll-view_H {
					white-space: nowrap;
					width: 100%;
				}

				.goods_item_inline {
					display: inline-block;
				}

				.goods_item {
					// width: 270rpx;
					overflow: hidden;
					vertical-align: top;
					.goods_img {
						width: 100%;
						height: 270rpx;
						background: #303030;

						image {
							width: 100%;
							height: 100%;
						}
					}

					.goods_title {
						margin: 10rpx 0;
						white-space: normal;
						width: 100%;
						max-height: 76rpx;
						line-height: 38rpx;
					}

					.goods_title,
					.goods_price {
						font-size: 26rpx;
						color: #303030;
					}
				}
			}
		}

		.more_btn {
			width: 252rpx;
			height: 82rpx;
			margin: 0 auto;
			background: var(--view-theme);

			.in_btn {
				width: 236rpx;
				height: 70rpx;
				line-height: 70rpx;
				border: 1px solid #FFFFFF;
				text-align: center;
				font-size: 28rpx;
				color: #fff;
			}
		}

		.scroll_box {
			position: relative;
			width: 250rpx;
			height: 3rpx;
			background: #CCCCCC;
			margin: 0 auto 37rpx;

			.scroll_icon {
				/* 初始位置 */
				transform: translateX(0px);
				width: 60rpx;
				height: 3rpx;
				background: #383838;
			}
		}
	}

	.tab_box {
		position: sticky;
		z-index: 999;
		top: 0; //动态设置
		background: #fff;
		padding: 0 35rpx;
		// height: 80rpx;
		line-height: 80rpx;
		// margin-bottom: 20rpx;
		padding-bottom: 20rpx;
		white-space: nowrap;

		.tab_item {
			display: inline-block;
			position: relative;
			height: 100%;
			font-size: 34rpx;
			color: #303030;

			&:not(:last-child) {
				margin-right: 40rpx;
			}
		}

		.active {
			font-weight: 700;
			color: red;
		}

		.active::after {
			position: absolute;
			left: 0;
			bottom: 0;
			content: '';
			width: 100%;
			height: 2rpx;
			background: red;
		}
	}
</style>
