Windows下使用pybind11编译KMSolver

最近搞相机重定位的项目，大多都是在linux系统上写的，使用windows配环境就非常多问题

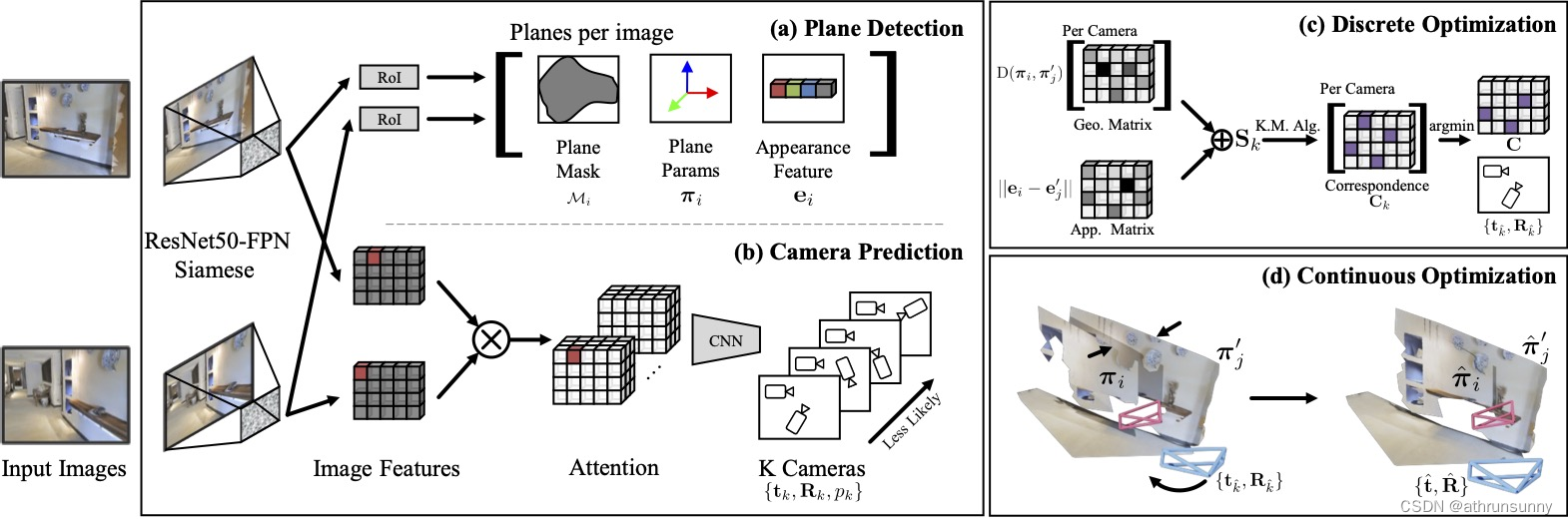

项目地址：GitHub - jinlinyi/SparsePlanes: [ICCV 2021 (oral)] Planar Surface Reconstruction from Sparse Views

虽然不是最新的研究成果，效果还是不错的，基于纯卷积RCNN的方法。

项目在linux下运行正常，主要是想在windows下使用这个代码，其中有个

KMSolver.cpython-37m-x86_64-linux-gnu.so

的库是预编译好的，仅支持特定的python3.7和linux环境，所以这里想在windows11下用pybind11编译KMSolver用其他版本的python调用C++代码

编译工具：

cmake 3.29.0

vs 2019

pybind11:GitHub - pybind/pybind11: Seamless operability between C++11 and Python

准备代码：

代码地址：GitHub - RoboJackets/hungarian: C++ Implementation of the hungarian algorithm

下载好后需要对代码做一些修改：

新建一个 KMSolver.cpp

#include "../include/pybind11/pybind11.h"
#include "../include/pybind11/eigen.h"
#include "../include/pybind11/stl.h"

#include <iostream>
#if defined(_MSC_VER)
#  pragma warning(disable: 4996) // C4996: std::unary_negation is deprecated
#endif

#include <vector>
#include "hungarian.hpp"

namespace py = pybind11;

Eigen::Matrix<int, Eigen::Dynamic, Eigen::Dynamic> solve(Eigen::Matrix<int, Eigen::Dynamic, Eigen::Dynamic> costMatrix, int threshold) {
	int num_rows = costMatrix.rows();
	int num_cols = costMatrix.cols();

	// create a input matrix to km
	// note cost above threshold are considered invalid match right away
	// and they are treated to be "equally invalid", remaining the default value threshold+1
	// to avoid affect matching with the valid costs
	Hungarian::Matrix cost2DVec (num_rows, std::vector<int>(num_cols, threshold+1));
	for (int i = 0; i < num_rows; i++) {
		for (int j = 0; j < num_cols; j++) {
			if (costMatrix(i,j) <= threshold) {
				cost2DVec[i][j] = costMatrix(i,j);
			}
		}
	}

	// solve KM
	Hungarian::Result res2DVec = Hungarian::Solve(cost2DVec, Hungarian::MODE_MINIMIZE_COST);
	if (!res2DVec.success) {
		std::cout << "Matching not successful. Return input matrix itself." << std::endl;
		return costMatrix;
	}

	// convert 2d std vector to eigen matrix
	Eigen::Matrix<int, Eigen::Dynamic, Eigen::Dynamic> matchMatrix (num_rows, num_cols);
	for (int i = 0; i < num_rows; i++) {
		for (int j = 0; j < num_cols; j++) {
			if (res2DVec.assignment[i][j] == 1 && cost2DVec[i][j] <= threshold) {
				// only accept a match if
				// KM agorithm assigns a match and
				// the match can be valid in the first place (cost <= threshold)
				matchMatrix(i,j) = 1;
			} else {
				matchMatrix(i,j) = 0;
			}
		}
	}

	return matchMatrix;
}

namespace py = pybind11;

PYBIND11_MODULE(KMSolver, m) {
    m.def("solve", &solve, py::arg("cost_matrix"), py::arg("threshold"));
}

 编辑CMakeLists.txt

cmake_minimum_required(VERSION 3.0.0)
project("Hungarian Algorithm")

set(CMAKE_CXX_STANDARD 11)

FIND_PACKAGE(Eigen3 3.1.0 REQUIRED)
include_directories( ${EIGEN3_INCLUDE_DIRS} )

add_library(hungarian hungarian.cpp hungarian.hpp KMSolver.cpp)

add_executable(test_cases test.cpp) # test.cpp怎么写的不重要
target_link_libraries(test_cases KMSolver)

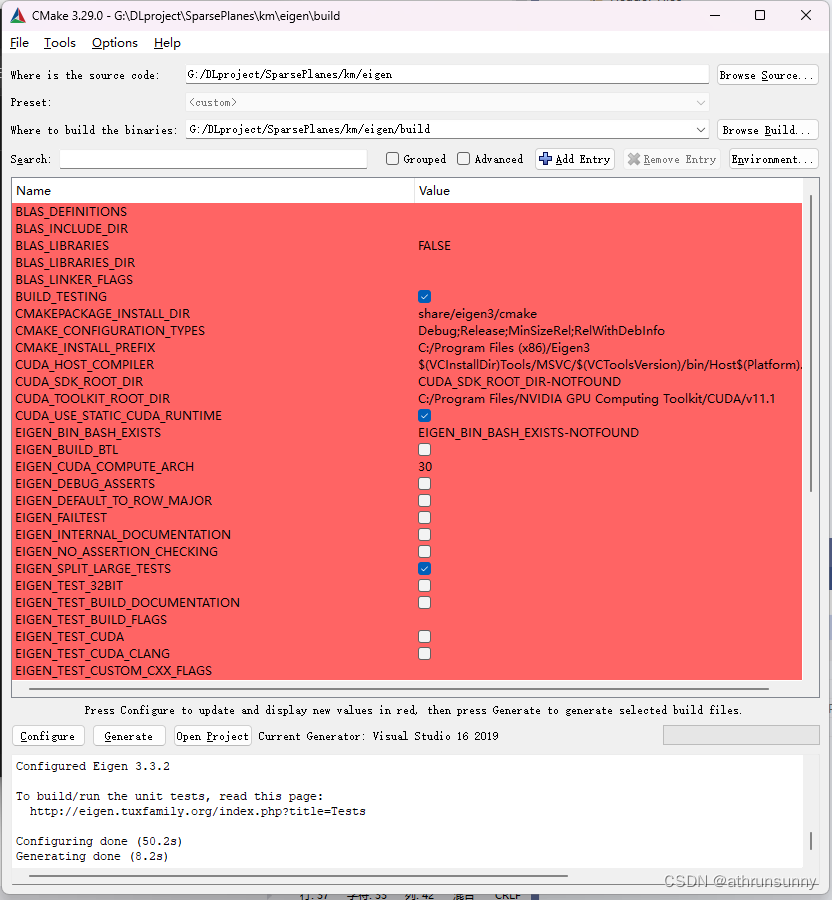

还需要准备eigen库，一个用于矩阵运算的库，用之前最好用cmake去build一下，以免找不到

GitHub - libigl/eigen: This is a mirror of the latest stable version of Eigen.

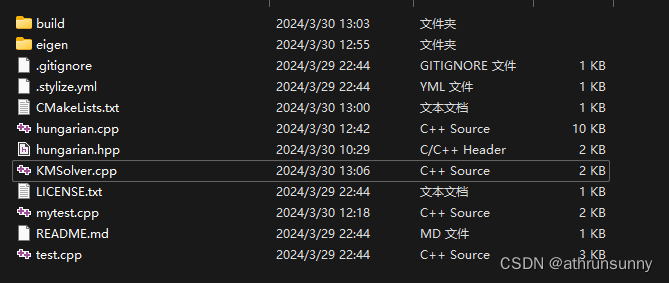

在当前路径下创建一个build目录

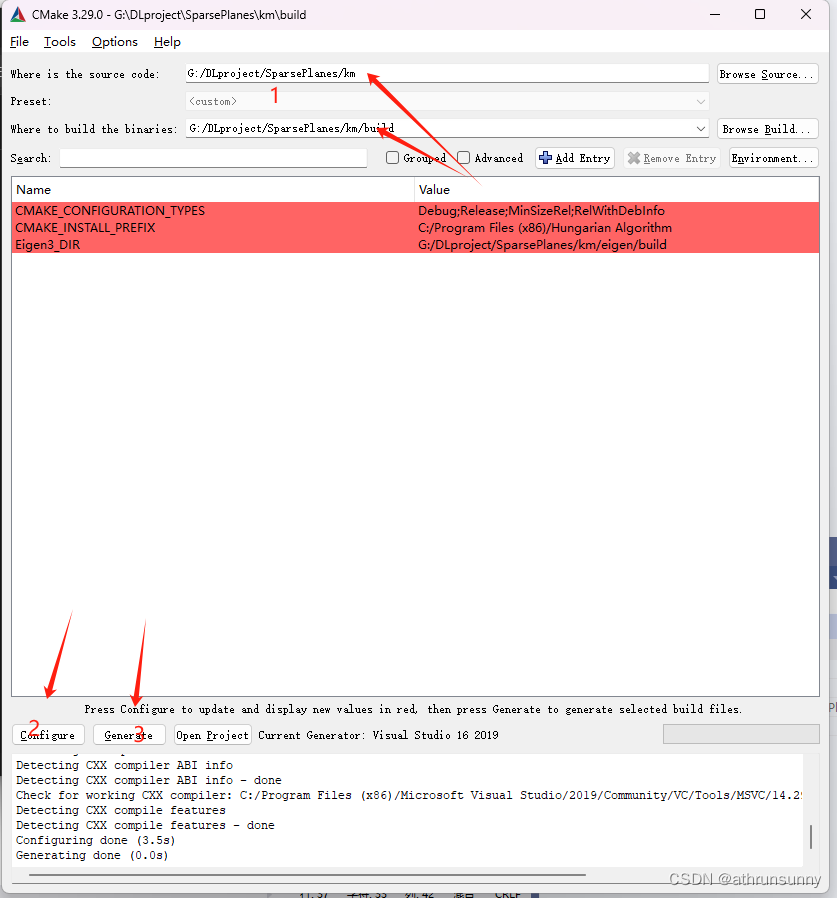

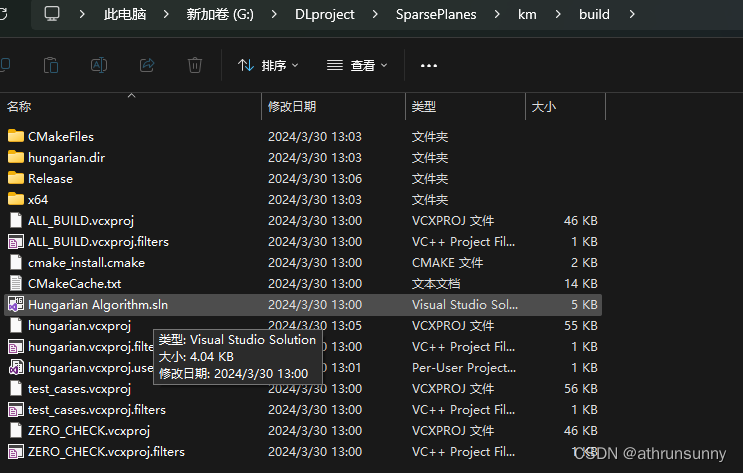

 打开cmake路径和编译器配置好后点生成，之后在build路径下找到Hungarian Algorithm.sln，并双击打开。

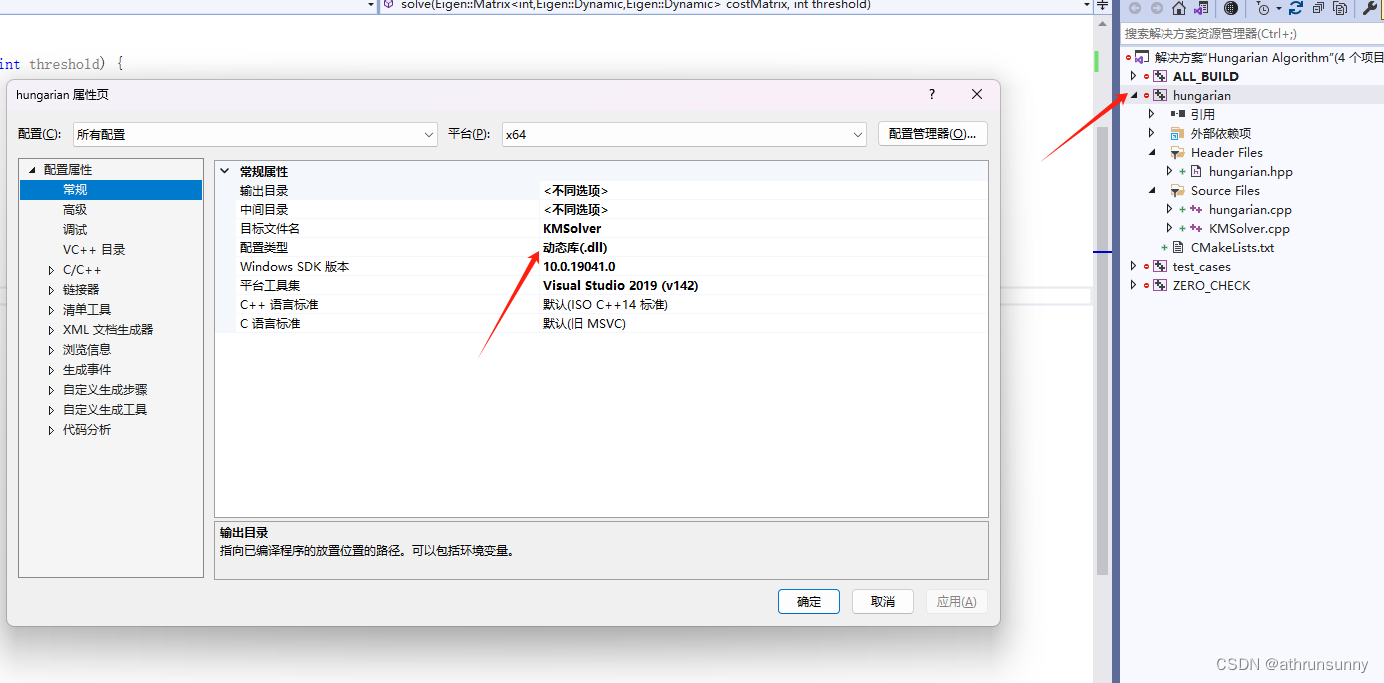

点开Hungarian的属性，在常规中做如下设置

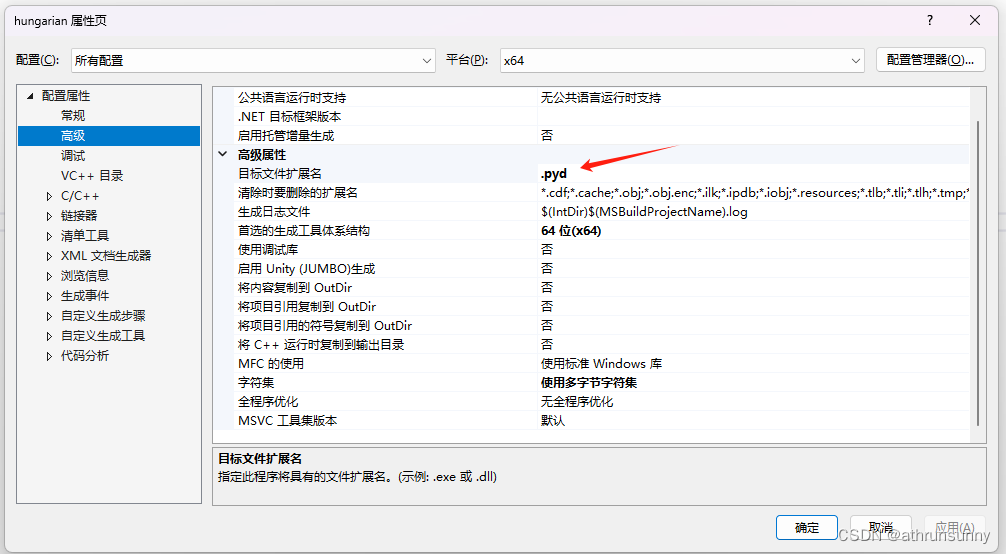

 更改扩展名

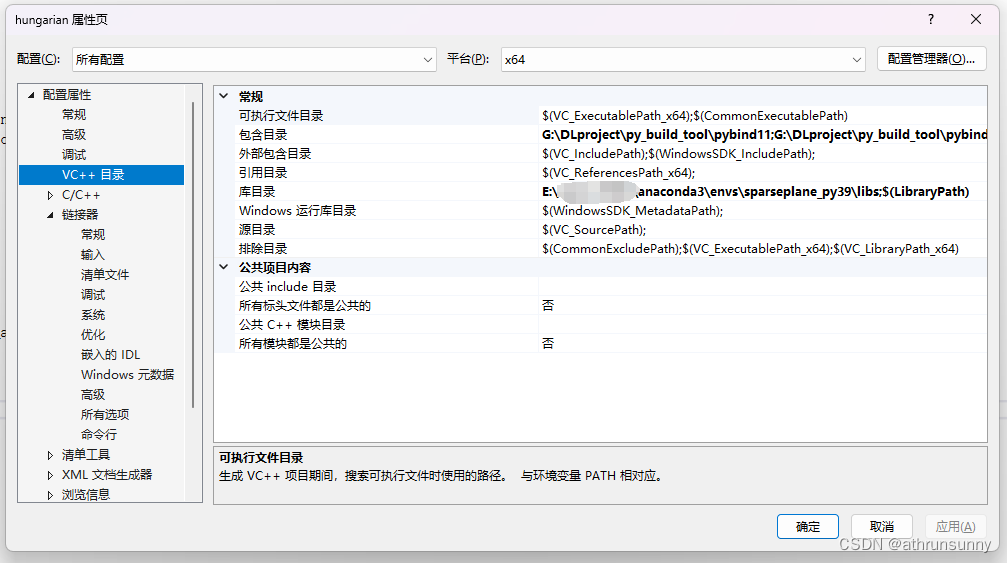

添加include和库路径

包含目录：
G:\DLproject\py_build_tool\pybind11
G:\DLproject\py_build_tool\pybind11\include # pybind11的路径
E:\xxx\xxx\anaconda3\envs\sparseplane_py39\include  # 根据自己的python环境来确定
G:\DLproject\SparsePlanes\km\eigen   # 这里将eigen放在编译时的根路径下

库目录：
E:\xxx\xxx\anaconda3\envs\sparseplane_py39\libs

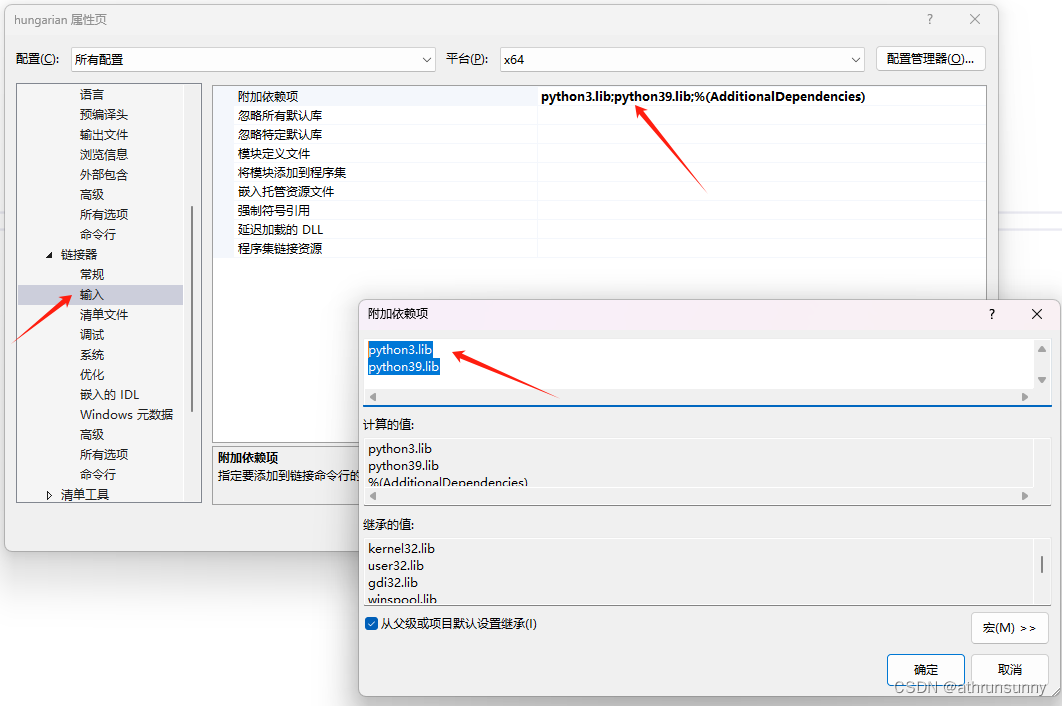

 增加链接器的附加依赖

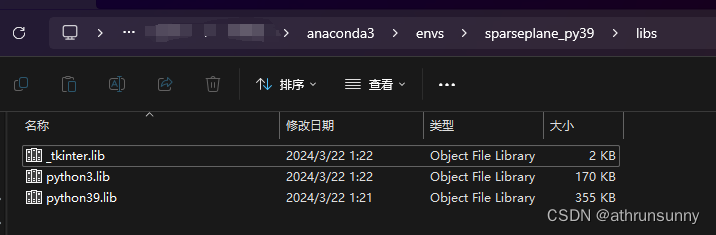

 这个依赖主要根据库目录中的pythonlib来确定

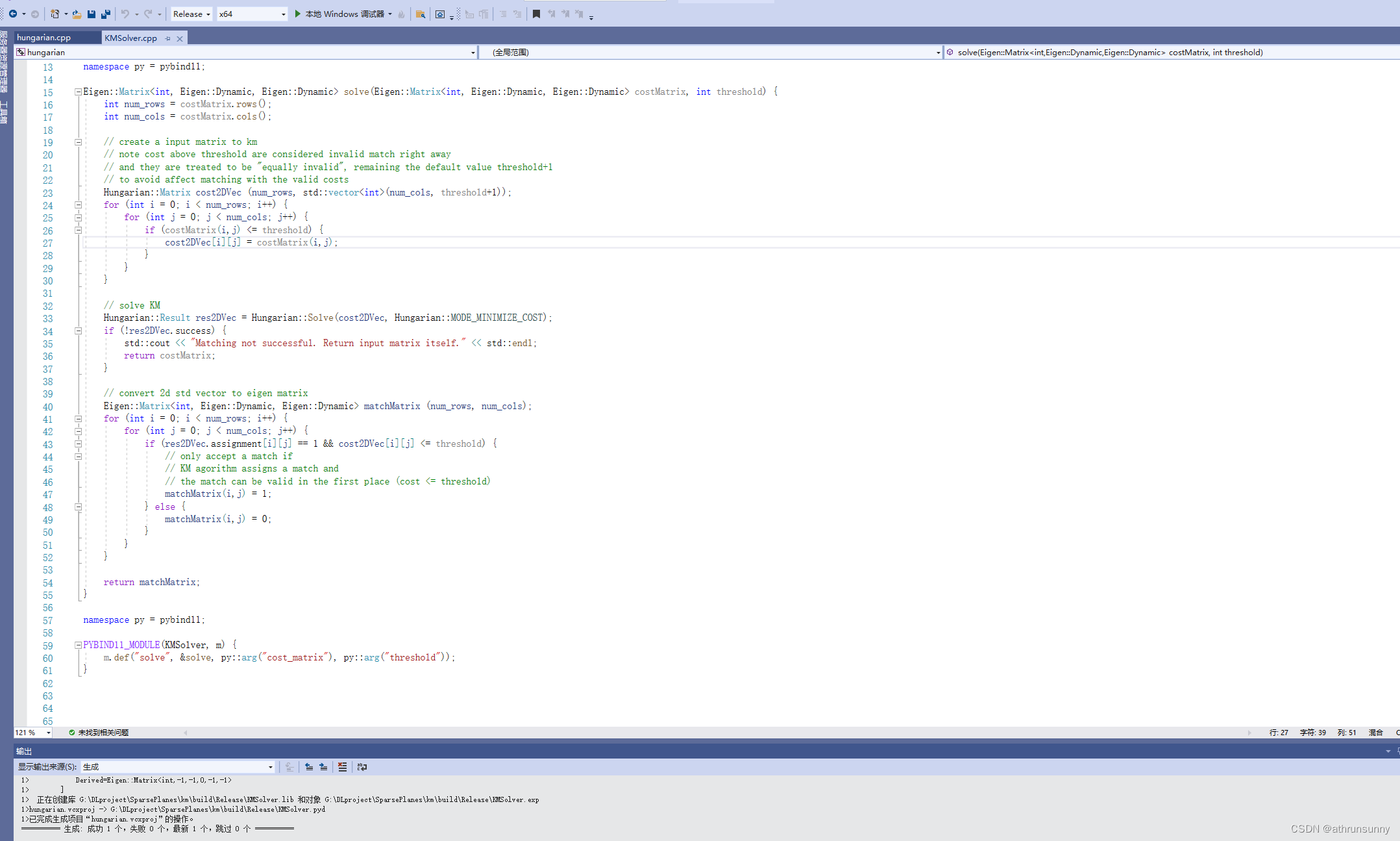

之后直接生成

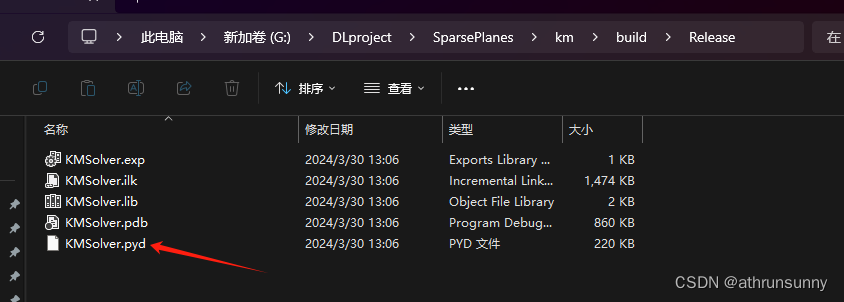

一般按上面的步骤来不会报错，在build/release下能看到对应的pyd文件

将该文件复制到SparsePlanes\sparsePlane下，替换之前的.so文件

sparsePlane的windows环境配置好后就能直接在windows上运行了

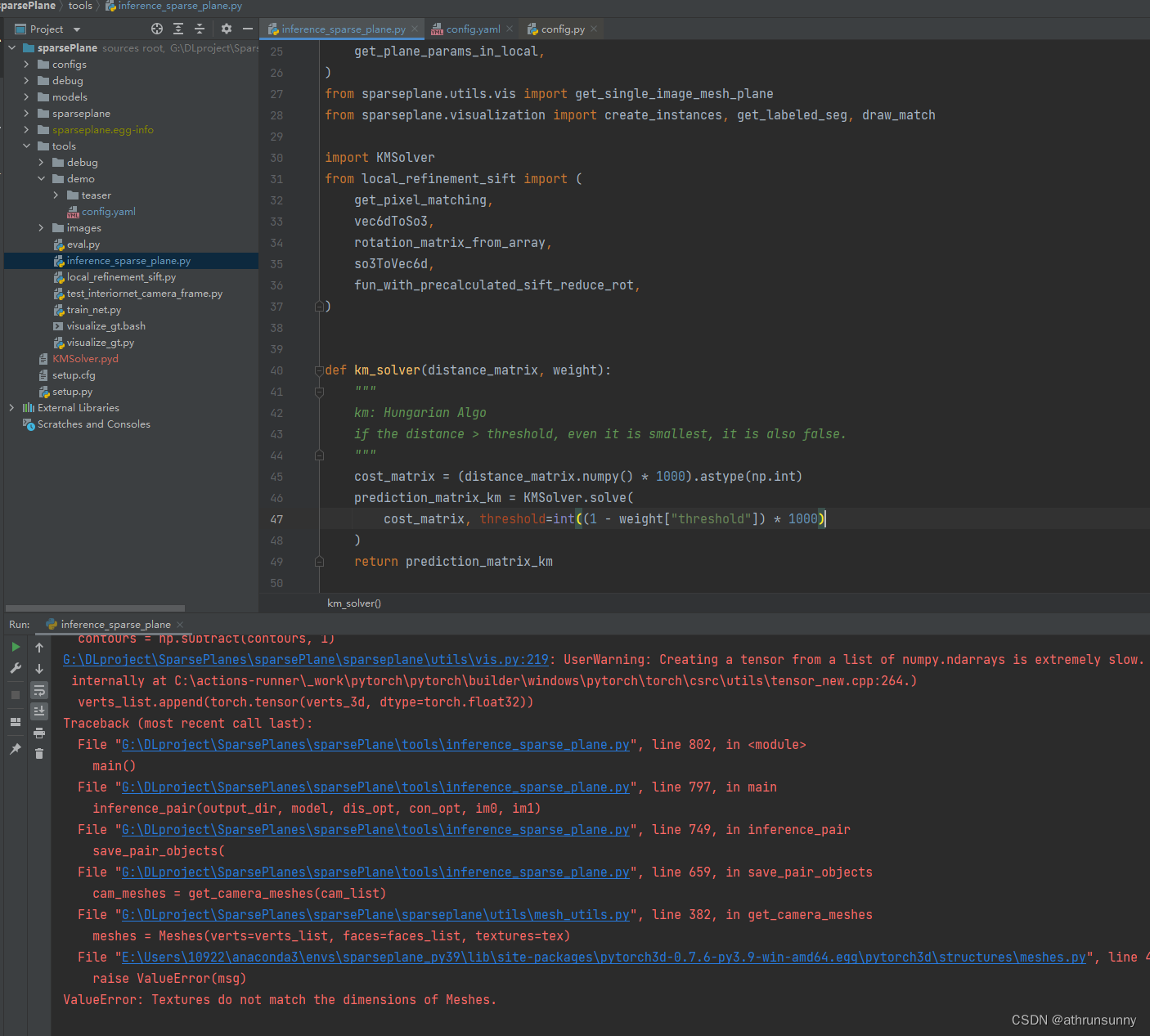

上面的报错是pytorch3d的问题，具体问题还得折腾一下

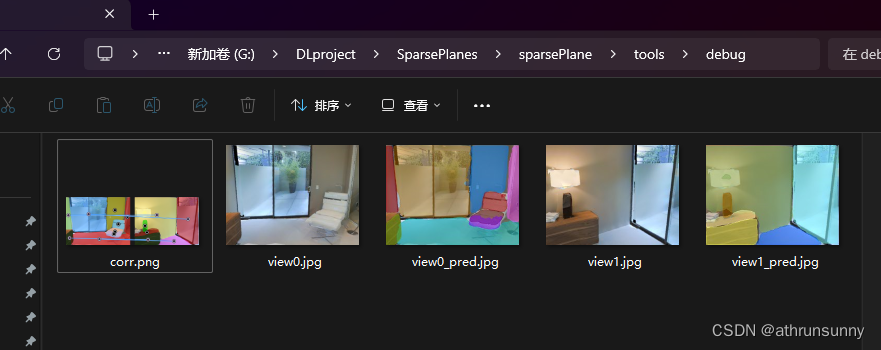

代码运行完会在tools/debug下保存处理好的文件，包括mask、匹配的结果、渲染好的3d文件以及对应的贴图。obj文件可以用3D建图工具打开，比如blender，这里因为pytorch3d有问题，3d相关的文件没能保存下来。
