1 目标

本文主要描述如何在Asterfusion CX308P-48Y-N和CX532P-N（以下简称CX308和CX532）搭建的网络上，使用BGP EVPN自动化地创建VXLAN隧道、传递虚拟路由，完成其连接的Server的数据包封装及解封装工作。

注：REST API目前无法涵盖所有功能，因此部分功能配置依然依赖命令行进行配置。

2 设备拓扑

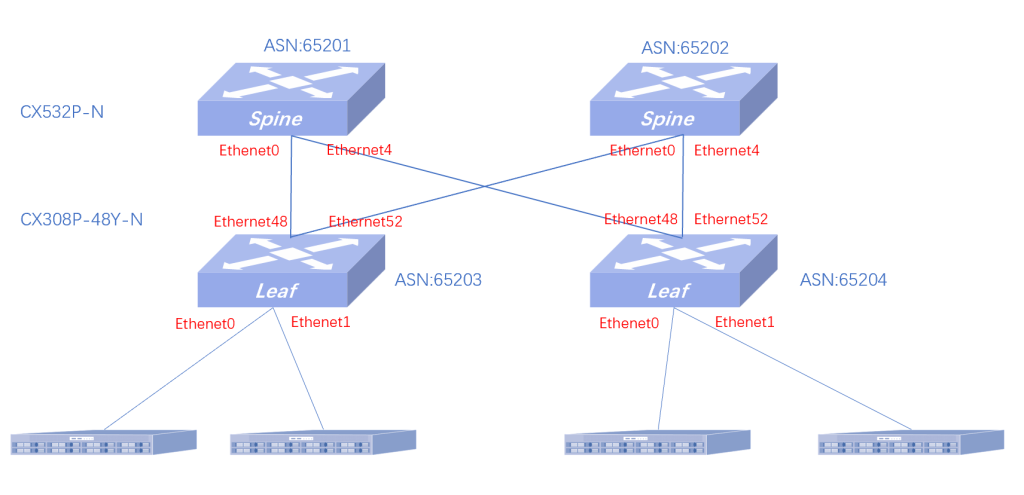

图片1：网络拓扑

图片1：网络拓扑

部署所使用的设备、接口及管理IP如下：

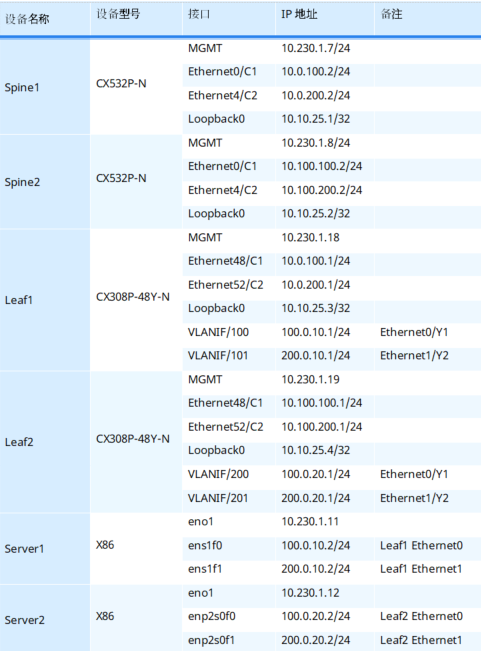

表1：设备列表

表1：设备列表

3 具体配置

3.1 原子级REST API配置

3.1.1 修改CLI-mode

REST API与Klish命令行不兼容，使用REST API的前提就是修改cli-mode为bash。需要在四台交换机上配置如下命令：

admin@Leaf1:~$ config cli-mode bash
3.1.2 登录交换机

执行REST API需要登陆对应的交换机后，才能调用其接口。

POST https://10.230.1.7/rest/v3/login
{
"username":"admin",
"password":"asteros"
}
3.1.3 配置各交换机端口速率及IP
Spine1:
POST https://10.230.1.7/rest/v3/router-interfaces/
{
    "C1": {
        "vrf": "default",
        "ip_addr": [
            "10.0.100.2/24"
        ]
    },
    "C2": {
        "vrf": "default",
        "ip_addr": [
            "10.0.200.2/24"
        ]
    }

}

Spine2:
POST https://10.230.1.8/rest/v3/router-interfaces/
{
    "C1": {
        "vrf": "default",
        "ip_addr": [
            "10.100.100.2/24"
        ]
    },
    "C2": {
        "vrf": "default",
        "ip_addr": [
            "10.100.200.2/24"
        ]
    }

}

Leaf1:
admin@Leaf1:~$ sudo config interface speed Ethernet0 10000
admin@Leaf1:~$ sudo config interface speed Ethernet1 10000

POST https://10.230.1.18/rest/v3/router-interfaces/
{
    "C1": {
        "vrf": "default",
        "ip_addr": [
            "10.0.100.1/24"
        ]
    },
    "C2": {
        "vrf": "default",
        "ip_addr": [
            "10.100.100.1/24"
        ]
    }

}

Leaf2:
admin@Leaf2:~$ sudo config interface speed Ethernet0 10000
admin@Leaf2:~$ sudo config interface speed Ethernet1 10000
POST https://10.230.1.19/rest/v3/router-interfaces/
{
    "C1": {
        "vrf": "default",
        "ip_addr": [
            "10.0.200.1/24"
        ]
    },
    "C2": {
        "vrf": "default",
        "ip_addr": [
            "10.100.200.1/24"
        ]
    }

}
3.1.4配置Leaf1、Leaf2的VRF及VLAN信息
Leaf1:
POST https://10.230.1.18/rest/v3/vrfs/
{
    "vrf-123": {
        "src_mac": " 00:11:22:33:44:55"
    }
}
POST: https://10.230.1.18/rest/v3/vlans/
{
    "vlan100": {
        "members": [
            {
                "id": "Y1",
                "tagging_mode": "untagged"
            }
        ]
    }
}
POST https://10.230.1.18/rest/v3/router-interfaces/
{
    "vlan100": {
        "ip_addr": [
            "100.0.10.1/24"
        ],
        "vrf": "vrf-123",
        "mac_address": " 00:11:22:33:44:55 "
    }
}

Leaf2:
POST https://10.230.1.19/rest/v3/vrfs/
{
    "vrf-456": {
        "src_mac": "00:11:22:33:44:a5"
    }
}

POST: https://10.230.1.19/rest/v3/vlans/
{
    "vlan200": {
        "members": [
            {
                "id": "Y1",
                "tagging_mode": "untagged"
            }
        ]
    }
}
POST: https://10.230.1.19/rest/v3/router-interfaces/
{
    "vlan200": {
        "vrf": "vrf-456",
        "ip_addr": [
            "100.0.20.1/24"
        ],
        "mac_address": " 00:11:22:33:44:a5"
    }
}
3.1.5 配置BGP
Spine1:
admin@Spine1:~$ sudo config bgp asn 65201
POST https://10.230.1.7/rest/v3/protocols/bgp-neighbors/
{
    "10.0.100.1": {
        "configuration": {
            "rrclient_enable": "false",
            "name": "S1-L1",
            "local_addr": "10.0.100.2",
            "nhopself_enable": "false",
            "admin_status": "up",
            "holdtime": "180",
            "asn": "65203",
            "keepalive": "60"
        }
    },
     "10.0.200.1": {
        "configuration": {
            "rrclient_enable": "false",
            "name": "S1-L2",
            "local_addr": "10.0.200.2",
            "nhopself_enable": "false",
            "admin_status": "up",
            "holdtime": "180",
            "asn": "65204",
            "keepalive": "60"
        }
    }
}
POST https://10.230.1.7/rest/v3/protocols/bgp-interface-neighbors/
{
    "C1": {
        "configuration": {
            "admin_status": "up",
            "asn": "external"
        }
    },
    "C2": {
        "configuration": {
            "admin_status": "up",
            "asn": "external"
        }
    }
}
admin@Spine1:~$ sudo config bgp add network default 10.10.25.1/32 ipv4

Spine2:
admin@Spine2:~$ sudo config bgp asn 65202
POST https://10.230.1.8/rest/v3/protocols/bgp-neighbors/
{
    "10.100.100.1": {
        "configuration": {
            "rrclient_enable": "false",
            "name": "S2-L1",
            "local_addr": "10.100.100.2",
            "nhopself_enable": "false",
            "admin_status": "up",
            "holdtime": "180",
            "asn": "65203",
            "keepalive": "60"
        }
    },
     "10.100.200.1": {
        "configuration": {
            "rrclient_enable": "false",
            "name": "S2-L2",
            "local_addr": "10.100.200.2",
            "nhopself_enable": "false",
            "admin_status": "up",
            "holdtime": "180",
            "asn": "65204",
            "keepalive": "60"
        }
    }
}
POST https://10.230.1.8/rest/v3/protocols/bgp-interface-neighbors/
{
    "C1": {
        "configuration": {
            "admin_status": "up",
            "asn": "external"
        }
    },
    "C2": {
        "configuration": {
            "admin_status": "up",
            "asn": "external"
        }
    }
}
admin@Spine2:~$ sudo config bgp add network default 10.10.25.2/32 ipv4


Leaf1:
admin@Leaf1:~$ sudo config bgp asn 65203
POST https://10.230.1.18/rest/v3/protocols/bgp-neighbors/
{
    "10.0.100.2": {
        "configuration": {
            "rrclient_enable": "false",
            "name": "S1-L1",
            "local_addr": "10.0.100.1",
            "nhopself_enable": "false",
            "admin_status": "up",
            "holdtime": "180",
            "asn": "65201",
            "keepalive": "60"
        }
    },
     "10.100.100.2": {
        "configuration": {
            "rrclient_enable": "false",
            "name": "S2-L1",
            "local_addr": "10.100.100.1",
            "nhopself_enable": "false",
            "admin_status": "up",
            "holdtime": "180",
            "asn": "65202",
            "keepalive": "60"
        }
    }
}
POST https://10.230.1.18/rest/v3/protocols/bgp-interface-neighbors/
{
    "C1": {
        "configuration": {
            "admin_status": "up",
            "asn": "external"
        }
    },
    "C2": {
        "configuration": {
            "admin_status": "up",
            "asn": "external"
        }
    }
}
admin@Leaf1:~$ sudo config bgp add network default 10.10.25.3/32 ipv4


Leaf2:
admin@Leaf2:~$ sudo config bgp asn 65204
POST https://10.230.1.19/rest/v3/protocols/bgp-neighbors/
{
    "10.0.200.2": {
        "configuration": {
            "rrclient_enable": "false",
            "name": "S1-L2",
            "local_addr": "10.0.200.1",
            "nhopself_enable": "false",
            "admin_status": "up",
            "holdtime": "180",
            "asn": "65201",
            "keepalive": "60"
        }
    },
     "10.100.200.2": {
        "configuration": {
            "rrclient_enable": "false",
            "name": "S2-L2",
            "local_addr": "10.100.200.1",
            "nhopself_enable": "false",
            "admin_status": "up",
            "holdtime": "180",
            "asn": "65202",
            "keepalive": "60"
        }
    }
}
POST https://10.230.1.19/rest/v3/protocols/bgp-interface-neighbors/
{
    "C1": {
        "configuration": {
            "admin_status": "up",
            "asn": "external"
        }
    },
    "C2": {
        "configuration": {
            "admin_status": "up",
            "asn": "external"
        }
    }
}
admin@Leaf2:~$ sudo config bgp add network default 10.10.25.4/32 ipv4
3.1.6 配置VTEP开启EVPN

Leaf1:
admin@Leaf1:~$ sudo config evpn advertise all-vni
admin@Leaf1:~$ sudo config vxlan add vxlan0 10.10.25.3
admin@Leaf1:~$ sudo config vxlan evpn_nvo add nvo0 vxlan0


Leaf2:
admin@Leaf2:~$ sudo config evpn advertise all-vni
admin@Leaf2:~$ sudo config vxlan add vxlan0 10.10.25.4
admin@Leaf2:~$ sudo config vxlan evpn_nvo add nvo0 vxlan0
3.1.7 配置VXLAN映射
Leaf1:
POST https://10.230.1.18/rest/v3/protocols/evpn-tunnel-maps/
{
    "100": {
        "map": "vlan100",
        "type": "vlan",
        "vxlan_id": "0"

    },
    "1000": {
        "map": "vrf-123",
        "type": "vrf",
        "vxlan_id": "0"

    }
}
Leaf2:
POST https://10.230.1.19/rest/v3/protocols/evpn-tunnel-maps/
{
    "200": {
        "map": "vlan200",
        "type": "vlan",
        "vxlan_id": "0"

    },
    "1000": {
        "map": "vrf-456",
        "type": "vrf",
        "vxlan_id": "0"

    }
}
3.1.8 保存&重载

以Spine1为例：

POST https://10.230.1.7/rest/v3/system_config/
{
    "action": "save"
}
POST https://10.230.1. 7/rest/v3/system_config/
{
    "action": "reload"
}
3.1.9 服务器配置

Server1:

3.1.9-1

[root@server1 ~]# route add -net 100.0.20.0 netmask 255.255.255.0 gw 100.0.10.1 dev ens1f0

Server2:

3.1.9-2

[root@server2 network-scripts]# route add -net 100.0.10.0 netmask 255.255.255.0 gw 100.0.20.1 dev enp2s0f0
3.1.10 配置验证

3.1.10.1服务器连通性

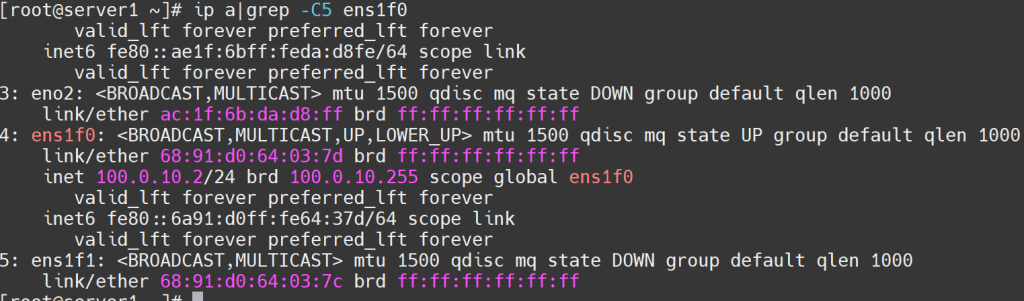

Server1:

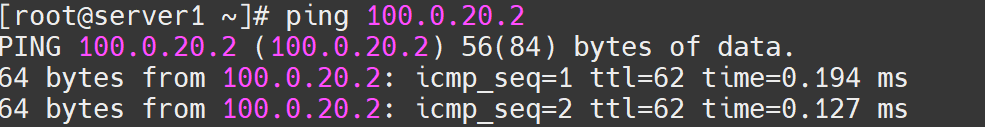

3.1.10.1-1

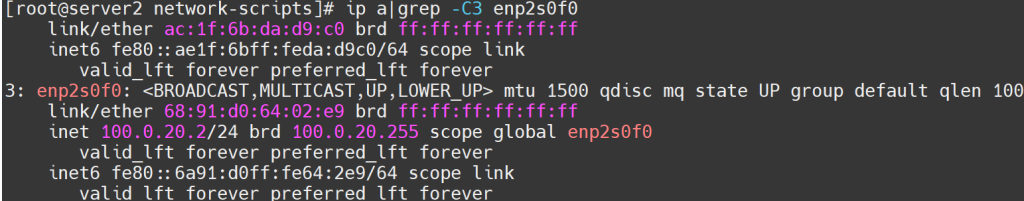

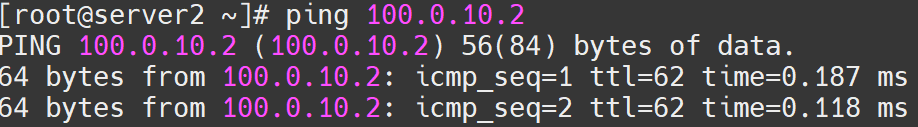

Server2:

3.1.10.1-2

3.1.10.2查看Leaf1信息

查看EVPN信息

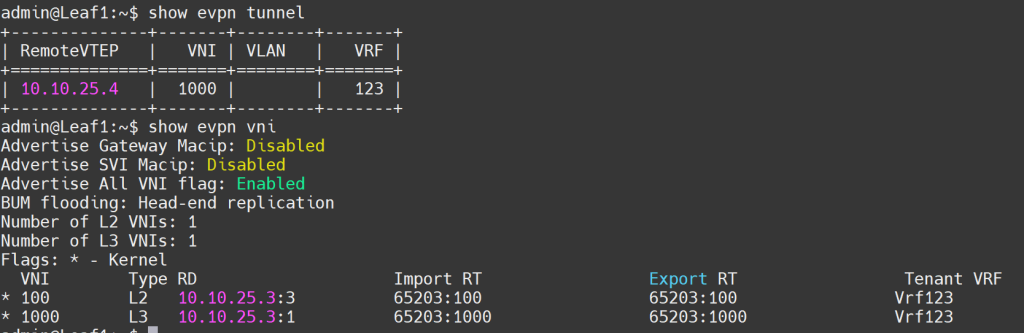

3.1.10.2-1

查看VXLAN VTEP

3.1.10.2-2

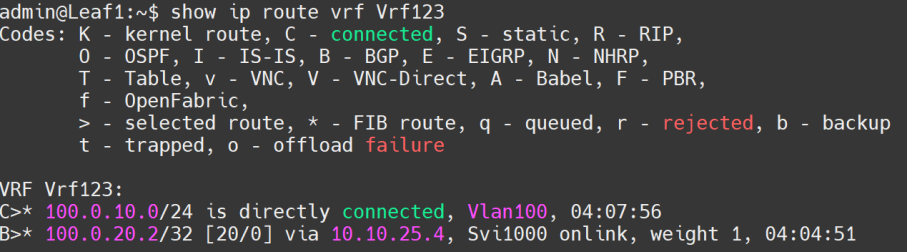

查看Leaf1路由

3.1.10.3查看Leaf2信息

查看EVPN信息

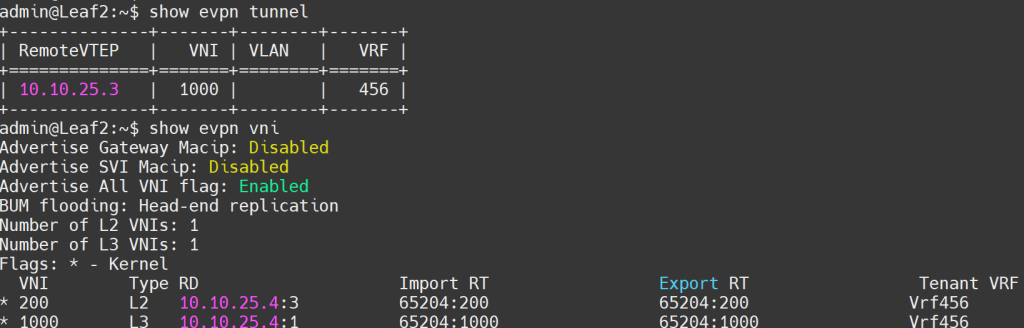

3.1.10.3-1

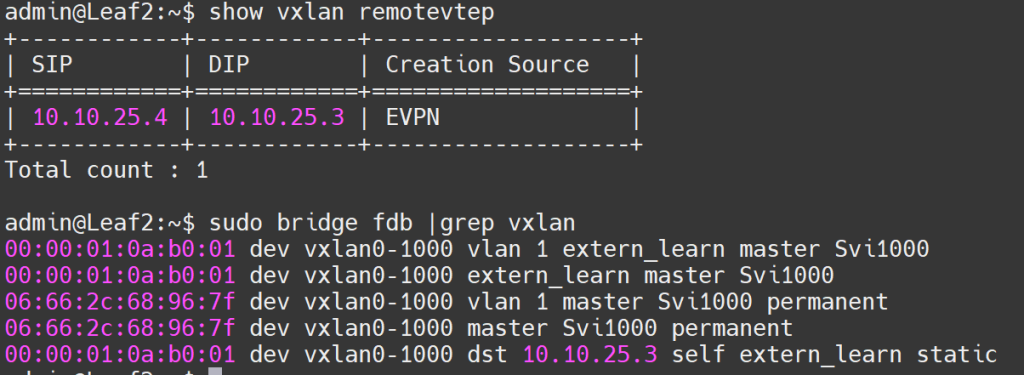

查看VXLAN VTEP

3.1.10.3-2

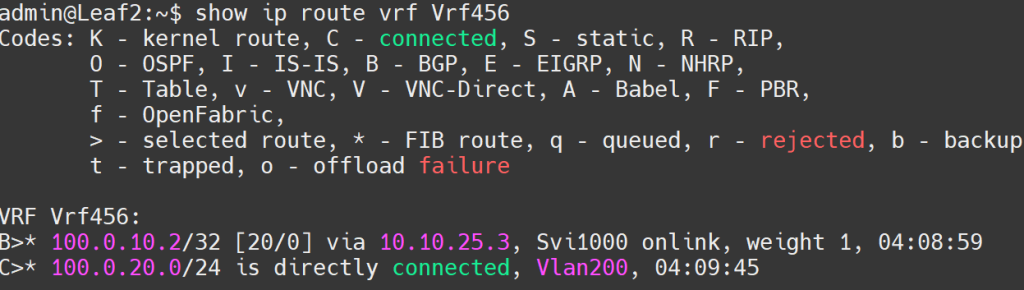

查看Leaf2路由

3.1.10.3-3
