掌握代理模式的应用场景和实现原理
生活中常见的常见,如租房中介,黄牛,婚介,猎头等
代码中常见的应用有事务代理,非侵入式的日志监听等.
代理模式(Proxy Pattern)的定义就是为一般对象提供代理(访问先经过代理对象再到被代理对象),用以控制对这个对象的访问.
代理模式属于结构型设计模式,使用目的就是为了保护对象和增强对象

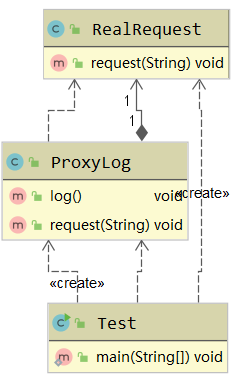

下面是一个静态代理模式实现的类图.
客户调用的时候调用的是proxy类对象,代理类持有被代理类对象引用,使用的时候只需要传递请求数据给代理类,代理类会进行日志记录,然后让被代理类执行请求逻辑
在代码中，我们想到代理，就会理解为是代码 增强，其实就是在原本逻辑前后增加一些逻辑，而调用者无感知。代理模式属于结构型 模式，有静态代理和动态代理
了解静态代理和动态代理的区别。
静态代理
代理
public class ProxyLog {
private RealRequest proxy;
public ProxyLog(RealRequest requestProxy) {
this.proxy = requestProxy;
}
public void log() {
System.out.println("访问请求方法");
}
public void request(String data) {
log();
proxy.request(data);
}
}
public class RealRequest {
public void request(String data) {
System.out.println("data:" + data);
}
}
public static void main(String[] args) {
String data = "hello world";
ProxyLog proxyLog = new ProxyLog(new RealRequest());
proxyLog.request(data);
}
动态代理
动态代理和静态代理的思路基本一致,都是根据被代理对象,在调用被代理对象前做一些处理.
不同的是代理对象的功能更加强大,从上面的静态代理可以看出局限很大,只能代理指定对象的指定方法.
JDK实现动态代理
下面是一个JDK实现动态代理的例子
//JDK动态代理转换类,根据接口转换
public interface CustomRequest {
public void request();
public void setHeader();
}
public class RealRequest implements CustomRequest {
@Override
public void setHeader() {
System.out.println("setHeader");
}
@Override
public void request() {
System.out.println("hello");
}
}
public class ProxyLog implements InvocationHandler {
private Object target;
public Object getInstance(Object target) throws Exception {
this.target = target;
Class<?> clazz = target.getClass();
//根据clazz.getInterfaces()获得的接口,得到可以转换的类型和调用方法,无法直接转换为clazz
return Proxy.newProxyInstance(clazz.getClassLoader(), clazz.getInterfaces(), this);
}
/* proxy为根据ProxyLog实现的invoke方法生成的代理对象
也就是通过Proxy.newProxyInstance(clazz.getClassLoader(), clazz.getInterfaces(), this)
返回的对象
((ProxyLog) ((Proxy) proxy).h).target==target
method是当前代理对象调用的方法,args是当前调用方法
传递的参数,result为方法调用的返回值Void方法返回null*/
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
log(method.getName());
Object result = method.invoke(target, args);
return result;
}
public void log(String methodName) {
System.out.println("invoke:" + methodName);
}
}
public static void main(String[] args) throws Exception {
CustomRequest request = ((CustomRequest) new ProxyLog().getInstance(new RealRequest()));
request.request();
request.setHeader();
}
动态代理之后,不止是RealRequest类的request(),任何实现了CustomRequest接口的类调用的由接口定义的方法和Object的方法都可以被代理(具体查看手写实现定义的动态代理部分).
CGLib 实现动态代理
ProxyLog
public class ProxyLog implements MethodInterceptor {
public Object getInstance(Class<?> clazz) throws Exception {
Enhancer enhancer = new Enhancer();
//要把哪个设置为即将生成的新类父类
enhancer.setSuperclass(clazz);
enhancer.setCallback(this);
return enhancer.create();
}
public void log(String methodName) {
System.out.println("invoke:" + methodName);
}
/*
* 所有生成的代理方法都会调用这个方法来代替原来的方法。
* 原方法可以通过使用方法对象的正常反射来调用。
* 或者通过使用方法代理（更快）。
* @param obj "this"，增强的对象。
* @param method 被拦截方法
* @param args 参数数组；基元类型被封装。
* @param proxy 用于调用super（非拦截方法）;可根据需要多次调用
* @throws Throwable 任何异常都可能被抛出；如果是这样，父类方法将不会被调用。
* @return 任何与代理方法的签名相符的值。返回void的方法将忽略这个值。
*/
@Override
public Object intercept(Object o, Method method, Object[] objects, MethodProxy methodProxy) throws Throwable {
log(method.getName());
Object result = methodProxy.invokeSuper(o, objects);
return result;
}
}
public class RealRequest implements CustomRequest {
@Override
public void setHeader() {
System.out.println("setHeader");
}
@Override
public void request() {
System.out.println("hello");
}
}
生成代理对象
通过java代码
不推荐,新版的cglib只能生成部分动态生成的class
public static void proxyGenerator() throws Exception {
System.setProperty(DebuggingClassWriter.DEBUG_LOCATION_PROPERTY, "project1\\pattern\\pattern-proxy\\");
CustomRequest obj = (CustomRequest) new ProxyLog().getInstance(RealRequest.class);
}

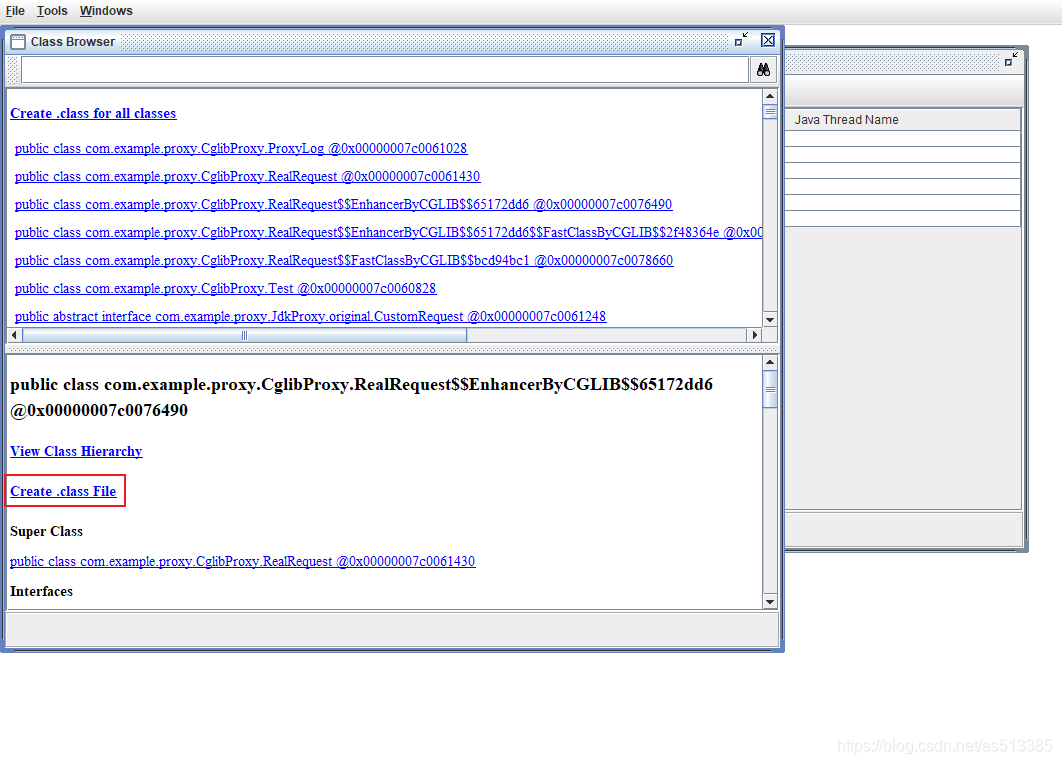

通过jvm工具
通过
java -classpath "D:\java\Jdk8\jdk1.8.0_202\lib\sa-jdi.jar" sun.jvm.hotspot.HSDB
命令
生成的代理对象
通过调试可知RealRequest$$EnhancerByCGLIB$$65172dd6是生成返回的代理对象
public class RealRequest$$EnhancerByCGLIB$$65172dd6 extends RealRequest implements Factory {
private boolean CGLIB$BOUND;
public static Object CGLIB$FACTORY_DATA;
private static final ThreadLocal CGLIB$THREAD_CALLBACKS;
private static final Callback[] CGLIB$STATIC_CALLBACKS;
private MethodInterceptor CGLIB$CALLBACK_0;
private static Object CGLIB$CALLBACK_FILTER;
private static final Method CGLIB$setHeader$0$Method;
private static final MethodProxy CGLIB$setHeader$0$Proxy;
private static final Object[] CGLIB$emptyArgs;
private static final Method CGLIB$request$1$Method;
private static final MethodProxy CGLIB$request$1$Proxy;
private static final Method CGLIB$equals$2$Method;
private static final MethodProxy CGLIB$equals$2$Proxy;
private static final Method CGLIB$toString$3$Method;
private static final MethodProxy CGLIB$toString$3$Proxy;
private static final Method CGLIB$hashCode$4$Method;
private static final MethodProxy CGLIB$hashCode$4$Proxy;
private static final Method CGLIB$clone$5$Method;
private static final MethodProxy CGLIB$clone$5$Proxy;
static void CGLIB$STATICHOOK1() {
CGLIB$THREAD_CALLBACKS = new ThreadLocal();
CGLIB$emptyArgs = new Object[0];
Class var0 = Class.forName("com.example.proxy.CglibProxy.RealRequest$$EnhancerByCGLIB$$65172dd6");
Class var1;
Method[] var10000 = ReflectUtils.findMethods(new String[]{"setHeader", "()V", "request", "()V"}, (var1 = Class.forName("com.example.proxy.CglibProxy.RealRequest")).getDeclaredMethods());
CGLIB$setHeader$0$Method = var10000[0];
CGLIB$setHeader$0$Proxy = MethodProxy.create(var1, var0, "()V", "setHeader", "CGLIB$setHeader$0");
CGLIB$request$1$Method = var10000[1];
CGLIB$request$1$Proxy = MethodProxy.create(var1, var0, "()V", "request", "CGLIB$request$1");
var10000 = ReflectUtils.findMethods(new String[]{"equals", "(Ljava/lang/Object;)Z", "toString", "()Ljava/lang/String;", "hashCode", "()I", "clone", "()Ljava/lang/Object;"}, (var1 = Class.forName("java.lang.Object")).getDeclaredMethods());
CGLIB$equals$2$Method = var10000[0];
CGLIB$equals$2$Proxy = MethodProxy.create(var1, var0, "(Ljava/lang/Object;)Z", "equals", "CGLIB$equals$2");
CGLIB$toString$3$Method = var10000[1];
CGLIB$toString$3$Proxy = MethodProxy.create(var1, var0, "()Ljava/lang/String;", "toString", "CGLIB$toString$3");
CGLIB$hashCode$4$Method = var10000[2];
CGLIB$hashCode$4$Proxy = MethodProxy.create(var1, var0, "()I", "hashCode", "CGLIB$hashCode$4");
CGLIB$clone$5$Method = var10000[3];
CGLIB$clone$5$Proxy = MethodProxy.create(var1, var0, "()Ljava/lang/Object;", "clone", "CGLIB$clone$5");
}
final void CGLIB$setHeader$0() {
super.setHeader();
}
public final void setHeader() {
MethodInterceptor var10000 = this.CGLIB$CALLBACK_0;
if (var10000 == null) {
CGLIB$BIND_CALLBACKS(this);
var10000 = this.CGLIB$CALLBACK_0;
}
if (var10000 != null) {
var10000.intercept(this, CGLIB$setHeader$0$Method, CGLIB$emptyArgs, CGLIB$setHeader$0$Proxy);
} else {
super.setHeader();
}
}
final void CGLIB$request$1() {
super.request();
}
public final void request() {
MethodInterceptor var10000 = this.CGLIB$CALLBACK_0;
if (var10000 == null) {
CGLIB$BIND_CALLBACKS(this);
var10000 = this.CGLIB$CALLBACK_0;
}
if (var10000 != null) {
var10000.intercept(this, CGLIB$request$1$Method, CGLIB$emptyArgs, CGLIB$request$1$Proxy);
} else {
super.request();
}
}
final boolean CGLIB$equals$2(Object var1) {
return super.equals(var1);
}
public final boolean equals(Object var1) {
MethodInterceptor var10000 = this.CGLIB$CALLBACK_0;
if (var10000 == null) {
CGLIB$BIND_CALLBACKS(this);
var10000 = this.CGLIB$CALLBACK_0;
}
if (var10000 != null) {
Object var2 = var10000.intercept(this, CGLIB$equals$2$Method, new Object[]{var1}, CGLIB$equals$2$Proxy);
return var2 == null ? false : (Boolean)var2;
} else {
return super.equals(var1);
}
}
final String CGLIB$toString$3() {
return super.toString();
}
public final String toString() {
MethodInterceptor var10000 = this.CGLIB$CALLBACK_0;
if (var10000 == null) {
CGLIB$BIND_CALLBACKS(this);
var10000 = this.CGLIB$CALLBACK_0;
}
return var10000 != null ? (String)var10000.intercept(this, CGLIB$toString$3$Method, CGLIB$emptyArgs, CGLIB$toString$3$Proxy) : super.toString();
}
final int CGLIB$hashCode$4() {
return super.hashCode();
}
public final int hashCode() {
MethodInterceptor var10000 = this.CGLIB$CALLBACK_0;
if (var10000 == null) {
CGLIB$BIND_CALLBACKS(this);
var10000 = this.CGLIB$CALLBACK_0;
}
if (var10000 != null) {
Object var1 = var10000.intercept(this, CGLIB$hashCode$4$Method, CGLIB$emptyArgs, CGLIB$hashCode$4$Proxy);
return var1 == null ? 0 : ((Number)var1).intValue();
} else {
return super.hashCode();
}
}
final Object CGLIB$clone$5() throws CloneNotSupportedException {
return super.clone();
}
protected final Object clone() throws CloneNotSupportedException {
MethodInterceptor var10000 = this.CGLIB$CALLBACK_0;
if (var10000 == null) {
CGLIB$BIND_CALLBACKS(this);
var10000 = this.CGLIB$CALLBACK_0;
}
return var10000 != null ? var10000.intercept(this, CGLIB$clone$5$Method, CGLIB$emptyArgs, CGLIB$clone$5$Proxy) : super.clone();
}
public static MethodProxy CGLIB$findMethodProxy(Signature var0) {
String var10000 = var0.toString();
switch(var10000.hashCode()) {
case -508378822:
if (var10000.equals("clone()Ljava/lang/Object;")) {
return CGLIB$clone$5$Proxy;
}
break;
case 37055110:
if (var10000.equals("request()V")) {
return CGLIB$request$1$Proxy;
}
break;
case 1326039942:
if (var10000.equals("setHeader()V")) {
return CGLIB$setHeader$0$Proxy;
}
break;
case 1826985398:
if (var10000.equals("equals(Ljava/lang/Object;)Z")) {
return CGLIB$equals$2$Proxy;
}
break;
case 1913648695:
if (var10000.equals("toString()Ljava/lang/String;")) {
return CGLIB$toString$3$Proxy;
}
break;
case 1984935277:
if (var10000.equals("hashCode()I")) {
return CGLIB$hashCode$4$Proxy;
}
}
return null;
}
public RealRequest$$EnhancerByCGLIB$$65172dd6() {
CGLIB$BIND_CALLBACKS(this);
}
public static void CGLIB$SET_THREAD_CALLBACKS(Callback[] var0) {
CGLIB$THREAD_CALLBACKS.set(var0);
}
public static void CGLIB$SET_STATIC_CALLBACKS(Callback[] var0) {
CGLIB$STATIC_CALLBACKS = var0;
}
private static final void CGLIB$BIND_CALLBACKS(Object var0) {
RealRequest$$EnhancerByCGLIB$$65172dd6 var1 = (RealRequest$$EnhancerByCGLIB$$65172dd6)var0;
if (!var1.CGLIB$BOUND) {
var1.CGLIB$BOUND = true;
Object var10000 = CGLIB$THREAD_CALLBACKS.get();
if (var10000 == null) {
var10000 = CGLIB$STATIC_CALLBACKS;
if (var10000 == null) {
return;
}
}
var1.CGLIB$CALLBACK_0 = (MethodInterceptor)((Callback[])var10000)[0];
}
}
public Object newInstance(Callback[] var1) {
CGLIB$SET_THREAD_CALLBACKS(var1);
RealRequest$$EnhancerByCGLIB$$65172dd6 var10000 = new RealRequest$$EnhancerByCGLIB$$65172dd6();
CGLIB$SET_THREAD_CALLBACKS((Callback[])null);
return var10000;
}
public Object newInstance(Callback var1) {
CGLIB$SET_THREAD_CALLBACKS(new Callback[]{var1});
RealRequest$$EnhancerByCGLIB$$65172dd6 var10000 = new RealRequest$$EnhancerByCGLIB$$65172dd6();
CGLIB$SET_THREAD_CALLBACKS((Callback[])null);
return var10000;
}
public Object newInstance(Class[] var1, Object[] var2, Callback[] var3) {
CGLIB$SET_THREAD_CALLBACKS(var3);
RealRequest$$EnhancerByCGLIB$$65172dd6 var10000 = new RealRequest$$EnhancerByCGLIB$$65172dd6;
switch(var1.length) {
case 0:
var10000.<init>();
CGLIB$SET_THREAD_CALLBACKS((Callback[])null);
return var10000;
default:
throw new IllegalArgumentException("Constructor not found");
}
}
public Callback getCallback(int var1) {
CGLIB$BIND_CALLBACKS(this);
MethodInterceptor var10000;
switch(var1) {
case 0:
var10000 = this.CGLIB$CALLBACK_0;
break;
default:
var10000 = null;
}
return var10000;
}
public void setCallback(int var1, Callback var2) {
switch(var1) {
case 0:
this.CGLIB$CALLBACK_0 = (MethodInterceptor)var2;
default:
}
}
public Callback[] getCallbacks() {
CGLIB$BIND_CALLBACKS(this);
return new Callback[]{this.CGLIB$CALLBACK_0};
}
public void setCallbacks(Callback[] var1) {
this.CGLIB$CALLBACK_0 = (MethodInterceptor)var1[0];
}
static {
CGLIB$STATICHOOK1();
}
}
分析
可以看到重写了RealRequest类所有的方法,包括从Object继承的方法,
并且获得了所有Method并有与之对应的MethodProxy
例如com.example.proxy.JdkProxy.custom.CustomRequest#setHeader
...
private static final Method CGLIB$setHeader$0$Method;
private static final MethodProxy CGLIB$setHeader$0$Proxy;
...
这些方法在重写的setHeader中都有调用
//代理方法（methodProxy.invokeSuper 会调用）
final void CGLIB$setHeader$0() {super.setHeader();}
//被代理方法(methodProxy.invoke 会调用，这就是为什么在拦截器中调用 methodProxy.invoke 会死循环，一直在调 用拦截器)
public final void setHeader() {
MethodInterceptor var10000 = this.CGLIB$CALLBACK_0;
if (var10000 == null) {
CGLIB$BIND_CALLBACKS(this);
var10000 = this.CGLIB$CALLBACK_0;
}
if (var10000 != null) {
//public Object getInstance(Class<?> clazz) throws Exception {
//Enhancer enhancer = new Enhancer();
//要把哪个设置为即将生成的新类父类
//enhancer.setSuperclass(clazz);
//enhancer.setCallback(this);
//return enhancer.create();
//}
//var10000就是通过enhancer.setCallback(this)传入的
//方法拦截器(ProxyLog implements MethodInterceptor)
//调用com.example.proxy.CglibProxy.ProxyLog#intercept
//(Object o, Method method, Object[] objects, MethodProxy methodProxy) throws Throwable
var10000.intercept(this, CGLIB$setHeader$0$Method, CGLIB$emptyArgs, CGLIB$setHeader$0$Proxy);
} else {
super.setHeader();
}
}
具体invoke和invokeSuper分别调用哪个可以从MethodProxy的一个注释上了解
//org.springframework.cglib.proxy.MethodProxy#getSuperName
/**
* Return the name of the synthetic method created by CGLIB which is
* used by {@link #invokeSuper} to invoke the superclass
* (non-intercepted) method implementation. The parameter types are
* the same as the proxied method.
*/
/**
返回由CGLIB创建的合成方法的名称，
该方法被{@link #invokeSuper}用来调用父类。
(非拦截)方法的实现。参数类型与代理方法相同。
*/
public String getSuperName() {
return sig2.getName();
}
调用流程
主要分析org.springframework.cglib.proxy.MethodProxy#invokeSuper
public class MethodProxy {
//方法签名,保留了方法的名称,返回类型和参数类型
private Signature sig1;
private Signature sig2;
private void init()
{
...
fci.f1 = helper(ci, ci.c1);
fci.f2 = helper(ci, ci.c2);
//根据方法签名获取方法索引值
fci.i1 = fci.f1.getIndex(sig1);
fci.i2 = fci.f2.getIndex(sig2);
fastClassInfo = fci;
...
}
private static class FastClassInfo {
FastClass f1;
FastClass f2;
int i1;
int i2;
private FastClassInfo() {
}
}
org.springframework.cglib.proxy.MethodProxy#invokeSuper
public Object invokeSuper(Object obj, Object[] args) throws Throwable {
try {
this.init();
MethodProxy.FastClassInfo fci = this.fastClassInfo;
//fci.f2
//FastClassInfo.FastClass
return fci.f2.invoke(fci.i2, obj, args);
} catch (InvocationTargetException var4) {
throw var4.getTargetException();
}
}
...
上面代码调用过程就是获取到代理类对应的 FastClass,根据方法签名获取了方法索引,并执行了被代理方法。
具体执行过程,还记得之前生成三个class文件吗?
RealRequest$$EnhancerByCGLIB$$65172dd6$$FastClassByCGLIB$$2f48364e
就是RealRequest$$EnhancerByCGLIB$$65172dd6
的FastClass
下面我们看看源码
/**
* A representation of a method signature, containing the method name,
* return type, and parameter types.
*/
public class Signature {
private String name;
private String desc;
public Signature(String name, Type returnType, Type[] argumentTypes) {
this(name, Type.getMethodDescriptor(returnType, argumentTypes));
}
public String toString() {return name + desc;}
}
net.sf.cglib.proxy.MethodProxy#init
//FastClass 并不是跟代理类一块生成的，而是在第一次执行 MethodProxy
//invoke/invokeSuper 时生成的并放在了缓存中。
//MethodProxy invoke/invokeSuper 都调用了 init()
private void init()
{
/*
* Using a volatile invariant allows us to initialize the FastClass and
* method index pairs atomically.
*
* Double-checked locking is safe with volatile in Java 5.
* volatile 修饰的变量生成通过双重检查锁在Java5是安全的
* Before 1.5 this code could allow fastClassInfo to be
* instantiated more than once, which appears to be benign.
* 但在1.5之前fastClassInfo可以被实例化多次,但似乎并不影响
*
*/
if (fastClassInfo == null)
{
synchronized (initLock)
{
if (fastClassInfo == null)
{
CreateInfo ci = createInfo;
FastClassInfo fci = new FastClassInfo();
//如果缓存中就取出，没有就生成新的 FastClass
fci.f1 = helper(ci, ci.c1);
fci.f2 = helper(ci, ci.c2);
fci.i1 = fci.f1.getIndex(sig1);//获取方法的 index
fci.i2 = fci.f2.getIndex(sig2);
fastClassInfo = fci;
createInfo = null;
}
}
}
}
net.sf.cglib.proxy.MethodProxy#invokeSuper
public Object invokeSuper(Object obj, Object[] args) throws Throwable
{
...
return fci.f2.invoke(fci.i2, obj, args);
...
}
/**
* Invoke the method with the specified index.
* 调用指定索引的方法
* @see getIndex(name, Class[])
* @param index the method index(方法索引)
* @param obj the object the underlying method is invoked from(调用基础方法的对象)
* @param args the arguments used for the method call(用于方法调用的参数)
* @throws java.lang.reflect.InvocationTargetException if the underlying method throws an exception
*/
net.sf.cglib.reflect.FastClass#invoke(int, java.lang.Object, java.lang.Object[])
abstract public Object invoke(int index, Object obj, Object[] args) throws InvocationTargetException;
//根据方法签名获取方法索引
public int getIndex(Signature var1) {
String var10000 = var1.toString();
switch(var10000.hashCode()) {
case -2092735716:
if (var10000.equals("CGLIB$setHeader$1()V")) {
return 20;
}
break;
case -1870561232:
if (var10000.equals("CGLIB$findMethodProxy(Lorg/springframework/cglib/core/Signature;)Lorg/springframework/cglib/proxy/MethodProxy;")) {
return 21;
}
break;
case -1745842178:
if (var10000.equals("setCallbacks([Lorg/springframework/cglib/proxy/Callback;)V")) {
return 10;
}
break;
case -1641413109:
if (var10000.equals("newInstance([Lorg/springframework/cglib/proxy/Callback;)Ljava/lang/Object;")) {
return 4;
}
break;
case -1457535688:
if (var10000.equals("CGLIB$STATICHOOK1()V")) {
return 22;
}
break;
case -1411812934:
if (var10000.equals("CGLIB$hashCode$4()I")) {
return 17;
}
break;
case -1034266769:
if (var10000.equals("CGLIB$SET_STATIC_CALLBACKS([Lorg/springframework/cglib/proxy/Callback;)V")) {
return 14;
}
break;
case -1025895669:
if (var10000.equals("CGLIB$SET_THREAD_CALLBACKS([Lorg/springframework/cglib/proxy/Callback;)V")) {
return 13;
}
break;
case -988317324:
if (var10000.equals("newInstance([Ljava/lang/Class;[Ljava/lang/Object;[Lorg/springframework/cglib/proxy/Callback;)Ljava/lang/Object;")) {
return 5;
}
break;
case -508378822:
if (var10000.equals("clone()Ljava/lang/Object;")) {
return 3;
}
break;
case 37055110:
if (var10000.equals("request()V")) {
return 7;
}
break;
case 374345669:
if (var10000.equals("CGLIB$equals$2(Ljava/lang/Object;)Z")) {
return 16;
}
break;
case 610042816:
if (var10000.equals("newInstance(Lorg/springframework/cglib/proxy/Callback;)Ljava/lang/Object;")) {
return 6;
}
break;
case 1132856532:
if (var10000.equals("getCallbacks()[Lorg/springframework/cglib/proxy/Callback;")) {
return 12;
}
break;
case 1246779367:
if (var10000.equals("setCallback(ILorg/springframework/cglib/proxy/Callback;)V")) {
return 9;
}
break;
case 1326039942:
if (var10000.equals("setHeader()V")) {
return 8;
}
break;
case 1364367423:
if (var10000.equals("getCallback(I)Lorg/springframework/cglib/proxy/Callback;")) {
return 11;
}
break;
case 1517819849:
if (var10000.equals("CGLIB$toString$3()Ljava/lang/String;")) {
return 18;
}
break;
case 1826985398:
if (var10000.equals("equals(Ljava/lang/Object;)Z")) {
return 0;
}
break;
case 1913648695:
if (var10000.equals("toString()Ljava/lang/String;")) {
return 1;
}
break;
case 1984935277:
if (var10000.equals("hashCode()I")) {
return 2;
}
break;
case 2011844968:
if (var10000.equals("CGLIB$clone$5()Ljava/lang/Object;")) {
return 19;
}
break;
case 2014567037:
if (var10000.equals("CGLIB$request$0()V")) {
return 15;
}
}
return -1;
}
调用了 Signature 的toString,而toString的返回值由方法名加返回类型与参数类型的MethodDescriptor(方法描述符)构成
接着通过toString的返回值的hashCode值选择方法对应的int值
再根据索引值(int值)调用net.sf.cglib.reflect.FastClass#invoke(int, java.lang.Object, java.lang.Object[]),调用目标方法
手写实现JDK的动态代理
既然 JDK Proxy 功能如此强大，那么它是如何实现的呢？ 我们现在来探究一下原理，并模仿JDK Proxy自己动手写一个属于自己的动态代理。 我们都知道 JDK Proxy 采用字节重组，重新生的对象来替代原始的对象以达到动态代理 的目的。JDK Proxy 生成对象的步骤如下：
1.拿到被代理对象的引用,通过反射获取它所有的接口.
2.JDK Proxy类根据传入的类加载器,接口,和调用处理类,重新生成一个新的类,同时新的类实现被代理类的所有接口.
3.动态生成java代码,把原有的方法调用转换为经过调用处理类调用
4.编译新生成的 Java 代码.class
5.再重新加载到 JVM 中运行。
以上这个过程就叫字节码重组。JDK 中有一个规范，在 ClassPath 下只要是$开头的 class 文件一般都是自动生成的。
生成Proxy类代码
可以通过如下代码生成代理类的代码了解详情
public static void proxyGenerator() throws Exception {
byte[] bytes = ProxyGenerator.generateProxyClass("$Proxy0", new Class[]{CustomRequest.class});
//会在项目下生成一个$Proxy0.class
FileOutputStream os = new FileOutputStream("$Proxy0.class");
os.write(bytes);
os.close();
}
生成的代理类
import com.example.proxy.JdkProxy.CustomRequest;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.lang.reflect.Proxy;
import java.lang.reflect.UndeclaredThrowableException;
public final class $Proxy0 extends Proxy implements CustomRequest {
private static Method m1;
private static Method m2;
private static Method m3;
private static Method m4;
private static Method m0;
//var1就是java.lang.reflect.Proxy#newProxyInstance
//(ClassLoader loader,Class<?>[] interfaces,InvocationHandler h)
//中的InvocationHandler
public $Proxy0(InvocationHandler var1) throws {
super(var1);
}
public final boolean equals(Object var1) throws {
try {
return (Boolean)super.h.invoke(this, m1, new Object[]{var1});
} catch (RuntimeException | Error var3) {
throw var3;
} catch (Throwable var4) {
throw new UndeclaredThrowableException(var4);
}
}
public final String toString() throws {
try {
return (String)super.h.invoke(this, m2, (Object[])null);
} catch (RuntimeException | Error var2) {
throw var2;
} catch (Throwable var3) {
throw new UndeclaredThrowableException(var3);
}
}
public final void setHeader() throws {
try {
super.h.invoke(this, m3, (Object[])null);
} catch (RuntimeException | Error var2) {
throw var2;
} catch (Throwable var3) {
throw new UndeclaredThrowableException(var3);
}
}
public final void request() throws {
try {
super.h.invoke(this, m4, (Object[])null);
} catch (RuntimeException | Error var2) {
throw var2;
} catch (Throwable var3) {
throw new UndeclaredThrowableException(var3);
}
}
public final int hashCode() throws {
try {
return (Integer)super.h.invoke(this, m0, (Object[])null);
} catch (RuntimeException | Error var2) {
throw var2;
} catch (Throwable var3) {
throw new UndeclaredThrowableException(var3);
}
}
static {
try {
m1 = Class.forName("java.lang.Object").getMethod("equals", Class.forName("java.lang.Object"));
m2 = Class.forName("java.lang.Object").getMethod("toString");
m3 = Class.forName("com.example.proxy.JdkProxy.CustomRequest").getMethod("setHeader");
m4 = Class.forName("com.example.proxy.JdkProxy.CustomRequest").getMethod("request");
m0 = Class.forName("java.lang.Object").getMethod("hashCode");
} catch (NoSuchMethodException var2) {
throw new NoSuchMethodError(var2.getMessage());
} catch (ClassNotFoundException var3) {
throw new NoClassDefFoundError(var3.getMessage());
}
}
}
小结
可以看到在静态块中获得了被代理类的所有方法和object的公共方法,在构造函数初始化的时候定义了InvocationHandler h,实现了接口方法,方法处理通过传入的h在实现和重写的方法中调用自身的invoke(Object proxy, Method method, Object[] args)方法处理被代理类的所有方法;
主要就是通过字节码重组生成了新的代码,代理了被代理类的所有方法.
手写实现
根据上述原理尝试手写一个
Proxy.newProxyInstance(clazz.getClassLoader(), clazz.getInterfaces(), this)的逻辑
Proxy和CustomClassLoad代码来源于网络,有空了再自己手写一个.
CustomClassLoad
public class CustomClassLoad extends ClassLoader {
private File classPathFile;
public CustomClassLoad(){
String classPath = CustomClassLoad.class.getResource("").getPath();
this.classPathFile = new File(classPath);
}
@Override
protected Class<?> findClass(String name) throws ClassNotFoundException {
String className = CustomClassLoad.class.getPackage().getName() + "." + name;
if(classPathFile != null){
File classFile = new File(classPathFile,name.replaceAll("\\.","/") + ".class");
if(classFile.exists()){
FileInputStream in = null;
ByteArrayOutputStream out = null;
try{
in = new FileInputStream(classFile);
out = new ByteArrayOutputStream();
byte [] buff = new byte[1024];
int len;
while ((len = in.read(buff)) != -1){
out.write(buff,0,len);
}
return defineClass(className,out.toByteArray(),0,out.size());
}catch (Exception e){
e.printStackTrace();
}
}
}
return null;
}
}
CustomInvocationHandler
public interface CustomInvocationHandler {
public Object invoke(Object invoker, Method method, Object[] args) throws Throwable;
}
CustomProxy
public class CustomProxy {
public static final String ln="\r\n";
public static Object newProxyInstance(CustomClassLoad classLoader, Class<?> [] interfaces, CustomInvocationHandler h){
try {
//1、动态生成源代码.java文件
String src = generateSrc(interfaces);
// System.out.println(src);
//2、Java文件输出磁盘
String filePath = CustomProxy.class.getResource("").getPath();
// System.out.println(filePath);
File f = new File(filePath + "$Proxy0.java");
FileWriter fw = new FileWriter(f);
fw.write(src);
fw.flush();
fw.close();
//3、把生成的.java文件编译成.class文件
JavaCompiler compiler = ToolProvider.getSystemJavaCompiler();
StandardJavaFileManager manage = compiler.getStandardFileManager(null,null,null);
Iterable iterable = manage.getJavaFileObjects(f);
JavaCompiler.CompilationTask task = compiler.getTask(null,manage,null,null,null,iterable);
task.call();
manage.close();
//4、编译生成的.class文件加载到JVM中来
Class proxyClass = classLoader.findClass("$Proxy0");
Constructor c = proxyClass.getConstructor(CustomInvocationHandler.class);
f.delete();
//5、返回字节码重组以后的新的代理对象
return c.newInstance(h);
}catch (Exception e){
e.printStackTrace();
}
return null;
}
private static String generateSrc(Class<?>[] interfaces){
StringBuffer sb = new StringBuffer();
sb.append("package com.example.proxy.JdkProxy.custom;" + ln);
sb.append("import com.example.proxy.JdkProxy.custom.CustomRequest;" + ln);
sb.append("import java.lang.reflect.*;" + ln);
sb.append("public class $Proxy0 implements " + interfaces[0].getName() + "{" + ln);
sb.append("CustomInvocationHandler h;" + ln);
sb.append("public $Proxy0(CustomInvocationHandler h) { " + ln);
sb.append("this.h = h;");
sb.append("}" + ln);
for (Method m : interfaces[0].getMethods()){
Class<?>[] params = m.getParameterTypes();
StringBuffer paramNames = new StringBuffer();
StringBuffer paramValues = new StringBuffer();
StringBuffer paramClasses = new StringBuffer();
for (int i = 0; i < params.length; i++) {
Class clazz = params[i];
String type = clazz.getName();
String paramName = toLowerFirstCase(clazz.getSimpleName());
paramNames.append(type + " " + paramName);
paramValues.append(paramName);
paramClasses.append(clazz.getName() + ".class");
if(i > 0 && i < params.length-1){
paramNames.append(",");
paramClasses.append(",");
paramValues.append(",");
}
}
sb.append("public " + m.getReturnType().getName() + " " + m.getName() + "(" + paramNames.toString() + ") {" + ln);
sb.append("try{" + ln);
sb.append("Method m = " + interfaces[0].getName() + ".class.getMethod(\"" + m.getName() + "\",new Class[]{" + paramClasses.toString() + "});" + ln);
sb.append((hasReturnValue(m.getReturnType()) ? "return " : "") + getCaseCode("this.h.invoke(this,m,new Object[]{" + paramValues + "})",m.getReturnType()) + ";" + ln);
sb.append("}catch(Error _ex) { }");
sb.append("catch(Throwable e){" + ln);
sb.append("throw new UndeclaredThrowableException(e);" + ln);
sb.append("}");
sb.append(getReturnEmptyCode(m.getReturnType()));
sb.append("}");
}
sb.append("}" + ln);
return sb.toString();
}
private static Map<Class,Class> mappings = new HashMap<Class, Class>();
static {
mappings.put(int.class,Integer.class);
}
private static String getReturnEmptyCode(Class<?> returnClass){
if(mappings.containsKey(returnClass)){
return "return 0;";
}else if(returnClass == void.class){
return "";
}else {
return "return null;";
}
}
private static String getCaseCode(String code,Class<?> returnClass){
if(mappings.containsKey(returnClass)){
return "((" + mappings.get(returnClass).getName() + ")" + code + ")." + returnClass.getSimpleName() + "Value()";
}
return code;
}
private static boolean hasReturnValue(Class<?> clazz){
return clazz != void.class;
}
private static String toLowerFirstCase(String src){
char [] chars = src.toCharArray();
chars[0] += 32;
return String.valueOf(chars);
}
}
CustomRequest
//JDK动态代理转换类,根据接口转换
public interface CustomRequest {
public void request();
public void setHeader();
}
ProxyLog
public class ProxyLog implements CustomInvocationHandler {
private Object target;
public Object getInstance(Object target) throws Exception {
this.target = target;
Class<?> clazz = target.getClass();
//根据clazz.getInterfaces()获得的接口,得到可以转换的类型和调用方法,无法直接转换为clazz
return CustomProxy.newProxyInstance(new CustomClassLoad(), clazz.getInterfaces(), this);
}
/* proxy为根据ProxyLog实现的invoke方法生成的代理对象
也就是通过Proxy.newProxyInstance(clazz.getClassLoader(), clazz.getInterfaces(), this)
返回的对象
((ProxyLog) ((Proxy) proxy).h).target==target
method是当前代理对象调用的方法,args是当前调用方法
传递的参数,result为方法调用的返回值Void方法返回null*/
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
log(method.getName());
Object result = method.invoke(target, args);
return result;
}
public void log(String methodName) {
System.out.println("invoke:" + methodName);
}
}
CustomRequest
public class RealRequest implements CustomRequest {
@Override
public void setHeader() {
System.out.println("setHeader");
}
@Override
public void request() {
System.out.println("hello");
}
}
Test
public class Test {
public static void main(String[] args) throws Exception {
test();
}
public static void test() throws Exception {
CustomRequest request = ((CustomRequest) new ProxyLog().getInstance(new RealRequest()));
request.request();
request.setHeader();
request.toString();
}
}
结果
invoke:request
hello
invoke:setHeader
setHeader
小结
主要就是字节码的拼接,然后交由JDK编译加载到虚拟机
总结CGLib和JDK Proxy的根本区别
1.JDK 动态代理是实现了被代理对象的接口,CGLib 是继承了被代理对象。
2.JDK 和 CGLib 都是在运行期生成字节码,JDK 是直接写 Class 字节码，CGLib使用 ASM 框架写 Class 字节码,Cglib代理实现更复杂,生成代理类的效率比JDK的直接生成低。
3.JDK 调用代理方法,是通过反射机制调用,CGLib 是通过 FastClass 机制直接调用方法， CGLib 执行效率更高。
CGLib动态代理执行代理方法效率之所以比JDK的高是
因为Cglib采用了 FastClass 机制,它的原理简单来说就是：
为代理类和被代理类各生成一个Class,这个Class 会为代理类
或被代理类的方法分配一个index(int 类型)。这个index当做一个入参,
FastClass 就可以直接定位要调用的方法直接进行调用,这样省去了反射调用，
所以调用效率比 JDK 动态代理通过反射调用高
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
