Spring AOP源码分析

Spring AOP源码分析

看下Spring核心的代理类

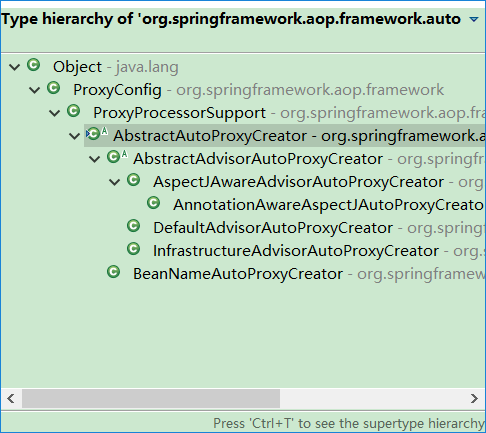

AbstractAutoProxyCreator  这是Spring核心的一个代理类，他的子类：



接口: BeanFactoryAware 的作用

初始化之前执行一个方法：



@Override
    public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) {
        Object cacheKey = getCacheKey(beanClass, beanName);

        if (!StringUtils.hasLength(beanName) || !this.targetSourcedBeans.contains(beanName)) {
            if (this.advisedBeans.containsKey(cacheKey)) {
                return null;
            }
            if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
                this.advisedBeans.put(cacheKey, Boolean.FALSE);
                return null;
            }
        }

        // Create proxy here if we have a custom TargetSource.
        // Suppresses unnecessary default instantiation of the target bean:
        // The TargetSource will handle target instances in a custom fashion.
        TargetSource targetSource = getCustomTargetSource(beanClass, beanName); //通过BeanClass和BeanName找到目标来源
        if (targetSource != null) {
            if (StringUtils.hasLength(beanName)) {
                this.targetSourcedBeans.add(beanName);
            }
            Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
            Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource);  //创建一个代理对象
            this.proxyTypes.put(cacheKey, proxy.getClass());
            return proxy;
        }

        return null;
    }

createProxy(beanClass, beanName, specificInterceptors, targetSource); 点击进入
这是做代理的：

protected Object createProxy(Class<?> beanClass, @Nullable String beanName,
            @Nullable Object[] specificInterceptors, TargetSource targetSource) {

        if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
            AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
        }

        ProxyFactory proxyFactory = new ProxyFactory();
        proxyFactory.copyFrom(this);

        if (!proxyFactory.isProxyTargetClass()) {
            if (shouldProxyTargetClass(beanClass, beanName)) {
                proxyFactory.setProxyTargetClass(true);
            }
            else {
                evaluateProxyInterfaces(beanClass, proxyFactory);
            }
        }

        Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);  //切入点的管理
        proxyFactory.addAdvisors(advisors);
        proxyFactory.setTargetSource(targetSource);
        customizeProxyFactory(proxyFactory);

        proxyFactory.setFrozen(this.freezeProxy);
        if (advisorsPreFiltered()) {
            proxyFactory.setPreFiltered(true);
        }

        return proxyFactory.getProxy(getProxyClassLoader());
    }

进入方法：  return proxyFactory.getProxy(getProxyClassLoader());

public Object getProxy(@Nullable ClassLoader classLoader) {
        return createAopProxy().getProxy(classLoader);
    }

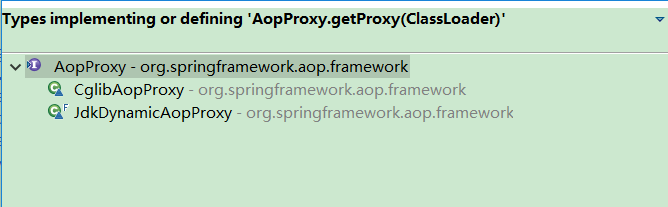

查看：两个代理方式

看下jdk的动态代理：

    @Override
    public Object getProxy(@Nullable ClassLoader classLoader) {
        if (logger.isTraceEnabled()) {
            logger.trace("Creating JDK dynamic proxy: " + this.advised.getTargetSource());
        }
        Class<?>[] proxiedInterfaces = AopProxyUtils.completeProxiedInterfaces(this.advised, true); //通过反射生成代理类
        findDefinedEqualsAndHashCodeMethods(proxiedInterfaces);
        return Proxy.newProxyInstance(classLoader, proxiedInterfaces, this);
    }

cglib：这个是不需要反射的哦 通过字节码

@Override
    public Object getProxy(@Nullable ClassLoader classLoader) {
        if (logger.isTraceEnabled()) {
            logger.trace("Creating CGLIB proxy: " + this.advised.getTargetSource());
        }

        try {
            Class<?> rootClass = this.advised.getTargetClass();   //获取到目标类
            Assert.state(rootClass != null, "Target class must be available for creating a CGLIB proxy");

            Class<?> proxySuperClass = rootClass;
            if (ClassUtils.isCglibProxyClass(rootClass)) {       //进行代理
                proxySuperClass = rootClass.getSuperclass();
                Class<?>[] additionalInterfaces = rootClass.getInterfaces();
                for (Class<?> additionalInterface : additionalInterfaces) {
                    this.advised.addInterface(additionalInterface);
                }
            }

            // Validate the class, writing log messages as necessary.
            validateClassIfNecessary(proxySuperClass, classLoader);

            // Configure CGLIB Enhancer...
            Enhancer enhancer = createEnhancer();
            if (classLoader != null) {
                enhancer.setClassLoader(classLoader);
                if (classLoader instanceof SmartClassLoader &&
                        ((SmartClassLoader) classLoader).isClassReloadable(proxySuperClass)) {
                    enhancer.setUseCache(false);
                }
            }
            enhancer.setSuperclass(proxySuperClass);
            enhancer.setInterfaces(AopProxyUtils.completeProxiedInterfaces(this.advised));
            enhancer.setNamingPolicy(SpringNamingPolicy.INSTANCE);
            enhancer.setStrategy(new ClassLoaderAwareUndeclaredThrowableStrategy(classLoader));

            Callback[] callbacks = getCallbacks(rootClass);
            Class<?>[] types = new Class<?>[callbacks.length];
            for (int x = 0; x < types.length; x++) {
                types[x] = callbacks[x].getClass();
            }
            // fixedInterceptorMap only populated at this point, after getCallbacks call above
            enhancer.setCallbackFilter(new ProxyCallbackFilter(
                    this.advised.getConfigurationOnlyCopy(), this.fixedInterceptorMap, this.fixedInterceptorOffset));
            enhancer.setCallbackTypes(types);

            // Generate the proxy class and create a proxy instance.
            return createProxyClassAndInstance(enhancer, callbacks);
        }
        catch (CodeGenerationException | IllegalArgumentException ex) {
            throw new AopConfigException("Could not generate CGLIB subclass of " + this.advised.getTargetClass() +
                    ": Common causes of this problem include using a final class or a non-visible class",
                    ex);
        }
        catch (Throwable ex) {
            // TargetSource.getTarget() failed
            throw new AopConfigException("Unexpected AOP exception", ex);
        }
    }

protected Object createProxyClassAndInstance(Enhancer enhancer, Callback[] callbacks) {
        enhancer.setInterceptDuringConstruction(false);
        enhancer.setCallbacks(callbacks);
        return (this.constructorArgs != null && this.constructorArgTypes != null ?
                enhancer.create(this.constructorArgTypes, this.constructorArgs) :   //查看此方法
                enhancer.create());
    }

点进去查看：

public Object create(Class[] argumentTypes, Object[] arguments) {
        classOnly = false;
        if (argumentTypes == null || arguments == null || argumentTypes.length != arguments.length) {
            throw new IllegalArgumentException("Arguments must be non-null and of equal length");
        }
        this.argumentTypes = argumentTypes;
        this.arguments = arguments;
        return createHelper();  //创建Helper  点进去就是代理
    }



 查看：

    private Object createHelper() {
        preValidate();
        Object key = KEY_FACTORY.newInstance((superclass != null) ? superclass.getName() : null,
                ReflectUtils.getNames(interfaces),
                filter == ALL_ZERO ? null : new WeakCacheKey<CallbackFilter>(filter),
                callbackTypes,
                useFactory,
                interceptDuringConstruction,
                serialVersionUID);
        this.currentKey = key;
        Object result = super.create(key);
        return result;
    }



看下CglibAopProxy：





适配器，有好多中。我们可以通过debug去获取查看。

也可以参考这个博客：https://www.cnblogs.com/lulu638/p/4474698.html
