RabbitMQ整合Spring Booot【Exchange-路由key模式】-优快云博客

本文链接：https://blog.youkuaiyun.com/art_code/article/details/108648229

本文详细介绍了一种基于RabbitMQ的路由模型实现方案，包括生产者如何将消息发布到不同类型的交换机，以及消费者如何根据不同的路由键接收消息。通过具体代码示例，展示了如何配置交换机、队列绑定及消息消费过程。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.toov5.rabibitMQScribe</groupId>
  <artifactId>rabibitMQScribe</artifactId>
  <version>0.0.1-SNAPSHOT</version>

  <dependencies>
		<dependency>
			<groupId>com.rabbitmq</groupId>
			<artifactId>amqp-client</artifactId>
			<version>3.6.5</version>
		</dependency>
	</dependencies>

</project>

　producer

package com.toov5.routing;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.toov5.utils.MQConnectionUtils;

//生产者 交换机类型 producerFanout类型
public class RoutingProducer {
    //交换机名称
     private static final String EXCHANGE_NAME = "my_routing";
     public static void main(String[] args) throws IOException, TimeoutException {
        //建立MQ连接
         Connection connection = MQConnectionUtils.newConnection();
        //创建通道
          Channel channel = connection.createChannel();
          //生产者绑定交换机
          channel.exchangeDeclare(EXCHANGE_NAME, "direct");  //交换机名称  交换机类型
          String routingKey="email";
          //创建对应的消息
          String msString = "my_Routing_destination_msg"+routingKey;
          //通过频道 发送消息
          System.out.println("生产者投递消息："+msString);
          channel.basicPublish(EXCHANGE_NAME, routingKey, null, msString.getBytes());
          //关闭通道 和 连接
          channel.close();
          connection.close();
    }

}

consumer:

package com.toov5.routing;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.Envelope;
import com.rabbitmq.client.AMQP.BasicProperties;
import com.toov5.utils.MQConnectionUtils;

//邮件消费者
public class ConsumerEmailRouting {
    private static final String EMAIL_QUEUE ="email_queue_routing";
    //交换机名称
   private static final String EXCHANGE_NAME = "my_routing";
     public static void main(String[] args) throws IOException, TimeoutException {
         System.out.println("邮件消费者启动");
        //建立MQ连接
         Connection connection = MQConnectionUtils.newConnection();
        //创建通道
          Channel channel = connection.createChannel();

        //消费者声明队列
          channel.queueDeclare(EMAIL_QUEUE, false, false, false, null);
         //消费者队列绑定 路由
          channel.queueBind(EMAIL_QUEUE, EXCHANGE_NAME, "email");
          //消费者监听消息
      DefaultConsumer defaultConsumer = new DefaultConsumer(channel) {
              //重写监听方法
             @Override
             public void handleDelivery(String consumerTag, Envelope envelope, BasicProperties properties, byte[] body)
                     throws IOException {
                 String msg = new String(body,"UTF-8");
                 System.out.println("邮件消费者获取生产者消息"+msg);
             }
         };
         channel.basicConsume(EMAIL_QUEUE,true, defaultConsumer);   //绑定队列 事件监听

    }
}

package com.toov5.routing;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.Envelope;
import com.rabbitmq.client.AMQP.BasicProperties;
import com.toov5.utils.MQConnectionUtils;

//邮件消费者
public class ConsumerSMSRouting {
    private static final String SMS_QUEUE ="sms_queue_routing";
    //交换机名称
   private static final String EXCHANGE_NAME = "my_routing";
     public static void main(String[] args) throws IOException, TimeoutException {
         System.out.println("短信消费者启动");
        //建立MQ连接
         Connection connection = MQConnectionUtils.newConnection();
        //创建通道
          Channel channel = connection.createChannel();

        //消费者声明队列
          channel.queueDeclare(SMS_QUEUE, false, false, false, null);
         //消费者队列绑定 路由
          channel.queueBind(SMS_QUEUE, EXCHANGE_NAME, "email");
         channel.queueBind(SMS_QUEUE, EXCHANGE_NAME, "sms");
          //消费者监听消息
      DefaultConsumer defaultConsumer = new DefaultConsumer(channel) {
              //重写监听方法
             @Override
             public void handleDelivery(String consumerTag, Envelope envelope, BasicProperties properties, byte[] body)
                     throws IOException {
                 String msg = new String(body,"UTF-8");
                 System.out.println("邮件消费者获取生产者消息"+msg);
             }
         };
         channel.basicConsume(SMS_QUEUE,true, defaultConsumer);   //绑定队列 事件监听

    }
}

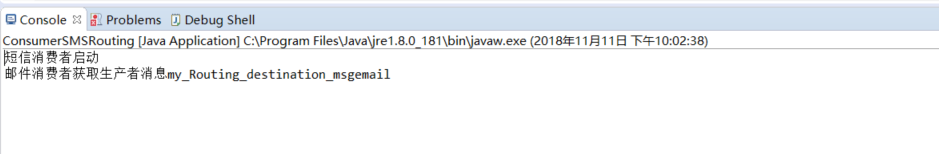

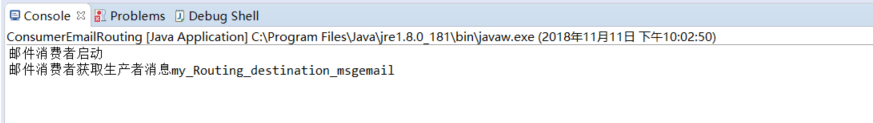

运行结果：

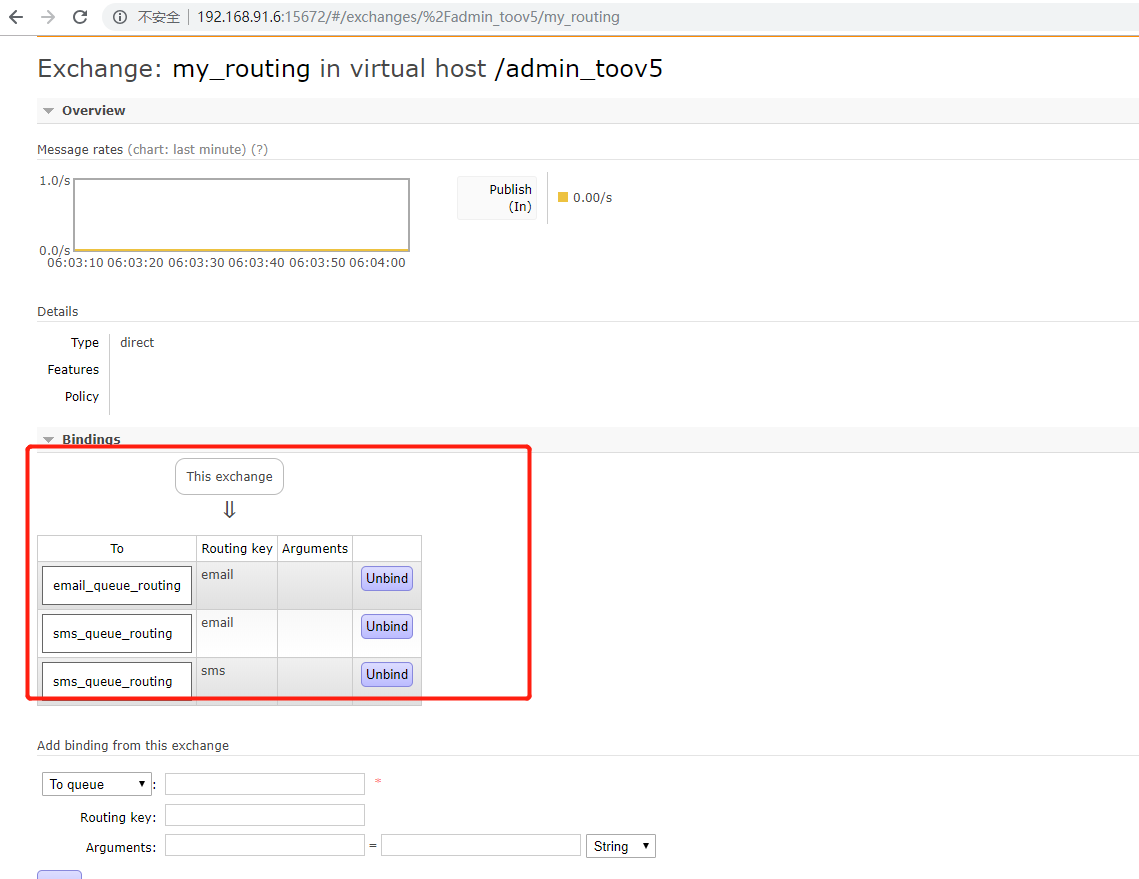

绑定两个：
