前言
MiniGUI中的输入法libmgi支持拼音输入,但是怎么进行个性化定制呢,比如想更换键盘皮肤,往词库里添加一些新的词组,下面这篇文章详细描述怎么添加新词
1. 词库文件构成
在libmgi中,拼音输入法词库文件是如下路径
/libmgi-2.0.4/src/ime_tab_pinyin.h
加载和使用这词库的代码
/libmgi-2.0.4/src/ime_pinyin.c
在minigui-res-1.6.10中有找到一些词库文件
pinyin.cin //拼音输入法词库文件
pinyin.map //拼音输入法支持的汉字
pinyin.tab //会保存有多少个词,词频等信息
pinyin.tab.phr //是短语文件
pinyin.tab.lx //是联想文件
这里捋一下关系
pinyin.cin–>(pinyin.tab、pinyin.tab.phr、pinyin.tab.lx)–>ime_tab_pinyin.h
主要的问题是有了pinyin.cin怎么生成pinyin.tab、pinyin.tab.lx、pinyin.tab.phr
2. 词库文件生成
首先需要去SourceForge下载CCE软件的源码cce-0.11,我也上传了一份到优快云备份,点击下载cce-0.11,这个软件比较古老,不知道什么时候就会下载不了,且行且珍惜
下载之后解压得到cce-0.11文件夹,在/cce-0.11/input_methods/目录下会看到这几个文件
/cce-0.11/input_methods/cin2tab.c //生成pinyin.tab、pinyin.tab.lx、pinyin.tab.phr的程序
/cce-0.11/input_methods/hzinput.h //编译cin2tab.c的头文件
/cce-0.11/input_methods/pinyin.cin //拼音输入法词库文件
/cce-0.11/input_methods/Makefile
2.1 pinyin.cin修改
词库文件是pinyin.cin,打开可以看到排列的一些规律,注意文件编码格式是GB2312的

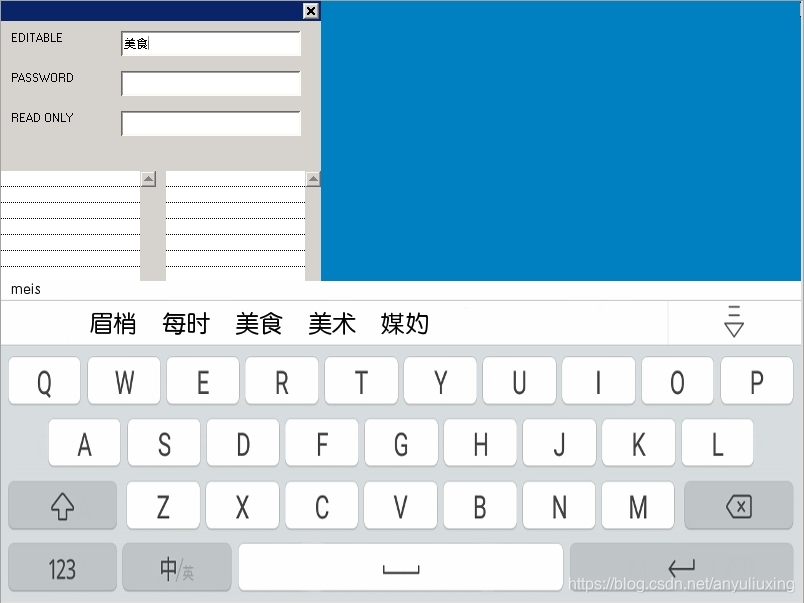

按照字母排序添加一行需要的新词,比如添加美食,如下所示
meishao 眉梢
meishi 每时
meishi 美食
meishu 美术
meishuo 媒妁
2.2 pinyin.tab生成
按照下面的补丁修改/cce-0.11/input_methods/Makefile文件,目的是为了编译成32位可执行程序,不然生成的词库在MiniGUI中用不了
diff --git a/input_methods/Makefile b/input_methods/Makefile
index 296f70a..d413709 100644
--- a/input_methods/Makefile
+++ b/input_methods/Makefile
@@ -22,16 +22,16 @@ ziranma.tab ziranma.tab.lx ziranma.tab.phr: cin2tab ziranma.cin
./cin2tab ziranma
cin2tab: cin2tab.c
- gcc -o cin2tab cin2tab.c
+ gcc -m32 -o cin2tab cin2tab.c
tab2cin: tab2cin.c
- gcc -o tab2cin tab2cin.c
+ gcc -m32 -o tab2cin tab2cin.c
tab2dat: tab2dat.c
- gcc -o tab2dat tab2dat.c
+ gcc -m32 -o tab2dat tab2dat.c
cin2dat: cin2dat.c
- gcc -o cin2dat cin2dat.c
+ gcc -m32 -o cin2dat cin2dat.c
clean:
rm -f tab2cin cin2tab tab2dat cin2dat
在/cce-0.11/input_methods/目录下,执行下面的命令
make clean && make
生成cin2tab可执行程序之后,在/cce-0.11/input_methods/目录下,执行下面命令
./cin2tab ./pinyin
看到下面的提示就表示成功了
Generating binary *.tab file for input method ./pinyin.cin...
Phrase Count = 13278 Total Item = 20942
会生成下面的文件,大功完成一半
/cce-0.11/input_methods/pinyin.tab //会保存有多少个词,词频等信息
/cce-0.11/input_methods/pinyin.tab.phr //是短语文件
/cce-0.11/input_methods/pinyin.tab.lx //是联想文件
2.3 ime_tab_pinyin.h生成
下面提供了生成ime_tab_pinyin.h的JAVA程序使用方法和源码
把pinyin.tab、pinyin.tab.lx、pinyin.tab.phr复制到一个目录下,使用TabBytesToC.jar进行转换
TabBytesToC.jar程序可以把指定目录下的.tab、.tab.lx和.tab.phr三个文件换成十六进制的头文件表示
请指定文件所在的目录,例如
java -jar TabBytesToC.jar /home/anruliu/下载/tab/
输出如下
anruliu@anruliu:~/下载$ java -jar TabBytesToC.jar /home/anruliu/下载/tab/
该目录下文件个数:3
文件:/home/anruliu/下载/tab/pinyin.tab
文件:/home/anruliu/下载/tab/pinyin.tab.lx
文件:/home/anruliu/下载/tab/pinyin.tab.phr
pinyin.tab 字节长度:251720 正在解析中...
static unsigned char ime_tab[] 生成成功
pinyin.tab.lx 字节长度:80184 正在解析中...
static unsigned char ime_tab_lx[] 生成成功
pinyin.tab.phr 字节长度:110468 正在解析中...
static unsigned char ime_tab_phr[] 生成成功
/home/anruliu/下载/tab/ime_tab_pinyin.h 生成成功
下面是源码,可以编译出TabBytesToC.jar程序
import java.io.File;
import java.io.FileInputStream;
import java.io.FileWriter;
import java.io.IOException;
import java.util.Arrays;
import java.util.Collections;
import java.util.Comparator;
import java.util.List;
/**
* CCE生成的tab词库文件转成十六进制libmgi可用的头文件
*/
public class TabBytesToC {
public static void main(String[] args) throws Exception {
if (args.length > 0) {
File file = new File(args[0]);
if (file.exists()) {
if (file.isFile()) {
System.out.println("请指定目录,而不是文件");
} else {
File[] tempList = file.listFiles();
// 文件排序
List<File> fileList = Arrays.asList(tempList);
Collections.sort(fileList, new Comparator<File>() {
@Override
public int compare(File o1, File o2) {
if (o1.isDirectory() && o2.isFile())
return -1;
if (o1.isFile() && o2.isDirectory())
return 1;
return o1.getName().compareTo(o2.getName());
}
});
if (tempList.length > 0)
System.out.println("该目录下文件个数:" + tempList.length);
for (int i = 0; i < tempList.length; i++) {
if (tempList[i].isFile()) {
System.out.println("文件:" + tempList[i]);
}
if (tempList[i].isDirectory()) {
System.out.println("文件夹:" + tempList[i]);
}
}
// 如果需要生成的.h文件存在,则先删除
File fileOut = new File(args[0] + "/ime_tab_pinyin.h");
if (fileOut.exists())
fileOut.delete();
for (int i = 0; i < tempList.length; i++) {
if (tempList[i].isFile()) {
tab2Txt(tempList[i]);
}
}
if (tempList.length > 0)
System.out.println(args[0] + "ime_tab_pinyin.h 生成成功");
}
}
} else {
System.out.println("本程序可以把指定目录下的.tab、.tab.lx和.tab.phr"
+ "三个文件换成十六进制的头文件表示");
System.out.println("请指定文件所在的目录,例如");
System.out.println("java -jar TabBytesToC.jar /home/anruliu/pinyin/");
}
}
private static void tab2Txt(File file) {
String ext = file.getName().substring(file.getName().lastIndexOf(".") + 1);
if (ext.equals("tab") || ext.equals("lx") || ext.equals("phr")) {
try {
FileInputStream fis = new FileInputStream(file);
String fileNameData = new String();
if (ext.equals("tab")) {
fileNameData = "ime_tab";
} else if (ext.equals("lx")) {
fileNameData = "ime_tab_lx";
} else if (ext.equals("phr")) {
fileNameData = "ime_tab_phr";
}
java.io.ByteArrayOutputStream bos = new java.io.ByteArrayOutputStream();
byte[] buff = new byte[1024];
int len = 0;
while ((len = fis.read(buff)) != -1) {
bos.write(buff, 0, len);
}
// 得到图片的字节数组
byte[] result = bos.toByteArray();
System.out.println(file.getName() + " 字节长度:" + result.length + " 正在解析中...");
if (null != file.getParent()) {
byte2HexStr(file.getParent(), "ime_tab_pinyin", fileNameData, result);
} else {
byte2HexStr(".", "ime_tab_pinyin", fileNameData, result);
}
fis.close();
bos.close();
} catch (Exception e) {
e.printStackTrace();
}
}
}
/**
* 实现字节数组向十六进制转换并保存
*
* @param b 字节数组
* @return 十六进制字符串
*/
private static void byte2HexStr(String filePatch, String fileName,
String fileNameData, byte[] b) {
String hs = " ";
String stmp = "";
FileWriter fwriter = null;
try {
fwriter = new FileWriter(filePatch + "/" + fileName + ".h", true);
fwriter.write("static unsigned char " + fileNameData + "[] = {\n");
for (int n = 0; n < b.length; n++) {
System.out.print(n + "/" + b.length + "\r");
stmp = (Integer.toHexString(b[n] & 0XFF));
if (stmp.length() == 1) {
hs = hs + "0x0" + stmp;
} else {
hs = hs + "0x" + stmp;
}
if (n == b.length - 1) {
hs += "\n";
} else if (n != 0 && (n + 1) % 8 == 0) {
hs += ",\n ";
} else {
hs += ", ";
}
fwriter.write(hs);
hs = "";
}
fwriter.write("};\n\n");
} catch (IOException ex) {
ex.printStackTrace();
} finally {
try {
fwriter.flush();
fwriter.close();
System.out.println("static unsigned char " + fileNameData + "[] 生成成功");
} catch (IOException ex) {
ex.printStackTrace();
}
}
}
}
3. libmgi中使用新词库
把新的ime_tab_pinyin.h文件替换/libmgi-2.0.4/src/ime_tab_pinyin.h,然后重新编译libmgi,如果没有生效,清理一下编译目录,之后就可以看到效果了,如下所示
4. 附录
避免下载不到cee-0.11,这附上cin2tab.c和hzinput.h的源码,执行下面的代码编译即可
gcc -m32 -o cin2tab cin2tab.c
/* cin2tab.c */
#include <stdio.h>
#include <stdarg.h>
#include <sys/types.h>
#include <string.h>
#include "hzinput.h"
FILE *fr, *fw;
int lineno;
void print_error(char *fmt, ...) {
va_list args;
va_start(args, fmt);
vfprintf(stderr, fmt, args);
va_end(args);
fprintf(stderr, "\n");
exit(-1);
}
char *skip_space(char *s) {
while ((*s == ' ' || *s == '\t') && *s)
s++;
return s;
}
char *to_space(char *s) {
while (*s != ' ' && *s != '\t' && *s)
s++;
return s;
}
void del_nl_space(char *s) {
char *t;
int len = strlen(s);
if (!*s)
return;
t = s + len - 1;
while ((*t == '\n' || *t == ' ' || *t == '\t') && s < t)
t--;
*(t + 1) = 0;
}
void get_line(u_char *tt) {
while (!feof(fr)) {
fgets(tt, 128, fr);
lineno++;
if (tt[0] == '#')
continue;
else
break;
}
}
void cmd_arg(u_char *s, u_char **cmd, u_char **arg) {
char *t;
get_line(s);
if (!*s) {
*cmd = *arg = s;
return;
}
s = skip_space(s);
t = to_space(s);
*cmd = s;
if (!(*t)) {
*arg = t;
return;
}
*t = 0;
t++;
t = skip_space(t);
del_nl_space(t);
*arg = t;
}
typedef struct {
u_long key1;
u_long key2;
u_short ch;
u_short occur_seq;
} ITEM2;
#define MAXSIZE 50000
/* maximum char/phrase can be defined */
ITEM2 ItemTable[MAXSIZE], ItemTmp[MAXSIZE];
ITEM ItemOut[MAXSIZE];
int PhraseIndex[MAXSIZE];
char PhraseBuffer[250000]; /* max 250K phrase buffer */
int AssocCount[72 * 94 + 1];
int *AssocPhrase[72 * 94];
/* qcmp2 compare two ITEM2 structure, according to its key1/key2/ch */
int qcmp2(ITEM2* a, ITEM2* b) {
if (a->key1 > b->key1)
return 1;
if (a->key1 < b->key1)
return -1;
if (a->key2 > b->key2)
return 1;
if (a->key2 < b->key2)
return -1;
if (a->ch > b->ch)
return 1;
if (a->ch < b->ch)
return -1;
/*
fprintf(stderr,"%c%c is multiply defined with the same key\n",
a->ch/256,a->ch%256);
*/
/* duplicate char, we will elimintate it later */
return 0;
}
/* qcmp compare two ITEM2 structure, according to its key1/key2/occur_seq */
int qcmp(ITEM2* a, ITEM2* b) {
if (a->key1 > b->key1)
return 1;
if (a->key1 < b->key1)
return -1;
if (a->key2 > b->key2)
return 1;
if (a->key2 < b->key2)
return -1;
return (int) a->occur_seq - (int) b->occur_seq;
}
int qcmp_ser(ITEM *a, ITEM* b) {
if (a->ch > b->ch)
return 1;
if (a->ch < b->ch)
return -1;
if (a->key1 > b->key1)
return 1;
if (a->key1 < b->key1)
return -1;
if (a->key2 > b->key2)
return 1;
if (a->key2 < b->key2)
return -1;
return 0;
}
int main(int argc, char **argv) {
int i, k;
char fname[64], fname_cin[64], fname_tab[64];
char fname_phr[64], fname_lx[64];
char tt[128];
u_char *cmd, *arg;
hz_input_table InpTable;
int TotalKeyNum;
ITEM LastItem;
int index, ItemCount;
u_short CharDef[64];
int phrase_count = 0, phrasebuf_pointer = 0;
if (argc <= 1) {
printf("Enter table file name [.cin] : ");
scanf("%s", fname);
} else
strcpy(fname, argv[1]);
strcpy(fname_cin, fname);
strcpy(fname_tab, fname);
strcat(fname_cin, ".cin");
strcat(fname_tab, ".tab");
strcpy(fname_phr, fname_tab);
strcpy(fname_lx, fname_tab);
strcat(fname_phr, ".phr");
strcat(fname_lx, ".lx");
if ((fr = fopen(fname_cin, "r")) == NULL)
print_error("Cannot open %s \n", fname_cin);
bzero(&InpTable, sizeof(InpTable));
bzero(ItemTable, sizeof(ItemTable));
bzero(ItemOut, sizeof(ItemOut));
printf("Generating binary *.tab file for input method %s...\n", fname_cin);
/****************** Now some basic information ************************/
strcpy(InpTable.magic_number, MAGIC_NUMBER);
cmd_arg(tt, &cmd, &arg);
if (strcmp(cmd, "%ename") || !(*arg))
print_error("%d: %%ename english_name expected", lineno);
arg[CIN_ENAME_LENGTH - 1] = 0;
strcpy(InpTable.ename, arg);
cmd_arg(tt, &cmd, &arg);
if (strcmp(cmd, "%prompt") || !(*arg))
print_error("%d: %%prompt prompt_name expected", lineno);
arg[CIN_CNAME_LENGTH - 1] = 0;
strcpy(InpTable.cname, arg);
cmd_arg(tt, &cmd, &arg);
if (strcmp(cmd, "%selkey") || !(*arg))
print_error("%d: %%selkey select_key_list expected", lineno);
strcpy(InpTable.selkey, arg);
cmd_arg(tt, &cmd, &arg);
if (strcmp(cmd, "%last_full") || !(*arg))
InpTable.last_full = 1;
else {
if (arg[0] == '0')
InpTable.last_full = 0;
else
InpTable.last_full = 1;
cmd_arg(tt, &cmd, &arg);
}
if (strcmp(cmd, "%dupsel") || !(*arg))
print_error("%d: %%dupsel NO of dup sel keys expected", lineno);
InpTable.MaxDupSel = atoi(arg);
/******************* now the keyname ****************************/
cmd_arg(tt, &cmd, &arg);
if (strcmp(cmd, "%keyname") || strcmp(arg, "begin"))
print_error("%d: %%keyname begin expected", lineno);
TotalKeyNum = 0;
while (1) {
cmd_arg(tt, &cmd, &arg);
if (!strcmp(cmd, "%keyname"))
break;
k = tolower(cmd[0]); /* k = char */
if (InpTable.KeyMap[k])
print_error("%d: key %c is already used", lineno, k);
InpTable.KeyMap[k] = ++TotalKeyNum;
if (TotalKeyNum > 63)
print_error("Error, at most 64 key can be defined!\n");
InpTable.KeyName[TotalKeyNum] = arg[0];
}
InpTable.KeyMap[32] = 0; /* SPACE = 32 */
InpTable.KeyName[0] = ' ';
TotalKeyNum++;
InpTable.TotalKey = TotalKeyNum; /* include space */
/************************ now the character/phrase ***********************/
cmd_arg(tt, &cmd, &arg);
index = 0;
while (!feof(fr)) {
int len;
u_long key1, key2;
int k;
cmd_arg(tt, &cmd, &arg);
if (!cmd[0] || !arg[0])
break;
len = strlen(cmd);
if (len > InpTable.MaxPress)
InpTable.MaxPress = len;
if (len > 10)
print_error("%d: only <= 10 keys is allowed", lineno);
key1 = 0;
key2 = 0;
for (i = 0; i < len; i++) {
if (i < 5) {
k = InpTable.KeyMap[cmd[i]];
key1 |= k << (24 - i * 6);
} else {
k = InpTable.KeyMap[cmd[i]];
key2 |= k << (24 - (i - 5) * 6);
}
}
memcpy(&ItemTable[index].key1, &key1, 4);
memcpy(&ItemTable[index].key2, &key2, 4);
/* is it a chinese character(GB), or phrase ? */
len = strlen(arg);
if (len == 2 && (int) (*arg) > 0xA0 && (int) (*(arg + 1)) > 0xA0)
memcpy(&ItemTable[index].ch, arg, 2);
else {
int m;
ItemTable[index].ch = phrase_count;
/* ch < 0xA1A1, phrase index */
PhraseIndex[phrase_count] = phrasebuf_pointer;
strcpy(&PhraseBuffer[phrasebuf_pointer], arg);
phrasebuf_pointer += len;
m = (*arg - 0xB0) * 94 + *(arg + 1) - 0xA1;
if (AssocCount[m] == 0) {
AssocPhrase[m] = (int*) malloc(sizeof(int) * 5);
} else if (AssocCount[m] % 5 == 0) {
AssocPhrase[m] = (int*) realloc(AssocPhrase[m],
sizeof(int) * (AssocCount[m] + 5));
}
AssocPhrase[m][(AssocCount[m])++] = phrase_count;
phrase_count++;
}
ItemTable[index].occur_seq = index;
index++;
}
fclose(fr);
if (phrase_count > 0) {
int i, t, s;
PhraseIndex[phrase_count++] = phrasebuf_pointer;
if ((fw = fopen(fname_phr, "w")) == NULL)
print_error("Cannot create %s\n", fname_phr);
printf("Phrase Count = %d ", phrase_count);
fwrite(&phrase_count, 4, 1, fw);
fwrite(PhraseIndex, 4, phrase_count, fw);
fwrite(PhraseBuffer, 1, phrasebuf_pointer, fw);
fclose(fw);
if ((fw = fopen(fname_lx, "w")) == NULL)
print_error("Cannot create %s\n", fname_lx);
s = AssocCount[0];
AssocCount[0] = 0;
for (i = 1; i <= 72 * 94; i++) {
t = AssocCount[i];
AssocCount[i] = AssocCount[i - 1] + s;
s = t;
}
fwrite(AssocCount, sizeof(AssocCount), 1, fw);
for (i = 0; i < 72 * 94; i++)
if (AssocCount[i + 1] - AssocCount[i] > 0) {
fwrite(AssocPhrase[i], sizeof(int),
AssocCount[i + 1] - AssocCount[i], fw);
free(AssocPhrase[i]);
}
fclose(fw);
}
InpTable.PhraseNum = phrase_count;
InpTable.TotalChar = index;
qsort(ItemTable, index, sizeof(ITEM2), qcmp2);
/******************** eliminate the dupplicated char *******************/
bzero(&LastItem, sizeof(ITEM));
ItemCount = 0;
for (i = 0; i < index; i++) {
if (memcmp(&ItemTable[i], &LastItem, sizeof(ITEM))) {
memcpy(&ItemTmp[ItemCount++], &ItemTable[i], sizeof(ITEM2));
memcpy(&LastItem, &ItemTable[i], sizeof(ITEM));
}
}
printf("Total Item = %d\n\n", ItemCount);
index = ItemCount;
qsort(ItemTmp, index, sizeof(ITEM2), qcmp);
/* sorting the char/phrase according its key & appearance ordr */
/* now eliminate the occurance field , ITEM2->ITEM */
for (i = 0; i < index; i++) {
memcpy(&ItemOut[i], &ItemTmp[i], sizeof(ITEM));
/*
if (i%100 == 0)
printf("No %d: key1=%08X key2=%08X Char=%04X\n",
i, ItemOut[i].key1, ItemOut[i].key2, ItemOut[i].ch);
*/
}
/******************* generate 64 index number ***********************/
bzero(CharDef, sizeof(CharDef));
for (i = 0; i < index; i++) {
int kk = (ItemOut[i].key1 >> 24) & 0x3f;
if (!CharDef[kk]) {
InpTable.KeyIndex[kk] = (u_short) i;
CharDef[kk] = 1;
}
}
InpTable.KeyIndex[TotalKeyNum] = index;
for (i = TotalKeyNum - 1; i > 0; i--)
if (!CharDef[i])
InpTable.KeyIndex[i] = InpTable.KeyIndex[i + 1];
/*
for(i = 0; i < 64; i++)
printf("Index %d = %d\n",i,InpTable.KeyIndex[i]);
*/
if ((fw = fopen(fname_tab, "w")) == NULL) {
print_error("Cannot create");
}
fwrite(&InpTable, 1, sizeof(InpTable), fw);
fwrite(ItemOut, sizeof(ITEM), index, fw);
fclose(fw);
return 0;
}
/* hzinput.h */
#ifndef __HZINPUT_H__
#define __HZINPUT_H__
#define INPUT_BGCOLOR 8
/* LightBlack */
#define INPUT_FGCOLOR 15
/* LightWhite */
#define INPUT_AREAY ((18 * 24)+10)
#define MAX_INPUT_LENGTH 15
#define MAGIC_NUMBER "CCEGB"
#define CIN_ENAME_LENGTH 24
#define CIN_CNAME_LENGTH 16
#define MAX_PHRASE_LENGTH 20
#define SELECT_KEY_LENGTH 16
#define END_KEY_LENGTH 16
#define InputAreaX 16
/* key of toggle input method */
#define NR_INPUTMETHOD 10
typedef struct {
unsigned long key1; /* sizeof(ITEM=12) */
unsigned long key2;
unsigned short ch;
unsigned short frequency;
} ITEM;
typedef struct {
char magic_number[sizeof(MAGIC_NUMBER)]; /* magic number */
char ename[CIN_ENAME_LENGTH]; /* ascii name */
char cname[CIN_CNAME_LENGTH]; /* prompt */
char selkey[SELECT_KEY_LENGTH]; /* select keys */
char last_full; /* last full code need a more SPACE? */
int TotalKey; /* number of keys needed */
int MaxPress; /* Max len of keystroke */
int MaxDupSel; /* how many keys used to select */
int TotalChar; /* Defined characters */
unsigned char KeyMap[128]; /* Map 128 chars to 64(6 bit) key index */
unsigned char KeyName[64]; /* Map 64 key to 128 chars */
unsigned short KeyIndex[64]; /* 64 key first index of TotalChar */
int PhraseNum; /* Total Phrase Number */
FILE *PhraseFile; /* *.tab.phr Phrase File */
FILE *AssocFile; /* *.tab.lx LianXiang File */
ITEM *item; /* item */
} hz_input_table;
/************ private functions *******************/
void input_clear_line(int y, int color);
void input_draw_ascii(int x, int y, unsigned char c, int fg, int bg);
void input_print_string(int x, int y, unsigned char *string, int fg, int bg);
void FindMatchKey(void);
void FillMatchChars(int j);
void FillAssociateChars(int index);
void FindAssociateKey(int index);
hz_input_table* IntCode_Init(void);
void IntCode_FindMatchKey(void);
void IntCode_FillMatchChars(int index);
void intcode_hz_filter(int tty_fd, unsigned char key);
/************ public functions *********************/
void hz_input_init(void);
void hz_input_done(void);
void load_input_table(int, unsigned char *);
void unload_input_table(int i);
void hz_filter(int tty_fd, unsigned char c);
void toggle_input_method(void);
void toggle_half_full(void);
void set_active_input_method(int);
void refresh_input_method_area(void);
void DispSelection(void);
extern char *tabfname[10];
#endif
