pluto代码分析，累死我了

1）main函数在tool/main.cpp里面

2）结构体定义

  PlutoContext *context = pluto_context_alloc();
  PlutoOptions *options = context->options;


定义在pluto.h里面

struct plutoOptions {
}


typedef struct plutoOptions PlutoOptions;

PlutoOptions *pluto_options_alloc();
void pluto_options_free(PlutoOptions *);

typedef struct plutoContext {
  PlutoOptions *options;
} PlutoContext;

PlutoContext *pluto_context_alloc();
void pluto_context_free(PlutoContext *context);

3）给各种函数疯狂赋值

#ifdef GLPK
    {"glpk", no_argument, &options->glpk, 1},
#endif
#ifdef GUROBI
    {"gurobi", no_argument, &options->gurobi, 1},
#endif
#if defined GLPK || defined GUROBI
    {"lp", no_argument, &options->lp, 1},
    {"dfp", no_argument, &options->dfp, 1},
    {"ilp", no_argument, &options->ilp, 1},
    {"lpcolor", no_argument, &options->lpcolour, 1},
    {"clusterscc", no_argument, &options->scc_cluster, 1},
#endif
    {"islsolve", no_argument, &options->islsolve, 1},
    {"time", no_argument, &options->time, 1},
    {0, 0, 0, 0}

4）

      printf(
          "PLUTO version %s - An automatic parallelizer and locality optimizer\n\
Copyright (C) 2007--2015  Uday Bondhugula\n\
This is free software; see the source for copying conditions.  There is NO\n\
warranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.\n\n",
          PLUTO_VERSION);

5）选择用哪个库

  /* isldep is the default */
  if (!options->isldep && !options->candldep) {
    options->isldep = 1;
  }

  if (options->lastwriter && options->candldep) {
    printf("[pluto] ERROR: --lastwriter is only supported with --isldep\n");
    pluto_options_free(options);
    usage_message();
    return 1;
  }

  if (options->second_level_tile && options->find_tile_sizes) {
    printf("[pluto] ERROR: Automatic tile size selection is supported only for "
           "one level of tiling\n");
    pluto_options_free(options);
    usage_message();
    return 1;
  }

6）读取输入文件：

  /* Extract polyhedral representation from input program */



  if (options->pet) {
    // Extract using PET.

    isl_ctx *pctx = isl_ctx_alloc_with_pet_options();
    struct pet_scop *pscop =
        pet_scop_extract_from_C_source(pctx, srcFileName, NULL);

}

  } else {
    // Extract polyhedral representation using Clan.
}

    } else {
      // Read from regular file.
}

使用PET或者CLan读取文件？这是啥玩意，输入是文件，输出是啥？

7）

结构体struct pet_scop在pet.h中，grep好像有点问题。

struct pet_scop {
	pet_loc *loc;

	isl_set *context;
	isl_set *context_value;
	isl_schedule *schedule;

	int n_type;
	struct pet_type **types;

	int n_array;
	struct pet_array **arrays;

	int n_stmt;
	struct pet_stmt **stmts;

	int n_implication;
	struct pet_implication **implications;

	int n_independence;
	struct pet_independence **independences;
};
typedef struct pet_scop pet_scop;

8）

这应该是真正转换的函数？

    double t_start = rtclock();
    prog = pet_to_pluto_prog(pscop, pctx, context);
    t_d = rtclock() - t_start;

9）tool/pet_to_pluto.cpp

#include "pet_to_pluto.h"

#include "constraints.h"
#include "math_support.h"
#include "pluto/matrix.h"
#include "pluto/pluto.h"
#include "program.h"

#include "isl/flow.h"
#include "isl/id.h"
#include "isl/map.h"
#include "isl/mat.h"
#include "isl/set.h"
#include "isl/space.h"
#include "isl/union_map.h"
#include "isl/union_set.h"
#include "isl/val.h"

#include "pet.h"


/*
 * Extract necessary information from pet_scop to create PlutoProg - a
 * representation of the program sufficient to be used throughout Pluto.
 * PlutoProg also includes dependences; uses isl.
 */
PlutoProg *pet_to_pluto_prog(struct pet_scop *pscop, isl_ctx *ctx,
                             PlutoContext *context) {
调用了很多isl的函数

10）

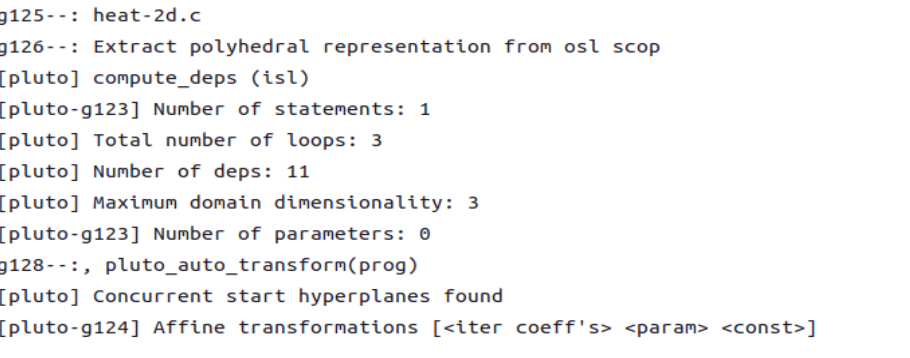

  if (!options->silent) {
    fprintf(stdout, "[pluto] Number of statements: %d\n", prog->nstmts);
    fprintf(stdout, "[pluto] Total number of loops: %d\n", dim_sum);
    fprintf(stdout, "[pluto] Number of deps: %d\n", prog->ndeps);
    fprintf(stdout, "[pluto] Maximum domain dimensionality: %d\n", prog->nvar);
    fprintf(stdout, "[pluto] Number of parameters: %d\n", prog->npar);
  }

11）

  /* Auto transformation */
  if (!options->identity) {
    pluto_auto_transform(prog);
  }

在lib/pluto.c中

/**
 * Top-level automatic transformation algoritm. Returns 0 on success.
 *
 * All dependences are reset to unsatisfied before starting.
 *
 */
int pluto_auto_transform(PlutoProg *prog) {
  int i, j, s, nsols, depth;
  /* The maximum number of linearly independent solutions needed across all
   * statements */
  int num_ind_sols_req;
  PlutoContext *context = prog->context;
  PlutoOptions *options = context->options;

pluto代码其实很复杂了。看懂都不容易。

12）依赖方向 ？

依赖分析？

  pluto_compute_dep_directions(prog);
  pluto_compute_dep_satisfaction(prog);

在lib/pluto.c中

  /* Get the permutability constraints since a call to
   * detect_transformation_properties with update dep satisfaction levels
   * and we won't get the constraints we want */


void pluto_compute_dep_directions(PlutoProg *prog) {
  int i, level;

  Dep **deps = prog->deps;

  for (i = 0; i < prog->ndeps; i++) {
    if (deps[i]->dirvec != NULL) {
      free(deps[i]->dirvec);
    }
    deps[i]->dirvec = (DepDir *)malloc(prog->num_hyperplanes * sizeof(DepDir));
    for (level = 0; level < prog->num_hyperplanes; level++) {
      deps[i]->dirvec[level] = get_dep_direction(deps[i], prog, level);
    }
  }
}

要看懂，需要对代码进行仔细的分析。

13）

/*
 * Conservative but powerful enough: until a dependence has been completely
 * satisfied (a level at which it is completely satisifed), a non-zero
 * dependence component would set satvec for that level to one
 */
void pluto_compute_dep_satisfaction(PlutoProg *prog) {
  int i, level;
  PlutoContext *context = prog->context;

  IF_DEBUG(printf("[pluto] pluto_compute_dep_satisfaction\n"););

  pluto_dep_satisfaction_reset(prog);

  for (i = 0; i < prog->num_hyperplanes; i++) {
    dep_satisfaction_update(prog, i);
  }

  /* Create and set satisfaction vectors */
  for (i = 0; i < prog->ndeps; i++) {
    Dep *dep = prog->deps[i];
    if (IS_RAR(dep->type))
      continue;

    if (dep->satvec)
      free(dep->satvec);
    dep->satvec = (int *)malloc(prog->num_hyperplanes * sizeof(int));

    /* Direction vectors should be available */
    assert(dep->dirvec != NULL);

    for (level = 0; level < prog->num_hyperplanes; level++) {
      if (dep->dirvec[level] != DEP_ZERO &&
          (dep->satisfaction_level >= level || dep->satisfaction_level == -1)) {
        dep->satvec[level] = 1;
      } else {
        dep->satvec[level] = 0;
      }
    }
  }
}

也不容易，需要深入了解代码和原理。

一步一步，到底是怎么变换的。

14）

  if (options->tile) {
    pluto_tile(prog);
  } else {
    if (options->intratileopt) {
      pluto_intra_tile_optimize(prog, 0);
    }
  }

pluto_tile在lib/tile.c中

/* Manipulates statement domain and transformation to tile scattering
 * dimensions from firstD to lastD */
void pluto_tile_band(PlutoProg *prog, Band *band, int *tile_sizes) {

15）

最后输出一些信息

  if (options->time && !options->silent) {
    printf("\n[pluto] Timing statistics\n[pluto] SCoP extraction + dependence "
           "analysis time: %0.6lfs\n",
           t_d);
    printf("[pluto] Auto-transformation time: %0.6lfs\n", t_t);
    printf("[pluto] Tile size selection time: %0.6lfs\n", prog->tss_time);
    if (options->dfp) {
      printf("[pluto] \tFCG construction time: %0.6lfs\n",
             prog->fcg_const_time);
      printf("[pluto] \tFCG colouring time: %0.6lfs\n", prog->fcg_colour_time);
      printf("[pluto] \tscaling + shifting time: %0.6lfs\n",
             prog->fcg_dims_scale_time);
      printf("[pluto] \tskew determination time: %0.6lfs\n", prog->skew_time);
    }
    printf("[pluto] \t\tTotal constraint solving time (LP/MIP/ILP) time: "
           "%0.6lfs\n",
           prog->mipTime);
    printf("[pluto] Code generation time: %0.6lfs\n", t_c);
    printf("[pluto] Other/Misc time: %0.6lfs\n", t_all - t_c - t_t - t_d);
    printf("[pluto] Total time: %0.6lfs\n", t_all);
    printf("[pluto] All times: %0.6lf %0.6lf %.6lf %.6lf\n", t_d, t_t, t_c,
           t_all - t_c - t_t - t_d);
  }

看得累死了，其实程序非常复杂了。只能一个一个函数看才行。
