rancher_HA&k3s_etcd

介绍

新的k3s 1.19可以用ETCD作为数据存储，在此基础上部署rancher HA，一次通过。

• 系统为Centos7.8 (8.1部署longhorn中遇到问题)
• 镜像仓库采用 nexus3 部署
• rancher采用HA部署(2.4.7)
• K3s部署三节点master（ETCD)

节点	IP	应用	备注
op	172.19.129.98	nginx/nexus3
m1	172.19.201.241	K3s server
m2	172.19.201.242	K3s server
m3	172.19.201.243	K3s server

应用	URI:端口	备注
nginx	80/443	域名转发/K3s负载均衡
nexus3	8001/8082	harbor.do.io:443
rancher	443	rancher.do.io:443

目录结果

# /home/rancher作为后续操作的基础目录
mkdir -p /home/rancher/{certs,nexus3,nginx,nginx/conf.d} && cd /home/rancher

OP配置

op 初始化本地变量

cat >> /etc/profile << EOF
echo "export PS1='[\u@\h \t \w]\$ '" >> /etc/profile
## 环境 [此处IP需修改]
export master_ips=(172.19.129.241 172.19.129.242 172.19.129.243)
export op=172.19.129.98
export domain=do.io
# k3s版本
export k3s=k3s_1.19.1
EOF
source /etc/profile
# k3s资源目录
mkdir ${k3s}
# ip->mxxx
for ip in ${master_ips[@]}
do
echo "${ip} m${ip##*.}" >> /etc/hosts
done

系统脚本

k3s/init.sh 优化系统及环境配置

cat >> ${k3s}/init.sh << END
#!/bin/bash --login
echo "export PS1='[\u@\h \t \w]\$ '" >> /etc/profile
echo "export op=$op" >> /etc/profile
echo "export domain=$domain" >> /etc/profile
echo "$op harbor.$domain op" >> /etc/hosts

# 优化OS rancher版本
cat > /etc/sysctl.conf << EOF
net.bridge.bridge-nf-call-ip6tables=1
net.bridge.bridge-nf-call-iptables=1
net.ipv4.ip_forward=1
net.ipv4.conf.all.forwarding=1
net.ipv4.neigh.default.gc_thresh1=4096
net.ipv4.neigh.default.gc_thresh2=6144
net.ipv4.neigh.default.gc_thresh3=8192
net.ipv4.neigh.default.gc_interval=60
net.ipv4.neigh.default.gc_stale_time=120

# 参考 https://github.com/prometheus/node_exporter#disabled-by-default
kernel.perf_event_paranoid=-1

#sysctls for k8s node config
net.ipv4.tcp_slow_start_after_idle=0
net.core.rmem_max=16777216
fs.inotify.max_user_watches=524288
kernel.softlockup_all_cpu_backtrace=1

kernel.softlockup_panic=0

kernel.watchdog_thresh=30
fs.file-max=2097152
fs.inotify.max_user_instances=8192
fs.inotify.max_queued_events=16384
vm.max_map_count=262144
fs.may_detach_mounts=1
net.core.netdev_max_backlog=16384
net.ipv4.tcp_wmem=4096 12582912 16777216
net.core.wmem_max=16777216
net.core.somaxconn=32768
net.ipv4.ip_forward=1
net.ipv4.tcp_max_syn_backlog=8096
net.ipv4.tcp_rmem=4096 12582912 16777216

net.ipv6.conf.all.disable_ipv6=1
net.ipv6.conf.default.disable_ipv6=1
net.ipv6.conf.lo.disable_ipv6=1

kernel.yama.ptrace_scope=0
vm.swappiness=0

# 可以控制core文件的文件名中是否添加pid作为扩展。
kernel.core_uses_pid=1

# Do not accept source routing
net.ipv4.conf.default.accept_source_route=0
net.ipv4.conf.all.accept_source_route=0

# Promote secondary addresses when the primary address is removed
net.ipv4.conf.default.promote_secondaries=1
net.ipv4.conf.all.promote_secondaries=1

# Enable hard and soft link protection
fs.protected_hardlinks=1
fs.protected_symlinks=1

# 源路由验证
# see details in https://help.aliyun.com/knowledge_detail/39428.html
net.ipv4.conf.all.rp_filter=0
net.ipv4.conf.default.rp_filter=0
net.ipv4.conf.default.arp_announce = 2
net.ipv4.conf.lo.arp_announce=2
net.ipv4.conf.all.arp_announce=2

# see details in https://help.aliyun.com/knowledge_detail/41334.html
net.ipv4.tcp_max_tw_buckets=5000
net.ipv4.tcp_syncookies=1
net.ipv4.tcp_fin_timeout=30
net.ipv4.tcp_synack_retries=2
kernel.sysrq=1
EOF

cat > /etc/security/limits.conf << EOF
root soft nofile 65535
root hard nofile 65535
* soft nofile 65535
* hard nofile 65535
EOF
sysctl -p

# 关闭selinux
sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config
setenforce 0
# 关闭防火墙
systemctl stop firewalld.service && systemctl disable firewalld.service
# 修改时区
ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
# 关闭swap
swapoff -a && sysctl -w vm.swappiness=0 && sed -i '/ swap / s/^\(.*\)$/#\1/g' /etc/fstab
# 重启
reboot
END

certs/generate_ca.sh 证书生成脚本

cat > certs/generate_ca.sh << 'END'
openssl genrsa -out ca.key 4096
openssl req -x509 -new -nodes -sha512 -days 3650 -subj "/C=CN/ST=ShangHai/L=ShangHai/O=example/OU=Personal/CN=${domain}" -key ca.key  -out ca.crt
openssl genrsa -out ${domain}.key 4096
openssl req -sha512 -new -subj "/C=CN/ST=ShangHai/L=ShangHai/O=example/OU=Personal/CN=${domain}" -key ${domain}.key -out ${domain}.csr
cat > v3.ext << EOF
authorityKeyIdentifier=keyid,issuer
basicConstraints=CA:FALSE
keyUsage = digitalSignature, nonRepudiation, keyEncipherment, dataEncipherment
extendedKeyUsage = serverAuth
subjectAltName = @alt_names
[alt_names]
DNS.1=${domain}
DNS.2=harbor.${domain}
DNS.3=rancher.${domain}
DNS.4=hub.${domain}
DNS.5=abc.${domain}
EOF
openssl x509 -req -sha512 -days 3650 -extfile v3.ext -CA ca.crt -CAkey ca.key -CAcreateserial -in ${domain}.csr -out ${domain}.crt
openssl x509 -inform PEM -in ${domain}.crt -out ${domain}.cert
\cp ${domain}.crt ${domain}.pem
END

cd certs && sh generate_ca.sh && cd ..

Nginx 安装

nginx/docker-compose.yml 容器配置

cat > nginx/docker-compose.yml << EOF
version: '3.1'

services:
  nginx:
    image: nginx:1.19-alpine
    container_name: nginx
    restart: always
    environment:
      - TZ=Asia/Shanghai
    ports:
      - "80:80"
      - "443:443"
      - "6443:6443"
    volumes:
      - ./:/etc/nginx/                     # nginx配置
      - ../certs:/certs                    # SSL证书
EOF

nginx/nginx.conf 整体配置

cat > nginx/nginx.conf << EOF
worker_processes 4;
worker_rlimit_nofile 40000;

events {
    worker_connections 8192;
}

stream {
  include /etc/nginx/conf.d/*.stream;
}

http {
  include /etc/nginx/conf.d/*.conf;
}
EOF

镜像仓库

nexus3

nexus3/docker-compose.yml 镜像配置

mkdir ./nexus3/data &&
chmod 777 ./nexus3/data

cat > nexus3/docker-compose.yml << EOF
version: "3.1"
services:
  nexus3:
    image: sonatype/nexus3:3.24.0
    container_name: nexus3
    restart: always
    privileged: true
    environment:
      - TZ=Asia/Shanghai
    ports:
      - "8081:8081"
      - "8082:8082"
    volumes:
      - ./data:/nexus-data
EOF

nginx/conf.d/nexus3.conf nginx域名转发

cat > nginx/conf.d/nexus3.conf << EOF
upstream nexus3_http {
    server $(ping op -c 1 | sed '1{s/[^(]*(//;s/).*//;q}'):8081;
}

server {
    listen 80;
    server_name harbor.${domain};

    location / {
        proxy_pass http://nexus3_http;
        proxy_set_header Host \$host;
        proxy_set_header X-Real-IP \$remote_addr;
        proxy_set_header X-Forwarded-For \$proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto \$scheme;
        proxy_set_header Upgrade \$http_upgrade;
        proxy_set_header Connection "Upgrade";
    }
}

upstream nexus3 {
    server $(ping op -c 1 | sed '1{s/[^(]*(//;s/).*//;q}'):8082;
}

server {
    listen 443 ssl;
    server_name harbor.${domain};

    ssl_certificate /certs/${domain}.cert;
    ssl_certificate_key /certs/${domain}.key;

    client_max_body_size 5000m;  # 上传大文件

    location / {
        proxy_pass http://nexus3;
        proxy_set_header Host \$host;
        proxy_set_header X-Real-IP \$remote_addr;
        proxy_set_header X-Forwarded-For \$proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto \$scheme;
        proxy_set_header Upgrade \$http_upgrade;
        proxy_set_header Connection "Upgrade";
    }
}
EOF

配置

修改admin密码为Harbor12345 允许匿名读取数据
创建 docker(hosted) 仓库
设置http 8082端口

• Allow anonymous docker pull (不要勾选)

K3s资源&脚本

公网资源

# k3s 及镜像 注意选择amd64
国内: http://mirror.cnrancher.com/
# 资源下载
wget http://rancher-mirror.cnrancher.com/k3s/v1.19.1-k3s1/k3s-airgap-images-amd64.tar
wget http://rancher-mirror.cnrancher.com/k3s/v1.19.1-k3s1/k3s
wget http://rancher-mirror.cnrancher.com/k3s/k3s-install.sh

脚本

卸载

k3s/remove.sh

cat > ${k3s}/remove.sh << 'END'
#!/bin/bash --login
k3s-killall.sh
k3s-uninstall.sh
rm ~/.kube -rf
END

安装

containerd（推荐）

k3s/containerd_installed.sh

cat > ${k3s}/containerd_installed.sh << END
#!/bin/bash --login
dir=\$(cd \`dirname \$0\`; pwd)
cd \$dir

mkdir -p /var/lib/rancher/k3s/agent/images/
\cp ./k3s-airgap-images-amd64.tar /var/lib/rancher/k3s/agent/images/
chmod a+x ./k3s ./k3s-install.sh

# docker
echo "alias docker='k3s crictl'" >> /etc/profile
source /etc/profile
## harbor认证
\cp ../certs/ca.crt /etc/ssl/certs/
## 信任
\cp ../certs/\${domain}.crt /etc/pki/ca-trust/source/anchors/\${domain}.crt
update-ca-trust extract

## 配置 /etc/rancher/k3s/registries.yaml
mkdir -p /etc/rancher/k3s
cat > /etc/rancher/k3s/registries.yaml << EOF
mirrors:
  docker.io:  # 若安装rancher到此k3s集群则不能用docker.io,会影响rancher的镜像拉取
    endpoint:
      - "https://harbor.\${domain}"
configs:
  docker.io:
    auth:
      username: admin # 镜像仓库用户名
      password: Harbor12345 # 镜像仓库密码
    tls:
      cert_file: /home/certs/\${domain}.cert #<镜像仓库所用的客户端证书文件路径>
      key_file: /home/certs/\${domain}.key #<镜像仓库所用的客户端密钥文件路径>
      ca_file: /home/certs/ca.key # <镜像仓库所用的ca文件路径>
EOF
END

执行指令脚本

xcall.sh

cat > xcall.sh << 'END'
#!/bin/sh --login
if [ $# = 0 ]; then
  echo no params
  exit;
fi
params=$@
for ip in ${master_ips[@]}
do
echo ============ ssh 【m${ip##*.}】 and run 【${params}】 ========
ssh m${ip##*.} ${params}
done
END
# 软连接
chmod a+x xcall.sh && ln -sf $PWD/xcall.sh /usr/local/bin

复制文件(夹)脚本

xscp.sh

cat > xscp.sh << 'END'
#!/bin/bash --login
for ip in ${master_ips[@]}
do
echo ========= scp 【$1】 to 【m${ip##*.}:/home/$1】 =========
scp -r $1 m${ip##*.}:/home/$(dirname $1)
done
END

# 软连接
chmod a+x xscp.sh && ln -sf $PWD/xscp.sh /usr/local/bin

K3s负载均衡配置

nginx/conf.d/k3s.stream master_ips改变时需重新执行

# stream 6443
cat > nginx/conf.d/k3s.stream << EOF
upstream k3s_api {
    least_conn;
EOF

# master ips
for ip in ${master_ips[@]}
do
cat >> nginx/conf.d/k3s.stream << EOF
    server $ip:6443 max_fails=3 fail_timeout=5s;
EOF
done

cat >> nginx/conf.d/k3s.stream << EOF
}
server {
    listen     6443;
    proxy_pass k3s_api;
}
EOF

# 80
cat > nginx/conf.d/http80.conf << EOF
upstream http80 {
    least_conn;
EOF
# master ips
for ip in ${master_ips[@]}
do
cat >> nginx/conf.d/http80.conf << EOF
    server $ip:80 max_fails=3 fail_timeout=5s;
EOF
done

# 80
cat >> nginx/conf.d/http80.conf << EOF
}
server {
    listen 80;
    server_name *.${domain};
    location / {
        proxy_pass http://http80;
        proxy_set_header Host \$host;
        proxy_set_header X-Real-IP \$remote_addr;
        proxy_set_header X-Forwarded-For \$proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto \$scheme;
        proxy_set_header Upgrade \$http_upgrade;
        proxy_set_header Connection "Upgrade";
    }
}
EOF

K3s集群部署

免密登录

# 生成~/.ssh/id_rsa  id_rsa.pub
ssh-keygen -t rsa &&
rm -f ~/.ssh/known_hosts &&
# 复制密钥
for ip in ${master_ips[@]}
do
ssh-copy-id -f m${ip##*.}
done

修改主机名

for ip in ${master_ips[@]}
do
ssh m${ip##*.} hostnamectl set-hostname m${ip##*.}
done

复制资源

# 复制k3s安装文件（k3s/install.sh/k3s-airgap-images-amd64.tar）到k3s目录中
xscp.sh certs/ && xscp.sh ${k3s}/

init

xcall.sh chmod a+x /home/${k3s}/*.sh &&
# 挂载光盘yum源
# xcall.sh /home/docker/yum_cdrom.sh &&
# 内网yum源
# xcall.sh /home/docker/yum_lan
xcall.sh /home/${k3s}/init.sh
# init后机器重启，请稍等。。。

dns配置

# 为coredns服务配置
xcall.sh ln -sf /run/systemd/resolve/resolv.conf /etc/resolv.conf &&
xcall.sh sed -i "s/.*DNSStubListener.*/DNSStubListener=no/" /etc/systemd/resolved.conf &&
# 卸载dns服务
xcall.sh yum remove -y dnsmasq

install

重装前清理

# 如果之前安装过k3s,先卸载清除
xcall.sh /home/k3s/remove.sh

with containerd

# 首个节点
ssh ${master_ips[0]} /home/${k3s}/containerd_installed.sh &&
ssh ${master_ips[0]} \cp /home/${k3s}/k3s /usr/local/bin/ &&
ssh ${master_ips[0]} "INSTALL_K3S_SKIP_DOWNLOAD=true INSTALL_K3S_EXEC=\"--cluster-init --write-kubeconfig ~/.kube/config --write-kubeconfig-mode 666\" /home/${k3s}/k3s-install.sh"

# 取token
token=$(ssh ${master_ips[0]} "cat /var/lib/rancher/k3s/server/node-token")

# 其他节点台
for ((i=1; i<${#master_ips[*]}; i++))
do
echo ************* ${master_ips[i]} **************
ssh ${master_ips[i]} /home/${k3s}/containerd_installed.sh
ssh ${master_ips[i]} \cp /home/${k3s}/k3s /usr/local/bin/
ssh ${master_ips[i]} "INSTALL_K3S_SKIP_DOWNLOAD=true K3S_TOKEN=${token} INSTALL_K3S_EXEC=\"server --server https://${master_ips[0]}:6443 --write-kubeconfig ~/.kube/config --write-kubeconfig-mode 666\" /home/${k3s}/k3s-install.sh"
done

# 检查仓库设置
xcall.sh cat /var/lib/rancher/k3s/agent/etc/containerd/config.toml

集群管理

# 检查pods是否正常，若有pod异常可执行 xcall.sh systemctl restart k3s
# 软连接kubectl与k3s
chmod a+x ${k3s}/k3s && ln -sf $PWD/${k3s}/k3s /usr/local/bin/kubectl
# 复制集群配置文件到本机
scp ${master_ips[0]}:/root/.kube/config ~/.kube/

kubectl get no -A -o wide

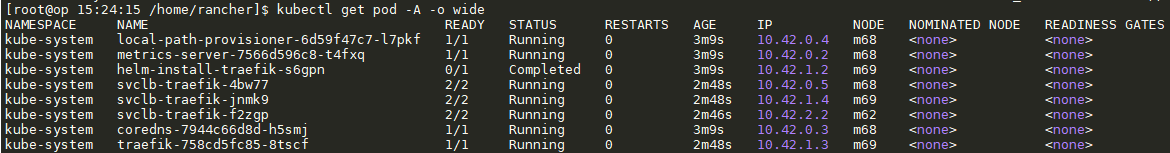

kubectl get pod -A -o wide

Rancher安装

镜像同步到私有仓库

wget http://rancher-mirror.cnrancher.com/rancher/v2.4.7/rancher-images.txt
wget http://rancher-mirror.cnrancher.com/rancher/v2.4.7/rancher-load-images.sh
wget http://rancher-mirror.cnrancher.com/rancher/v2.4.7/rancher-save-images.sh
# 信任
mkdir -p /etc/docker/certs.d/harbor.${domain}
\cp ../certs/ca.crt /etc/docker/certs.d/harbor.${domain}/
\cp ../certs/${domain}.crt /etc/pki/ca-trust/source/anchors/${domain}.crt
update-ca-trust extract
# 登录
docker login harbor.do.io -u admin -p Harbor12345
# 镜像入库
sh ./rancher-save-images.sh --image-list ./rancher-images.txt
sh ./rancher-load-images.sh --image-list ./rancher-images.txt --registry harbor.${domain}
# 单独处理busybox供应用使用
docker tag busybox harbor.${domain}/library/busybox
docker push harbor.${domain}/library/busybox
# 清理缓存
docker rmi -f $(docker images |grep rancher)

Helm安装

# helm， 下载后解压
wget helm.tgz http://rancher-mirror.cnrancher.com/helm/v3.3.3/helm-v3.3.3-linux-amd64.tar.gz
tar xf helm-v3.3.3-linux-amd64.tar.gz
\cp $PWD/linux-amd64/helm /usr/local/bin/helm
# 下载
wget http://rancher-mirror.cnrancher.com/server-charts/stable/rancher-2.4.7.tgz
# helm渲染
helm template rancher ./rancher-2.4.7.tgz --output-dir . \
--namespace cattle-system \
--set hostname=rancher.${domain} \
--set rancherImage=harbor.${domain}/rancher/rancher \
--set privateCA=true \
--set ingress.tls.source=secret \
--set systemDefaultRegistry=harbor.${domain} \
--set useBundledSystemChart=true

# 复制到master0
scp -r rancher ${master_ips[0]}:/home/

# master0 执行
ssh ${master_ips[0]}
# create namespace
kubectl create namespace cattle-system
# create secret
kubectl -n cattle-system create secret tls tls-rancher-ingress --cert=/home/certs/do.io.crt --key=/home/certs/do.io.key
## 私有签发
\cp /home/certs/do.io.crt ./cacerts.pem
kubectl -n cattle-system create secret generic tls-ca --from-file=cacerts.pem
## 安装 rancher
kubectl -n cattle-system apply -R -f /home/rancher

### 查看pod事件
kubectl -n cattle-system describe pod
### rancher是否运行
kubectl -n cattle-system get pods
## 访问
https://rancher.do.io

域名访问

# rancher
cat > nginx/conf.d/rancher.conf << EOF
upstream rancher {
    least_conn;
EOF
# master ips
for ip in ${master_ips[@]}
do
cat >> nginx/conf.d/rancher.conf << EOF
    server $ip:443 max_fails=3 fail_timeout=5s;
EOF
done

# rancher
cat >> nginx/conf.d/rancher.conf << EOF
}
server {
    listen 443;
    server_name rancher.${domain};
    location / {
        proxy_pass https://rancher;
        proxy_set_header Host \$host;
        proxy_set_header X-Real-IP \$remote_addr;
        proxy_set_header X-Forwarded-For \$proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto \$scheme;
        proxy_set_header Upgrade \$http_upgrade;
        proxy_set_header Connection "Upgrade";
    }
}
EOF

K3s域名解释

for ip in ${master_ips[@]}
do
ssh ${ip} "echo \"$op rancher.$domain\" >> /etc/hosts"
done

问题

• cattle-xxx-agent CrashLoopBackOff

# 配置 cattle-cluster-agent
kubectl -n cattle-system patch  deployments cattle-cluster-agent --patch '{
    "spec": {
        "template": {
            "spec": {
                "hostAliases": [
                    {
                        "hostnames":
                        [
                            "rancher.${domain}"
                        ],
                        "ip": "${op}"
                    }
                ]
            }
        }
    }
}'
# 配置 cattle-node-agent
kubectl -n cattle-system patch  daemonsets cattle-node-agent --patch '{
 "spec": {
     "template": {
         "spec": {
             "hostAliases": [
                 {
                     "hostnames":
                        [
                            "rancher.${domain}"
                        ],
                            "ip": "${op}"
                 }
             ]
         }
     }
 }
}'

参考

https://rancher2.docs.rancher.cn/

修改集群IP范围

各主机修改 /var/lib/rancher/k3s/agent/etc/flannel/net-conf.json

下一章

longhorn存储HA部署
