Spring Data JDBC、MySQL 和 Thymeleaf 实现分页、排序和多列LIKE过滤/搜索功能

置顶 allway2

已于 2022-10-20 13:48:28 修改

阅读量391

点赞数

CC 4.0 BY-SA版权

于 2022-10-07 21:11:05 首次发布

本文链接：https://blog.youkuaiyun.com/allway2/article/details/127199284

在本教程中，您将学习使用 Spring Data JDBC、MySQL 和 Thymeleaf 为现有 Spring Boot 应用程序实现分页、排序和过滤/搜索功能。

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.7.3</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>net.codejava</groupId>
    <artifactId>ProductManager</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>ProductManager</name>
    <description>Spring Boot Web App</description>

    <properties>
        <java.version>17</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <!-- <scope>true</scope>  -->
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

application.properties

spring.jpa.hibernate.ddl-auto=none
spring.datasource.url=jdbc:mysql://localhost:3306/sales?autoReconnect=true&useSSL=false&useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai
spring.datasource.username=root
spring.datasource.password=root
#logging.level.root=
#debug=true
logging.level.org.springframework.jdbc.core.JdbcTemplate=DEBUG

MySQL建表脚本

CREATE TABLE IF NOT EXISTS `product` (
  `id` int NOT NULL AUTO_INCREMENT,
  `name` varchar(45) COLLATE utf8mb4_unicode_ci NOT NULL,
  `brand` varchar(45) COLLATE utf8mb4_unicode_ci NOT NULL,
  `madein` varchar(45) COLLATE utf8mb4_unicode_ci NOT NULL,
  `price` float NOT NULL,
  PRIMARY KEY (`id`)
);

Application.java

package com.example;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class Application {

	public static void main(String[] args) {
		SpringApplication.run(Application.class, args);
	}

}

Product.java

package com.example.model;

import org.springframework.data.annotation.Id;
import org.springframework.data.relational.core.mapping.Table;

import lombok.Data;

@Table("product")
@Data // lomok
public class Product {

    @Id
    private Long id;
    private String name;
    private String brand;
    private String madein;
    private float price;

    public Product() {
    }

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getBrand() {
        return brand;
    }

    public void setBrand(String brand) {
        this.brand = brand;
    }

    public String getMadein() {
        return madein;
    }

    public void setMadein(String madein) {
        this.madein = madein;
    }

    public float getPrice() {
        return price;
    }

    public void setPrice(float price) {
        this.price = price;
    }

}

ProductRepository.java

package com.example.repository;

import com.example.model.Product;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.Pageable;
import org.springframework.data.repository.PagingAndSortingRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface ProductRepository extends PagingAndSortingRepository<Product, Long> {

    Page<Product> findAllByNameContainingOrBrandContainingOrMadeinContaining(String name, String brand, String madein, Pageable pageable);

}

ProductController.java

package com.example.controller;

import com.example.model.Product;
import com.example.repository.ProductRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Page;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.servlet.ModelAndView;

import java.util.List;
import org.springframework.data.domain.PageRequest;
import org.springframework.data.domain.Pageable;
import org.springframework.data.domain.Sort;

@Controller
public class ProductController {

    private static final int[] PAGE_SIZES = {2, 5, 7, 10};

    @Autowired
    private ProductRepository repo;

    @RequestMapping("/")
    public String viewHomePage(Model model) {
        // String keyword = "reebok";
        String keyword = null;

        /*
		 * if (keyword != null) { return listByPage(model, 1, "name", "asc", keyword); }
         */
        return listByPage(model, 1, 2, "name", "asc", keyword);

    }

    @GetMapping("/page/{pageNumber}")
    public String listByPage(Model model, @PathVariable("pageNumber") int currentPage, @RequestParam("pageSize") int pageSize,
            @RequestParam("sortField") String sortField, @RequestParam("sortDir") String sortDir, @RequestParam(value = "keyword", required = false) String keyword) {

        Sort sort = Sort.by(sortField);
        sort = sortDir.equals("asc") ? sort.ascending() : sort.descending();

        Pageable pageable = PageRequest.of(currentPage - 1, pageSize, sort); // 7 rows per page
        Page<Product> page = null;
        if (keyword != null) {
            page = repo.findAllByNameContainingOrBrandContainingOrMadeinContaining(keyword, keyword, keyword, pageable);
        } else {
            page = repo.findAll(pageable);
        }

        long totalItems = page.getTotalElements();
        int totalPages = page.getTotalPages();
        int numberOfElements = page.getNumberOfElements();
        // int currentPage = page.previousPageable().getPageNumber();

        List<Product> listProducts = page.getContent();

        model.addAttribute("totalItems", totalItems);
        model.addAttribute("totalPages", totalPages);
        model.addAttribute("currentPage", currentPage);
        model.addAttribute("pageSize", pageSize);
        model.addAttribute("pageSizes", PAGE_SIZES);
        model.addAttribute("numberOfElements", numberOfElements);
        model.addAttribute("listProducts", listProducts); // next bc of thymeleaf we make the index.html

        model.addAttribute("sortField", sortField);
        model.addAttribute("sortDir", sortDir);
        model.addAttribute("keyword", keyword);

        String reverseSortDir = sortDir.equals("asc") ? "desc" : "asc";
        model.addAttribute("reverseSortDir", reverseSortDir);

        return "index";
    }

    @RequestMapping("/new")
    public String showNewProductForm(Model model) {
        Product product = new Product();
        model.addAttribute("product", product);

        return "new_product";
    }

    @RequestMapping(value = "/save", method = RequestMethod.POST)
    public String saveProduct(@ModelAttribute("product") Product product) {
        repo.save(product);

        return "redirect:/";
    }

    @RequestMapping("/edit/{id}")
    public ModelAndView showEditProductForm(@PathVariable(name = "id") Long id) {
        ModelAndView modelAndView = new ModelAndView("edit_product");
        Product product = repo.findById(id).get();
        modelAndView.addObject("product", product);

        return modelAndView;
    }

    @RequestMapping("/delete/{id}")
    public String deleteProduct(@PathVariable(name = "id") Long id) {
        repo.deleteById(id);

        return "redirect:/";
    }

}

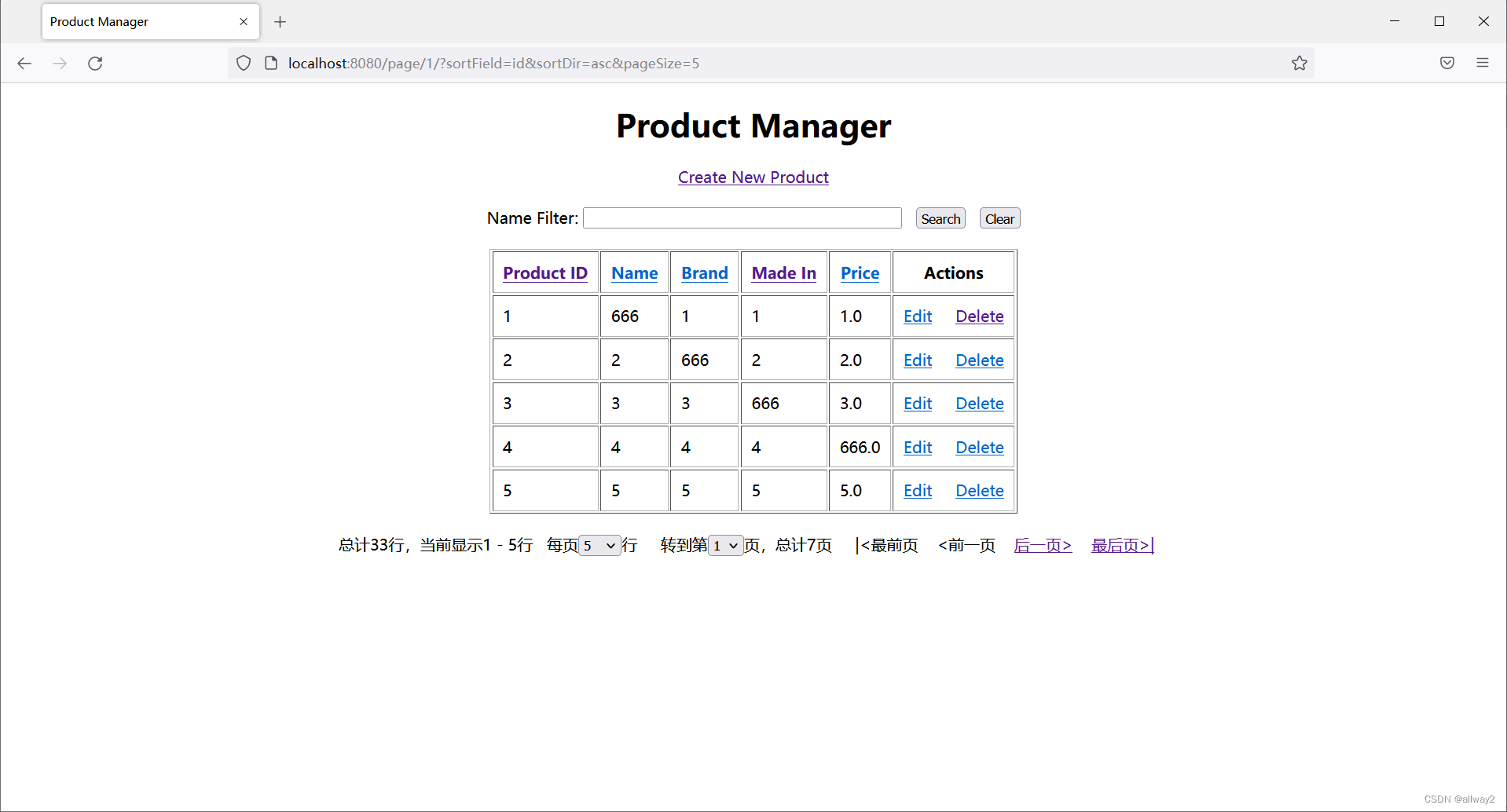

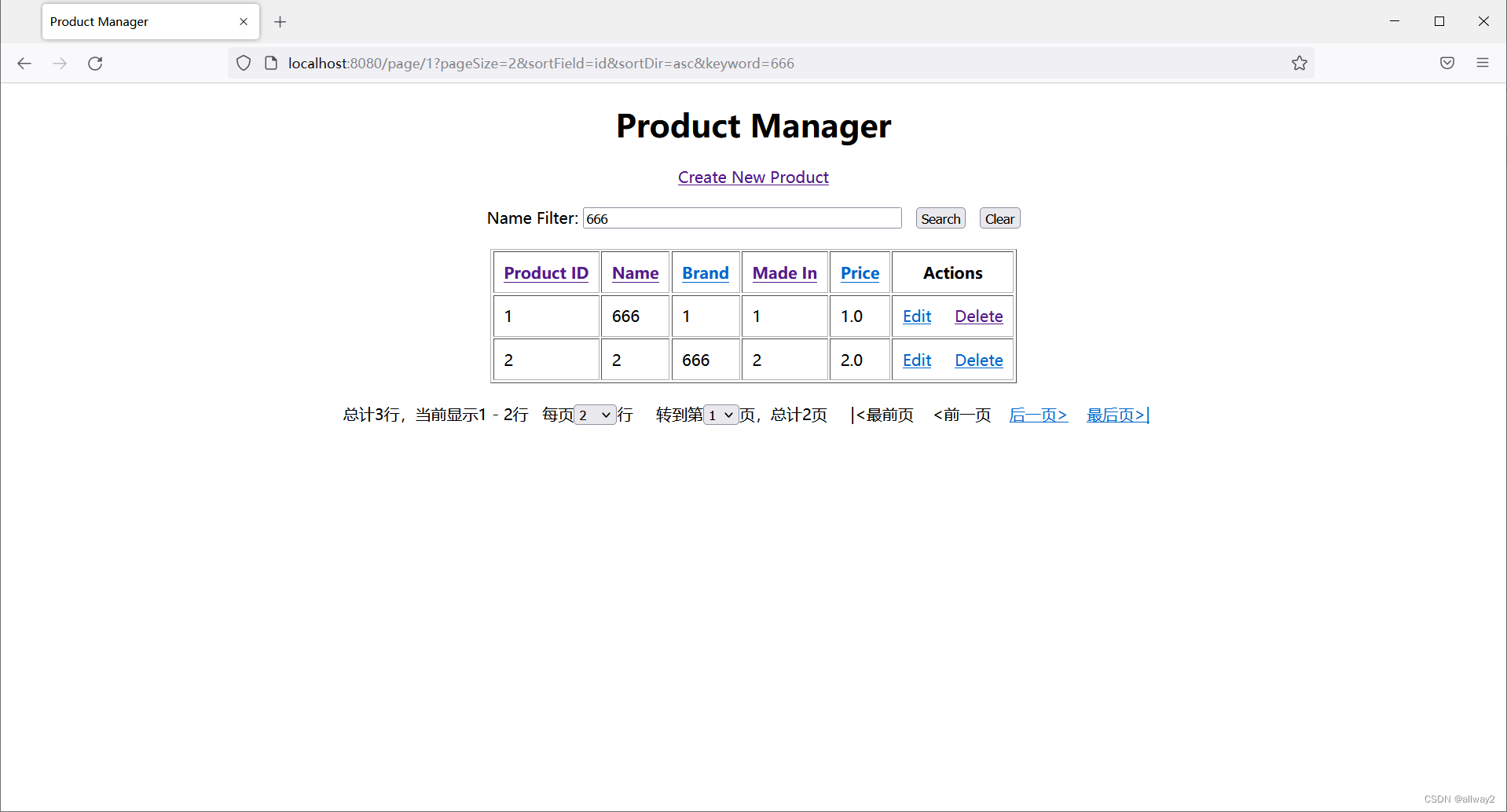

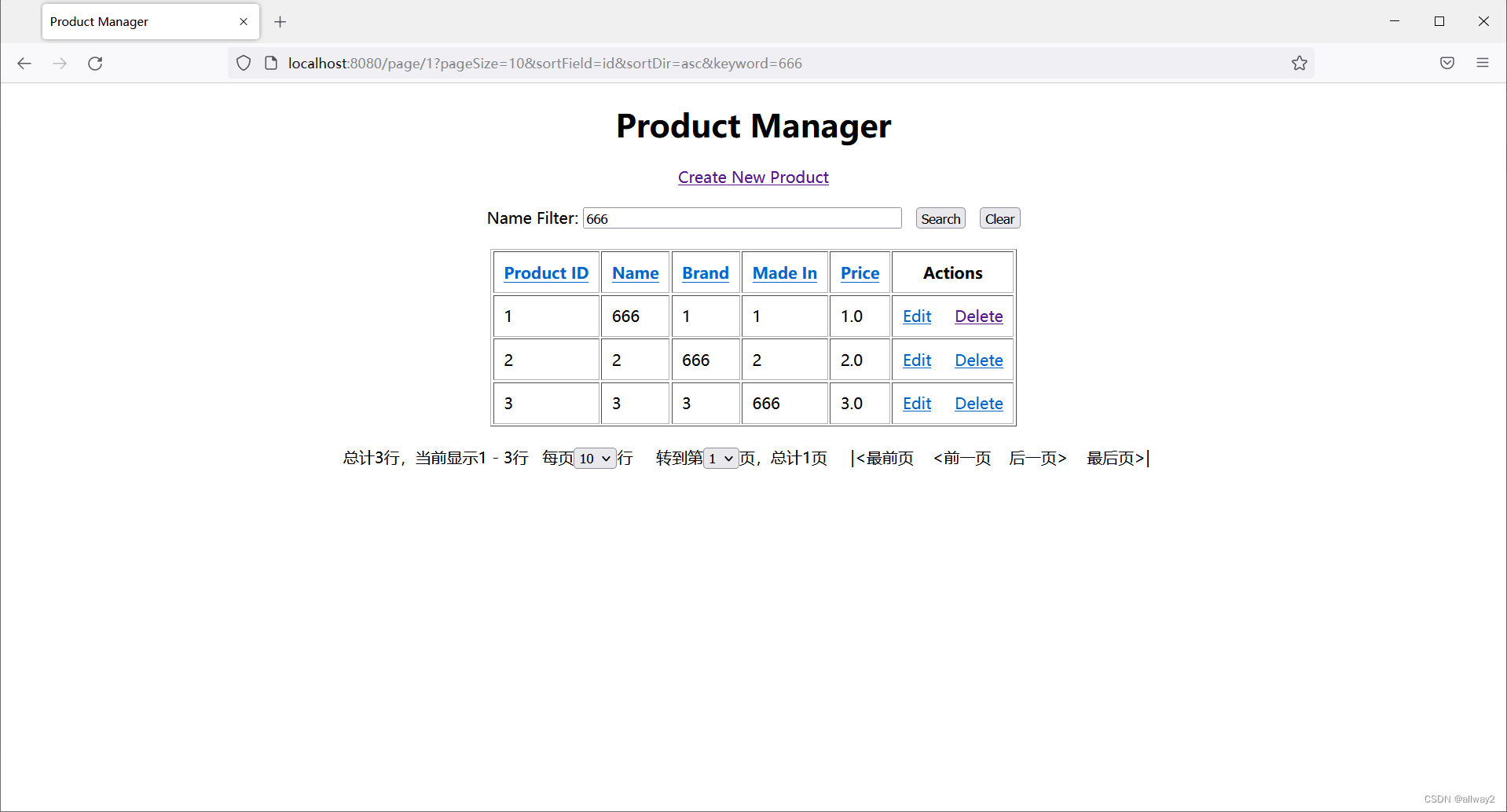

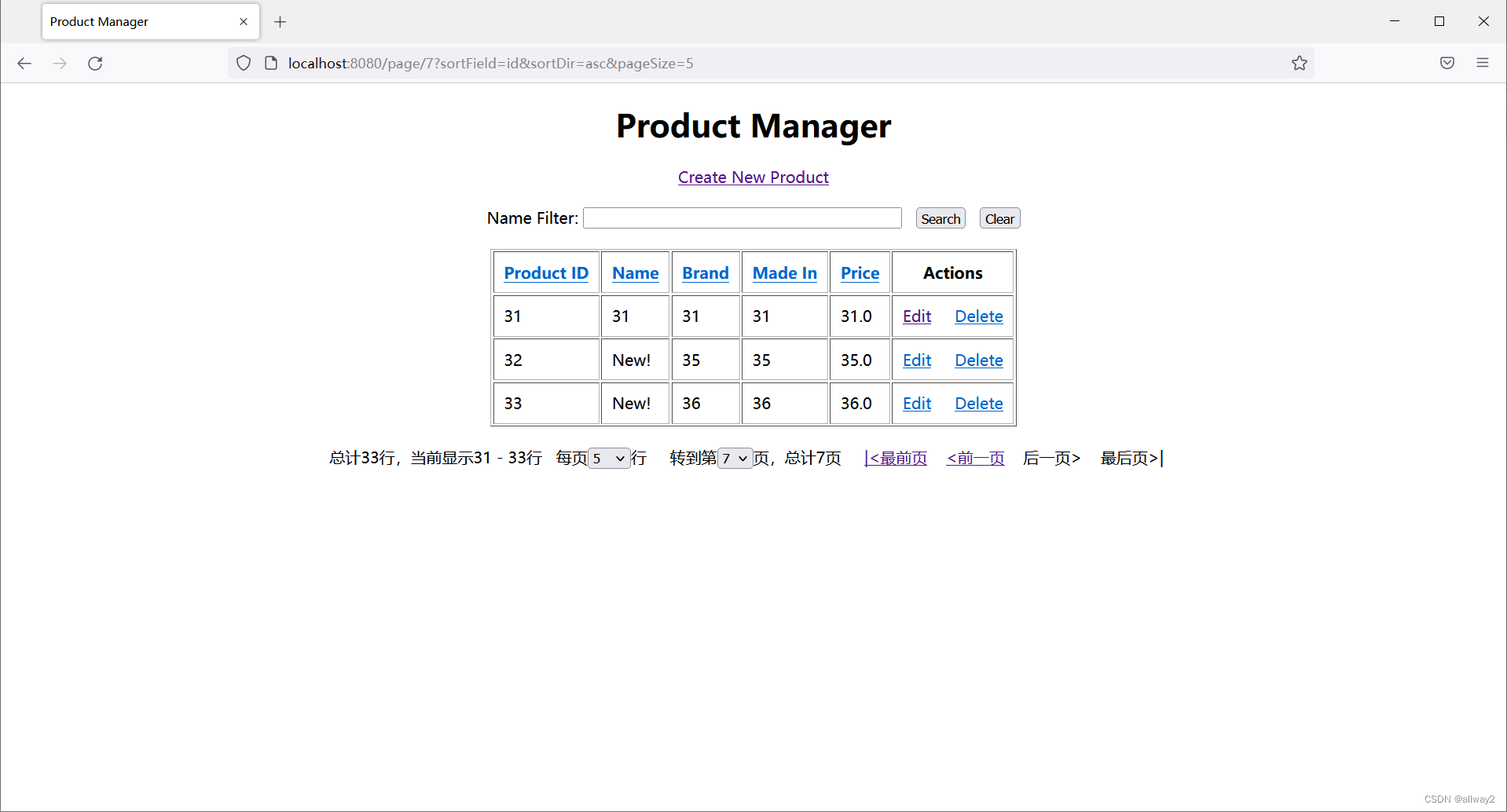

index.html

<!-- http://localhost:8086/ -->

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:th="http://www.thymeleaf.org">
    <head>
        <meta charset="utf-8" />
        <title>Product Manager</title>
    </head>

    <body>
        <div align="center">
            <div>
                <h1>Product Manager</h1>
                <a href="/new">Create New Product</a> <br />
                <br />
            </div>

            <div>
                <form th:action="@{/page/1}">
                    <input type="hidden" name="pageSize" th:value="${pageSize}" />
                    <input type="hidden" name="sortField" th:value="${sortField}" /> <input
                        type="hidden" name="sortDir" th:value="${sortDir}" /> Name Filter: <input
                        type="text" name="keyword" size="50" th:value="${keyword}" required />
                    &nbsp; <input type="submit" value="Search" /> &nbsp; <input
                        type="button" value="Clear" id="btnClear" onclick="clearSearch()" />
                </form>
            </div>

            <div>&nbsp;</div>

            <div>
                <table border="1" cellpadding="10">
                    <thead>
                        <tr>
                            <th><a
                                    th:href="@{'/page/' + ${currentPage} + '?sortField=id&sortDir=' + ${reverseSortDir} +'&pageSize=' + ${pageSize} + ${keyword != null ? '&keyword=' + keyword : ''}}">
                                    Product ID</a>
                            </th>
                            <th><a
                                    th:href="@{'/page/' + ${currentPage} + '?sortField=name&sortDir=' + ${reverseSortDir} +'&pageSize=' + ${pageSize}+ ${keyword != null ? '&keyword=' + keyword : ''}}">
                                    Name</a>
                            </th>
                            <th><a
                                    th:href="@{'/page/' + ${currentPage} + '?sortField=brand&sortDir=' + ${reverseSortDir}+'&pageSize=' + ${pageSize} + ${keyword != null ? '&keyword=' + keyword : ''}}">
                                    Brand</a>
                            </th>
                            <th><a
                                    th:href="@{'/page/' + ${currentPage} + '?sortField=madein&sortDir=' + ${reverseSortDir}+'&pageSize=' + ${pageSize} + ${keyword != null ? '&keyword=' + keyword : ''}}">
                                    Made In</a>
                            </th>
                            <th><a
                                    th:href="@{'/page/' + ${currentPage} + '?sortField=price&sortDir=' + ${reverseSortDir}+'&pageSize=' + ${pageSize} + ${keyword != null ? '&keyword=' + keyword : ''}}">
                                    Price</a>
                            </th>
                            <th><a>Actions</a></th>
                        </tr>
                    </thead>
                    <tbody>
                    <th:block th:each="product : ${listProducts}">
                        <tr >
                            <td th:text="${product.id}">Product ID</td>
                            <td th:text="${product.name}">Name</td>
                            <td th:text="${product.brand}">Brand</td>
                            <td th:text="${product.madein}">Made in</td>
                            <td th:text="${product.price}">Price</td>
                            <td><a th:href="@{'/edit/' + ${product.id}}">Edit</a>
                                &nbsp;&nbsp;&nbsp; <a th:href="@{'/delete/' + ${product.id}}">Delete</a>
                            </td>
                        </tr>
                    </th:block>
                    </tbody>
                </table>
            </div>

            <div>&nbsp; &nbsp;</div>

            <div>

                总计<span th:text="${totalItems}">99</span>行，当前显示<span th:text="(${currentPage} - 1)*${pageSize} +1">1</span> -
                <span th:text="(${currentPage} - 1)*${pageSize} +${numberOfElements}">5</span>行&nbsp; &nbsp;每页<select class="form-control pagination" id="pageSizeSelect">
                    <option th:each="selectedPageSize : ${pageSizes}" th:text="${selectedPageSize}"
                            th:value="${selectedPageSize}"
                            th:selected="${selectedPageSize} == ${pageSize}">5</option>
                </select>行
                &nbsp; &nbsp; 转到第<select class="form-control pagination" id="pageSelect">
                    <option th:each="i: ${#numbers.sequence(1, totalPages)}" th:text="${i}"
                            th:value="${i}"
                            th:selected="${i} == ${currentPage}">2</option>
                </select>页，总计<span th:text="${totalPages}">99</span>页 &nbsp; <a href="First.html" th:if="${currentPage > 1}"
                                                                 th:href="@{'/page/1?sortField=' + ${sortField} + '&sortDir=' + ${sortDir} +'&pageSize=' + ${pageSize}+ ${keyword != null ? '&keyword=' + keyword : ''}}">|&lt;最前页</a>
                <span th:unless="${currentPage > 1}">|&lt;最前页</span> &nbsp;&nbsp; <a href="Previous.html"
                                                                                        th:if="${currentPage > 1}"
                    th:href="@{'/page/' + ${currentPage - 1} + '?sortField=' + ${sortField} + '&sortDir=' + ${sortDir} +'&pageSize=' + ${pageSize}+ ${keyword != null ? '&keyword=' + keyword : ''}}">&lt;前一页</a>
                <span th:unless="${currentPage > 1}">&lt;前一页</span> &nbsp;&nbsp;  <a href="Next.html" th:if="${currentPage < totalPages}"
                                                                                     th:href="@{'/page/' + ${currentPage + 1} + '?sortField=' + ${sortField} + '&sortDir=' + ${sortDir} +'&pageSize=' + ${pageSize}+ ${keyword != null ? '&keyword=' + keyword : ''}}">后一页&gt;</a>
                <span th:unless="${currentPage < totalPages}">后一页&gt;</span>
                &nbsp;&nbsp; <a href="Last.html" th:if="${currentPage < totalPages}"
                                th:href="@{'/page/' + ${totalPages} + '?sortField=' + ${sortField} + '&sortDir=' + ${sortDir} +'&pageSize=' + ${pageSize}+ ${keyword != null ? '&keyword=' + keyword : ''}}">最后页&gt;|</a>
                <span th:unless="${currentPage < totalPages}">最后页&gt;|</span>
                &nbsp;&nbsp;

            </div>



            <script type="text/javascript" src="https://code.jquery.com/jquery-1.11.1.min.js"></script>
            <script type="text/javascript" src="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/js/bootstrap.min.js"></script>
            <script type="text/javascript">
                            function clearSearch() {
                                window.location = "/";
                            }
            </script>
            <script type="text/javascript" th:inline="javascript">
                /*<![CDATA[*/
                $(document).ready(function () {
                    changePageSize();
                    changePage();
                });
                function changePageSize() {
                    $('#pageSizeSelect').change(function (evt) {
                        window.location.replace("/page/1/?sortField=id&sortDir=asc&pageSize=" + this.value);
                    });

                }
                /*]]>*/
            </script>

            <script th:inline="javascript">
                function changePage() {
                    $('#pageSelect').change(function (evt) {
                        window.location.replace("/page/" + this.value + "/?sortField=id&sortDir=asc&pageSize=" + [[${pageSize}]]);
                    });
                }
            </script>

        </div>
    </body>
</html>

new_product.html

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml"
	xmlns:th="http://www.thymeleaf.org">
<head>
<meta charset="ISO-8859-1">
<title>Create new product</title>
</head>
<body>
	<div align="center">
		<h1>Create new product</h1>
		<br />
		<form action="#" th:action="@{/save}" th:object="${product}"
			method="post">

			<table border="0" cellpadding="10">
				<tr>
					<td>Product Name:</td>
					<td><input type="text" th:field="*{name}" /></td>
				</tr>
				<tr>
					<td>Brand</td>
					<td><input type="text" th:field="*{brand}" /></td>
				</tr>
				<tr>
					<td>Made in:</td>
					<td><input type="text" th:field="*{madein}" /></td>
				</tr>
				<tr>
					<td>Price:</td>
					<td><input type="text" th:field="*{price}" /></td>
				</tr>
				<tr>
					<td colspan="2"><button type="submit">Save</button></td>
				</tr>

			</table>
		</form>

	</div>
</body>
</html>

edit_product.html

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml"
	xmlns:th="http://www.thymeleaf.org">
<head>
<meta charset="ISO-8859-1">
<title>Edit product</title>
</head>
<body>
	<div align="center">
		<h1>Edit product</h1>
		<br />
		<form action="#" th:action="@{/save}" th:object="${product}"
			method="post">
			<table border="0" cellpadding="10">
				<tr>
					<td>Product ID:</td>
					<td><input type="text" th:field="*{id}" readonly="readonly" />
					</td>
				</tr>
				<tr>
					<td>Product Name:</td>
					<td><input type="text" th:field="*{name}" /></td>
				</tr>
				<tr>
					<td>Brand</td>
					<td><input type="text" th:field="*{brand}" /></td>
				</tr>
				<tr>
					<td>Made in:</td>
					<td><input type="text" th:field="*{madein}" /></td>
				</tr>
				<tr>
					<td>Price:</td>
					<td><input type="text" th:field="*{price}" /></td>
				</tr>
				<tr>
					<td colspan="2"><button type="submit">Save</button></td>
				</tr>

			</table>
		</form>

	</div>
</body>
</html>

下载：GitHub - allwaysoft/Spring-Data-JDBC_Sorting_Paging_Search_Filter-Thymeleaf
