前端原代码:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>JS分片上传-极速上传</title>
</head>
<body>
<input type="file" name="slice" id="slice" >
<div id="output"><!-- 信息存放地 --> </div>
<br/>
</body>
<script src="http://libs.baidu.com/jquery/1.8.3/jquery.min.js"></script>
<script type="text/javascript">
$("#slice").change(function(event) {
var file = $("#slice")[0].files[0];
var name = file.name;
//进行初始化
$.ajax({
type:"POST", //请求方式
url:"http://localhost:8080/getuploadId",
async: false,
dataType:"json", //返回数据类型
data:{//请求参数
fileName:name,
},
success:function(data){ //请求成功后
console.log("data.code="+JSON.stringify(data));
console.log("data.data.objectName="+data.data.objectName);
console.log("data.data.uploadId="+data.data.uploadId);
var objectName=data.data.objectName;
var uploadId=data.data.uploadId;
//成功后执行分段上传
PostFile(file,0,objectName,uploadId);
//合并
combineFile(objectName,uploadId);
},
error:function (){
alert("系统出现异常!");
flag=false;
}
});
});
//执行分片上传
function PostFile(file,i,objectName,uploadId){
var name = file.name, //文件名
size = file.size, //总大小shardSize = 2 * 1024 * 1024,
shardSize = 1 * 1024 * 1024, //以2MB为一个分片,每个分片的大小
shardCount = Math.ceil(size / shardSize); //总片数
if(i >= shardCount){
return;
}
//console.log(size,i+1,shardSize); //文件总大小,第一次,分片大小//
var start = i * shardSize;
var end = start + shardSize;
var packet = file.slice(start, end); //将文件进行切片
// 分段号
var partNumber = i + 1;
/* 构建form表单进行提交 */
var form = new FormData();
form.append("fileId", '001')
form.append("data", packet); //slice方法用于切出文件的一部分
// form.append("lastModified", file.lastModified); //最后的额修改时间
form.append("name", name);
form.append("totalSize", size);
form.append("uploadId", uploadId);
form.append("objectName", objectName);
form.append("mainFile", packet);
form.append("total", shardCount);
form.append("sortNumber", partNumber);
//uploadId:uploadId,
//objectName:objectName,
//mainFile:blob,
//total:partCount,
//sortNumber:partNumber
if(shardCount === i+1){
shardSize = size - i * shardSize
}
form.append("shardSize", shardSize);
form.append("total", shardCount); //总片数
form.append("index", i + 1); //当前是第几片
$.ajax({
// header: {
// web_token: "cpBvqWrr0UK9zPJoKj+412alxxcY6qFwrSVoO0juZg0S1jX/sGfMd9oi3AsSxW+MdWFrwtGCykUTmMqrqpbCElmT75DfB87lENC7lCuMxgF0d5wQB6yAubUVyGOzhbrScvIfD8ZSjOJ3D88AOy2xRd4oG8TxeGoMoZqnqIwjKg="
// },
url: "http://localhost:8080/multipartupload",
type: "POST",
data: form,
//timeout:"10000", //超时10秒
async: false, //同步
dataType:"json",
processData: false, //很重要,告诉jquery不要对form进行处理
contentType: false, //很重要,指定为false才能形成正确的Content-Type
success: function (data) {
console.log("data="+JSON.stringify(data));
/* 表示上一块文件上传成功,继续下一次 */
if (data.data.code == 1) {
form = '';
i++;
PostFile(file, i,objectName,uploadId);
} else if (data.data.code == 502) {
form = '';
/* 失败后,每2秒继续传一次分片文件 */
setInterval(function () { PostFile(file, i,objectName,uploadId) }, 2000);
} else if (data.data.code == 200) {
console.log("上传成功");
} else if (data.data.code == 500) {
console.log('第'+msg.i+'次,上传文件有误!');
} else {
console.log('未知错误');
}
}
})
}
//合并
function combineFile(objectName,uploadId){
console.log("objectName="+objectName);
console.log("uploadId="+uploadId);
var object=new Object();
object.objectName=objectName;
object.uploadId=uploadId;
$.ajax({
headers: {
Accept: "application/json; charset=utf-8"
},
type:"POST", //请求方式
url:"http://localhost:8080/combine",
async: false,
contentType:"application/json",
dataType:"json", //返回数据类型
data:JSON.stringify(object),
success:function(data){ //请求成功后
console.log("data="+JSON.stringify(data));
console.log("data.data.code="+data.data.code);
console.log("data.data.url="+data.data.url);
},
error:function (){
alert("系统出现异常!");
flag=false;
}
});
}
</script>
</html>
后端代码:
public class FileInf {
public FileInf(){}
public String id="";
public String pid="";
public String pidRoot="";
/** * 表示当前项是否是一个文件夹项。 */
public boolean fdTask=false;
// /// 是否是文件夹中的子文件 /// </summary>
public boolean fdChild=false;
/** * 用户ID。与第三方系统整合使用。 */
public int uid=0;
/** * 文件在本地电脑中的名称 */
public String nameLoc="";
/** * 文件在服务器中的名称。 */
public String nameSvr="";
/** * 文件在本地电脑中的完整路径。示例:D:\Soft\QQ2012.exe */
public String pathLoc="";
/** * 文件在服务器中的完整路径。示例:F:\\ftp\\uer\\md5.exe */
public String pathSvr="";
/** * 文件在服务器中的相对路径。示例:/www/web/upload/md5.exe */
public String pathRel="";
/** * 文件MD5 */
public String md5="";
/** * 数字化的文件长度。以字节为单位,示例:120125 */
public long lenLoc=0;
/** * 格式化的文件尺寸。示例:10.03MB */
public String sizeLoc="";
/** * 文件续传位置。 */
public long offset=0;
/** * 已上传大小。以字节为单位 */
public long lenSvr=0;
/** * 已上传百分比。示例:10% */
public String perSvr="0%";
public boolean complete=false;
public Date PostedTime = new Date();
public boolean deleted=false;
/** * 是否已经扫描完毕,提供给大型文件夹使用,大型文件夹上传完毕后开始扫描。 */
public boolean scaned=false;
}
首先是文件数据接收逻辑,负责接收控件上传的文件块数据,然后写到服务器的文件中。控件已经提供了块的索引,大小,MD5和长度信息,我们可以根据需要来灵活进行处理,也可以将文件块的数据保存到分布式存储系统中。
<%
out.clear();
String uid = request.getHeader("uid");//
String id = request.getHeader("id");
String lenSvr = request.getHeader("lenSvr");
String lenLoc = request.getHeader("lenLoc");
String blockOffset = request.getHeader("blockOffset");
String blockSize = request.getHeader("blockSize");
String blockIndex = request.getHeader("blockIndex");
String blockMd5 = request.getHeader("blockMd5");
String complete = request.getHeader("complete");
String pathSvr = "";
//参数为空
if( StringUtils.isBlank( uid )
|| StringUtils.isBlank( id )
|| StringUtils.isBlank( blockOffset ))
{
XDebug.Output("param is null");
return;
}
// Check that we have a file upload request
boolean isMultipart = ServletFileUpload.isMultipartContent(request);
FileItemFactory factory = new DiskFileItemFactory();
ServletFileUpload upload = new ServletFileUpload(factory);
List files = null;
try
{
files = upload.parseRequest(request);
}
catch (FileUploadException e)
{// 解析文件数据错误
out.println("read file data error:" + e.toString());
return;
}
FileItem rangeFile = null;
// 得到所有上传的文件
Iterator fileItr = files.iterator();
// 循环处理所有文件
while (fileItr.hasNext())
{
// 得到当前文件
rangeFile = (FileItem) fileItr.next();
if(StringUtils.equals( rangeFile.getFieldName(),"pathSvr"))
{
pathSvr = rangeFile.getString();
pathSvr = PathTool.url_decode(pathSvr);
}
}
boolean verify = false;
String msg = "";
String md5Svr = "";
long blockSizeSvr = rangeFile.getSize();
if(!StringUtils.isBlank(blockMd5))
{
md5Svr = Md5Tool.fileToMD5(rangeFile.getInputStream());
}
verify = Integer.parseInt(blockSize) == blockSizeSvr;
if(!verify)
{
msg = "block size error sizeSvr:" + blockSizeSvr + "sizeLoc:" + blockSize;
}
if(verify && !StringUtils.isBlank(blockMd5))
{
verify = md5Svr.equals(blockMd5);
if(!verify) msg = "block md5 error";
}
if(verify)
{
//保存文件块数据
FileBlockWriter res = new FileBlockWriter();
//仅第一块创建
if( Integer.parseInt(blockIndex)==1) res.CreateFile(pathSvr,Long.parseLong(lenLoc));
res.write( Long.parseLong(blockOffset),pathSvr,rangeFile);
up6_biz_event.file_post_block(id,Integer.parseInt(blockIndex));
JSONObject o = new JSONObject();
o.put("msg", "ok");
o.put("md5", md5Svr);
o.put("offset", blockOffset);//基于文件的块偏移位置
msg = o.toString();
}
rangeFile.delete();
out.write(msg);
%>
文件初始化部分
<%
out.clear();
WebBase web = new WebBase(pageContext);
String id = web.queryString("id");
String md5 = web.queryString("md5");
String uid = web.queryString("uid");
String lenLoc = web.queryString("lenLoc");//数字化的文件大小。12021
String sizeLoc = web.queryString("sizeLoc");//格式化的文件大小。10MB
String callback = web.queryString("callback");
String pathLoc = web.queryString("pathLoc");
pathLoc = PathTool.url_decode(pathLoc);
//参数为空
if ( StringUtils.isBlank(md5)
&& StringUtils.isBlank(uid)
&& StringUtils.isBlank(sizeLoc))
{
out.write(callback + "({\"value\":null})");
return;
}
FileInf fileSvr= new FileInf();
fileSvr.id = id;
fileSvr.fdChild = false;
fileSvr.uid = Integer.parseInt(uid);
fileSvr.nameLoc = PathTool.getName(pathLoc);
fileSvr.pathLoc = pathLoc;
fileSvr.lenLoc = Long.parseLong(lenLoc);
fileSvr.sizeLoc = sizeLoc;
fileSvr.deleted = false;
fileSvr.md5 = md5;
fileSvr.nameSvr = fileSvr.nameLoc;
//所有单个文件均以uuid/file方式存储
PathBuilderUuid pb = new PathBuilderUuid();
fileSvr.pathSvr = pb.genFile(fileSvr.uid,fileSvr);
fileSvr.pathSvr = fileSvr.pathSvr.replace("\\","/");
DBConfig cfg = new DBConfig();
DBFile db = cfg.db();
FileInf fileExist = new FileInf();
boolean exist = db.exist_file(md5,fileExist);
//数据库已存在相同文件,且有上传进度,则直接使用此信息
if(exist && fileExist.lenSvr > 1)
{
fileSvr.nameSvr = fileExist.nameSvr;
fileSvr.pathSvr = fileExist.pathSvr;
fileSvr.perSvr = fileExist.perSvr;
fileSvr.lenSvr = fileExist.lenSvr;
fileSvr.complete = fileExist.complete;
db.Add(fileSvr);
//触发事件
up6_biz_event.file_create_same(fileSvr);
}//此文件不存在
else
{
db.Add(fileSvr);
//触发事件
up6_biz_event.file_create(fileSvr);
FileBlockWriter fr = new FileBlockWriter();
fr.CreateFile(fileSvr.pathSvr,fileSvr.lenLoc);
}
Gson gson = new Gson();
String json = gson.toJson(fileSvr);
json = URLEncoder.encode(json,"UTF-8");//编码,防止中文乱码
json = json.replace("+","%20");
json = callback + "({\"value\":\"" + json + "\"})";//返回jsonp格式数据。
out.write(json);%>
第一步:获取RandomAccessFile,随机访问文件类的对象
第二步:调用RandomAccessFile的getChannel()方法,打开文件通道 FileChannel,这块逻辑可以优化,如果以后有分布式存储需求,可以改为分布式存储,减轻单台服务器的压力。
public class FileBlockWriter {
public FileBlockWriter(){}
public void CreateFile(String pathSvr,long lenLoc)
{
try
{
File ps = new File(pathSvr);
PathTool.createDirectory(ps.getParent());
RandomAccessFile raf = new RandomAccessFile(pathSvr, "rw");
raf.setLength(lenLoc);//fix:以原始大小创建文件
raf.close();
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
public void write(long offset,String pathSvr,FileItem block)
{
try
{
InputStream stream = block.getInputStream();
byte[] data = new byte[(int)block.getSize()];
stream.read(data);
stream.close();
RandomAccessFile raf = new RandomAccessFile(pathSvr,"rw");
raf.seek(offset);
raf.write(data);
raf.close();
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
}
第三步:获取当前是第几个分块,计算文件的最后偏移量
第四步:获取当前文件分块的字节数组,用于获取文件字节长度
第五步:使用文件通道FileChannel类的 map()方法创建直接字节缓冲器 MappedByteBuffer
第六步:将分块的字节数组放入到当前位置的缓冲区内 mappedByteBuffer.put(byte[] b);
第七步:释放缓冲区
第八步:检查文件是否全部完成上传

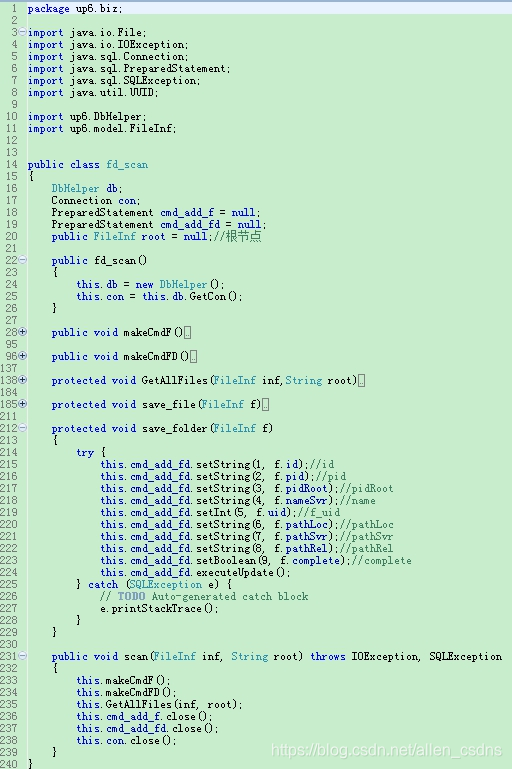

文件夹扫描类

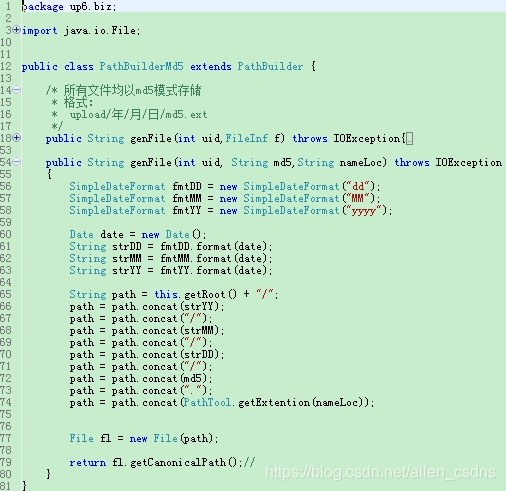

存储路径生成类
