The title is not simple. The relations are:

WSL--> Ubuntu-->QEMU-->ARM-->uboot

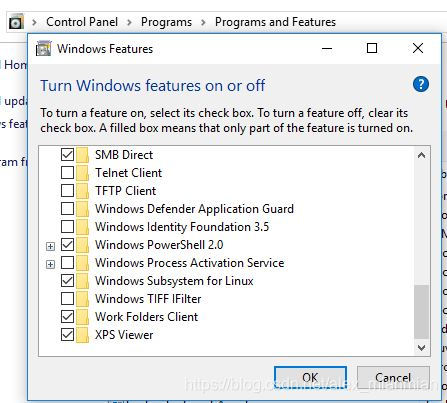

WSL -- Windows subsystem Linux, looks like cygwin. It works on Windows10. And it is in Microsoft Software Store. it's easy to find it. But before install it, you need enable the feature of 'Windows Subsystem for Linux'.



After enable this service, you can install WSL.

In WSL, you can choose different Linux. Here I installed Ubuntu.

After installed, you can find it in start menu.

Open it, we can install QEMU and clone u-boot. Refer to another blog of QEMU and u-boot.

We still need install GCC and cross compiler in WSL Ubuntu.

>sudo apt install gcc

>sudo apt install gcc-arm-linux-gnueabi

>sudo apt install gcc-arm-linux-gnueabihf

Now you can build u-boot and start the QEMU to run u-boot on ARM CPU. Please refer to the blog of QEMU and u-boot.
