android中Sip音频通话调研结果

        分类：            android移动开发 2011-10-19 15:54 1539人阅读 评论(0) 收藏 举报

[java] view plain copy print ?

1. <span style="font-family: Arial, Verdana, sans-serif; white-space: normal; background-color: rgb(255, 255, 255);">     首先简单介绍一下sip协议，sip是会话启动协议，主要用于网络多媒体通话。必须是android2.3或其以上版本才可以调用Sip api，并且设备必须支持sip才可以进行sip通话。</span>

     首先简单介绍一下sip协议，sip是会话启动协议，主要用于网络多媒体通话。必须是android2.3或其以上版本才可以调用Sip api，并且设备必须支持sip才可以进行sip通话。



SIP使用的api主要放在android.net.sip中，其中最核心的类为SipManager.java，关系图如下所示：

        本地的SipProfile存放在一个xml文件中，主要用于保存sip的username,domain和password，SharedPreference配置文件如下所示：



[html] view plain copy print ?

1. <PreferenceScreenxmlns:android="http://schemas.android.com/apk/res/android">
2.     <EditTextPreference
3.         android:name="SIP Username"
4.         android:summary="Username for your SIP Account"
5.         android:defaultValue=""
6.         android:title="Enter Username"
7.         android:key="namePref"/>
8.     <EditTextPreference
9.         android:name="SIP Domain"
10.         android:summary="Domain for your SIP Account"
11.         android:defaultValue=""
12.         android:title="Enter Domain"
13.         android:key="domainPref"/>
14.     <EditTextPreference
15.         android:name="SIP Password"
16.         android:summary="Password for your SIP Account"
17.         android:defaultValue=""
18.         android:title="Enter Password"
19.         android:key="passPref"
20.         android:password="true"
21.         />
22. </PreferenceScreen>

<PreferenceScreen xmlns:android="http://schemas.android.com/apk/res/android">
    <EditTextPreference
        android:name="SIP Username"
        android:summary="Username for your SIP Account"
        android:defaultValue=""
        android:title="Enter Username"
        android:key="namePref" />
    <EditTextPreference
        android:name="SIP Domain"
        android:summary="Domain for your SIP Account"
        android:defaultValue=""
        android:title="Enter Domain"
        android:key="domainPref" />
    <EditTextPreference
        android:name="SIP Password"
        android:summary="Password for your SIP Account"
        android:defaultValue=""
        android:title="Enter Password"
        android:key="passPref"
        android:password="true"
        />
</PreferenceScreen>

更新SharedPreference的代码如下：



[java] view plain copy print ?

1. publicvoid updatePreferences() {
2.         Intent settingsActivity = new Intent(getBaseContext(),
3.                 SipSettings.class);
4.         startActivity(settingsActivity);
5.     }

public void updatePreferences() {
        Intent settingsActivity = new Intent(getBaseContext(),
                SipSettings.class);
        startActivity(settingsActivity);
    }

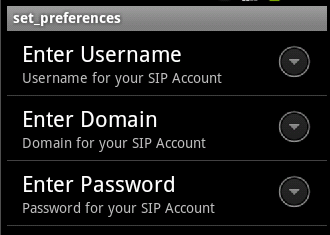

调用updatePreferences()方法会有如下的效果图显示：

[java] view plain copy print ?

1. <img alt="" src="https://i-blog.csdnimg.cn/blog_migrate/efe590150cfef69385fcd6799a68ba24.png">



通过此界面可以修改本地的SipProfile帐号信息。

接打电话时需要更新对方SipProfile的信息，代码如下：



[java] view plain copy print ?

1. /**
2.      * Updates the status box at the top of the UI with a messege of your choice.
3.      * @param status The String to display in the status box.
4.      */
5.     publicvoid updateStatus(final String status) {
6.         // Be a good citizen.  Make sure UI changes fire on the UI thread.
7.         this.runOnUiThread(new Runnable() {
8.             publicvoid run() {
9.                 TextView labelView = (TextView) findViewById(R.id.sipLabel);
10.                 labelView.setText(status);
11.             }
12.         });
13.     }
14.
15.     /**
16.      * Updates the status box with the SIP address of the current call.
17.      * @param call The current, active call.
18.      */
19.     publicvoid updateStatus(SipAudioCall call) {
20.         String useName = call.getPeerProfile().getDisplayName();
21.         if(useName == null) {
22.           useName = call.getPeerProfile().getUserName();
23.         }
24.         updateStatus(useName + "@" + call.getPeerProfile().getSipDomain());
25.     }

/**
     * Updates the status box at the top of the UI with a messege of your choice.
     * @param status The String to display in the status box.
     */
    public void updateStatus(final String status) {
        // Be a good citizen.  Make sure UI changes fire on the UI thread.
        this.runOnUiThread(new Runnable() {
            public void run() {
                TextView labelView = (TextView) findViewById(R.id.sipLabel);
                labelView.setText(status);
            }
        });
    }

    /**
     * Updates the status box with the SIP address of the current call.
     * @param call The current, active call.
     */
    public void updateStatus(SipAudioCall call) {
        String useName = call.getPeerProfile().getDisplayName();
        if(useName == null) {
          useName = call.getPeerProfile().getUserName();
        }
        updateStatus(useName + "@" + call.getPeerProfile().getSipDomain());
    }

拨电话代码如下：





[java] view plain copy print ?

1. /**
2.      * Make an outgoing call.
3.      */
4.     publicvoid initiateCall() {
5.
6.         updateStatus(sipAddress);
7.
8.         try {
9.             SipAudioCall.Listener listener = new SipAudioCall.Listener() {
10.                 // Much of the client's interaction with the SIP Stack will
11.                 // happen via listeners.  Even making an outgoing call, don't
12.                 // forget to set up a listener to set things up once the call is established.
13.                 @Override
14.                 publicvoid onCallEstablished(SipAudioCall call) {
15.                     call.startAudio();
16.                     call.setSpeakerMode(true);
17.                     call.toggleMute();
18.                     updateStatus(call);
19.                 }
20.
21.                 @Override
22.                 publicvoid onCallEnded(SipAudioCall call) {
23.                     updateStatus("Ready.");
24.                 }
25.             };
26.
27.             call = manager.makeAudioCall(me.getUriString(), sipAddress, listener, 30);
28.
29.         }
30.         catch (Exception e) {
31.             Log.i("WalkieTalkieActivity/InitiateCall", "Error when trying to close manager.", e);
32.             if (me != null) {
33.                 try {
34.                     manager.close(me.getUriString());
35.                 } catch (Exception ee) {
36.                     Log.i("WalkieTalkieActivity/InitiateCall",
37.                             "Error when trying to close manager.", ee);
38.                     ee.printStackTrace();
39.                 }
40.             }
41.             if (call != null) {
42.                 call.close();
43.             }
44.         }
45.     }

/**
     * Make an outgoing call.
     */
    public void initiateCall() {

        updateStatus(sipAddress);

        try {
            SipAudioCall.Listener listener = new SipAudioCall.Listener() {
                // Much of the client's interaction with the SIP Stack will
                // happen via listeners.  Even making an outgoing call, don't
                // forget to set up a listener to set things up once the call is established.
                @Override
                public void onCallEstablished(SipAudioCall call) {
                    call.startAudio();
                    call.setSpeakerMode(true);
                    call.toggleMute();
                    updateStatus(call);
                }

                @Override
                public void onCallEnded(SipAudioCall call) {
                    updateStatus("Ready.");
                }
            };

            call = manager.makeAudioCall(me.getUriString(), sipAddress, listener, 30);

        }
        catch (Exception e) {
            Log.i("WalkieTalkieActivity/InitiateCall", "Error when trying to close manager.", e);
            if (me != null) {
                try {
                    manager.close(me.getUriString());
                } catch (Exception ee) {
                    Log.i("WalkieTalkieActivity/InitiateCall",
                            "Error when trying to close manager.", ee);
                    ee.printStackTrace();
                }
            }
            if (call != null) {
                call.close();
            }
        }
    }

接电话代码如下：





[java] view plain copy print ?

1. // Set up the intent filter.  This will be used to fire an
2.         // IncomingCallReceiver when someone calls the SIP address used by this
3.         // application.
4.         IntentFilter filter = new IntentFilter();
5.         filter.addAction("android.SipDemo.INCOMING_CALL");
6.         callReceiver = new IncomingCallReceiver();
7.         this.registerReceiver(callReceiver, filter);

// Set up the intent filter.  This will be used to fire an
        // IncomingCallReceiver when someone calls the SIP address used by this
        // application.
        IntentFilter filter = new IntentFilter();
        filter.addAction("android.SipDemo.INCOMING_CALL");
        callReceiver = new IncomingCallReceiver();
        this.registerReceiver(callReceiver, filter);



[java] view plain copy print ?

1. package com.example.android.sip;
2.
3. import android.content.BroadcastReceiver;
4. import android.content.Context;
5. import android.content.Intent;
6. import android.net.sip.*;
7.
8. /**
9. * Listens for incoming SIP calls, intercepts and hands them off to WalkieTalkieActivity.
10. */
11. publicclass IncomingCallReceiver extends BroadcastReceiver {
12.     /**
13.      * Processes the incoming call, answers it, and hands it over to the
14.      * WalkieTalkieActivity.
15.      * @param context The context under which the receiver is running.
16.      * @param intent The intent being received.
17.      */
18.     @Override
19.     publicvoid onReceive(Context context, Intent intent) {
20.         System.out.println("IncomingCallReceiver::::::");
21.         SipAudioCall incomingCall = null;
22.         try {
23.             SipAudioCall.Listener listener = new SipAudioCall.Listener() {
24.                 @Override
25.                 publicvoid onRinging(SipAudioCall call, SipProfile caller) {
26.                     try {
27.                         call.answerCall(30);
28.                     } catch (Exception e) {
29.                         e.printStackTrace();
30.                     }
31.                 }
32.             };
33.
34.             WalkieTalkieActivity wtActivity = (WalkieTalkieActivity) context;
35.
36.             incomingCall = wtActivity.manager.takeAudioCall(intent, listener);
37.             incomingCall.answerCall(30);
38.             incomingCall.startAudio();
39.             incomingCall.setSpeakerMode(true);
40.             if(incomingCall.isMuted()) {
41.                 incomingCall.toggleMute();
42.             }
43.
44.             wtActivity.call = incomingCall;
45.
46.             wtActivity.updateStatus(incomingCall);
47.
48.         } catch (Exception e) {
49.             if (incomingCall != null) {
50.                 incomingCall.close();
51.             }
52.         }
53.     }
54. }

package com.example.android.sip;

import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.net.sip.*;

/**
 * Listens for incoming SIP calls, intercepts and hands them off to WalkieTalkieActivity.
 */
public class IncomingCallReceiver extends BroadcastReceiver {
    /**
     * Processes the incoming call, answers it, and hands it over to the
     * WalkieTalkieActivity.
     * @param context The context under which the receiver is running.
     * @param intent The intent being received.
     */
    @Override
    public void onReceive(Context context, Intent intent) {
    	System.out.println("IncomingCallReceiver::::::");
        SipAudioCall incomingCall = null;
        try {
            SipAudioCall.Listener listener = new SipAudioCall.Listener() {
                @Override
                public void onRinging(SipAudioCall call, SipProfile caller) {
                    try {
                        call.answerCall(30);
                    } catch (Exception e) {
                        e.printStackTrace();
                    }
                }
            };

            WalkieTalkieActivity wtActivity = (WalkieTalkieActivity) context;

            incomingCall = wtActivity.manager.takeAudioCall(intent, listener);
            incomingCall.answerCall(30);
            incomingCall.startAudio();
            incomingCall.setSpeakerMode(true);
            if(incomingCall.isMuted()) {
                incomingCall.toggleMute();
            }

            wtActivity.call = incomingCall;

            wtActivity.updateStatus(incomingCall);

        } catch (Exception e) {
            if (incomingCall != null) {
                incomingCall.close();
            }
        }
    }
}





设置本地sip:

[java] view plain copy print ?

1. /**
2. * Handles SIP authentication settings for the Walkie Talkie app.
3. */
4. publicclass SipSettings extends PreferenceActivity {
5.
6.
7.     @Override
8.     publicvoid onCreate(Bundle savedInstanceState) {
9.         // Note that none of the preferences are actually defined here.
10.         // They're all in the XML file res/xml/preferences.xml.
11.         super.onCreate(savedInstanceState);
12.         addPreferencesFromResource(R.xml.preferences);
13.         System.out.println("SipSettings::::::::::");
14.     }
15. }

/**
 * Handles SIP authentication settings for the Walkie Talkie app.
 */
public class SipSettings extends PreferenceActivity {


    @Override
    public void onCreate(Bundle savedInstanceState) {
        // Note that none of the preferences are actually defined here.
        // They're all in the XML file res/xml/preferences.xml.
        super.onCreate(savedInstanceState);
        addPreferencesFromResource(R.xml.preferences);
        System.out.println("SipSettings::::::::::");
    }
}

转载于:https://www.cnblogs.com/sy171822716/archive/2012/08/16/2642187.html
