华润集团大数据培训笔记（2）——Hadoop伪分布式部署

Hadoop的分布式部署是将每一个NameNode和DataNode都部署在独立的服务器上，然后做集群。伪分布式部署是将所有NameNode和DataNode部署在同一台机器上。
由于有些公司的业务并不是很大（大概一两百万行），或者没有充足的预算配置集群，可以采用伪分布式部署。

一、安装Hadoop

系统和运行环境：Linux系统、安装JDK

第一步：下载Hadoop和JDK

可以在Linux服务器上下载，或者下载后用FTP上传至Linux服务器。
Hadoop下载地址：https://dlcdn.apache.org/hadoop/common/hadoop-2.10.1/hadoop-2.10.1.tar.gz
百度云盘链接：https://pan.baidu.com/s/1n8PvXQH1bltM7lEQePrKIg
提取码：77oz
JDK下载地址：https://download.oracle.com/otn/java/jdk/8u321-b07/df5ad55fdd604472a86a45a217032c7d/jdk-8u321-linux-x64.tar.gz
百度云盘链接：链接：https://pan.baidu.com/s/1W072PXamWljiotCB2d1CVw
提取码：wmiu

第二步：解压tar.gz

//先切换到root用户
[abc@Hadoop_001 ~]$ su - root
//先创建解压的目的目录
[root@Hadoop_001 ~]# mkdir /app
[root@Hadoop_001 ~]# mkdir /app/jdk
[root@Hadoop_001 ~]# mkdir /app/hadoop
//解压jdk
[root@Hadoop_001 ~]# tar xvf jdk-8u321-linux-x64.tar.gz -C /app/jdk
[root@Hadoop_001 ~]# ls /app/jdk
jdk1.8.0_321
//配置JDK的环境变量
[root@Hadoop_001 ~]# vim /etc/profile
export JAVA_HOME=/app/jdk/jdk1.8.0_321
export PATH=$JAVA_HOME/bin:$PATH
export CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
//验证JDK是否安装成功
[root@Hadoop_001 ~]# java -version
java version "1.7.0_45"
OpenJDK Runtime Environment (rhel-2.4.3.3.el6-x86_64 u45-b15)
OpenJDK 64-Bit Server VM (build 24.45-b08, mixed mode)
//解压Hadoop
//配置免密码登录。这里是伪分布式只有一台机器，配置自己的IP
//先生成密钥
root@Hadoop_001 ~]# ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
29:33:8b:58:d9:53:bc:e9:21:29:3e:b1:25:9a:35:7d root@Hadoop_001
The key's randomart image is:
+--[ RSA 2048]----+
|                 |
|       .         |
|        o        |
|     + o +       |
|    O @ E        |
|   B O X .       |
|  + = . .        |
|     .           |
|                 |
+-----------------+
//发送密钥到目的服务器，这里只有一台服务器，发送给自己，
[root@Hadoop_001 ~]# ssh-copy-id 192.168.181.21  //这里的IP要填目的服务器的IP
The authenticity of host '192.168.181.21 (192.168.181.21)' can't be established.
RSA key fingerprint is a4:4f:00:28:80:20:b4:43:bc:1a:d0:20:7f:d5:5a:6c.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.168.181.21' (RSA) to the list of known hosts.
root@192.168.181.21's password:
Now try logging into the machine, with "ssh '192.168.181.21'", and check in:
  .ssh/authorized_keys
to make sure we haven't added extra keys that you weren't expecting.

第三步：修改配置文件

配置文件在刚解压的Hadoop解压包下的etc/hadoop/文件夹里修改“core-site.xml”、“hdfs-site.xml”、“yarn-site.xml”、“mapred-site.xml”、“slaves”文件就可以了。

[root@Hadoop_001 ~]# cd /app/hadoop/hadoop-2.10.1/etc/hadoop
[root@Hadoop_001 hadoop]# ls
capacity-scheduler.xml      hadoop-policy.xml        kms-log4j.properties        ssl-client.xml.example
configuration.xsl           hdfs-site.xml            kms-site.xml                ssl-server.xml.example
container-executor.cfg      httpfs-env.sh            log4j.properties            yarn-env.cmd
core-site.xml               httpfs-log4j.properties  mapred-env.cmd              yarn-env.sh
hadoop-env.cmd              httpfs-signature.secret  mapred-env.sh               yarn-site.xml
hadoop-env.sh               httpfs-site.xml          mapred-queues.xml.template
hadoop-metrics2.properties  kms-acls.xml             mapred-site.xml.template
hadoop-metrics.properties   kms-env.sh               slaves

先修改环境配置文件【hadoop-en.sh】

将文件中“export JAVA_HOME=${JAVA_HOME}”修改为“export JAVA_HOME=/app/jdk/jdk1.8.0_321/”

[root@Hadoop_001 hadoop]# vim hadoop-env.sh
export JAVA_HOME=/app/jdk/jdk1.8.0_321/

如果改过主机名，需要再/etc/hosts里添加主机名的域名解析或者将主机名改为localhost

//添加主机名的域名解析
[root@Hadoop_001 bin]# vim /etc/hosts
127.0.0.1  Hadoop_001

【core-site.xml】文件

该文件的“< ! - - - - >”里的内容是注释，不会影响配置，可以忽略。
将“< configuration>< /configuration>”改为如下内容：

<configuration>
<property>
<name>fs.defaultFS</name>
<value>hdfs://127.0.0.1:9000</value>    //Hadoop的地址与端口，这里用的本地主机名，可根据实际情况更改
</property>
<property>
<name>hadoop.tmp.dir </name>
<value>/app/hadoop/hadoop-2.10.1/tmp</value>     //临时文件的位置，这里用到Hadoop的解压目录，可根据实际情况更改
</property>
</configuration>

【hdfs-site.xml】文件

将“< configuration>< /configuration>”改为如下内容：

<configuration>
<property>
<name>dfs.replication</name>
<value>1</value>     //每个文件块备份几分。这里是伪分布式部署，选3份没意义，选1就行。
</property>
</configuration>

【yarn-site.xml】文件

将“< configuration>< /configuration>”改为如下内容：

<configuration>
<property>
<name>yarn.resourcemanager.hostname</name>
<value>127.0.0.1</value>    //这里用的主机名，可根据实际情况更改
</property>
<property>
<name>yarn.nodemanager.auxservices</name>
<value>mapreduce_shuffle</value>
</property>
</configuration>

【mapred-site.xml】文件

写入如下内容：

<configuration>
<property>
<name>mapreduce.framework.name</name>
<value>localhost</value>
</property>
</configuration>

【slaves】文件

[root@Hadoop_001 hadoop]# vim slaves
localhost

这个文件里写除了本机以外其他各个机器的地址
伪分布式部署：只有一台机器，这里写localhost或127.0.0.1。
真分布式部署：这个文件里写除了本机以外其他各个机器的地址，然后把解压缩的JDK和Hadoop、/etc/profile、各种配置文件往各个机器复制一份（slaves文件需要根据每台机器的情况进行修改。）

第四步：格式化文件系统

Hadoop的所有命令都在解压包的bin/和sbin/文件夹里。

[root@Hadoop_001 hadoop]# cd /app/hadoop/hadoop-2.10.1
[root@Hadoop_001 hadoop-2.10.1]# ./bin/hadoop namenode -format

第五步：启动Hadoop

Hadoop的启动文件在解压包的sbin/文件夹里的“start-all.sh”。启动过程中全输入“yes”。
Hadoop还有只启动HDFS的命令“start-dfs.sh”、只启动yarn的命令“start-yarn.sh”。官方建议各个组件依次手动启动。

[root@Hadoop_001 hadoop-2.10.1]# ./sbin/start-all.sh
This script is Deprecated. Instead use start-dfs.sh and start-yarn.sh
22/03/22 06:35:32 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
22/03/22 06:35:33 WARN hdfs.DFSUtilClient: Namenode for null remains unresolved for ID null. Check your hdfs-site.xml file to ensure namenodes are configured properly.
Starting namenodes on [tourbis]
tourbis: ssh: Could not resolve hostname tourbis: Name or service not known
The authenticity of host 'localhost (::1)' can't be established.
RSA key fingerprint is a4:4f:00:28:80:20:b4:43:bc:1a:d0:20:7f:d5:5a:6c.
Are you sure you want to continue connecting (yes/no)? yes
localhost: Warning: Permanently added 'localhost' (RSA) to the list of known hosts.
localhost: starting datanode, logging to /app/hadoop/hadoop-2.10.1/logs/hadoop-root-datanode-Hadoop_001.out
Starting secondary namenodes [0.0.0.0]
The authenticity of host '0.0.0.0 (0.0.0.0)' can't be established.
RSA key fingerprint is a4:4f:00:28:80:20:b4:43:bc:1a:d0:20:7f:d5:5a:6c.
Are you sure you want to continue connecting (yes/no)? yes
0.0.0.0: Warning: Permanently added '0.0.0.0' (RSA) to the list of known hosts.
0.0.0.0: starting secondarynamenode, logging to /app/hadoop/hadoop-2.10.1/logs/hadoop-root-secondarynamenode-Hadoop_001.out
22/03/22 06:37:21 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
starting yarn daemons
starting resourcemanager, logging to /app/hadoop/hadoop-2.10.1/logs/yarn-root-resourcemanager-Hadoop_001.out
localhost: starting nodemanager, logging to /app/hadoop/hadoop-2.10.1/logs/yarn-root-nodemanager-Hadoop_001.out
//验证启动成功
[root@Hadoop_001 hadoop-2.10.1]# jps   //JAVA进程查看命令。能看到NameNode、ResourceManager、SecondaryNameNode、DataNode、NodeManager这5个进程表示Hadoop启动成功
7536 NameNode
8000 ResourceManager
8435 Jps
7844 SecondaryNameNode
7673 DataNode
8108 NodeManager

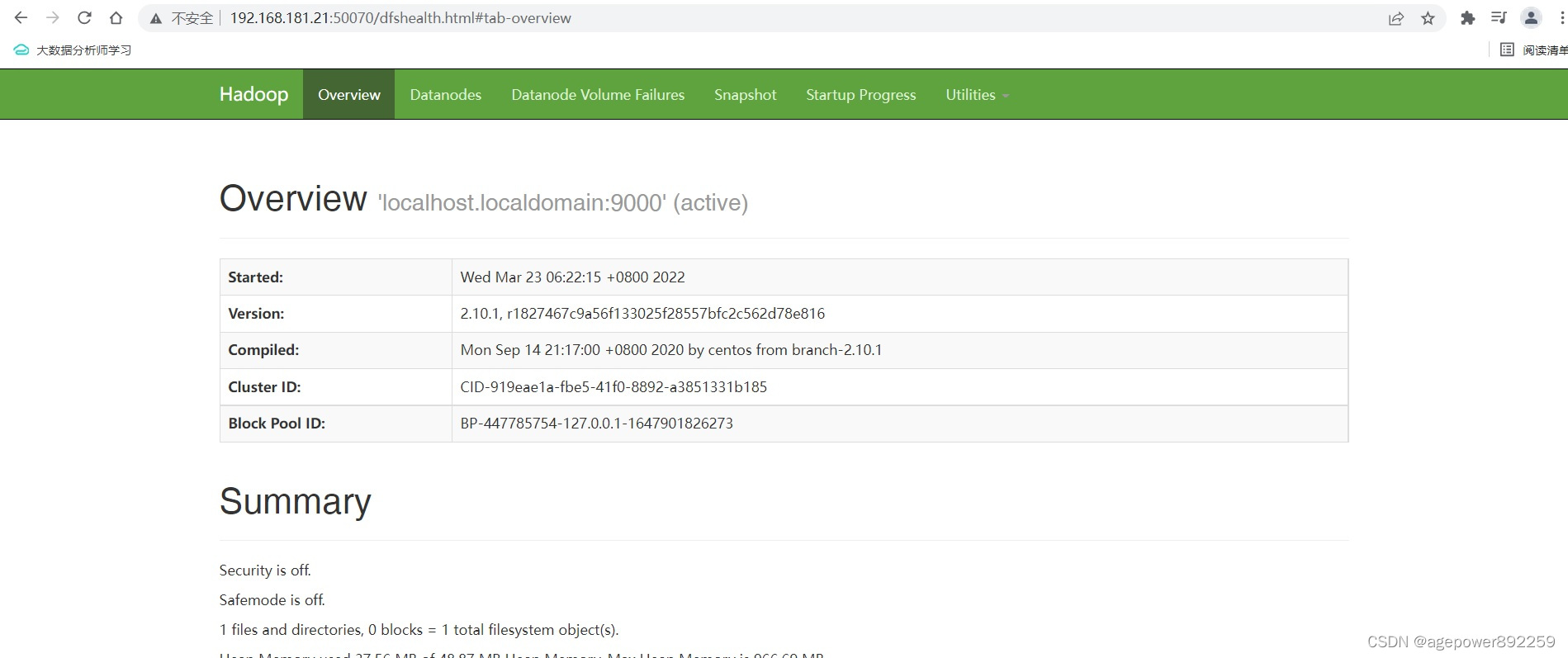

用浏览器访问Hadoop，地址为“Hadoop主机地址：50070”

如果有很多台服务器，只在一台机器上执行启动命令，其余机器也会启动。

二、用Hadoop做词频统计

先创建一个文件，在里面写入英文单词

[root@Hadoop_001 hadoop-2.10.1]# touch 123.txt
[root@Hadoop_001 hadoop-2.10.1]# vim 123.txt
Hello World
Hello Earth
Hello Moon
bigdata Hadoop
JAVA java PHP
SQL
SQLserver
SQL Server
python python Go

HDFS的操作与Linux文件操作命令是一样的，只是需要在前面额外加上"hadoop安装包路径/bin/hadoop dfs”或“hadoop安装包路径/bin/hdfs dfs”

//创建一个用来存试验数据的输入目录“/test/input”，再创建一个用来保存输出结果的“/test/output”
[root@Hadoop_001 hadoop-2.10.1]# /app/hadoop/hadoop-2.10.1/bin/hadoop dfs -mkdir /test/
DEPRECATED: Use of this script to execute hdfs command is deprecated.
Instead use the hdfs command for it.
22/03/23 07:30:43 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
[root@Hadoop_001 hadoop-2.10.1]# /app/hadoop/hadoop-2.10.1/bin/hadoop dfs -mkdir /test/input/
DEPRECATED: Use of this script to execute hdfs command is deprecated.
Instead use the hdfs command for it.
22/03/23 07:30:54 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
[root@Hadoop_001 hadoop-2.10.1]# /app/hadoop/hadoop-2.10.1/bin/hdfs dfs -mkdir /test/output/
22/03/23 07:31:17 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable

三、Hadoop与其他集群的区别

什么是集群

集群可以理解为一堆计算机拼起来，与单节点对应。
单节点就是单独的一台计算机，如果出现故障，服务就会中断。
集群的意义：
1、故障转移（一台机器故障了，另一台机器立马顶上）。
2、负载均衡(一台机器最大支持1万人访问，同时有3万人访问，这台机器就会崩溃。现在有4台甚至更多的机器可以提供相同的服务，将这3万人平均分配给每台机器，每台机器都没达到最大负载，可以正常运行)。
高可以用性：可以正常运行的时间除以总时间，例如99.99%的高可用性，意味着1万小时里有1个小时不能正常运行。
**高可用集群未必是高性能的集群。**针对单个操作有可能反而更慢了。例如：某企业搭了个商品库存系统的集群，当前某样商品库存1万件，几乎同时，服务器A上有个客户下单5千件，服务器B上有个客户下单6000件，如果是单节点，一个客户下单1万1千件，则系统可以立即反馈库存不足只能下单1万件；而在集群中为了保证数据不出错，会出现先处理服务器A上的订单、服务器B上的订单等服务器A上的订单处理完后再处理，这样采用单节点处理只需处理一次，而采用集群则要处理两次，采用集群反而变慢了。
