自定义自动换行功能的LinearLayout

本文介绍了一种自定义ViewGroup实现的动态标签布局方法,该布局能够根据标签宽度自动换行并调整高度,适用于Android应用中用户动态添加标签的需求。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

前言

最近项目中有个需求,就是可以给用户动态添加标签。标签最大的特点就是横向排列,并且可以自动换行,而且标签的内容自定义,所以标签的长度是不固定的
网上这种开源的一抓一大把,懒得找了,所以自己实现了一个。

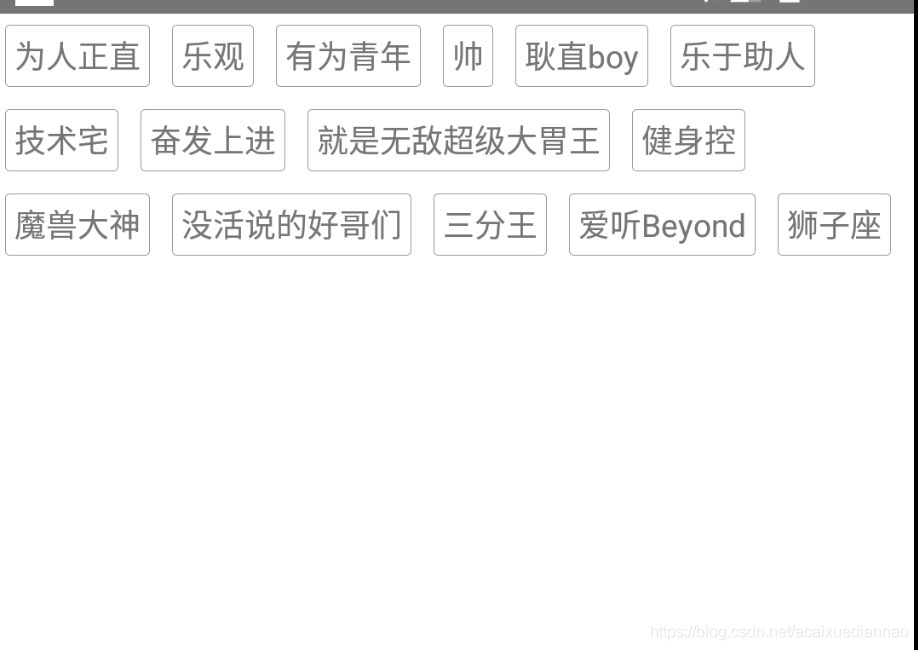

先看一下效果在这里插入图片描述

分析问题

首先先分析一下这个布局的特点:最大的特点就是自动换行。所以需要根据子view的宽度,计算换行的时机,并根据换行后的子View的高度计算布局的高度。
所以自定义ViewGroup,只需要重写onMeasure方法和onLayout方法即可。
注意我这里有个前提:每个子View(标签)的Margin属性分别一样

解决问题

1、onMeasure方法

在onMeasure方法中计算换行的时机,并计算总高度。设置layout的高度。
这种布局的宽度一般都是一定的大小,layout_width属性不是match_parent就是固定的值
所以宽度不用特殊处理。并且还有一个隐藏的点、一般这种需求中,子View(即标签)的高度是一致的。

@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
    super.onMeasure(widthMeasureSpec,heightMeasureSpec);
    int width = MeasureSpec.getSize(widthMeasureSpec);
    int widthMode = MeasureSpec.getMode(widthMeasureSpec);

    int height = MeasureSpec.getSize(heightMeasureSpec);
    int heightMode = MeasureSpec.getMode(heightMeasureSpec);

    mLineCount = 0;
    mChildCount = getChildCount();

    //没有子控件的时候,给AT_MOST模式默认大小
    if (mChildCount == 0){
        if (heightMode == MeasureSpec.AT_MOST){
            height = 0;
        }
        if (widthMode == MeasureSpec.AT_MOST){
            width = 0;
        }
        setMeasuredDimension(width,height);

        return;
    }
    //至少有一行
    mLineCount ++;



    //每一行子view的宽度加左右padding的值
    int totalWidthPerLine = getPaddingLeft() + getPaddingRight();
    LinearLayout.LayoutParams layoutParams = null;
    View child = null;
    for (int i = 0 ; i < mChildCount ; i ++){
        child = getChildAt(i);
        layoutParams = ((LayoutParams) child.getLayoutParams());
        measureChild(child,widthMeasureSpec,heightMeasureSpec);


        totalWidthPerLine += child.getMeasuredWidth()+layoutParams.leftMargin+layoutParams.rightMargin;
        if (totalWidthPerLine > width){//需要换行
            //换行后,当前子view需要排到新的一行,totalWidthPerLine也需要更新为新行的宽度,需要加上当前子view的宽度和margin
            totalWidthPerLine = child.getMeasuredWidth()+layoutParams.leftMargin+layoutParams.rightMargin+getPaddingLeft()+getPaddingRight();
            mLineCount ++;
        }else{

        }
    }
    //此viewGroup的高度
    int layoutHeight = getPaddingTop() + getPaddingBottom();
    //在这里每一个子view的高度一致、故只取第一个子view的高度及其marginTop和marginBottom属性
    child = getChildAt(0);
    layoutParams = ((LayoutParams) child.getLayoutParams());
    //计算此viewGroup的高度 通过每一行子view的高度 x 行数 + padding 得到总高度
    layoutHeight += (child.getMeasuredHeight() + layoutParams.topMargin + layoutParams.bottomMargin) * mLineCount;

    //AT_MOST模式下、就取上面计算出来的高度
    if (heightMode == MeasureSpec.AT_MOST){
        height = layoutHeight;
    }
    this.mWidth = width;
    this.mHeight = height;
    setMeasuredDimension(width,height);
}
1、onLayout方法

在onLayout方法中,需要计算每一个子View位于第几行、第几列,计算在第几行,就知道当前子View的top属性,计算在第几列就知道当前子View的left属性,这样就确定了子View的位置了。

@Override
protected void onLayout(boolean changed, int l, int t, int r, int b) {

    super.onLayout(changed,l,t,r,b);
    if (mLineCount > 1){
        View child;
        LinearLayout.LayoutParams layoutParams = null;

        int[] childCountPerLine = new int[mLineCount];//每行的个数
        int currentLine = 0;
        int hasInArrayCount = 0;//已入数组的个数

        int childrenWidth = getPaddingLeft() + getPaddingRight();
        for (int i = 0 ; i < mChildCount ; i ++){
            child = getChildAt(i);
            layoutParams = ((LayoutParams) child.getLayoutParams());
            childrenWidth += child.getMeasuredWidth() + layoutParams.leftMargin + layoutParams.rightMargin;

            if (childrenWidth > mWidth){
                childCountPerLine[currentLine] = i - hasInArrayCount;
                hasInArrayCount += i - hasInArrayCount;
                currentLine ++;
                childrenWidth = getPaddingLeft() + getPaddingRight() + child.getMeasuredWidth() + layoutParams.leftMargin + layoutParams.rightMargin;
            }

        }

        //计算最后一行有多少个子view
        if (currentLine == childCountPerLine.length - 1){
            childCountPerLine[currentLine] = mChildCount - hasInArrayCount;
        }

        int left;
        int top;
        int bottom;

        int totalCountInLines = 0;//遍历过的每一行的子view的个数的和

        //由于默认每一个子view的高度和margin属性都一致。所以选取第一个子view测量即可
        View c = getChildAt(0);
        LayoutParams lp = ((LayoutParams) c.getLayoutParams());

        //遍历行
        for (int j = 0 ; j < childCountPerLine.length ; j ++){

            top = j * (c.getMeasuredHeight()+lp.topMargin+lp.bottomMargin) + lp.topMargin;
            bottom = c.getMeasuredHeight() + top;

            left = 0;

            for (int i = totalCountInLines; i < childCountPerLine[j] + totalCountInLines ; i ++){//遍历每行的子view,布局每行子view
                child = getChildAt(i);
                layoutParams = ((LayoutParams) child.getLayoutParams());

                left += layoutParams.leftMargin;

                child.layout(left+getPaddingLeft(),top + getPaddingTop(),left+child.getMeasuredWidth(),bottom);

                left += child.getMeasuredWidth() + layoutParams.rightMargin;
            }
            totalCountInLines += childCountPerLine[j];//将当前行子view的个数相加
        }
        //最后一行剩余的子view个数
        int countLastLine = mChildCount - totalCountInLines;
        if ( countLastLine > 0){
            left = 0;
            top = (childCountPerLine.length) * (c.getMeasuredHeight()+lp.topMargin+lp.bottomMargin) + lp.topMargin;
            bottom = c.getMeasuredHeight() + top;

            //遍历最后一行
            for (int i = totalCountInLines ; i < mChildCount ; i ++){
                child = getChildAt(i);
                layoutParams = ((LayoutParams) child.getLayoutParams());

                left += layoutParams.leftMargin;

                child.layout(left+getPaddingLeft(),top + getPaddingTop(),left+child.getMeasuredWidth(),bottom);

                left += child.getMeasuredWidth() + layoutParams.rightMargin;
            }
        }
    }

}

以上就是全部内容了,比较简单。
