还是接上面的固定四轮小车，这里修改了一下脚本代码，使得小车可以转弯，是一个简单应用程序：

还是在script文件编写如下，这里就不写注解了：


function sysCall_init()
  --注解可以参考前面一章
xml = [[
<ui closeable="true" onclose="closeEventHandler" resizable="true" size="220,200">
    <label text="Car control pan" wordwrap="true" />
    <group>
        <label text="Set speed(0.1deg/s):"  wordwrap="true" />
        <spinbox minimum="-5000" maximum="5000" onchange = "speed_set" />
        <stretch />
    </group>

    <group>
        <button text="Start move" onclick = "Start_move" />
        <button text="Stop move" onclick = "Stop_move" />
        <stretch />
    </group>

    <group>
        <button text="Front" onclick = "Front_move" />
        <button text="Back" onclick = "Back_move" />
        <button text="Left" onclick = "Left_move" />
        <button text="Right" onclick = "Right_move" />
        <stretch />
    </group>
</ui>
]]
    ui=simUI.create(xml)
    Red_wheel=sim.getObjectHandle('joint12')
    Green_wheel=sim.getObjectHandle('joint22')
    Blue_wheel=sim.getObjectHandle('joint32')
    Yellow_wheel=sim.getObjectHandle('joint42')

    --ui=simUI.create(xml)
    Red_vel = 0
    Green_vel = 0
    Blue_vel = 0
    Yellow_vel = 0
    Start_flag = false
end

function closeEventHandler(h)
    sim.addStatusbarMessage('Window '..h..' is closing...')
    simUI.hide(h)
end

function Start_move(h)
    Start_flag = true
    Front_flag = true
    Back_flag = false
end

function Stop_move(h)
    Start_flag = false
end

function Front_move(h)
    Front_flag = true
    Back_flag = false
    Right_flag = false
    Left_flag = false
end

function Back_move(h)
    Back_flag = true
    Front_flag = false
    Right_flag = false
    Left_flag = false
end

function Left_move(h)
    Left_flag = true
    Right_flag = false
end

function Right_move(h)
    Right_flag = true
    Left_flag = false
end

function speed_set(ui,id,newVal)
    Speed_vel = newVal
end

function sysCall_actuation()
    if Start_flag then
            if Front_flag then
                sim.setJointTargetVelocity(Red_wheel,Speed_vel/10)
                sim.setJointTargetVelocity(Green_wheel,Speed_vel/10)
                sim.setJointTargetVelocity(Blue_wheel,-Speed_vel/10)
                sim.setJointTargetVelocity(Yellow_wheel,-Speed_vel/10)
            end

            if Back_flag then
                sim.setJointTargetVelocity(Red_wheel,-Speed_vel/10)
                sim.setJointTargetVelocity(Green_wheel,-Speed_vel/10)
                sim.setJointTargetVelocity(Blue_wheel,Speed_vel/10)
                sim.setJointTargetVelocity(Yellow_wheel,Speed_vel/10)
            end

            if Left_flag then
                sim.setJointTargetVelocity(Red_wheel,Speed_vel/10)
                sim.setJointTargetVelocity(Green_wheel,Speed_vel/5)
                sim.setJointTargetVelocity(Blue_wheel,-Speed_vel/10)
                sim.setJointTargetVelocity(Yellow_wheel,-Speed_vel/5)
            end

            if Right_flag then
                sim.setJointTargetVelocity(Red_wheel,Speed_vel/5)
                sim.setJointTargetVelocity(Green_wheel,Speed_vel/10)
                sim.setJointTargetVelocity(Blue_wheel,-Speed_vel/5)
                sim.setJointTargetVelocity(Yellow_wheel,-Speed_vel/10)
            end
    else
        sim.setJointTargetVelocity(Red_wheel,0)
        sim.setJointTargetVelocity(Green_wheel,0)
        sim.setJointTargetVelocity(Blue_wheel,0)
        sim.setJointTargetVelocity(Yellow_wheel,0)
    end
end

function sysCall_cleanup()
    -- do some clean-up here
    simUI.destroy(ui)
end

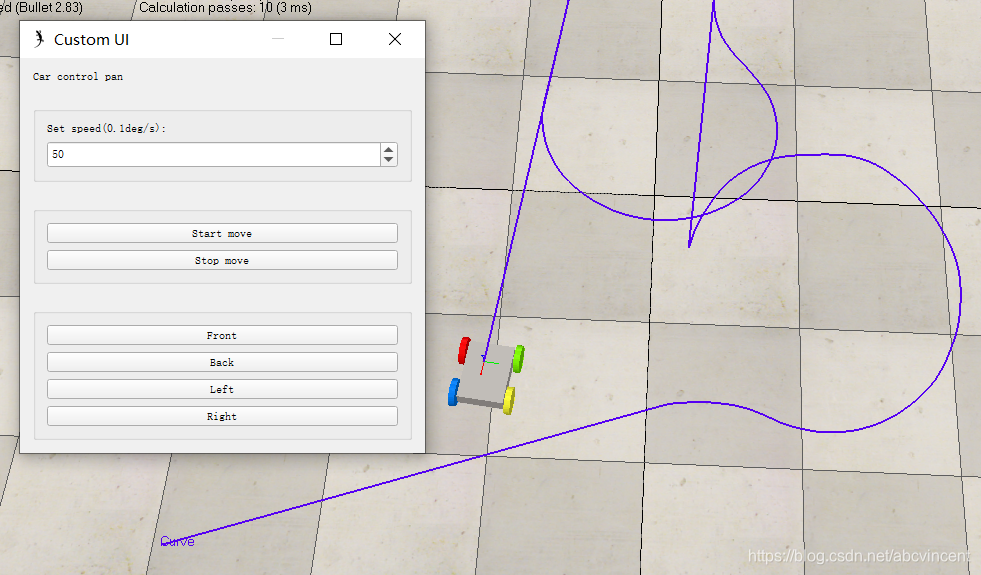

效果如下：
