深度学习基础理论

1. 自定义感知机

# 00_percetron.py
# 实现感知机

# 实现逻辑和
def AND(x1, x2):
    w1, w2, theta = 0.5, 0.5, 0.7
    tmp = x1 * w1 + x2 * w2
    if tmp <= theta:
        return 0
    else:
        return 1

print(AND(1, 1))
print(AND(1, 0))


# 实现逻辑或
def OR(x1, x2):
    w1, w2, theta = 0.5, 0.5, 0.2
    tmp = x1 * w1 + x2 * w2
    if tmp <= theta:
        return 0
    else:
        return 1

print(OR(0, 1))
print(OR(0, 0))

# 实现异或
def XOR(x1, x2):
    s1 = not AND(x1, x2) # 与非门
    s2 = OR(x1, x2)
    y = AND(s1, s2)
    return y

print(XOR(1, 0))
print(XOR(0, 1))
print(XOR(1, 1))
print(XOR(0, 0))

2. 计算N个概率的交叉熵

# 计算交叉熵
import math

p_true = [0, 1, 0, 0, 0]  # 真实概率
p_pred1 = [0.1, 0.6, 0.1, 0.1, 0.1]  # 预测概率
p_pred2 = [0.1, 0.7, 0.1, 0.05, 0.05]  # 预测概率
p_pred3 = [0.1, 0.8, 0.04, 0.03, 0.03]  # 预测概率

print(sum(p_true))
print(sum(p_pred1))
print(sum(p_pred2))
print(sum(p_pred3))

cross_entropy1 = 0.0
cross_entropy2 = 0.0
cross_entropy3 = 0.0

# 计算每组预测概率和真实概率的交叉熵(实际上只计算对应正确解标签的输出的自然对数)
for i in range(len(p_true)):
    cross_entropy1 += (p_true[i] * math.log(p_pred1[i]))
    cross_entropy2 += (p_true[i] * math.log(p_pred2[i]))
    cross_entropy3 += (p_true[i] * math.log(p_pred3[i]))

# 打印结果
print("交叉熵1:", -cross_entropy1)
print("交叉熵2:", -cross_entropy2)
print("交叉熵3:", -cross_entropy3)

3. 验证图像卷积运算效果

from scipy import signal
from scipy import misc
import matplotlib.pyplot as plt
import numpy as np
import scipy.ndimage as sn

im = misc.imread("data/zebra.png", flatten=True)
# face = sn.imread("data/zebra.png", flatten=True)
flt = np.array([[-1, 0, 1],
                [-2, 0, 2],
                [-1, 0, 1]])

flt2 = np.array([[1, 2, 1],
                 [0, 0, 0],
                 [-1, -2, -1]])

# 把图像的face数组和设计好的卷积和作二维卷积运算,设计边界处理方式为symm
conv_img1 = signal.convolve2d(im, flt,
                              boundary='symm',
                              mode='same').astype("int32")

conv_img2 = signal.convolve2d(im, flt2,
                              boundary='symm',
                              mode='same').astype("int32")

plt.figure("Conv2D")
plt.subplot(131)
plt.imshow(im, cmap='gray')  # 显示原始的图
plt.xticks([])
plt.yticks([])

plt.subplot(132)
plt.xticks([])
plt.yticks([])
plt.imshow(conv_img1, cmap='gray')  # 卷积后的图

plt.subplot(133)
plt.xticks([])
plt.yticks([])
plt.imshow(conv_img2, cmap='gray')  # 卷积后的图

plt.show()

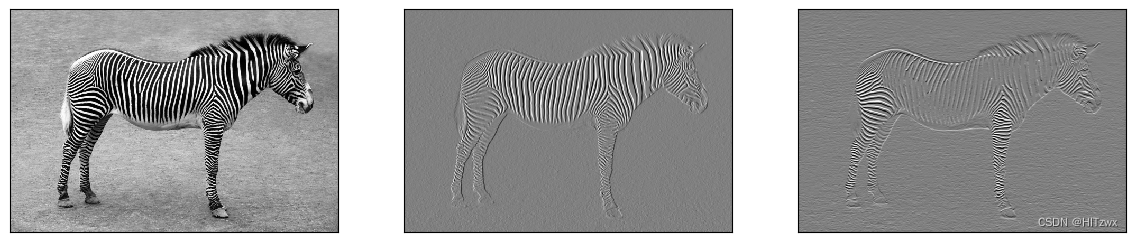

执行结果：

OpenCV版：

from scipy import misc
from scipy import signal
import matplotlib.pyplot as plt
import matplotlib
import numpy as np
import scipy.ndimage as sn
import cv2
import pylab

im = cv2.imread("../data/zebra.png",0)

flt = np.array([[-1,0,1],
                [-2,0,2],
                [-1,0,1]])/2
flt2 = np.array([[1,2,1],
                 [0,0,0],
                 [-1,-2,-1]])/2

conv_img1 = cv2.filter2D(im, -1, flt,borderType=1)
conv_img2 = cv2.filter2D(im, -1, flt2,borderType=1)

cv2.imshow("im",im)
cv2.imshow("conv_img1",conv_img1)
cv2.imshow("conv_img2",conv_img2)
cv2.waitKey()
cv2.destroyAllWindows()
