Flink 源码之提交流程1

首先感谢尚硅谷！！！

注意：小弟拿这个做笔记用

版本 flink-1.12



本篇中涉及的类不少，但把各个类的关系疏离清楚的话，会发现，主要的类就那几个，主要的方法也不是很多。（主要方法指的是其他方法大多在这几个方法中调用，抓住主要方法分析）

本次主要分析的类和方法有

CliFrontend类和里面的main方法和run方法（以run命令分析，其他命令就不看了）

AbstractJobClusterExecutor类的和里面的execute方法

YarnClusterDescriptor类和里面的deployJobCluster和deployInternal方法



先放上来两个方法瞅瞅，分析完这两个方法，本次任务就搞完大半了

CliFrontend类里的

main方法

public static void main(final String[] args) {
   EnvironmentInformation.logEnvironmentInfo(LOG, "Command Line Client", args);

   // 1. find the configuration directory
   /*TODO 获取flink的conf目录的路径*/
   final String configurationDirectory = getConfigurationDirectoryFromEnv();

   // 2. load the global configuration
   /*TODO 根据conf路径，加载配置*/
   final Configuration configuration = GlobalConfiguration.loadConfiguration(configurationDirectory);

   // 3. load the custom command lines
   /*TODO 封装命令行接口：按顺序Generic、Yarn、Default*/
   final List<CustomCommandLine> customCommandLines = loadCustomCommandLines(
      configuration,
      configurationDirectory);

   try {
      final CliFrontend cli = new CliFrontend(
         configuration,
         customCommandLines);

      SecurityUtils.install(new SecurityConfiguration(cli.configuration));
      int retCode = SecurityUtils.getInstalledContext()
            .runSecured(() -> cli.parseAndRun(args));
      System.exit(retCode);
   }
   catch (Throwable t) {
      final Throwable strippedThrowable = ExceptionUtils.stripException(t, UndeclaredThrowableException.class);
      LOG.error("Fatal error while running command line interface.", strippedThrowable);
      strippedThrowable.printStackTrace();
      System.exit(31);
   }
}

run方法

protected void run(String[] args) throws Exception {
   LOG.info("Running 'run' command.");

   /*TODO 获取run动作，默认的配置项*/
   final Options commandOptions = CliFrontendParser.getRunCommandOptions();

   /*TODO 根据用户指定的配置项，进行解析*/
   final CommandLine commandLine = getCommandLine(commandOptions, args, true);

   // evaluate help flag
   if (commandLine.hasOption(HELP_OPTION.getOpt())) {
      CliFrontendParser.printHelpForRun(customCommandLines);
      return;
   }

   /*TODO 根据之前添加的顺序，挨个判断是否active：Generic、Yarn、Default*/
   final CustomCommandLine activeCommandLine =
         validateAndGetActiveCommandLine(checkNotNull(commandLine));

   final ProgramOptions programOptions = ProgramOptions.create(commandLine);

   /*TODO 获取 用户的jar包和其他依赖*/
   final List<URL> jobJars = getJobJarAndDependencies(programOptions);

   /*TODO 获取有效配置：HA的id、Target（session、per-job）、JobManager内存、TaskManager内存、每个TM的slot数...*/
   final Configuration effectiveConfiguration = getEffectiveConfiguration(
         activeCommandLine, commandLine, programOptions, jobJars);

   LOG.debug("Effective executor configuration: {}", effectiveConfiguration);

   final PackagedProgram program = getPackagedProgram(programOptions, effectiveConfiguration);

   try {
      /*TODO 执行程序*/
      executeProgram(effectiveConfiguration, program);
   } finally {
      program.deleteExtractedLibraries();
   }
}

0.首先得找个头吧

启动命令是这个吧：flink run -t yarn-per-job -c … xxx.jar

打开bin下的flink文件

可以找到

这个类就是我们分析的始点。

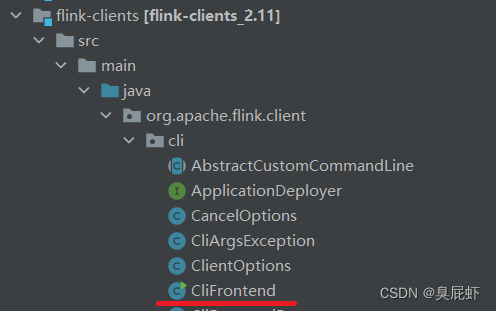

打开源码找到这个类

只看主要代码，各种判断null，不可修改包装，安全包装、异常处理等就略过了，调用很多层的话就只拿出最后一层来看

找到main方法

1.得到conf路径

final String configurationDirectory = getConfigurationDirectoryFromEnv(); // 就是下图那个conf

2.根据conf路径，加载配置

final Configuration configuration = GlobalConfiguration.loadConfiguration(configurationDirectory)

调用GlobalConfiguration的loadConfiguration方法，传入conf路径

loadConfiguration方法中

final File yamlConfigFile = new File(confDirFile, FLINK_CONF_FILENAME);  // FLINK_CONF_FILENAME = "flink-conf.yaml"
Configuration configuration = loadYAMLResource(yamlConfigFile); // 加载配置，loadYAMLResource方法里内容是：读取文件，循环里config.setString(key, value)，最后得到config返回
return configuration;

3.封装命令行接口：按顺序拿到GenericCLI、FlinkYarnSessionCli、DefaultCLI，得到customCommandLines对象

final List<CustomCommandLine> customCommandLines = loadCustomCommandLines(
   configuration,
   configurationDirectory);

调用loadCustomCommandLines方法，传入上面两部得到的configuration和configurationDirectory

得到一个列表ArrayList，表里元素有三个：GenericCLI、FlinkYarnSessionCli、DefaultCLI。

public static List<CustomCommandLine> loadCustomCommandLines(Configuration configuration, String configurationDirectory) {
   List<CustomCommandLine> customCommandLines = new ArrayList<>();
   // 第一个
   customCommandLines.add(new GenericCLI(configuration, configurationDirectory));
	// 第二个
   final String flinkYarnSessionCLI = "org.apache.flink.yarn.cli.FlinkYarnSessionCli";
   customCommandLines.add(
      loadCustomCommandLine(flinkYarnSessionCLI,
         configuration,
         configurationDirectory,
         "y",
         "yarn"));
	// 第三个
   customCommandLines.add(new DefaultCLI());

   return customCommandLines;
}

4. 创建CliFrontend对象

final CliFrontend cli = new CliFrontend(
   configuration,
   customCommandLines);

在这一步中有个需要注意的点：

传入的 customCommandLines会有一个处理：将遍历customCommandLines里的三个元素，将三个元素里的配置Option拿出来放入customCommandLineOptions，而这个customCommandLineOptions会在后面和获取的run的配置合并

this.customCommandLineOptions = new Options();

for (CustomCommandLine customCommandLine : customCommandLines) {
   customCommandLine.addGeneralOptions(customCommandLineOptions);
   customCommandLine.addRunOptions(customCommandLineOptions);
}

看看拿出来的是什么

例：

5.cli.parseAndRun(args)

SecurityUtils.install(new SecurityConfiguration(cli.configuration));
int retCode = SecurityUtils.getInstalledContext()
      .runSecured(() -> cli.parseAndRun(args));
// 看着一堆，其实主要就是执行cli.parseAndRun(args)

6. 解析执行命令

public int parseAndRun (String[]args){
            // get action
    		// 比如说我们的命令是flink run -t yarn-per-job -c .... xxx.jar
    		// 那么 args[0] 就是 run
            String action = args[0];

            // remove action from parameters
            final String[] params = Arrays.copyOfRange(args, 1, args.length);

            // do action
    		// action是run，走下面的第一个
            switch (action) {
                case ACTION_RUN:  // ACTION_RUN = "run";
                    run(params);  // 走这，传入其他参数。下面其他的几个就不看了
                    return 0;
                case ACTION_RUN_APPLICATION:
                    runApplication(params);
                    return 0;
                case ACTION_LIST:
                    list(params);
                    return 0;
                case ACTION_INFO:
                    info(params);
                    return 0;
                case ACTION_CANCEL:
                    cancel(params);
                    return 0;
                case ACTION_STOP:
                    stop(params);
                    return 0;
                case ACTION_SAVEPOINT:
                    savepoint(params);
                    return 0;
                case "-h":
                case "--help":
                    CliFrontendParser.printHelp(customCommandLines);
                    return 0;
                case "-v":
                case "--version":
                    ...
                    return 0;
                default:
                   ...
                    return 1;
            }

        }

main方法就看完了，下面是run方法

7.获取run动作默认的选项

final Options commandOptions = CliFrontendParser.getRunCommandOptions();
// 这个是run命令的，其他命令的就是获取其他相应选项
// 例如list就是CliFrontendParser.getListCommandOptions()

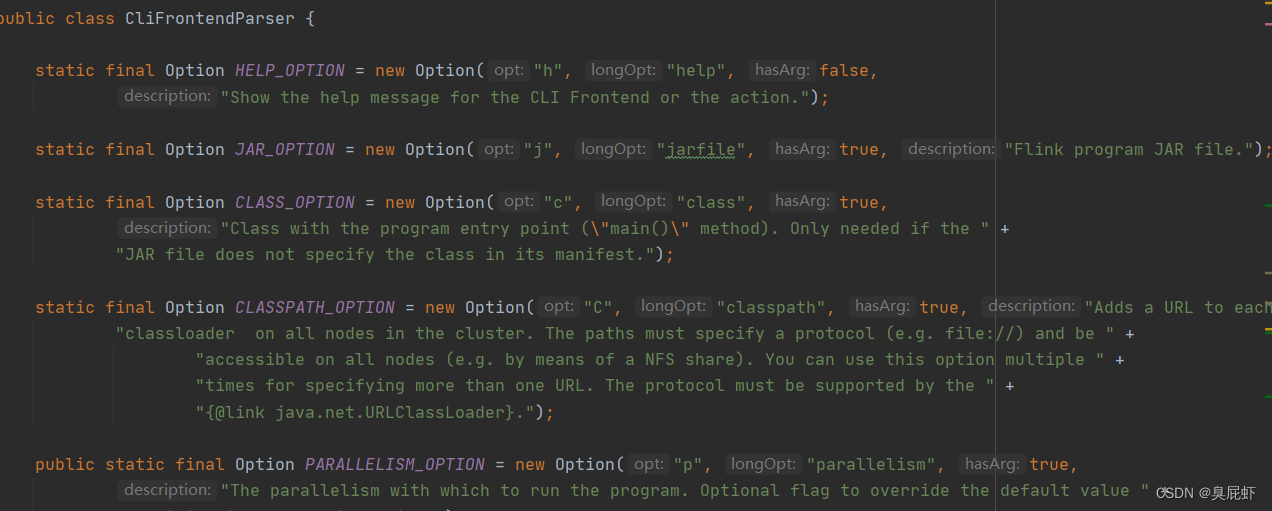

CliFrontendParser类是提取命令行选项的简单命令行解析器，由一堆Optin和getRunCommandOptions()、getListCommandOptions()等方法组成，不同的方法添加的选项Optin也不同，Option如下图。

public static Options getRunCommandOptions() {
   Options options = buildGeneralOptions(new Options());
   options = getProgramSpecificOptions(options);
   options.addOption(SAVEPOINT_PATH_OPTION);
   return options.addOption(SAVEPOINT_ALLOW_NON_RESTORED_OPTION);
}

加了很多run相关的选项，好多，不看也罢

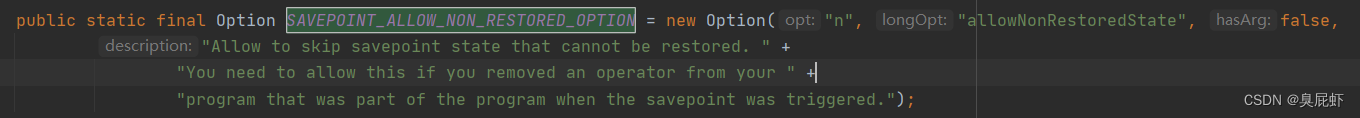

例：就上面那个SAVEPOINT_ALLOW_NON_RESTORED_OPTION，这个东西就是CliFrontendParser里的

8.解析配置项

final CommandLine commandLine = getCommandLine(commandOptions, args, true);

调用getCommandLine方法，传入上一步的到的run命令的选项和参数args，得到一个CommandLine对象

//合并 Options 对象 ,commandOptions就是传入的commandOptions，而customCommandLineOptions则是上面第4步中实例化CliFrontend时产生的customCommandLineOptions
final Options commandLineOptions = CliFrontendParser.mergeOptions(commandOptions, customCommandLineOptions);
//开始解析，接下来就是层层调用，主要是parse的重载方法比较多
return CliFrontendParser.parse(commandLineOptions, args, stopAtNonOptions);

• CommandLine类里主要就是成员options和对他的各种操作（还有个成员args，无法识别的选项参数，就那些没匹配到Option的参数）

private final List<Option> options = new ArrayList<Option>();  // 解析到匹配的Option就放里面 addOption(option)

一路调用parse()直到DefaultParser类里

parse方法，遍历参数args，最终得到CommandLine对象

cmd = new CommandLine();
for (String argument : arguments)
   {
    handleToken(argument);
}
return cmd;

handleToken方法反正就是对args的各种解析处理，处理 --开头的、-开头的、带=的 ，遇到能与某个Optin匹配的参数（getMatchingOptions返回的list有且只有一个值）就放到cmd中，还有对值的处理，更深的不看也罢

private void handleToken(String token) throws ParseException
{
    currentToken = token;

    if (skipParsing)
    {
        cmd.addArg(token);
    }
    else if ("--".equals(token))
    {
        skipParsing = true;
    }
    else if (currentOption != null && currentOption.acceptsArg() && isArgument(token))
    {
        currentOption.addValueForProcessing(Util.stripLeadingAndTrailingQuotes(token));
    }
    else if (token.startsWith("--"))
    {
        handleLongOption(token);
    }
    else if (token.startsWith("-") && !"-".equals(token))
    {
        handleShortAndLongOption(token);
    }
    else
    {
        handleUnknownToken(token);
    }

    if (currentOption != null && !currentOption.acceptsArg())
    {
        currentOption = null;
    }
}

9.获取们使用的哪种命令行客户端（以哪种模式启动的）

final CustomCommandLine activeCommandLine = validateAndGetActiveCommandLine(checkNotNull(commandLine));

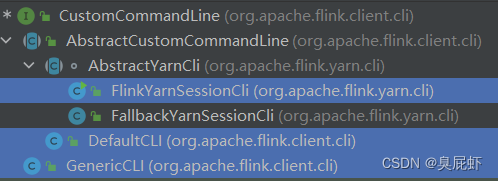

每个CustomCommandLine的子类里会实现boolean isActive(CommandLine commandLine);方法，通过这个可以判断是否活跃，即我们使用的哪种命令行客户端（CustomCommandLine）

前面第3步得到的customCommandLines包含的三个命令行客户端是按顺序添加的，在这一步挨个判断，最后一个DefaultCLI的isActive一定为true。

GenericCLI的isActive

public boolean isActive(CommandLine commandLine) {
   return configuration.getOptional(DeploymentOptions.TARGET).isPresent()
         || commandLine.hasOption(executorOption.getOpt())  // -e  有没有  已弃用
         || commandLine.hasOption(targetOption.getOpt());  // -t 有没有
}

FlinkYarnSessionCli的isActive

public boolean isActive(CommandLine commandLine) {
   if (!super.isActive(commandLine)) {   // 看他的父类
      return (isYarnPropertiesFileMode(commandLine) && yarnApplicationIdFromYarnProperties != null);
   }
   return true;
}

他的抽象父类的isActive

public boolean isActive(CommandLine commandLine) {

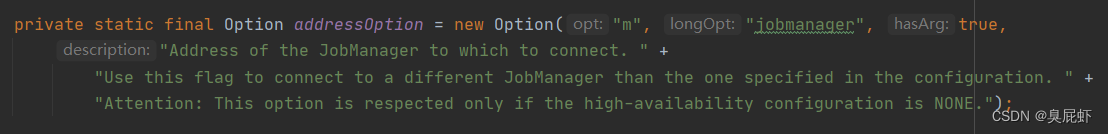

   final String jobManagerOption = commandLine.getOptionValue(addressOption.getOpt(), null);
   /*TODO ID是固定的字符串 "yarn-cluster"*/
   final boolean yarnJobManager = ID.equals(jobManagerOption);
   /*TODO 判断是否存在 Yarn Session对应的 AppID*/
   final boolean hasYarnAppId = commandLine.hasOption(applicationId.getOpt())
      || configuration.getOptional(YarnConfigOptions.APPLICATION_ID).isPresent();
   final boolean hasYarnExecutor = YarnSessionClusterExecutor.NAME.equalsIgnoreCase(configuration.get(DeploymentOptions.TARGET))
      || YarnJobClusterExecutor.NAME.equalsIgnoreCase(configuration.get(DeploymentOptions.TARGET));
   /*TODO -m yarn-cluster || yarn有appID，或者命令行指定了 || 执行器是yarn的*/
   return hasYarnExecutor || yarnJobManager || hasYarnAppId;
}

//YarnSessionClusterExecutor.NAME即"yarn-session"
//YarnJobClusterExecutor.NAME即"yarn-per-job"

DefaultCLI的isActive 直接返回true

public boolean isActive(CommandLine commandLine) {
   // always active because we can try to read a JobManager address from the config
   return true;
}

10.封装一下创建ProgramOptions

final ProgramOptions programOptions = ProgramOptions.create(commandLine);

11.获取 用户的jar包和其他依赖

final List<URL> jobJars = getJobJarAndDependencies(programOptions);

12.获取有效配置：HA的id、Target（session、per-job）、JobManager内存、TaskManager内存、每个TM的slot数…

final Configuration effectiveConfiguration = getEffectiveConfiguration(activeCommandLine, commandLine, programOptions, jobJars);

getEffectiveConfiguration方法

final Configuration commandLineConfiguration =		checkNotNull(activeCustomCommandLine).toConfiguration(commandLine);  // 这是个接口，我们看AbstractCustomCommandLine类的toConfiguration方法
// 创建个Configuration对象，然后Configuration的各种set，就是取出commandLine的一些配置项封装为Configuration

13.将programOptions和effectiveConfiguration封装成PackagedProgram

final PackagedProgram program = getPackagedProgram(programOptions, effectiveConfiguration);

14.执行程序

executeProgram(effectiveConfiguration, program);

到ClientUtils类的executeProgram方法

final ClassLoader userCodeClassLoader = program.getUserCodeClassLoader();
final ClassLoader contextClassLoader = Thread.currentThread().getContextClassLoader();

/*TODO 配置环境的上下文，用户代码里的 getExecutionEnvironment就会拿到这些环境信息*/
ContextEnvironment.setAsContext(
   executorServiceLoader,
   configuration,
   userCodeClassLoader,
   enforceSingleJobExecution,
   suppressSysout);

StreamContextEnvironment.setAsContext(
   executorServiceLoader,
   configuration,
   userCodeClassLoader,
   enforceSingleJobExecution,
   suppressSysout);


program.invokeInteractiveModeForExecution(); // 这个方法再调用callMainMethod(mainClass, args);

callMainMethod方法中

mainMethod = entryClass.getMethod("main", String[].class);
/*TODO 调用用户代码的main方法*/
mainMethod.invoke(null, (Object) args);

15.execute方法 我们写的代码main（）最后执行时调用的那个方法

在org.apache.flink.streaming.api.environment包下的StreamExecutionEnvironment类中

//一层层的进
execute(String jobName)
execute(getStreamGraph(jobName)) // 再调用这个 获取StreamGraph，并接着执行
final JobClient jobClient = executeAsync(streamGraph);  // 再调用这个方法
execute(streamGraph, configuration, userClassloader)  // 再调一层 这个execute方法是接口PipelineExecutor中的方法

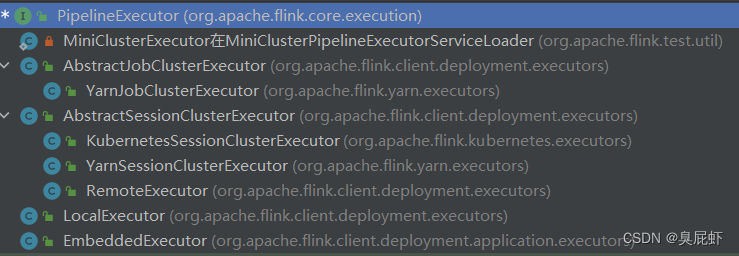

PipelineExecutor的实现类：

以AbstractJobClusterExecutor为例

AbstractJobClusterExecutor的execute方法，先看一看整个，下面开始分析

public CompletableFuture<JobClient> execute(@Nonnull final Pipeline pipeline, @Nonnull final Configuration configuration, @Nonnull final ClassLoader userCodeClassloader) throws Exception {
   /*TODO 将 流图（StreamGraph） 转换成 作业图（JobGraph）*/
   final JobGraph jobGraph = PipelineExecutorUtils.getJobGraph(pipeline, configuration);

   /*TODO 集群描述器：创建、启动了 YarnClient， 包含了一些yarn、flink的配置和环境信息*/
   try (final ClusterDescriptor<ClusterID> clusterDescriptor = clusterClientFactory.createClusterDescriptor(configuration)) {
      final ExecutionConfigAccessor configAccessor = ExecutionConfigAccessor.fromConfiguration(configuration);

      /*TODO 集群特有资源配置：JobManager内存、TaskManager内存、每个Tm的slot数*/
      final ClusterSpecification clusterSpecification = clusterClientFactory.getClusterSpecification(configuration);

      final ClusterClientProvider<ClusterID> clusterClientProvider = clusterDescriptor
            .deployJobCluster(clusterSpecification, jobGraph, configAccessor.getDetachedMode());
      LOG.info("Job has been submitted with JobID " + jobGraph.getJobID());

      return CompletableFuture.completedFuture(
            new ClusterClientJobClientAdapter<>(clusterClientProvider, jobGraph.getJobID(), userCodeClassloader));
   }
}

16.将 流图（StreamGraph） 转换成 作业图（JobGraph）

final JobGraph jobGraph = PipelineExecutorUtils.getJobGraph(pipeline, configuration);

17.创建集群描述器

final ClusterDescriptor<ClusterID> clusterDescriptor = clusterClientFactory.createClusterDescriptor(configuration)

再调用getClusterDescriptor(configuration); 创建、初始化、启动YarnClient，返回YarnClusterDescriptor

private YarnClusterDescriptor getClusterDescriptor(Configuration configuration) {
   /*TODO 创建了YarnClient*/
   final YarnClient yarnClient = YarnClient.createYarnClient();
   final YarnConfiguration yarnConfiguration = new YarnConfiguration();

   /*TODO 初始化、启动 YarnClient*/
   yarnClient.init(yarnConfiguration);
   yarnClient.start();

   return new YarnClusterDescriptor(
         configuration,
         yarnConfiguration,
         yarnClient,
         YarnClientYarnClusterInformationRetriever.create(yarnClient),
         false);
}

18.集群资源配置

final ClusterSpecification clusterSpecification = clusterClientFactory.getClusterSpecification(configuration);

AbstractContainerizedClusterClientFactory类中

public ClusterSpecification getClusterSpecification(Configuration configuration) {
   checkNotNull(configuration);

   final int jobManagerMemoryMB = JobManagerProcessUtils.processSpecFromConfigWithNewOptionToInterpretLegacyHeap(
         configuration,
         JobManagerOptions.TOTAL_PROCESS_MEMORY)
      .getTotalProcessMemorySize()
      .getMebiBytes();

   final int taskManagerMemoryMB = TaskExecutorProcessUtils
      .processSpecFromConfig(TaskExecutorProcessUtils.getConfigurationMapLegacyTaskManagerHeapSizeToConfigOption(
         configuration, TaskManagerOptions.TOTAL_PROCESS_MEMORY))
      .getTotalProcessMemorySize()
      .getMebiBytes();

   int slotsPerTaskManager = configuration.getInteger(TaskManagerOptions.NUM_TASK_SLOTS);

   return new ClusterSpecification.ClusterSpecificationBuilder()
      .setMasterMemoryMB(jobManagerMemoryMB)
      .setTaskManagerMemoryMB(taskManagerMemoryMB)
      .setSlotsPerTaskManager(slotsPerTaskManager)
      .createClusterSpecification();
}

19.创建appContext，提交应用

final ClusterClientProvider<ClusterID> clusterClientProvider = clusterDescriptor
      .deployJobCluster(clusterSpecification, jobGraph, configAccessor.getDetachedMode());

调用：

deployJobCluster方法

return deployInternal(
   clusterSpecification,
   "Flink per-job cluster",
   getYarnJobClusterEntrypoint(),
   jobGraph,
   detached);

deployInternal方法

// 先检查
isReadyForDeployment(clusterSpecification);
checkYarnQueues(yarnClient);

/*TODO 开始启动AM*/
ApplicationReport report = startAppMaster(
	flinkConfiguration,
	applicationName,
	yarnClusterEntrypoint,
	jobGraph,
	yarnClient,
	yarnApplication,
	validClusterSpecification);

startAppMaster方法

这部分就是将运行需要的配置、jar包等封装到appContext中，最后提交时就提交appContext，乱七八糟的不看也罢

/*TODO 初始化、创建 Hadoop的 FileSystem*/
org.apache.flink.core.fs.FileSystem.initialize(
      configuration,
      PluginUtils.createPluginManagerFromRootFolder(configuration));
final FileSystem fs = FileSystem.get(yarnConfiguration);

// 创建申请提交上下文  最后提交时提交的参数
ApplicationSubmissionContext appContext = yarnApplication.getApplicationSubmissionContext();

/*TODO Yarn应用的文件上传器：FS、对应的HDFS路径 用来上传：用户jar包、flink的依赖、flink的配置文件 */
final YarnApplicationFileUploader fileUploader = YarnApplicationFileUploader.from(
	fs,
	getStagingDir(fs),
	providedLibDirs,
	appContext.getApplicationId(),
	getFileReplication());
/*TODO 高可用配置：重试次数，默认2次*/
/*TODO 添加用户jar包*/
/*TODO 上传Flink的配置文件 - flink-conf.yaml*/
/*TODO jobmanager内存配置*/
...
fileUploader.close();

//创建appMasterEnv
// Setup CLASSPATH and environment variables for ApplicationMaster
/*TODO 创建Map，用来存储 AM的环境变量和类路径*/
final Map<String, String> appMasterEnv = new HashMap<>();

// 然后是一堆put，不看也罢
// set user specified app master environment variables
appMasterEnv.putAll(
   ConfigurationUtils.getPrefixedKeyValuePairs(ResourceManagerOptions.CONTAINERIZED_MASTER_ENV_PREFIX, configuration));
// set Flink app class path
appMasterEnv.put(YarnConfigKeys.ENV_FLINK_CLASSPATH, classPathBuilder.toString());

// set Flink on YARN internal configuration values
appMasterEnv.put(YarnConfigKeys.FLINK_DIST_JAR, localResourceDescFlinkJar.toString());
appMasterEnv.put(YarnConfigKeys.ENV_APP_ID, appId.toString());
appMasterEnv.put(YarnConfigKeys.ENV_CLIENT_HOME_DIR, fileUploader.getHomeDir().toString());
appMasterEnv.put(YarnConfigKeys.ENV_CLIENT_SHIP_FILES, encodeYarnLocalResourceDescriptorListToString(fileUploader.getEnvShipResourceList()));
appMasterEnv.put(YarnConfigKeys.ENV_ZOOKEEPER_NAMESPACE, getZookeeperNamespace());
appMasterEnv.put(YarnConfigKeys.FLINK_YARN_FILES, fileUploader.getApplicationDir().toUri().toString());

// https://github.com/apache/hadoop/blob/trunk/hadoop-yarn-project/hadoop-yarn/hadoop-yarn-site/src/site/markdown/YarnApplicationSecurity.md#identity-on-an-insecure-cluster-hadoop_user_name
appMasterEnv.put(YarnConfigKeys.ENV_HADOOP_USER_NAME, UserGroupInformation.getCurrentUser().getUserName());

if (localizedKeytabPath != null) {
   appMasterEnv.put(YarnConfigKeys.LOCAL_KEYTAB_PATH, localizedKeytabPath);
   String principal = configuration.getString(SecurityOptions.KERBEROS_LOGIN_PRINCIPAL);
   appMasterEnv.put(YarnConfigKeys.KEYTAB_PRINCIPAL, principal);
   if (remotePathKeytab != null) {
      appMasterEnv.put(YarnConfigKeys.REMOTE_KEYTAB_PATH, remotePathKeytab.toString());
   }
}

//To support Yarn Secure Integration Test Scenario
if (remoteYarnSiteXmlPath != null) {
   appMasterEnv.put(YarnConfigKeys.ENV_YARN_SITE_XML_PATH, remoteYarnSiteXmlPath.toString());
}
if (remoteKrb5Path != null) {
   appMasterEnv.put(YarnConfigKeys.ENV_KRB5_PATH, remoteKrb5Path.toString());
}

// set classpath from YARN configuration
Utils.setupYarnClassPath(yarnConfiguration, appMasterEnv);

/*TODO 将之前封装的 Map（AM的环境信息、类路径），设置到容器里*/
amContainer.setEnvironment(appMasterEnv);

// 创建capability
// Set up resource type requirements for ApplicationMaster
Resource capability = Records.newRecord(Resource.class);
capability.setMemory(clusterSpecification.getMasterMemoryMB());
capability.setVirtualCores(flinkConfiguration.getInteger(YarnConfigOptions.APP_MASTER_VCORES));
final String customApplicationName = customName != null ? customName : applicationName;

// 设置appContext，将上面的那些amContainer、capability等set进appContext
// 前面也有许多地方调用appContext的set方法了，乱七八糟的没贴出来
appContext.setApplicationName(customApplicationName);
appContext.setApplicationType(applicationType != null ? applicationType : "Apache Flink");
appContext.setAMContainerSpec(amContainer);
appContext.setResource(capability);
...

// 提交应用
/*TODO 提交应用了*/
yarnClient.submitApplication(appContext); // 这就到org.apache.hadoop.yarn.client.api了，yarn的内容了
