spring cloud微服务-eureka

spring cloud微服务-eureka

eureka简单介绍

Eureka是Netflix开源的服务发现组件，本身是一个基于REST的服务，包含Server和Client两部分。Spring Cloud Eureka 是 基于 Netflix Eureka 做了二次封装，主要负责完成微服务架构中的服务治理功能，Spring Cloud将它集成在子项目Spring Cloud Netflix中。常见的注册中心有eureka，Consul,Etcd,Zookeeper等。Dubbo中的注册中心有是基于redis的，有基于Zookeeper的，最常用的还是基于Zookeeper的。

创建maven分布式项目

在maven父项目中pom文件中确定spring boot的版本2.0.6.RELEASE，和一些公共的依赖引用，完整的pom文件中代码如下：

  <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.6.RELEASE</version>
        <relativePath/> &lt;!&ndash; lookup parent from repository &ndash;&gt;
    </parent>

    <groupId>com.learning.wen</groupId>
    <artifactId>learning-item</artifactId>
    <version>1.0.0</version>
    <name>learning-item</name>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <!-- mybatis -->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.0.0</version>
        </dependency>

        <!-- mysql -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>

        <!-- lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.4</version>
        </dependency>

        <!--热部署依赖-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
        </dependency>

        <!-- 阿里fastJson-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.47</version>
        </dependency>

        <!-- apache组件 -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>3.3.2</version>
        </dependency>

        <!-- 添加swagger依赖  swagger start-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.9.2</version>
            <exclusions>
                <exclusion>
                    <groupId>io.swagger</groupId>
                    <artifactId>swagger-annotations</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>io.swagger</groupId>
                    <artifactId>swagger-models</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>io.swagger</groupId>
            <artifactId>swagger-annotations</artifactId>
            <version>1.5.21</version>
        </dependency>

        <dependency>
            <groupId>io.swagger</groupId>
            <artifactId>swagger-models</artifactId>
            <version>1.5.21</version>
        </dependency>

        <!--swagger增强，界面更友好-->
        <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>swagger-bootstrap-ui</artifactId>
            <version>1.8.9</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <!--热部署插件，CTRL+f9-->
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <fork>true</fork>
                </configuration>
            </plugin>
        </plugins>
    </build>

在maven项目中创建spring项目

现在的项目使用spring boot开发，除了基本的项目中的业务代码，开始的部分要做的就是：
加依赖、加注解、写配置
对于依赖的相关版本查找：链接地址

加依赖

		<dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
        </dependency>

加注解
在项目启动类上添加以下注解：

@EnableEurekaServer

写配置
注意yml的格式问题、application的编码问题

server:
  port: 10000
eureka:
  client:
    register-with-eureka: false
    fetch-registry: false
    service-url:
      defaultZone: http://localhost:10000/eureka/

注：eureka的集群配置方法
配置改为

---
server:
  port: 10000
spring:
  application:
    name: eureka-server
  profiles: peer1
#将peer1注册到peer2，peer3
eureka:
  instance:
    hostname: peer1
  client:
    service-url:
      defaultZone: http://peer2:10001/eureka/,http://peer3:10002/eureka/
---
server:
  port: 10001
spring:
  application:
    name: eureka-server
  profiles: peer2
#将peer2注册到peer1，peer3
eureka:
  client:
    service-url:
      defaultZone: http://peer1:10000/eureka/,http://peer3:10002/eureka/
  instance:
    hostname: peer2
---
server:
  port: 10002
spring:
  application:
    name: eureka-server
  profiles: peer3
#将peer3注册到peer1，peer2
eureka:
  client:
    service-url:
      defaultZone: http://peer1:10000/eureka/,http://peer2:10001/eureka/
  instance:
    hostname: peer3

并找到自己的hosts文件 ,在C:\Windows\System32\drivers\etc目录下，使用文本方式打开，在文本的末尾阶段加上：

#eureka
127.0.0.1 peer1
127.0.0.1 peer2
127.0.0.1 peer3
#eureka end

eureka整合security权限认证

加依赖

		<dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>

加注解
写配置
peer1、peer2、peer3都要改

server:
  port: 10000
spring:
  application:
    name: eureka-server
  profiles: peer1
  security:
    user:
      name: wen
      password: qiyu
# 将peer1注册到peer2，peer3
eureka:
  instance:
    hostname: peer1
  client:
    service-url:
      defaultZone: http://wen:qiyu@peer2:10001/eureka/,http://wen:qiyu@peer3:10002/eureka/

idea配置启动项

项目

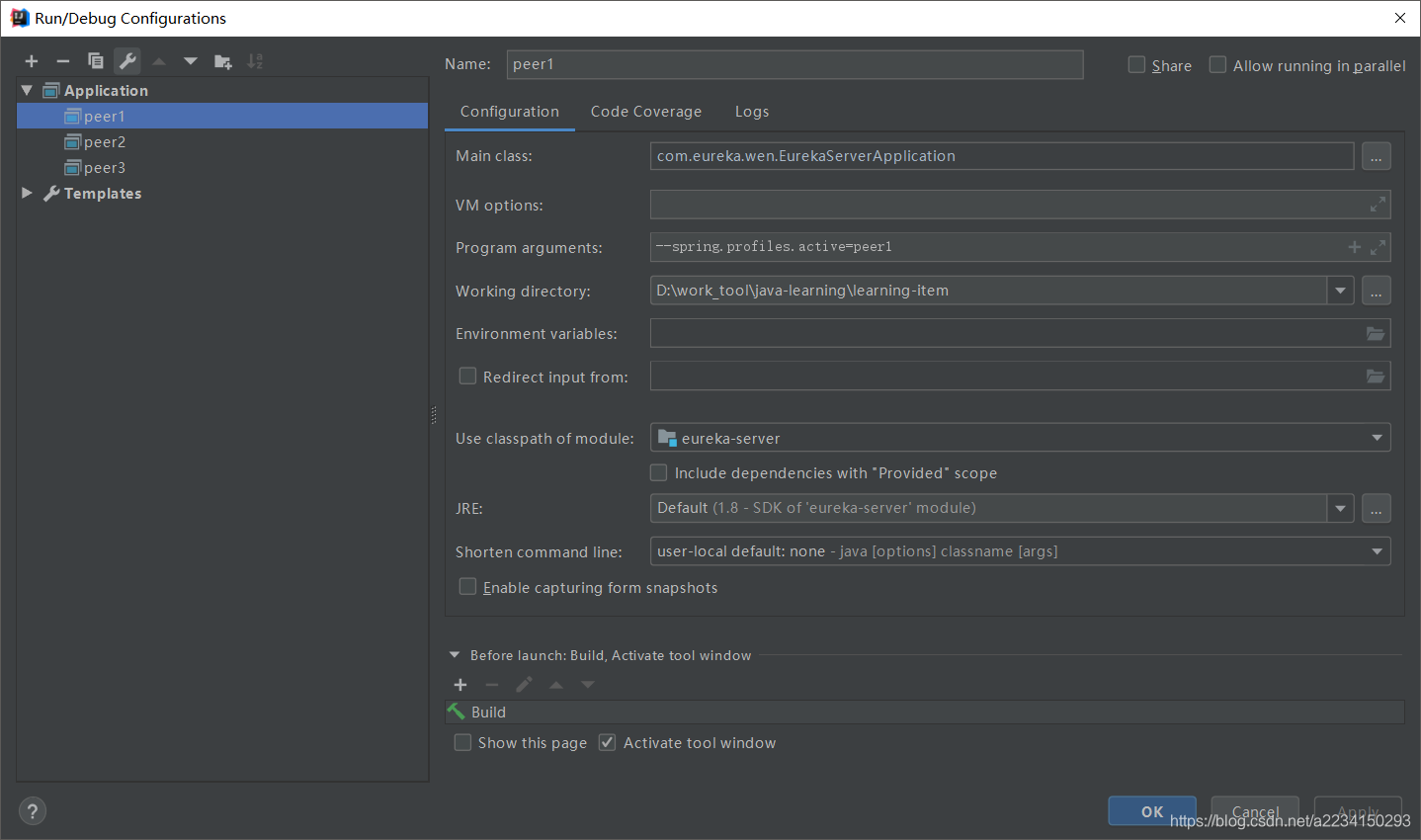

peer1节点启动项:

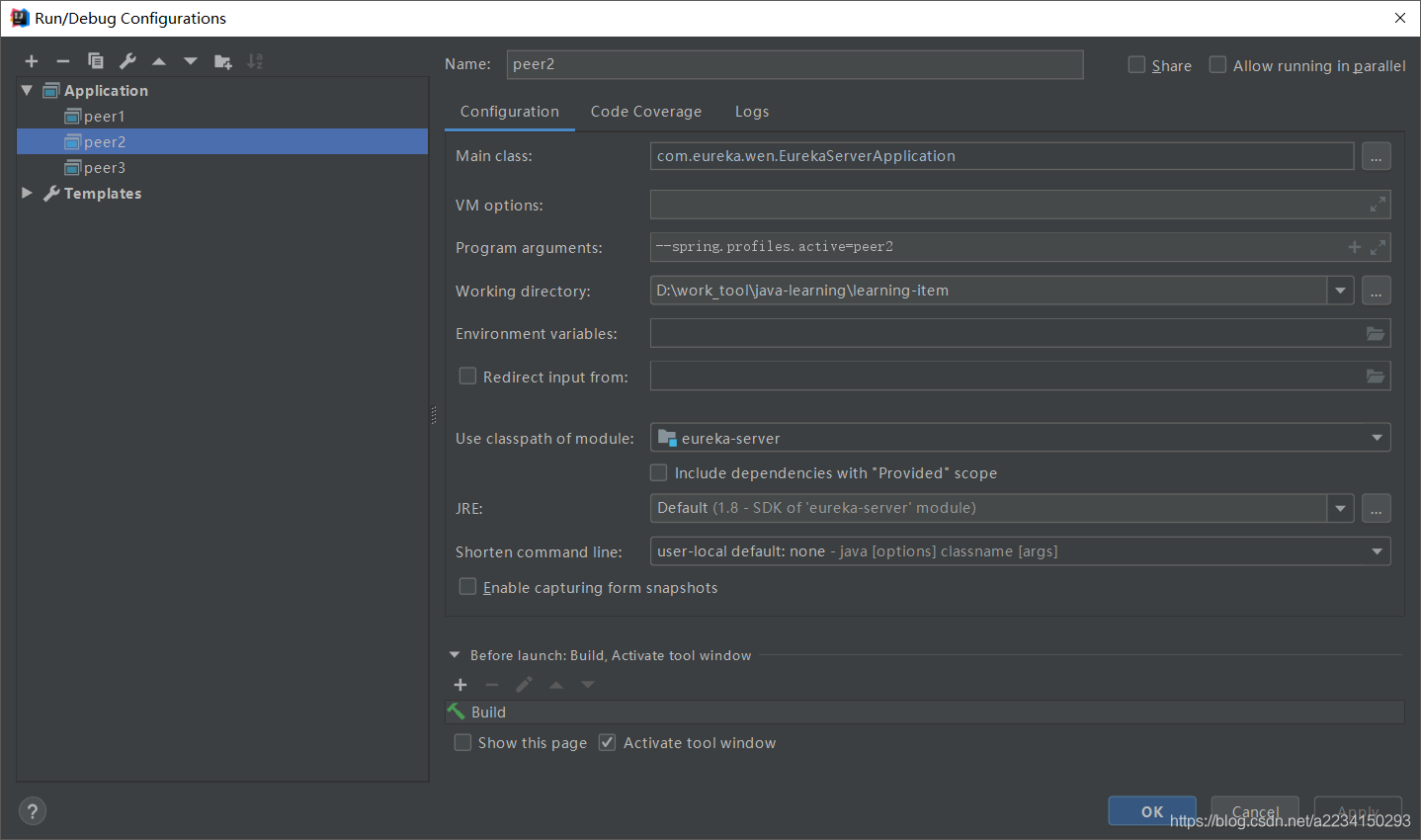

peer2节点启动项:

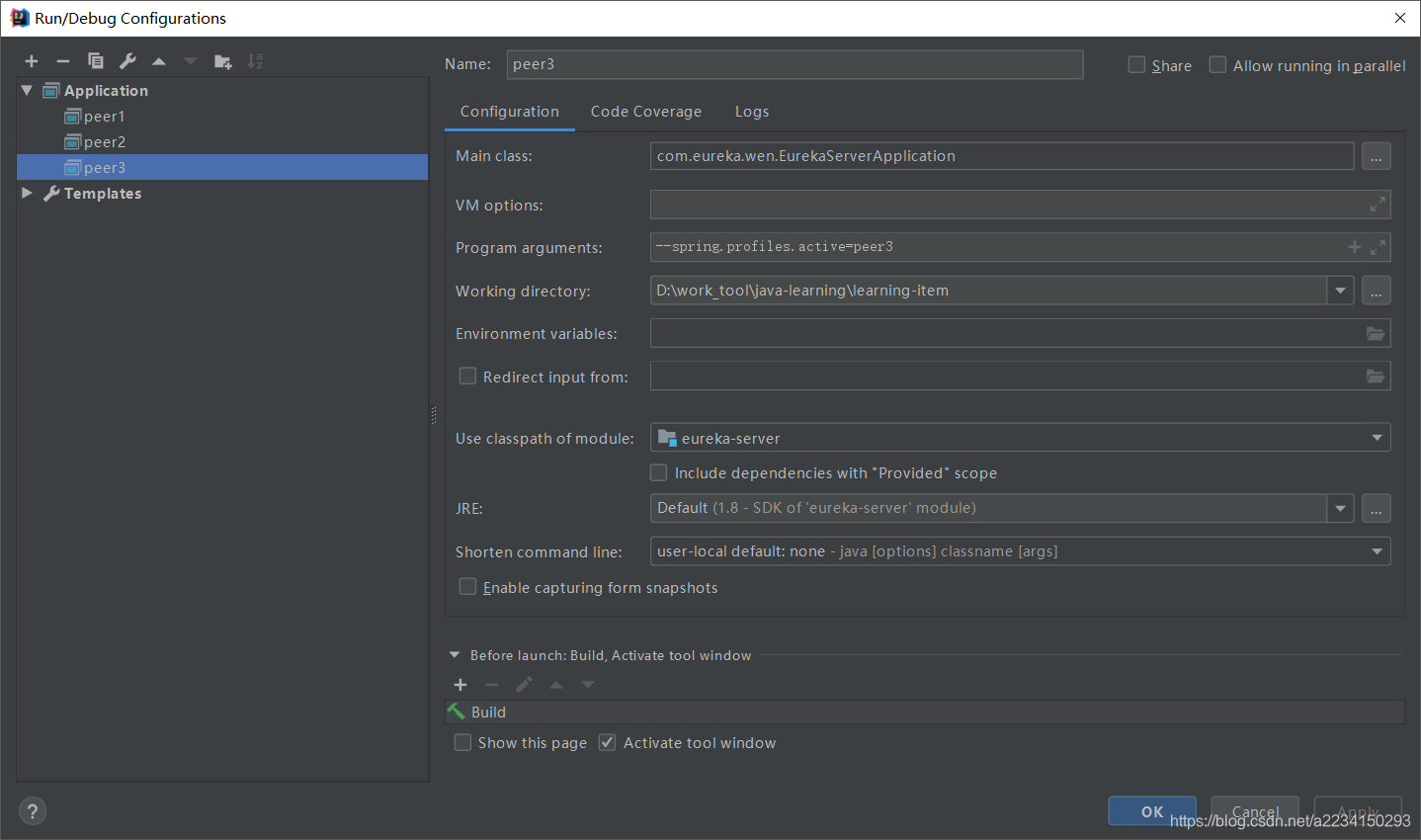

peer3节点启动项:

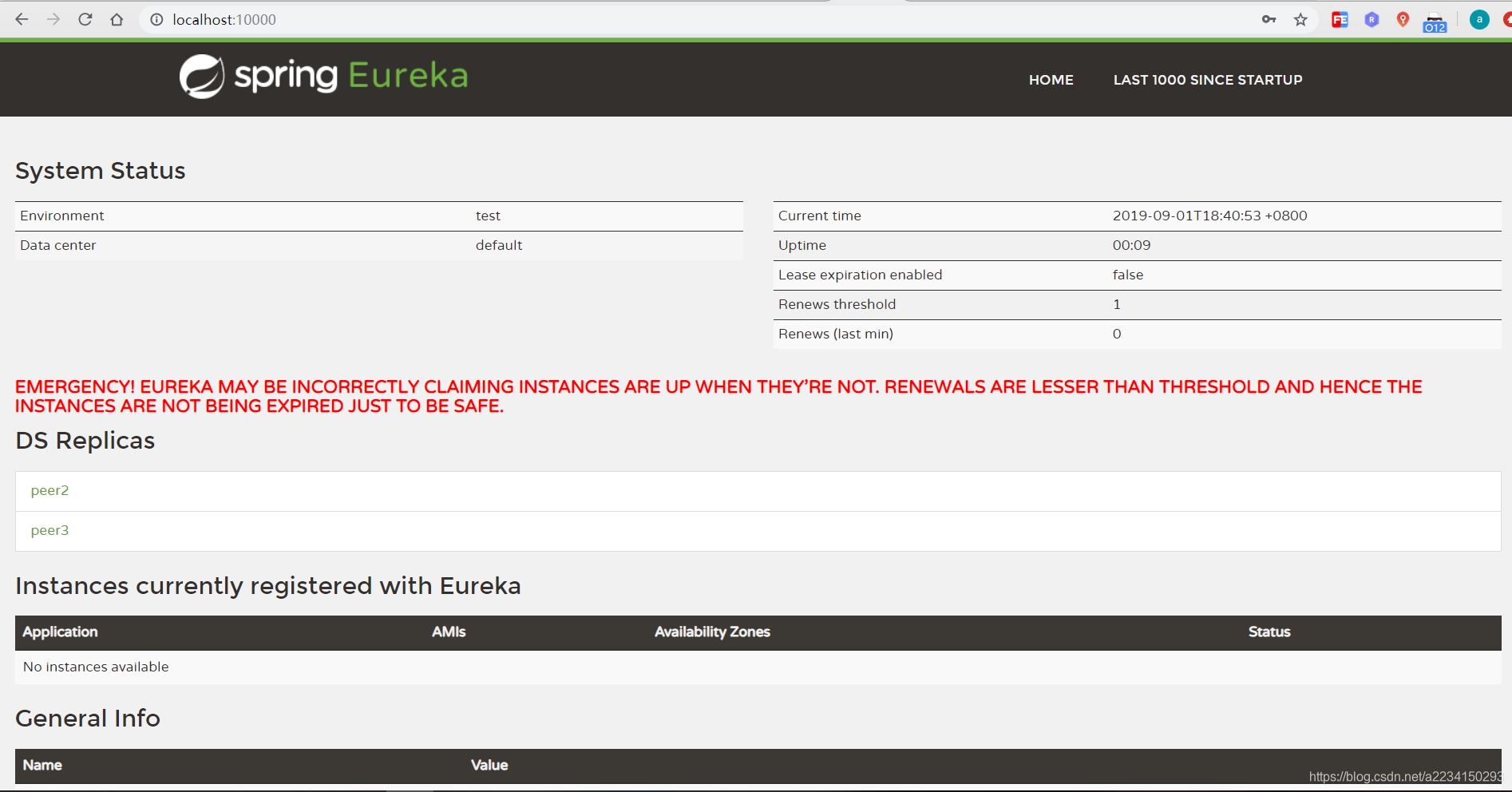

eureka客户端访问

peer1节点访问路径：http://localhost:10000

peer2、peer3端口换10001、10002
