交换综合实验

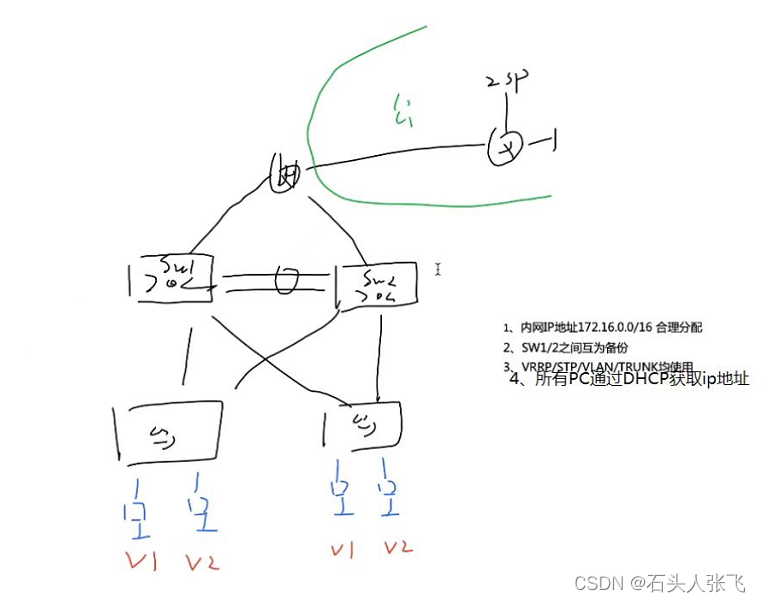

实验要求

实验分析

配置思路

交换

eth-trunk　＞　创建vlan　＞　trunk干道＞　接口划分vlan　＞　STP　＞　SVI　＞　VRRP　＞　DHCP

路由

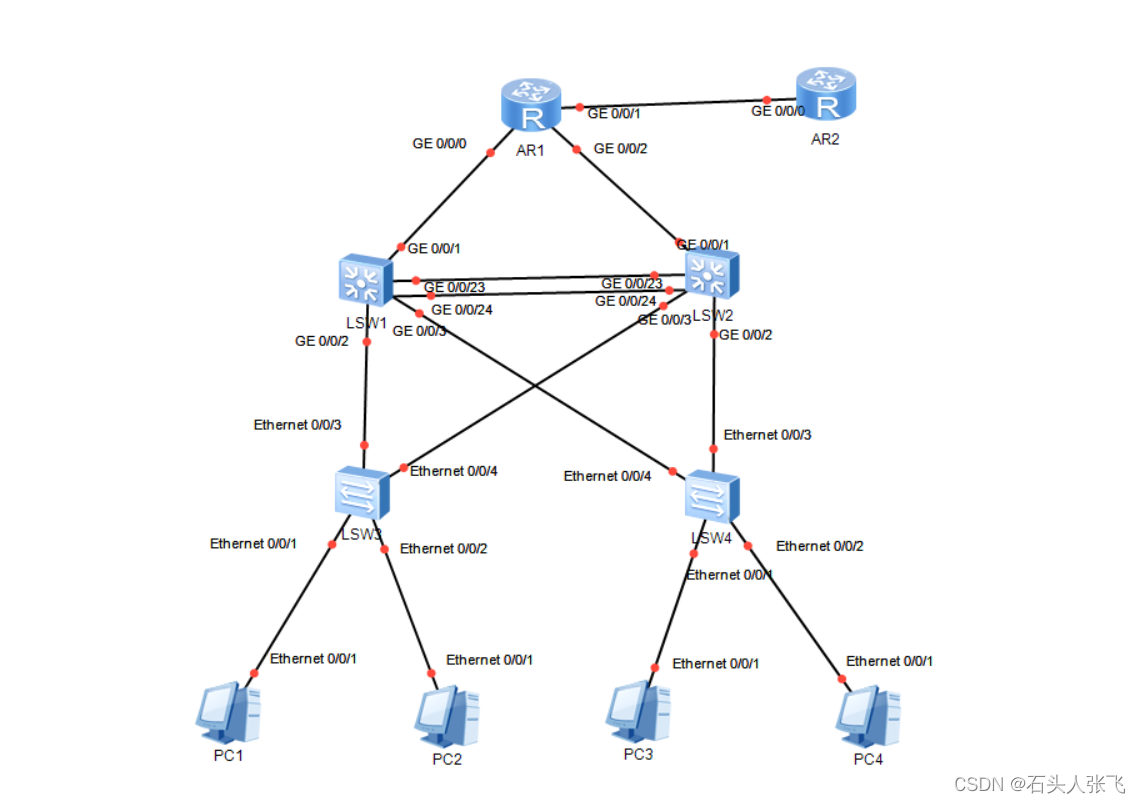

实验拓扑

实验步骤

一.eth-trunk的配置

SW1：
[sw1]int Eth-Trunk 0                ----创建虚拟接口
[sw1-Eth-Trunk0]int g0/0/23        ---将接口划入虚拟接口

[sw1-GigabitEthernet0/0/23]eth-trunk 0

[sw1-GigabitEthernet0/0/23]int g0/0/24
[sw1-GigabitEthernet0/0/24]e
[sw1-GigabitEthernet0/0/24]eth-trunk 0

SW2：

[sw2]int Eth-Trunk 0
[sw2-Eth-Trunk0]int g0/0/23
[sw2-GigabitEthernet0/0/23]e
[sw2-GigabitEthernet0/0/23]eth-trunk 0

[sw2-GigabitEthernet0/0/23]int g0/0/24
[sw2-GigabitEthernet0/0/24]e
[sw2-GigabitEthernet0/0/24]eth-trunk 0

二.创建VLAN，划分vlan，配置Trunk干道

SW1：
[sw1]port-group group-member  GigabitEthernet 0/0/2 GigabitEthernet 0/0/3 Eth-Trunk 0
[sw1-port-group]port link-type trunk
[sw1-port-group]port trunk allow-pass vlan all
SW2：
[sw2]port-group group-member  GigabitEthernet 0/0/2 GigabitEthernet 0/0/3 Eth-Trunk 0
[sw2-port-group]port link-type trunk
[sw2-port-group]port trunk allow-pass vlan all
SW3：
[sw3]vlan 2

[sw3]port-group group-member GigabitEthernet 0/0/1 GigabitEthernet 0/0/2
[sw3-port-group]port link-type trunk
[sw3-port-group]port trunk allow-pass vlan 2

[sw3]int e0/0/2
[sw3-Ethernet0/0/2]port link-type access
[sw3-Ethernet0/0/2]port default vlan 2

[sw3-Ethernet0/0/2]stp edged-port enable

[sw3-Ethernet0/0/2]int e0/0/1

[sw3-Ethernet0/0/1]stp edged-port enable

SW4：
[sw4]vlan 2

[sw4]port-group group-member GigabitEthernet 0/0/1 GigabitEthernet 0/0/2
[sw4-port-group]port link-type trunk
[sw4-port-group]port trunk allow-pass vlan 2

[sw4]int e0/0/2
[sw4-Ethernet0/0/2]port link-type access
[sw4-Ethernet0/0/2]port default vlan 2

[sw3-Ethernet0/0/2]stp edged-port enable

[sw3-Ethernet0/0/2]int e0/0/1

[sw3-Ethernet0/0/1]stp edged-port enable

三.STP配置

SW1 —— SW4
 stp region-configuration  ---进入MSTP组
 region-name a     ---创建名字，但其他交换机配置名必须一致
 instance 1 vlan 1  ---将VLAN按需求放入对应instance中
 instance 2 vlan 2
 active region-configuration  ---激活MST域的配置

[sw1]stp instance 1 root primary   ---将instan 1作为SW1的主根
[sw1]stp instance 2 root secondary  ---将instan 2作为SW1的备份根
[sw2]stp instance 1 root secondary  ---将instan 1作为SW2的备份根
[sw2]stp instance 2 root primary     ---将instan 2作为SW2的主根

四.配置SVI和VRRP

SW1：
[sw1]interface Vlan 1
[sw1-Vlanif1]ip address 172.16.1.1 25   ---SVI配置
[sw1-Vlanif1]vrrp vrid 1 virtual-ip 172.16.1.126    ---激活VRRP，配置虚拟网关
[sw1-Vlanif1]vrrp vrid 1 priority 110   ---修改优先级
[sw1-Vlanif1]vrrp vrid 1 track interface GigabitEthernet 0/0/1  reduced 50  ---上行链路追踪，如果上行的端口发送故障，则将网关接口的VRRP优先级降低50（默认降低10）

[sw1]interface Vlan 2
[sw1-Vlanif2]ip address 172.16.1.129 25
[sw1-Vlanif2]vrrp vrid 1 virtual-ip 172.16.1.254

SW2：
[sw2]interface Vlan 1
[sw2-Vlanif1]ip address 172.16.1.2 25
[sw2-Vlanif1]vrrp vrid 1 virtual-ip 172.16.1.126

[sw2]interface Vlan 2
[sw2-Vlanif2]ip address 172.16.1.130 25
[sw2-Vlanif2]vrrp vrid 1 virtual-ip 172.16.1.254
[sw2-Vlanif2]vrrp vrid 1 priority 110
[sw2-Vlanif2]vrrp vrid 1 track interface GigabitEthernet 0/0/1 reduced 50


五、配置DHCP

[sw1]dhcp enable
[sw1]ip pool v1
[sw1-ip-pool-v1]network 172.16.1.0 mask 25
[sw1-ip-pool-v1]gateway-list 172.16.1.126
[sw1-ip-pool-v1]q
[sw1]ip pool v2
[sw1-ip-pool-v2]network 172.16.1.128 mask 25
[sw1-ip-pool-v2]gateway-list 172.16.1.254
[sw1]int Vlanif 1
[sw1-Vlanif1]dhcp select global
[sw1-Vlanif1]q
[sw1]int Vlanif 2
[sw1-Vlanif2]dhcp select global

SW2：
[sw2]dhcp enable
[sw2]ip pool v1
[sw2-ip-pool-v1]network 172.16.1.0 mask 25
[sw2-ip-pool-v1]gateway-list 172.16.1.126
[sw2-ip-pool-v1]q
[sw2]ip pool v2
[sw2-ip-pool-v2]network 172.16.1.128 mask 25
[sw2-ip-pool-v2]gateway-list 172.16.1.254
[sw2]int Vlanif 1
[sw2-Vlanif1]dhcp select global
[sw2-Vlanif1]q
[sw2]int Vlanif 2
[sw2-Vlanif2]dhcp select global

六.路由配置

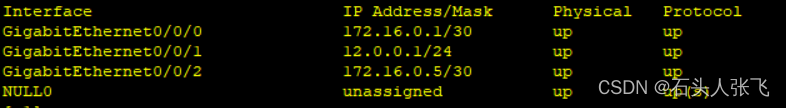

R1

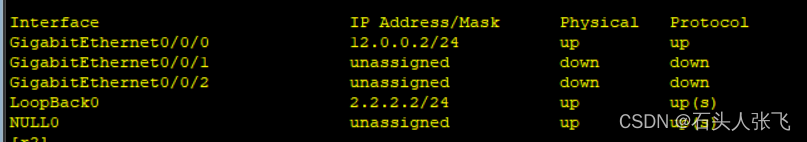

R2



交换机上IP配置，需要虚拟接口

SW1：
[sw1]vlan 100
[sw1-vlan100]q
[sw1]int Vlanif 100
[sw1-Vlanif100]ip address 172.16.0.2 30
[sw1]int g0/0/1
[sw1-GigabitEthernet0/0/1]port link-type access
[sw1-GigabitEthernet0/0/1]port default vlan 100

SW2：
[sw2]vlan 100
[sw2-vlan100]q
[sw2]int Vlanif 100
[sw2-Vlanif100]ip address 172.16.0.6 30
[sw2]int g0/0/1
[sw2-GigabitEthernet0/0/1]port link-type access
[sw2-GigabitEthernet0/0/1]port default vlan 100

这里选择动态路由RIP

[r1]rip
[r1-rip-1]v 2
[r1-rip-1]network 172.16.0.0

[r1-rip-1]default-route originate

[sw1]rip
[sw1-rip-1]v 2
[sw1-rip-1]network 172.16.0.0

[sw2]rip
[sw2-rip-1]v 2
[sw2-rip-1]network 172.16.0.0

NAT

NAT地址转换使私网通公网

[r1]ip route-static 0.0.0.0 0 12.0.0.2
[r1]acl 2000
[r1-acl-basic-2000]rule permit source 172.16.0.0 0.0.255.255
[r1-acl-basic-2000]q
[r1]int g 0/0/0
[r1-GigabitEthernet0/0/0]nat outbound 2000

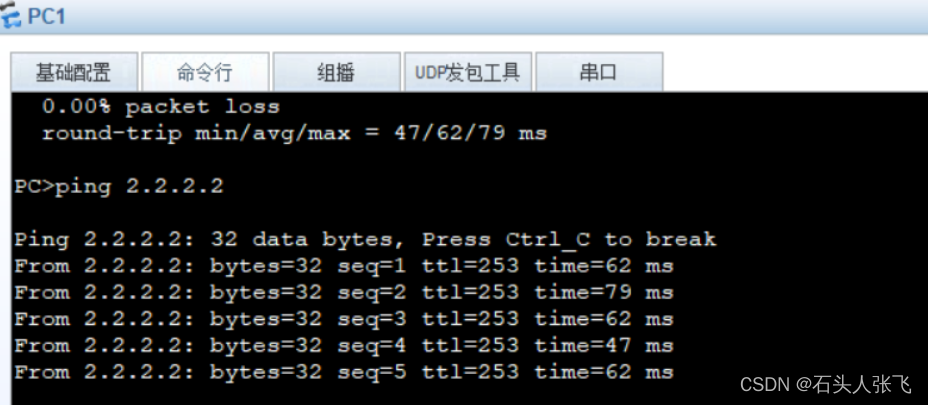

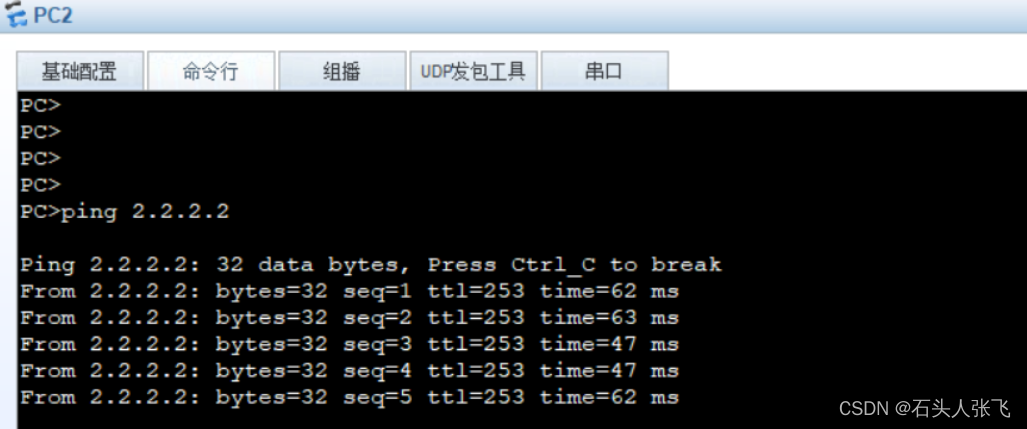

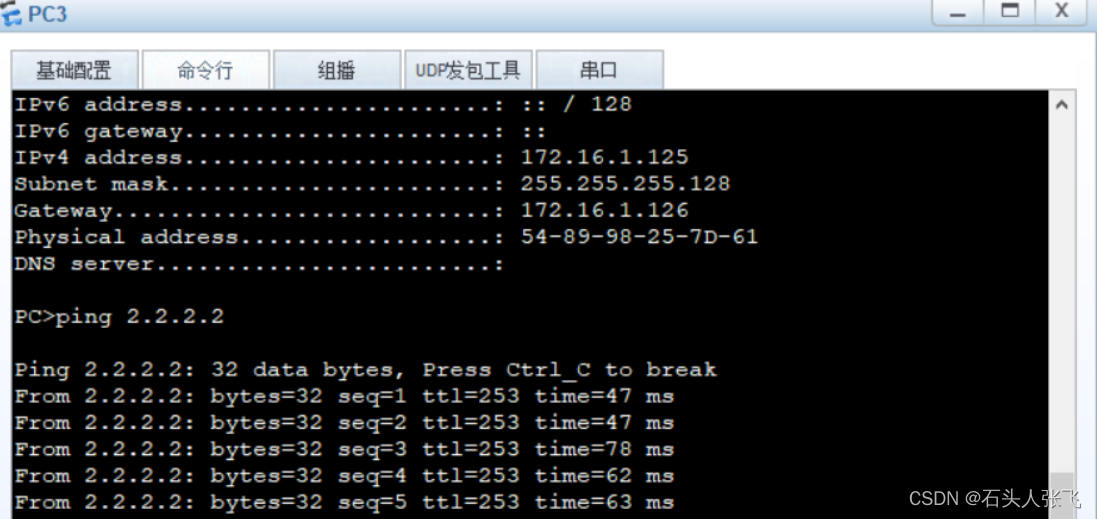

实验验证
