大屏项目适配问题scale缩放

本文介绍了如何使用Vue组件和CSS3的scale属性来实现大屏自适应,尤其是在需要考虑地图显示的情况下。作者指出,使用scale可能会导致经纬度误差,但适用于静态展示。代码示例展示了如何封装一个Vue组件,通过监听窗口resize事件动态调整缩放比例,以保持16:9的宽高比,并提供了详细的CSS样式和组件结构。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

大屏自适配

注意:涉及到高德地图 百度地图这些,千万不能用 ,如果是单纯显示,不涉及二次渲染 动态数据啥的,倒是可以!!scale影响了经纬度,踩坑踩大了!!!

1、这个是借鉴了大佬们使用的,我又封装成vue组件使用,用了Css3的缩放属性scale控制页面比例,不过这样的可能对地图的经纬度会产生误差,比如点击地图的地点名,可能高亮到其他附加的地方,具体需求看自己界面是什么功能了,一般用来看的 还是没问题的。

直接上代码,封装成vue组件,使用了插槽,设计稿比例是:1920*1080,具体看自己需求(做个笔记而已)

<template>
  <div v-bind:style="styleObject" class="scale-box">
    <slot></slot>
  </div>
</template>

<script>
import debounce from "lodash.debounce"
const that = this;
export default {
  props: {
    width: {
      type: Number,
      default: 1920,
    },
    height: {
      type: Number,
      default: 1080,
    },
  },
  components: {},
  data() {
    return {
      scale: this.getScale(),
    }
  },
  computed: {
    styleObject(){
      let obj = {
        transform: `scale(${this.scale}) translate(-50%, -50%)`,
        WebkitTransform: `scale(${this.scale}) translate(-50%, -50%)`,
        width: this.width + "px",
        height: this.height + "px",
      }
       return obj
    }

  },
  mounted() {
    this.getScale()
    window.addEventListener("resize", this.setScale)
  },
  methods: {
    getScale() {
      // 固定好16:9的宽高比,计算出最合适的缩放比,宽高比可根据需要自行更改
      console.log(window.innerWidth,'window.innerWidth');
      let ww = window.innerWidth / this.width
      let wh = window.innerHeight / this.height
      return ww < wh ? ww : wh
    },

    setScale: debounce(function () {

      // 获取到缩放比,设置它
      let scale = this.getScale()
      this.scale = scale
       console.log(this.scale, "---")
    }, 500),
  },
  beforeDestroy() {
    window.addEventListener("resize", this.setScale)
  },
}
</script>

<style scoped lang="less">
.scale-box {
  transform-origin: 0 0;
  position: absolute;
  left: 50%;
  top: 50%;
  transition: 0.3s;
}
</style>

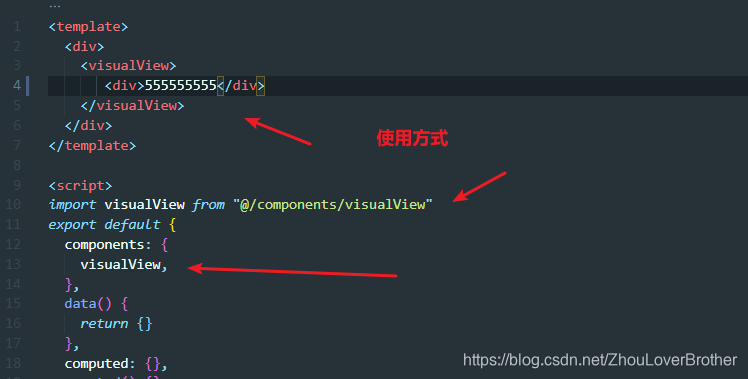

在这里插入图片描述

<think>好的,我现在需要解决用户关于项目分辨率适配问题。用户提到了两个引用,都是关于前端适配的解决方案,特别是涉及不同分辨率和设备像素比(DPR)的问题。首先,我需要理解用户的具体需求,他们可能在开发可视化项目时遇到了显示不一致的问题,比如文本溢出或布局错乱。 接下来,我应该整理已有的解决方案。根据引用[^1]和[^2],核心思路是动态调整页面缩放比例,使其适应不同分辨率和DPR。这通常包括计算合适的缩放比例,应用CSS变换,以及处理窗口小变化的事件。用户可能需要一个具体的步骤指南以及代码示例。 然后,我需要确保回答结构清晰,分步骤说明解决方案,并附上代码。同时,要符合用户的要求,使用中文,正确使用LaTeX格式,比如在提到数学公式时用$...$或$$...$$。但在这个问题中可能数学公式较少,但如果有计算缩放比例的部分,可能需要用公式。 还要注意生成相关问题,这需要根据解决方案的内容提出,例如原理、优化方法、不同框架的实现等。需要确保问题相关且有价值。 然后检查是否有遗漏点,比如如何处理图片和图表的适配,或者如何测试不同分辨率下的效果。此外,引用部分要正确标注,确保用户知道参考来源。 最后,确保语言通俗易懂,避免专业术语过多,但也要准确。可能需要验证代码的正确性,比如提供的JavaScriptCSS是否确实能实现缩放效果,以及处理resize事件和清除缩放的方法是否有效。</think>项目分辨率适配方案可以通过动态缩放CSS媒体查询相结合的方式实现,以下为分步骤解决方案: 1. **基础布局设计** 使用百分比布局和flex弹性容器作为基础结构,通过vw/vh单位实现视窗比例控制: ```css .container { width: 100vw; height: 100vh; display: flex; position: relative; } ``` 2. **动态缩放核心算法** 通过JavaScript计算缩放比例并应用transform: ```javascript function autoScale() { const designWidth = 1920; // 设计稿基准宽度 const designHeight = 1080; // 设计稿基准高度 const deviceRatio = window.devicePixelRatio || 1; const scaleX = window.innerWidth / designWidth; const scaleY = window.innerHeight / designHeight; const minScale = Math.min(scaleX, scaleY); document.body.style.transform = `scale(${minScale})`; document.body.style.transformOrigin = 'left top'; document.body.style.width = `${designWidth}px`; document.body.style.height = `${designHeight}px`; } ``` 3. **响应式处理** 添加窗口监听事件并初始化: ```javascript window.addEventListener('resize', debounce(autoScale, 200)); autoScale(); // 初始化执行 ``` 4. **高精度适配优化** 使用rem单位配合动态根字体小(可选): ```javascript const setRem = () => { const baseSize = 16; const scale = document.documentElement.clientWidth / 1920; document.documentElement.style.fontSize = baseSize * scale + 'px'; } ``` 5. **特殊场景处理** 添加最/最小缩放限制: ```javascript const minScaleLimit = 0.7; // 最小缩放比例 const maxScaleLimit = 1.5; // 最缩放比例 const finalScale = Math.max(minScaleLimit, Math.min(minScale, maxScaleLimit)); ``` 6. **浏览器缩放检测** 处理浏览器默认缩放行为: ```javascript const detectBrowserZoom = () => { const actualZoom = window.outerWidth / window.innerWidth; if(actualZoom !== 1) alert('请关闭浏览器缩放功能!'); } ``` 7. **CSS媒体查询补充** 配合媒体查询处理极端分辨率: ```css @media (max-aspect-ratio: 16/9) { /* 竖适配 */ } @media (min-aspect-ratio: 21/9) { /* 超宽适配 */ } ``` 该方案通过动态计算缩放比例保持内容比例不变,同时配合rem单位保证字体清晰度,实测可适配$16:9$到$32:9$的各种幕比例。 ```javascript // 完整代码示例 class ViewportAdapter { constructor(options) { this.options = { designWidth: 1920, designHeight: 1080, minScale: 0.5, maxScale: 2, ...options }; this.init(); } init() { this.update(); window.addEventListener('resize', () => this.update()); } update() { const { designWidth, designHeight, minScale, maxScale } = this.options; const width = window.innerWidth; const height = window.innerHeight; const scaleX = width / designWidth; const scaleY = height / designHeight; let scale = Math.min(scaleX, scaleY); scale = Math.max(minScale, Math.min(scale, maxScale)); document.documentElement.style.fontSize = 16 * scale + 'px'; document.body.style.transform = `scale(${scale})`; document.body.style.transformOrigin = '0 0'; } } // 初始化适配器 new ViewportAdapter(); ```
