prometheus监控etcd集群

1.curl验证请求

curl -s https://10.x.x.x:2379/metrics --cacert /etc/etcd/ssl/ca.pem  --cert /etc/etcd/ssl/server.pem --key /etc/etcd/ssl/server-key.pem

2.配置prometheus

• 创建secret

kubectl  create secret generic etcd-certs --from-file=/etc/etcd/ssl/ca.pem --from-file=/etc/etcd/ssl/server.pem --from-file /etc/etcd/ssl/server-key.pem

• 配置prometheus (prometheus-config.yml)

#cat prometheus-config.yml
apiVersion: v1
kind: ConfigMap
metadata:
  name: prometheus-config
data:
  prometheus.yml: |
    global:
      scrape_interval:     15s
      evaluation_interval: 15s
    scrape_configs:
      - job_name: 'etcd'
        metrics_path: /metrics
        scheme: https
        tls_config:
          ca_file: /var/run/secrets/kubernetes.io/k8s-certs/etcd/ca.pem
          cert_file: /var/run/secrets/kubernetes.io/k8s-certs/etcd/server.pem
          key_file: /var/run/secrets/kubernetes.io/k8s-certs/etcd/server-key.pem
        static_configs:
        - targets: ['10.0.0.1:2379','10.0.0.2:2379','10.0.0.3:2379']

• 配置deployment挂载证书 (prometheus-deployment.yml)

新增如下配置

        volumeMounts:
        - mountPath: /var/run/secrets/kubernetes.io/k8s-certs/etcd/
          name: k8s-certs

      volumes:
      - name: k8s-certs
        secret:
          secretName: etcd-certs

• 配置configmap新增etcd target (prometheus-config.yml)

      - job_name: 'etcd'
        metrics_path: /metrics
        scheme: https
        tls_config:
          ca_file: /var/run/secrets/kubernetes.io/k8s-certs/etcd/ca.pem
          cert_file: /var/run/secrets/kubernetes.io/k8s-certs/etcd/server.pem
          key_file: /var/run/secrets/kubernetes.io/k8s-certs/etcd/server-key.pem
        static_configs:
        - targets: ['10.0.0.1:2379','10.0.0.2:2379','10.0.0.3:2379']

kubectl apply -f xx.yaml应用上述配置使其生效

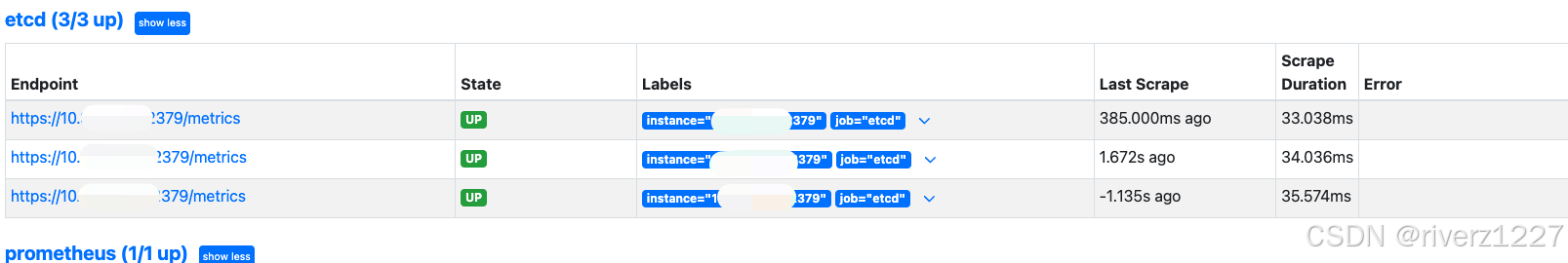

3.访问prometheus验证

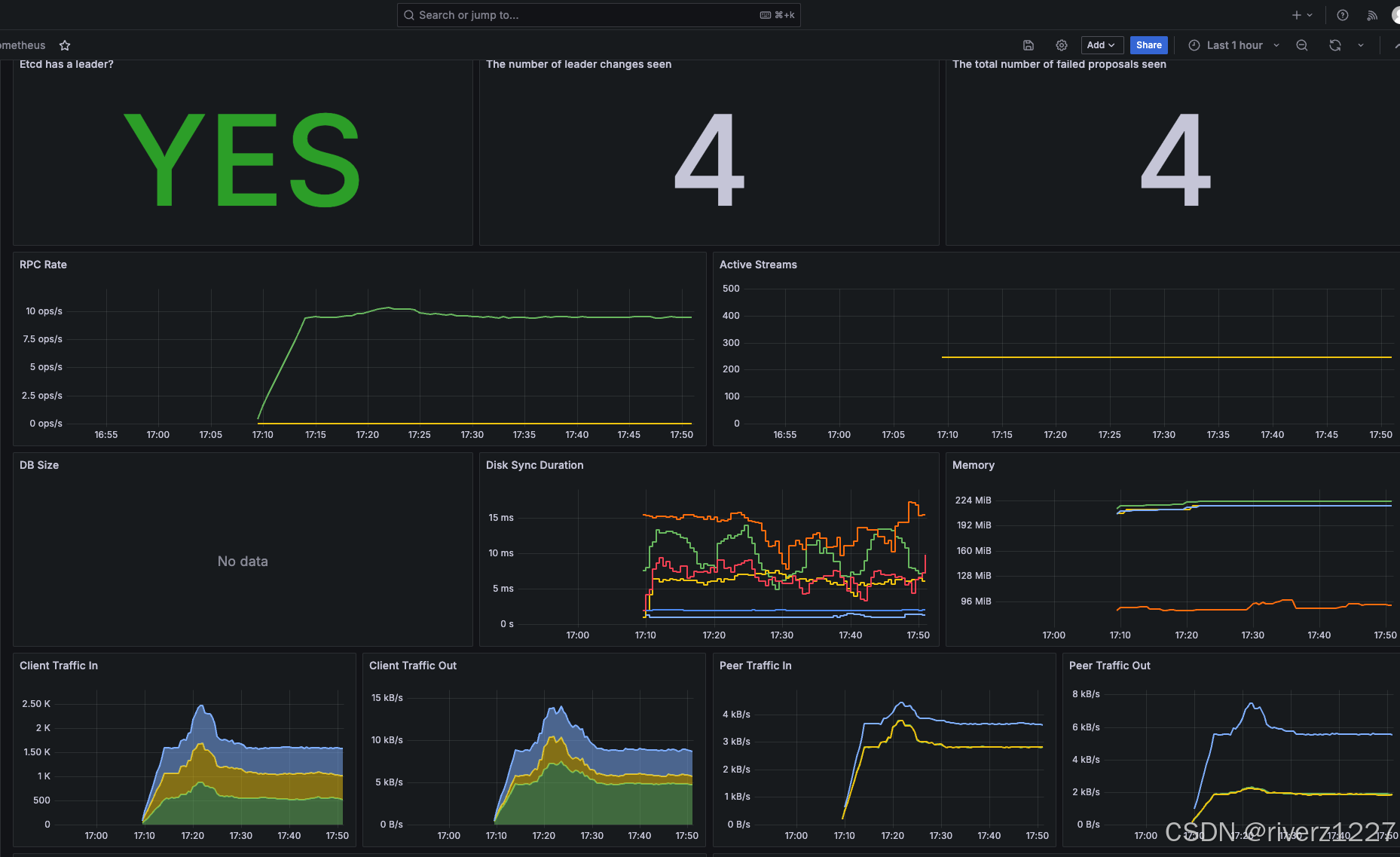

4.grafana中导入模版3070,效果如图

参考:

https://www.chenshaowen.com/blog/using-prometheus-in-the-cluster-to-collect-etcd-metrics.html

etcd教程(十七)---etcd 集群接入 Prometheus 监控系统 -
