1. 简介
在Kettle中合理的使用集群可以加快执行的速度,并且还能在部分服务器宕机的情况下继续使用。Kettle中集群是由一个主Carte服务器和多个从Carte服务器组成。在执行转换时,主服务器负责分发跟踪任务和收集结果总汇,从服务器负责具体的转换执行。在Kettle中,如果主服务器也宕机的话并不存在服务器(类似于redis、zookeeper等)重新选举的功能,也就是说一旦主服务器宕机,则Kettle集群就不能使用了。
——百度
kettle的集群粒度是每个步骤,右键步骤会有集群的选项。
主服务器不仅仅分发任务收集结果,也有执行任务的功能。
例如,一个转换有3个步骤,设置步骤2为集群的话,那么步骤2会在子服务器执行,步骤1和步骤3依旧在主服务器上执行。
kettle集群官方文档:https://help.pentaho.com/Documentation/9.1/Products/Set_Up_a_Carte_Cluster
2. 集群
本文集群设置1主2从,因此三个节点上需要部署kettle,可以参考:kettle简介与安装
博主在windows上部署了一个作为主服务器,两个虚拟机各部署一个kettle作为从服务器。

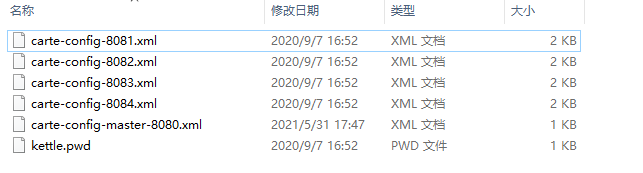

进入kettle安装目录,在目录pwd下有以下配置,集群时需要配置以下文件:
2.1 主服务器
编辑carte-config-master-8080.xml
<slave_config>
<!--
Document description...
- masters: You can list the slave servers to which this slave has to report back to.
If this is a master, we will contact the other masters to get a list of all the slaves in the cluster.
- report_to_masters : send a message to the defined masters to let them know we exist (Y/N)
- slaveserver : specify the slave server details of this carte instance.
IMPORTANT : the username and password specified here are used by the master instances to connect to this slave.
-->
<slaveserver>
<name>master1</name>
<hostname>192.168.0.142</hostname>
<port>8080</port>
<master>Y</master>
<username>yuwen</username>
<password>yuwen</password>
</slaveserver>
</slave_config>
保存配置,回到上级目录,打开cmd,执行以下命令,即可启动一个kettle的web服务:
Carte.bat ./pwd/carte-config-master-8080.xml

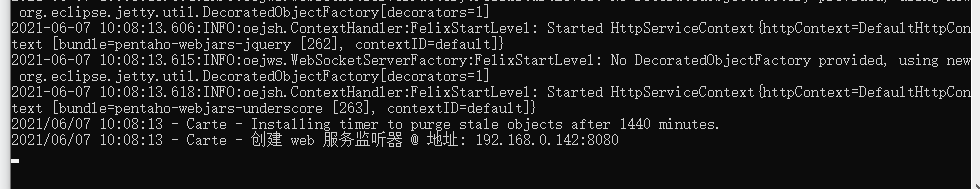

启动成功日志如下:
2.2 从服务器
进入1号从服务器kettle的pwd目录下,编辑carte-config-8081.xml,指定主服务器和配置自身信息,注意,主服务器的master标签值为Y,从服务器为N。
<slave_config>
<!--
Document description...
- masters: You can list the slave servers to which this slave has to report back to.
If this is a master, we will contact the other masters to get a list of all the slaves in the cluster.
- report_to_masters : send a message to the defined masters to let them know we exist (Y/N)
- slaveserver : specify the slave server details of this carte instance.
IMPORTANT : the username and password specified here are used by the master instances to connect to this slave.
-->
<masters>
<slaveserver>
<name>master1</name>
<hostname>192.168.0.142</hostname>
<port>8080</port>
<username>yuwen</username>
<password>yuwen</password>
<master>Y</master>
</slaveserver>
</masters>
<report_to_masters>Y</report_to_masters>
<slaveserver>
<name>slave1-8081</name>
<hostname>192.168.59.128</hostname>
<port>8081</port>
<username>yuwen</username>
<password>yuwen</password>
<master>N</master>
</slaveserver>
</slave_config>
返回上级目录,执行以下命令,启动1号从服务器
./carte.sh pwd/carte-config-8081.xml

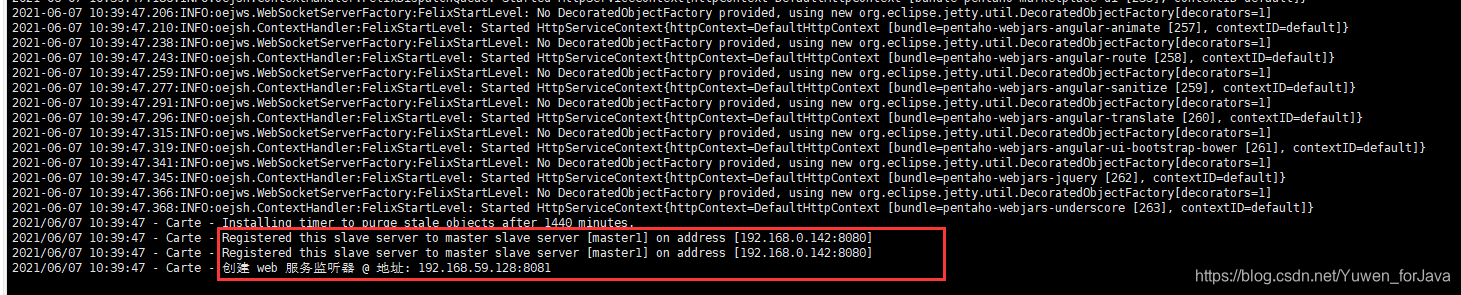

出现以下日志则启动成功,
进入2号从服务器kettle的pwd目录下,编辑carte-config-8082.xml,指定主服务器和配置自身信息,
<slave_config>
<!--
Document description...
- masters: You can list the slave servers to which this slave has to report back to.
If this is a master, we will contact the other masters to get a list of all the slaves in the cluster.
- report_to_masters : send a message to the defined masters to let them know we exist (Y/N)
- slaveserver : specify the slave server details of this carte instance.
IMPORTANT : the username and password specified here are used by the master instances to connect to this slave.
-->
<masters>
<slaveserver>
<name>master1</name>
<hostname>192.168.0.142</hostname>
<port>8080</port>
<username>yuwen</username>
<password>yuwen</password>
<master>Y</master>
</slaveserver>
</masters>
<report_to_masters>Y</report_to_masters>
<slaveserver>
<name>slave2-8082</name>
<hostname>192.168.59.129</hostname>
<port>8082</port>
<username>yuwen</username>
<password>yuwen</password>
<master>N</master>
</slaveserver>
</slave_config>
返回上级目录,执行以下命令,启动1号从服务器
./carte.sh pwd/carte-config-8082.xml

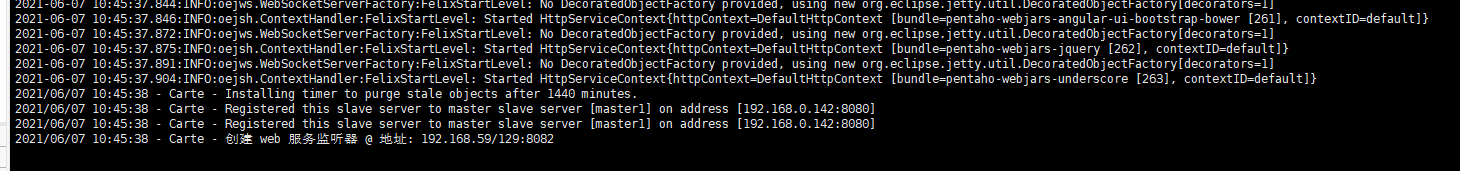

出现以下日志则启动成功,
3. 测试

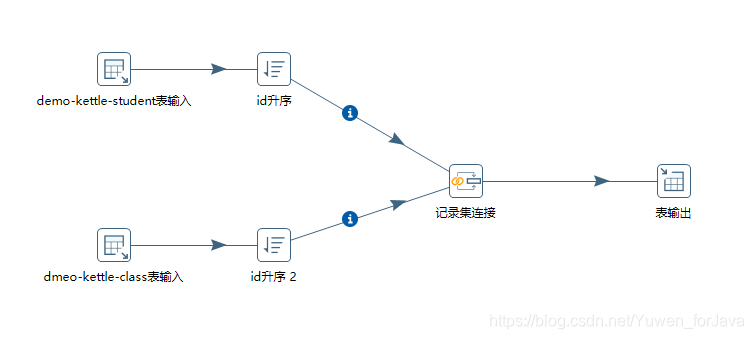

使用前文的转换进行测试,kettle新建转换

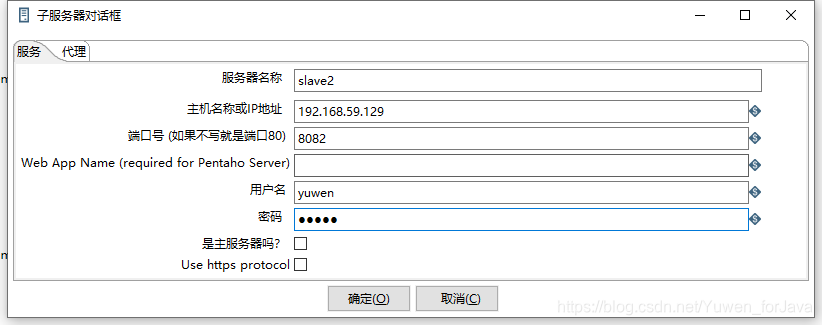

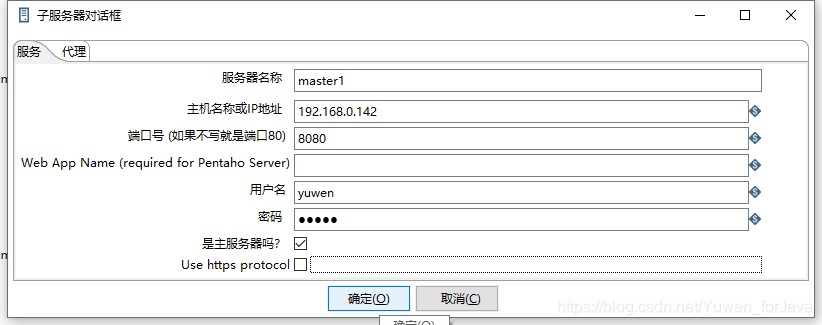

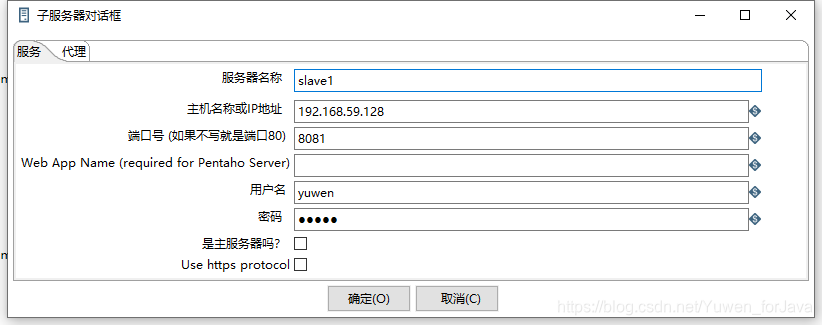

打开 主对象树->转换->子服务器 ,右击新建,分别建立上面配置的三个服务器,注意,主服务器需要勾选 是主服务器吗? 选项。

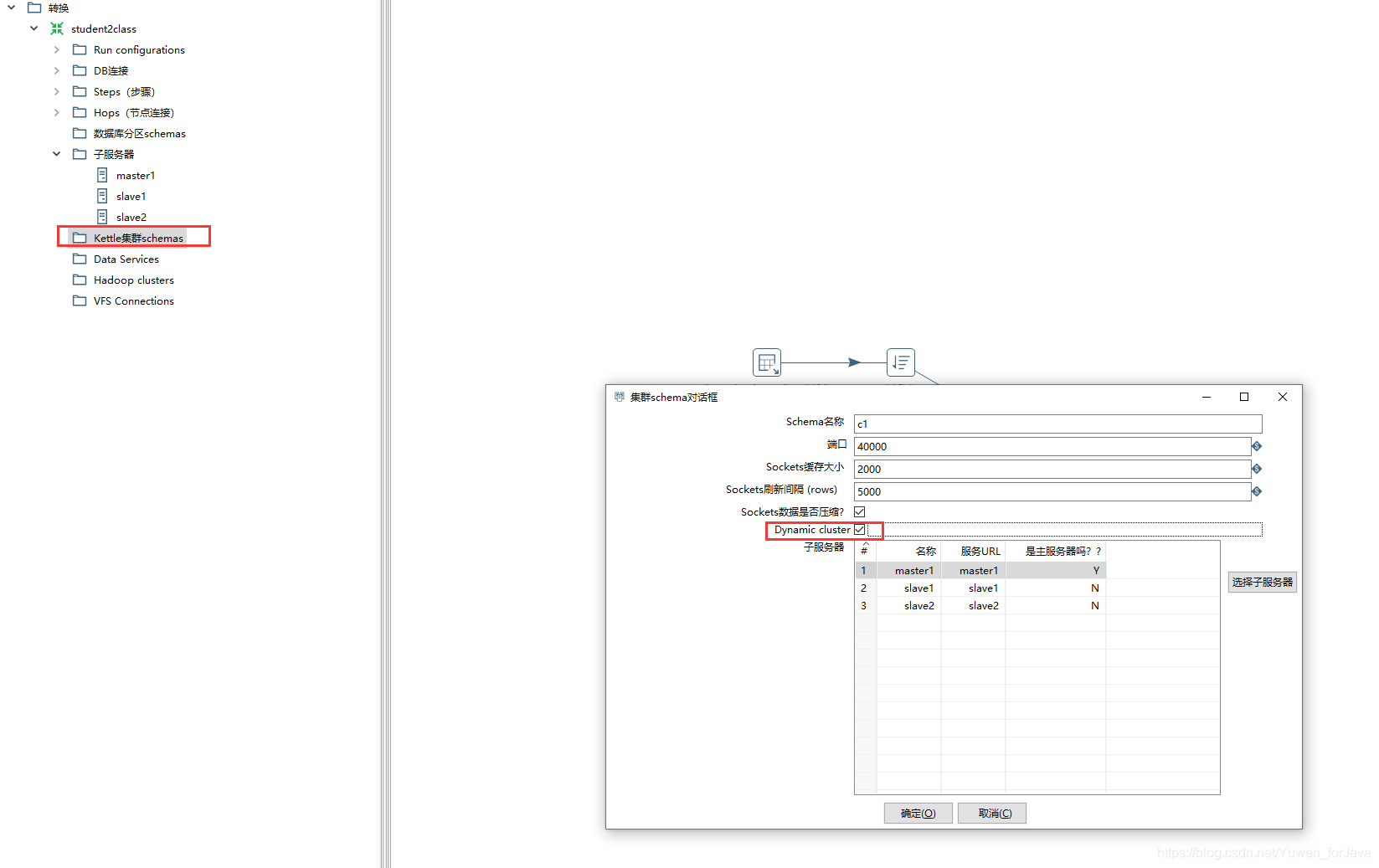

右击子服务器下的 kettle集群schemas,点击新建,把刚刚的子服务器添加上,注意把 Dynamic cluster 勾选上,因为我们是动态集群,如果有部分从服务器失去连接,也能执行。如果没有勾选,就以静态集群使用,如果有部分服务器失去连接,就会报connect refused错误。

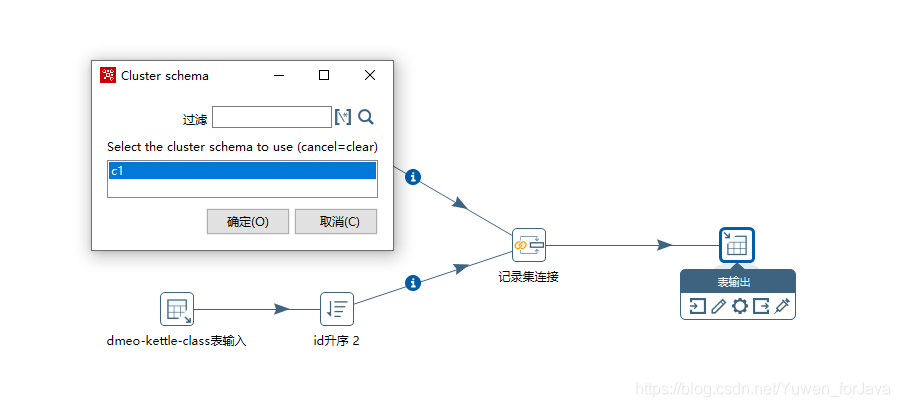

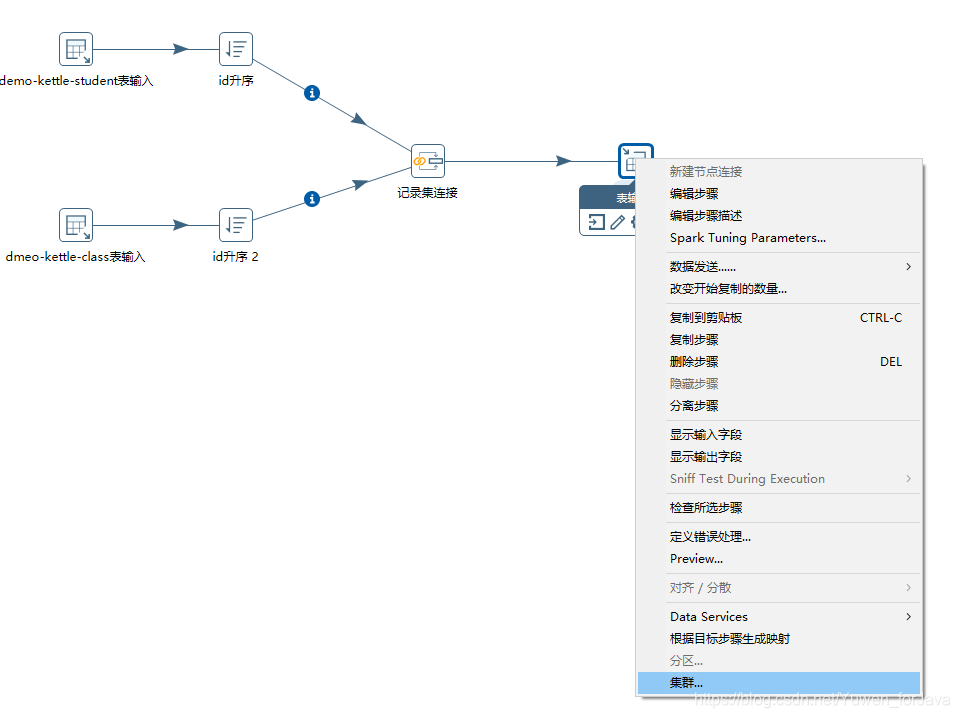

配置好后,右击转换的表输出步骤,点击集群,咱们把它配置为集群运行
配置好后,表输出就会出现一个 CxN 的标识

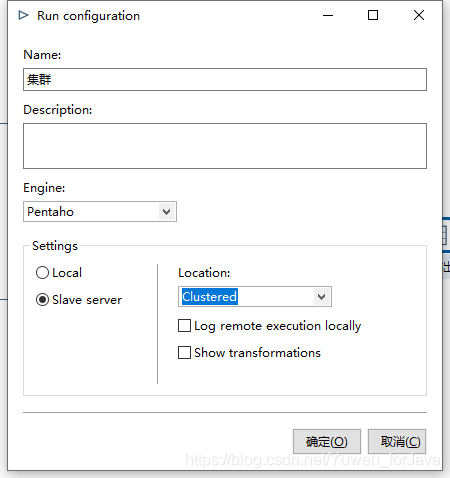

接下来去配置集群的启动设置,打开 主对象树->转换->run configuration。右击新建一个运行配置,如下;

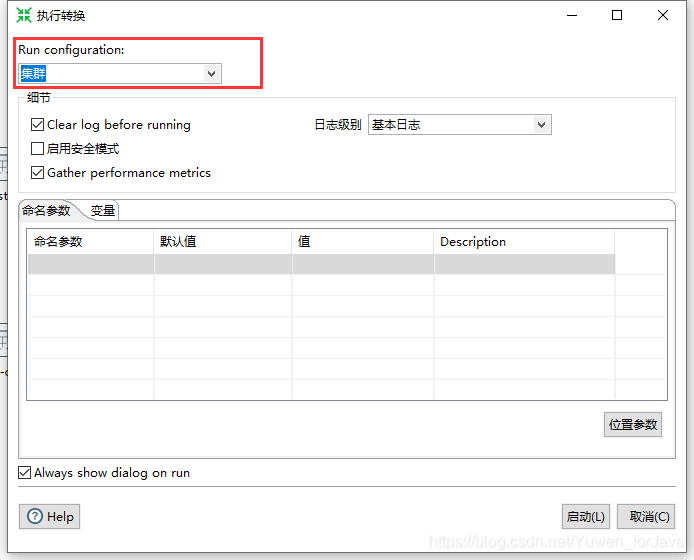

最后我们去运行这个转换,运行配置选择刚刚新建的,
点击启动,查看三台机器的日志分别如下

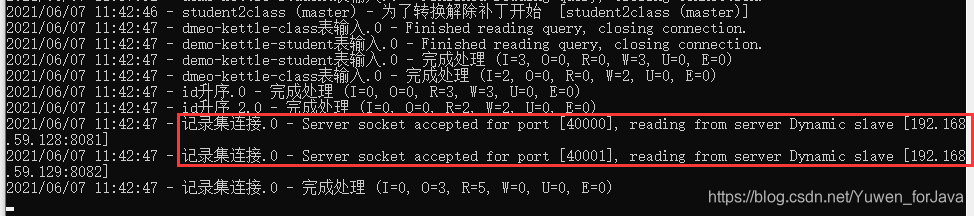

主:
从1:
从2:
主服务器执行了没有配置集群的几个步骤,分发配置集群的表输出到从服务器。
从服务器执行了配置集群的表输出 。
结果符合预期。
