最小化OpenStack Train版

实验环境

主机名	IP地址	操作系统	角色
controller	10.0.0.11 、192.168.191.171	CentOS 7	控制节点、网络节点
compute1	10.0.0.31 、192.168.191.177	CentOS 7	计算节点
block1	10.0.0.41 、192.168.191.178	CentOS 7	块存储节点

1. 环境准备

1.1 基础配置

更改IP地址

关闭防火墙及SELinux

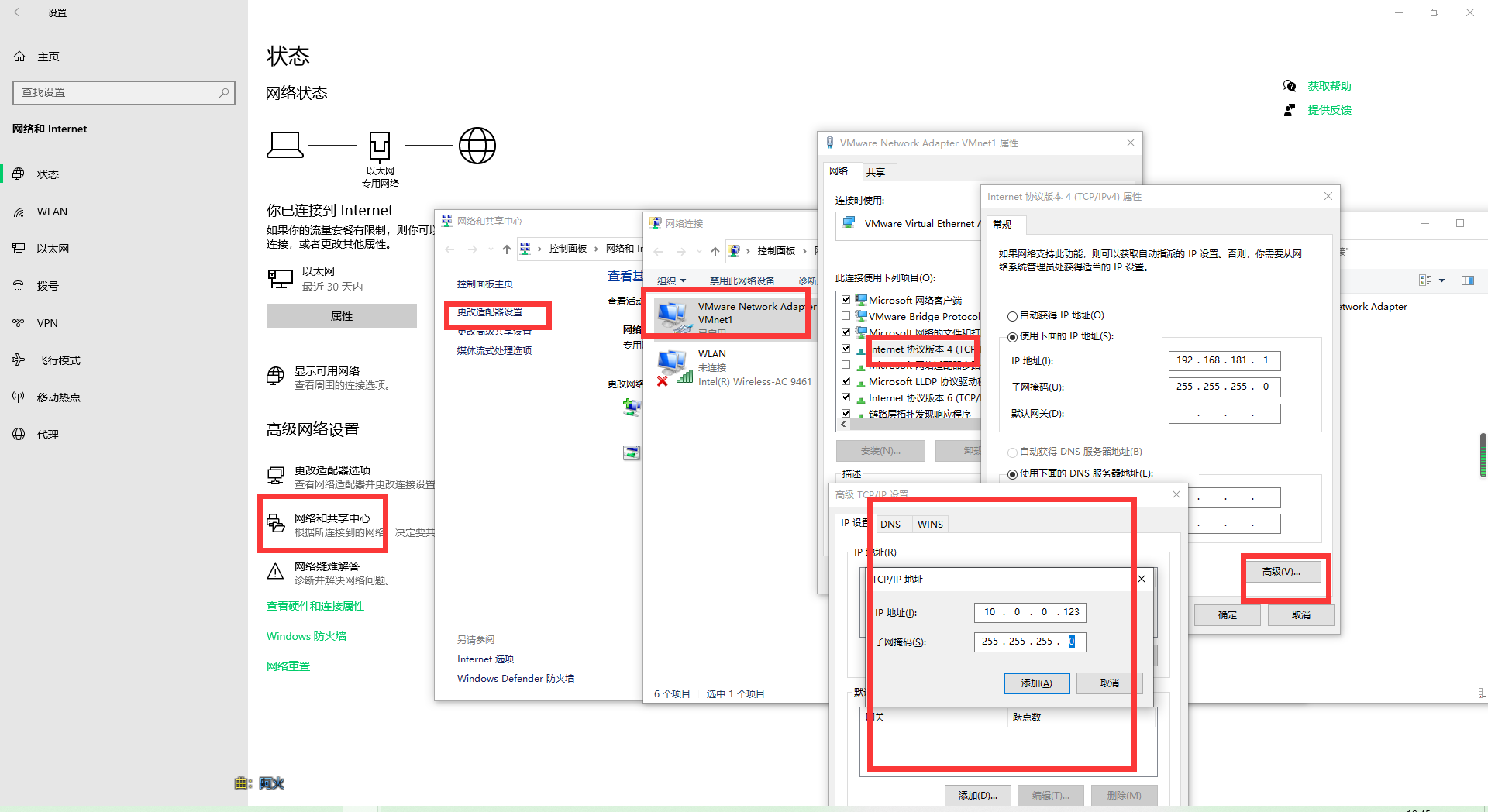

修改windowsIPv4地址

1.2 修改IP地址配置文件 controller/compute1/block1

[root@controller ~]# cp  -a /etc/sysconfig/network-scripts/ifcfg-ens33 /etc/sysconfig/network-scripts/ifcfg-ens37
[root@controller ~]# vim /etc/sysconfig/network-scripts/ifcfg-ens37
DEVICE=INTERFACE_NAME
TYPE=Ethernet
ONBOOT="yes"
BOOTPROTO="none"
IPADDR=""
PREFIX="24"

1.3 修改域名配置文件 controller/compute1/block1

[root@controller ~]# vim /etc/hosts
# controller
10.0.0.11       controller

# compute1
10.0.0.31       compute1

# block1
10.0.0.41       block1

# object1
10.0.0.51       object1

# object2
10.0.0.52       object2

1.4 测试与互联网通信、测试（IP地址、域名）与其他节点通信

[root@block1 ~]# ping 10.0.0.11 -c2
PING 10.0.0.11 (10.0.0.11) 56(84) bytes of data.
64 bytes from 10.0.0.11: icmp_seq=1 ttl=64 time=1.18 ms
64 bytes from 10.0.0.11: icmp_seq=2 ttl=64 time=1.49 ms

--- 10.0.0.11 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 1.184/1.340/1.497/0.160 ms
[root@block1 ~]# ping www.baidu.com
PING www.a.shifen.com (220.181.38.150) 56(84) bytes of data.
64 bytes from 220.181.38.150 (220.181.38.150): icmp_seq=1 ttl=128 time=18.6 ms
64 bytes from 220.181.38.150 (220.181.38.150): icmp_seq=2 ttl=128 time=19.1 ms
^C
--- www.a.shifen.com ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1004ms
rtt min/avg/max/mdev = 18.697/18.915/19.134/0.258 ms
[root@block1 ~]# ping controller
PING controller (10.0.0.11) 56(84) bytes of data.
64 bytes from controller (10.0.0.11): icmp_seq=1 ttl=64 time=0.728 ms
64 bytes from controller (10.0.0.11): icmp_seq=2 ttl=64 time=0.819 ms
^C
--- controller ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 0.728/0.773/0.819/0.053 ms

2. 安装网络时间协议NTP

控制节点

[root@controller ~]# yum install chrony -y
[root@controller ~]# vim /etc/chrony.conf
allow 10.0.0.0/24
[root@controller ~]# systemctl enable chronyd.service
[root@controller ~]# systemctl start chronyd.service

其他节点

yum install chrony -y

# vim /etc/chrony.conf
##注释掉其它的server行，添加controller为NTP服务器
server controller iburst

# systemctl enable chronyd.service
# systemctl start chronyd.service

检查节点

[root@block1 ~]# chronyc sources
210 Number of sources = 1
MS Name/IP address         Stratum Poll Reach LastRx Last sample
===============================================================================
^* controller                    3   6    77    59   +551us[  -16ms] +/-  143ms

3. 更新 OpenStack Packages controller/compute1/block1

yum install centos-release-openstack-train -y

yum upgrade -y

yum install python-openstackclient -y

yum install openstack-selinux -y

4. 使用的服务

4.1 控制节点

4.1.1 MariaDB数据库

[root@controller ~]# yum install mariadb mariadb-server python2-PyMySQL -y

[root@controller ~]# vim /etc/my.cnf.d/openstack.cnf
	[mysqld]
	bind-address = 10.0.0.11

	default-storage-engine = innodb
	innodb_file_per_table = on
	max_connections = 4096
	collation-server = utf8_general_ci
	character-set-server = utf8

[root@controller ~]# systemctl enable mariadb.service
[root@controller ~]# systemctl start mariadb.service

[root@controller ~]# mysql_secure_installation

4.1.2 Message queue 消息队列

[root@controller ~]# yum install rabbitmq-server -y

[root@controller ~]# systemctl enable rabbitmq-server.service
[root@controller ~]# systemctl start rabbitmq-server.service

[root@controller ~]# rabbitmqctl add_user openstack 123.com
Creating user "openstack"
[root@controller ~]# rabbitmqctl set_permissions openstack ".*" ".*" ".*"
Setting permissions for user "openstack" in vhost "/"
[root@controller ~]# netstat -antp | grep 5672
tcp        0      0 0.0.0.0:25672           0.0.0.0:*               LISTEN      1136/beam
tcp        0      0 10.0.0.11:52938         10.0.0.11:25672         TIME_WAIT   -
tcp        0      0 10.0.0.11:41318         10.0.0.11:25672         TIME_WAIT   -
tcp6       0      0 :::5672                 :::*                    LISTEN      1136/beam

4.1.3 Memcached

[root@controller ~]#  yum install memcached python-memcached -y

[root@controller ~]# vim /etc/sysconfig/memcached
OPTIONS="-l 127.0.0.1,::1,controller"

[root@controller ~]# systemctl enable memcached.service
[root@controller ~]# systemctl start memcached.service

4.1.4 Etcd

[root@controller ~]# yum install etcd -y

[root@controller ~]# vim /etc/etcd/etcd.conf
#[Member]
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="http://10.0.0.11:2380"
ETCD_LISTEN_CLIENT_URLS="http://10.0.0.11:2379"
ETCD_NAME="controller"
#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="http://10.0.0.11:2380"
ETCD_ADVERTISE_CLIENT_URLS="http://10.0.0.11:2379"
ETCD_INITIAL_CLUSTER="controller=http://10.0.0.11:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster-01"
ETCD_INITIAL_CLUSTER_STATE="new"

[root@controller ~]# systemctl enable etcd
[root@controller ~]# systemctl start etcd

5. 最小化OpenStack Train版，安装核心组件

5.1 Identity service – keystone

5.1.1 安装前的准备工作

[root@controller ~]# mysql -uroot -p
Enter password:
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 28
Server version: 10.3.20-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> CREATE DATABASE keystone;
Query OK, 1 row affected (0.000 sec)

MariaDB [(none)]> GRANT ALL PRIVILEGES ON keystone.* TO 'keystone'@'localhost'  IDENTIFIED BY '123.com';
Query OK, 0 rows affected (0.000 sec)

MariaDB [(none)]> GRANT ALL PRIVILEGES ON keystone.* TO 'keystone'@'%'  IDENTIFIED BY '123.com';
Query OK, 0 rows affected (0.000 sec)

MariaDB [(none)]> exit
Bye

5.1.2 安装和配置

[root@controller ~]# yum install openstack-keystone httpd mod_wsgi -y

[root@controller ~]# vim /etc/keystone/keystone.conf
[database]
connection = mysql+pymysql://keystone:123.com@controller/keystone
[token]
provider = fernet

[root@controller ~]# su -s /bin/sh -c "keystone-manage db_sync" keystone

[root@controller ~]# keystone-manage fernet_setup --keystone-user keystone --keystone-group keystone
[root@controller ~]# keystone-manage credential_setup --keystone-user keystone --keystone-group keystone

[root@controller ~]# keystone-manage bootstrap --bootstrap-password 123.com \
> --bootstrap-admin-url http://controller:5000/v3/ \
> --bootstrap-internal-url http://controller:5000/v3/ \
> --bootstrap-public-url http://controller:5000/v3/ \
> --bootstrap-region-id RegionOne

5.1.3 配置Apache服务器

[root@controller ~]# vim /etc/httpd/conf/httpd.conf
ServerName controller

[root@controller ~]# ln -s /usr/share/keystone/wsgi-keystone.conf /etc/httpd/conf.d/

[root@controller ~]# systemctl enable httpd.service
[root@controller ~]# systemctl start httpd.service

[root@controller ~]# cat admin_keystone
export OS_USERNAME=admin
export OS_PASSWORD=123.com
export OS_PROJECT_NAME=admin
export OS_USER_DOMAIN_NAME=Default
export OS_PROJECT_DOMAIN_NAME=Default
export OS_AUTH_URL=http://controller:5000/v3
export OS_IDENTITY_API_VERSION=3

[root@controller ~]# source admin_keystone

5.2 Image service – glance

5.2.1 前提条件

[root@controller ~]# mysql -u root -p
Enter password:
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 8
Server version: 10.3.20-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]>
