ScottPlot.NET 注解

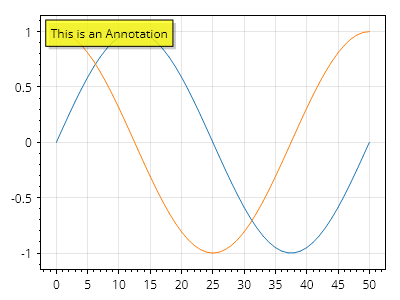

注释快速入门

注释是可以放置在绘图数据区上的标签。与添加到绘图中的文本（以坐标单位放置在坐标轴上）不同，注释是相对于数据区域（以像素单位）定位的，并且不会随着绘图的平移和缩放而移动。



Annotation.cs

WpfPlot1.Plot.Add.Signal(Generate.Sin());
WpfPlot1.Plot.Add.Signal(Generate.Cos());

WpfPlot1.Plot.Add.Annotation("This is an Annotation");

WpfPlot1.Refresh();

---

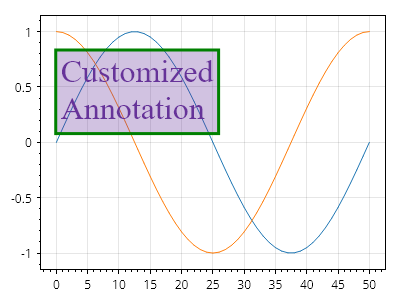

注释自定义

注释可以广泛定制。



Annotation.cs

WpfPlot1.Plot.Add.Signal(Generate.Sin());
WpfPlot1.Plot.Add.Signal(Generate.Cos());

var anno = WpfPlot1.Plot.Add.Annotation("Customized\nAnnotation");
anno.LabelFontSize = 32;
anno.LabelFontName = Fonts.Serif;
anno.LabelBackgroundColor = Colors.RebeccaPurple.WithAlpha(.3);
anno.LabelFontColor = Colors.RebeccaPurple;
anno.LabelBorderColor = Colors.Green;
anno.LabelBorderWidth = 3;
anno.LabelShadowColor = Colors.Transparent;
anno.OffsetY = 40;
anno.OffsetX = 20;

WpfPlot1.Refresh();

Edit on GitHub

---

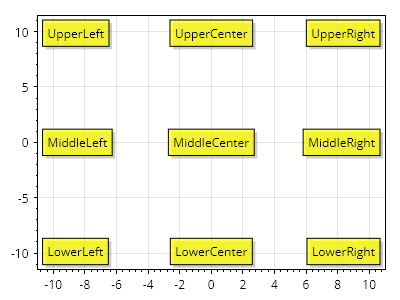

注释位置

注释与数据区域对齐。



Annotation.cs

foreach (Alignment alignment in Enum.GetValues(typeof(Alignment)))
{
    WpfPlot1.Plot.Add.Annotation(alignment.ToString(), alignment);
}

WpfPlot1.Refresh();
