MVC模型

  • 存在问题
    • Servlet中，要处理的事有：处理请求、调度页面、渲染页面，而渲染页面是前端代码，应该出现在前端程序中，也就是说要继续对Servlet进行拆分，拆分成MVC模型。
    • 之前学习的技术，无法将java数据直接展示到页面。

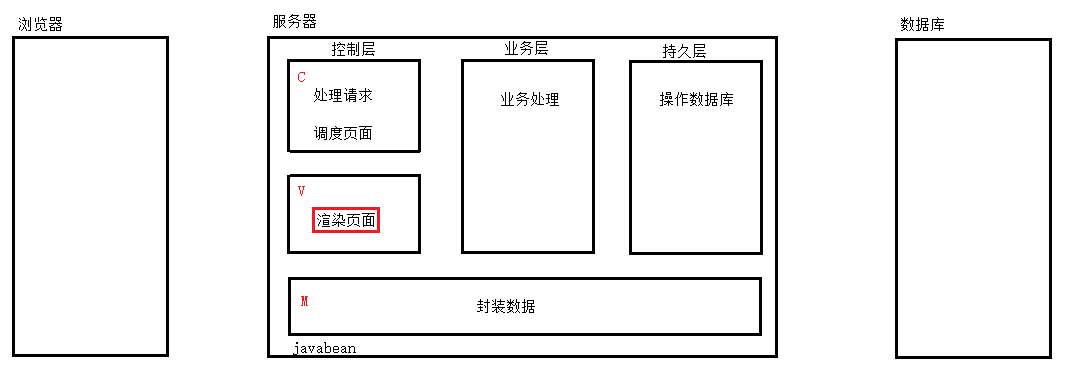

  • MVC模型
    image-20211207141132858
  • m : model , 模型
    • 封装数据，就是javabean
  • v : view , 视图
    • 渲染页面，就是thymeleaf （将java数据展示到页面）
  • c : controller , 控制器
    • 处理请求，调度页面

thymeleaf

  • 概述
    • Thymeleaf是一款用于渲染XML/XHTML/HTML5内容的模板引擎。类似JSP，Velocity， FreeMaker等， 它也可以轻易的与Spring MVC等Web框架进行集成作为Web应用的模板 引擎。它的主要作用是在静态页面上渲染显示动态数据
  • 优势
    • thymeleaf技术是SpringBoot框架默认支持的数据渲染引擎。

物理视图和逻辑视图

  • 物理视图
    • 就是请求转发的一个资源的绝对路径
  • 逻辑视图
    • 物理视图=视图前缀+逻辑视图+视图后缀
    • 比如：/pages/user/login.html=/pages/user/(视图前缀) + login(逻辑视图) + .html(视图后缀)

thymeleaf入门

  • 开发步骤
    • ①引入thymeleaf相关jar包
    • ②在web.xml中，配置视图前缀、视图后缀
    • ③定义ViewBaseServlet
      • 解析渲染thymeleaf
    • ④自定义Servlet继承ViewBaseServlet
    • ⑤编写html页面，渲染java数据
  • ①引入thymeleaf相关jar包
    • image-20211207142244028
  • ②在web.xml中，配置视图前缀、视图后缀
<context-param>
    <param-name>view-prefix</param-name>
    <param-value>/pages/</param-value>
</context-param>
<context-param>
    <param-name>view-suffix</param-name>
    <param-value>.html</param-value>
</context-param>
  • ②在web.xml中，配置视图前缀、视图后缀
public class ViewBaseServlet extends HttpServlet {
    private TemplateEngine templateEngine;

    @Override
    public void init() throws ServletException {

        // 1.获取ServletContext对象
        ServletContext servletContext = this.getServletContext();

        // 2.创建Thymeleaf解析器对象
        ServletContextTemplateResolver templateResolver = new ServletContextTemplateResolver(servletContext);

        // 3.给解析器对象设置参数
        // ①HTML是默认模式，明确设置是为了代码更容易理解
        templateResolver.setTemplateMode(TemplateMode.HTML);

        // ②设置前缀
        String viewPrefix = servletContext.getInitParameter("view-prefix");

        templateResolver.setPrefix(viewPrefix);

        // ③设置后缀
        String viewSuffix = servletContext.getInitParameter("view-suffix");

        templateResolver.setSuffix(viewSuffix);

        // ④设置缓存过期时间（毫秒）
        templateResolver.setCacheTTLMs(60000L);

        // ⑤设置是否缓存
        templateResolver.setCacheable(true);

        // ⑥设置服务器端编码方式
        templateResolver.setCharacterEncoding("utf-8");

        // 4.创建模板引擎对象
        templateEngine = new TemplateEngine();

        // 5.给模板引擎对象设置模板解析器
        templateEngine.setTemplateResolver(templateResolver);

    }


    /**
     * 执行视图
     * @param templateName : 逻辑视图
     * @param req : 请求
     * @param resp : 响应
     * @throws IOException
     */
    protected void processTemplate(String templateName, HttpServletRequest req, HttpServletResponse resp) throws IOException {
        // 1.设置响应体内容类型和字符集
        resp.setContentType("text/html;charset=UTF-8");

        // 2.创建WebContext对象
        WebContext webContext = new WebContext(req, resp, getServletContext());

        // 3.处理模板数据
        templateEngine.process(templateName, webContext, resp.getWriter());
    }
}

④自定义Servlet继承ViewBaseServlet

@WebServlet("/demo01")
public class Demo01Servlet extends ViewBaseServlet {

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        String msg = "用户已经存在!";

        req.setAttribute("msg", msg);
        //请求转发到demo01.html
        processTemplate("demo01", req, resp);

    }

    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        doGet(req, resp);
    }
}

⑤编写html页面，渲染java数据

<!DOCTYPE html>

<!--开启thymeleaf空间-->
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>demo01</title>
</head>
<body>

<span th:text="${msg}"></span>
</body>
</html>

注意事项

  • 如果要在html页面中，使用thymeleaf指令，需要开启thymeleaf空间

thymeleaf修改标签内容

  • 概述
    • 使用th:text指令操作标签内容，类似于vue的v-text指令
  • 代码实现
@WebServlet("/demo02")
public class Demo02Servlet extends ViewBaseServlet {

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        String msg = "用户名已经存在!";
        req.setAttribute("msg", msg);
        //req.getRequestDispatcher("/pages/demo02.html").forward(req, resp);
        processTemplate("demo02", req, resp);
    }

    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        doGet(req, resp);
    }
}

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>demo01</title>
</head>
<body>

<span th:text="${msg}"></span>
</body>
</html>

thymeleaf修改标签属性

  • 概述
    • 使用"th:属性名"指令来修改标签属性，类似于vue的"v-bind:属性名"/":属性名"指令
  • 代码实现
@WebServlet("/demo03")
public class Demo03Servlet extends ViewBaseServlet {

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        String username = "张三";
        req.setAttribute("username", username);
        //req.getRequestDispatcher("/pages/demo02.html").forward(req, resp);
        processTemplate("demo03", req, resp);
    }

    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        doGet(req, resp);
    }
}

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>demo03</title>
</head>
<body>

<input type="text" th:value="${username}">
</body>
</html>

thymeleaf解析URL

  • 概述
    • @{}等同于项目的访问路径
  • 代码实现
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">

    <base th:href="@{/}">
    <title>thymeleaf解析url</title>
</head>
<body>
<a href="/web08/pages/demo01.html">跳转demo01</a>
<a href="pages/demo01.html">跳转demo01</a>

<a th:href="@{/pages/demo01.html}">跳转demo01</a>

<a th:href="@{/pages/demo02.html}">跳转demo02</a>

<a th:href="@{/pages/demo03.html}">跳转demo03</a>


<a href="/web08/demo05?username=root&password=root">请求Demo05Servlet</a>


<a th:href="@{/demo05(username=root,password=root)}">请求Demo05Servlet</a>


</body>
</html>

thymeleaf操作域对象

  • 域对象
    • ServletContext : 整个项目
    • HttpSession : 当前会话
    • ServletRequest : 当前请求
  • 代码实现
@WebServlet("/demo06")
public class Demo06Servlet extends ViewBaseServlet {

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        //ServletContext
        getServletContext().setAttribute("msg3","hello3");

        //HttpSession
        req.getSession().setAttribute("msg2","hello2");

        //ServletRequest
        req.setAttribute("msg1", "hello1");


        processTemplate("demo06", req, resp);
    }

    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        doGet(req, resp);
    }
}

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>thymeleaf操作域对象</title>
</head>
<body>


<span th:text="${msg1}"></span>
<span th:text="${session.msg2}"></span>
<span th:text="${application.msg3}"></span>


</body>
</html>

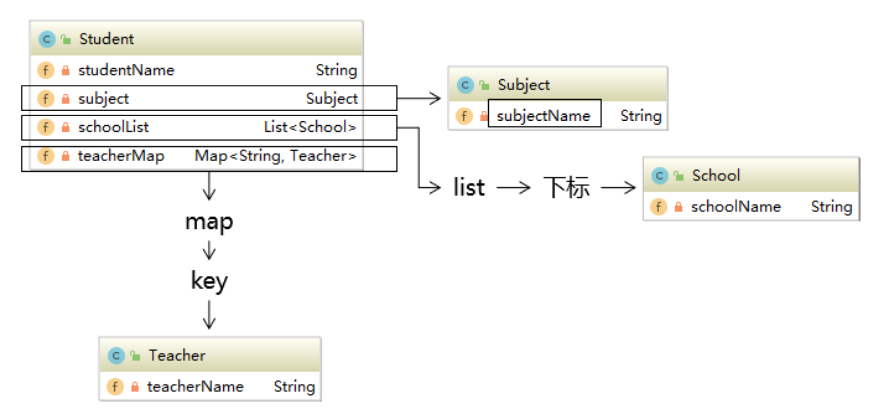

OGNL表达式

  • 概述
    • image-20211207153610685

OGNL使用

代码实现

@WebServlet("/demo07")
public class Demo07Servlet extends ViewBaseServlet {

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

        Student student = new Student();

        student.setStudentName("陈磊");
        student.setSubject(new Subject("java"));
        List<School> schoolList = new ArrayList<>();
        schoolList.add(new School("晨光幼儿园"));
        schoolList.add(new School("晨光小学"));
        schoolList.add(new School("晨光中学"));
        schoolList.add(new School("晨光大学"));
        student.setSchoolList(schoolList);
        Map<String, Teacher> teacherMap = new HashMap<>();
        teacherMap.put("谈局",new Teacher("谈局"));
        teacherMap.put("小赵",new Teacher("小赵"));
        teacherMap.put("老邱",new Teacher("老邱"));
        student.setTeacherMap(teacherMap);

        req.setAttribute("student",student);
        processTemplate("demo07", req, resp);
    }

    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        doGet(req, resp);
    }
}

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>OGNL表达式使用</title>
</head>
<body>


<!--获取student姓名-->
<span th:text="${student.studentName}"></span>
<!--获取subject名称-->
<span th:text="${student.subject.subject}"></span>
<!--获取第二个学校名称-->
<span th:text="${student.schoolList[1].schoolName}"></span>
<!--获取谈局的教师姓名-->
<span th:text="${student.teacherMap.谈局.teacherName}"></span>

</body>
</html>

thymeleaf条件渲染

  • 概述
    • 使用th:if指令进行条件渲染，类似于vue的v-if指令
  • 代码实现
/**
 * thymeleaf条件渲染
 */
@WebServlet("/demo08")
public class Demo08Servlet extends ViewBaseServlet {

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        req.setAttribute("flag", true);
        processTemplate("demo08", req, resp);

    }

    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        doGet(req, resp);
    }
}

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>thymeleaf条件渲染</title>
</head>
<body>


<span th:if="${flag}">
    您已经登录了，欢迎回来~~~


</span >

<span th:if="${!flag}">
    您还没有登录，请登录~~~

</span>
</body>
</html>

thymeleaf分支渲染

  • 概述
    • 使用th:switch和th:case进行分支渲染
  • 代码实现
@WebServlet("/demo09")
public class Demo09Servlet extends ViewBaseServlet {

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        //管理员(admin),普通用户(user),游客(visitor)
        String role = "admin";
        req.setAttribute("role", role);
        processTemplate("demo09", req, resp);

    }

    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        doGet(req, resp);
    }
}

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>thymeleaf分支渲染</title>
</head>
<body>


<div th:switch="${role}">

    <span th:case="admin">管理员</span>
    <span th:case="user">普通用户</span>
    <span th:case="visitor">游客</span>

</div>



</body>
</html>

thymeleaf列表渲染

  • 概述
    • 使用th:each进行列表渲染，类似于vue的v-for
  • 代码实现
@WebServlet("/demo10")
public class Demo10Servlet extends ViewBaseServlet {

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        List<Teacher> teacherList = new ArrayList<>();
        teacherList.add(new Teacher("谈局"));
        teacherList.add(new Teacher("小赵"));
        teacherList.add(new Teacher("老邱"));
        req.setAttribute("teacherList", teacherList);
        processTemplate("demo10", req, resp);

    }

    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        doGet(req, resp);
    }
}

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>thymeleaf列表渲染</title>
</head>
<body>

<ul>
    <li th:each="teacher:${teacherList}">
        <span th:text="${teacher.teacherName}"></span>
    </li>
</ul>

<ul>
    <li th:each="teacher:${teacherList}" th:text="${teacher.teacherName}">

    </li>
</ul>

</body>
</html>
