Flutter之Canvas

一，概念

CustomPaint是画布，画布包含CustomPainter内容，CustomPainter需要有画笔Paint和画画的形状（画画的形状由canvas提供）

二，代码角度理解

import 'package:flutter/material.dart';

main() {
  runApp(const MaterialApp(
    home: H(),
  ));
}

class H extends StatelessWidget {
  const H({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
        appBar: AppBar(
          title: const Text("draw_demo"),
        ),
        body: Center(
          child: CustomPaint(
              size: const Size(300, 300), // 画布大小
              painter: MyPainter()), // 绘制的内容，MyPainter继承自CustomPainter
        ));
  }
}

class MyPainter extends CustomPainter {
  @override
  void paint(Canvas canvas, Size size) {
    Rect rect = const Rect.fromLTRB(0, 0, 300, 300); // 矩形在画布上的左上角x，y以及右下角x，y坐标
    var painter = Paint() // 相当于是画笔，定义画笔什么颜色、怎么画（填充还是仅轮廓等）
      ..style = PaintingStyle.fill
      ..color = Colors.red;
    canvas.drawRect(
        rect, painter); // canvas提供api，到底画什么。如果是drawRect则传入Rect对象，用painter这根画笔
  }

  @override
  bool shouldRepaint(covariant CustomPainter oldDelegate) => false; // 如果绘制的东西会收到数据影响，则true
}

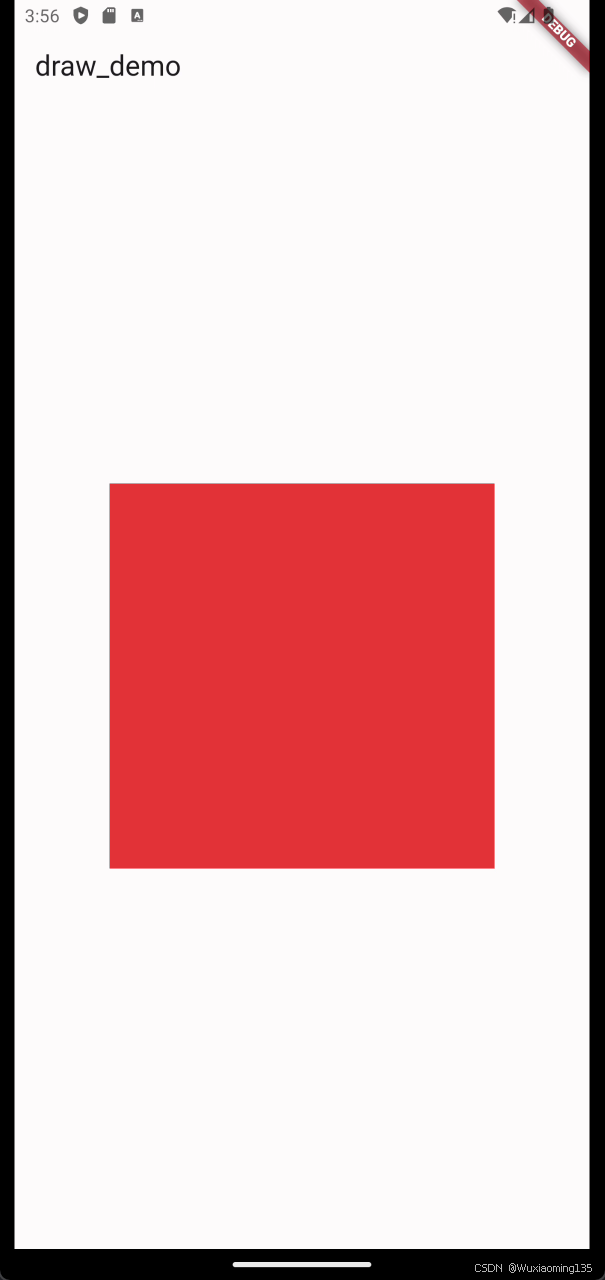

效果：

三，拓展的代码（动手敲一敲，会理解的）

import 'package:flutter/material.dart';

main() {
  runApp(const MaterialApp(
    home: H(),
  ));
}

class H extends StatelessWidget {
  const H({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
        appBar: AppBar(
          title: const Text("draw_demo"),
        ),
        body: Center(
          child: CustomPaint(
              size: const Size(300, 300), // 画布大小
              painter: MyPainter()), // 绘制的内容，MyPainter继承自CustomPainter
        ));
  }
}

class MyPainter extends CustomPainter {
  @override
  void paint(Canvas canvas, Size size) {
    Rect rect = const Rect.fromLTRB(0.0, 0.0, 300.0, 300.0);
    // 背景
    var paint = Paint() //背景画布的
      ..isAntiAlias = true
      ..style = PaintingStyle.fill
      ..color = const Color(0xffdcc48c);
    canvas.drawRect(rect, paint);
    // 网格
    paint
      ..style = PaintingStyle.stroke
      ..color = Colors.black38
      ..strokeWidth = 1.0;
    for (int i = 0; i <= 15; i++) {
      //绘制横线
      double dy = rect.top + rect.height / 15 * i;
      canvas.drawLine(Offset(rect.left, dy), Offset(rect.right, dy), paint);
    }
    for (int i = 0; i <= 15; i++) {
      //绘制竖线
      double dx = rect.left + rect.width / 15 * i;
      canvas.drawLine(Offset(dx, rect.top), Offset(dx, rect.bottom), paint);
    }
    // 黑子
    paint = Paint()
      ..style = PaintingStyle.fill
      ..color = Colors.black;
    canvas.drawCircle(const Offset(160, 160), 8, paint);
    // 白子
    paint = Paint()
      ..style = PaintingStyle.fill
      ..color = Colors.white;
    canvas.drawCircle(const Offset(140, 140), 8, paint);
  }

  @override
  bool shouldRepaint(covariant CustomPainter oldDelegate) => false;
}

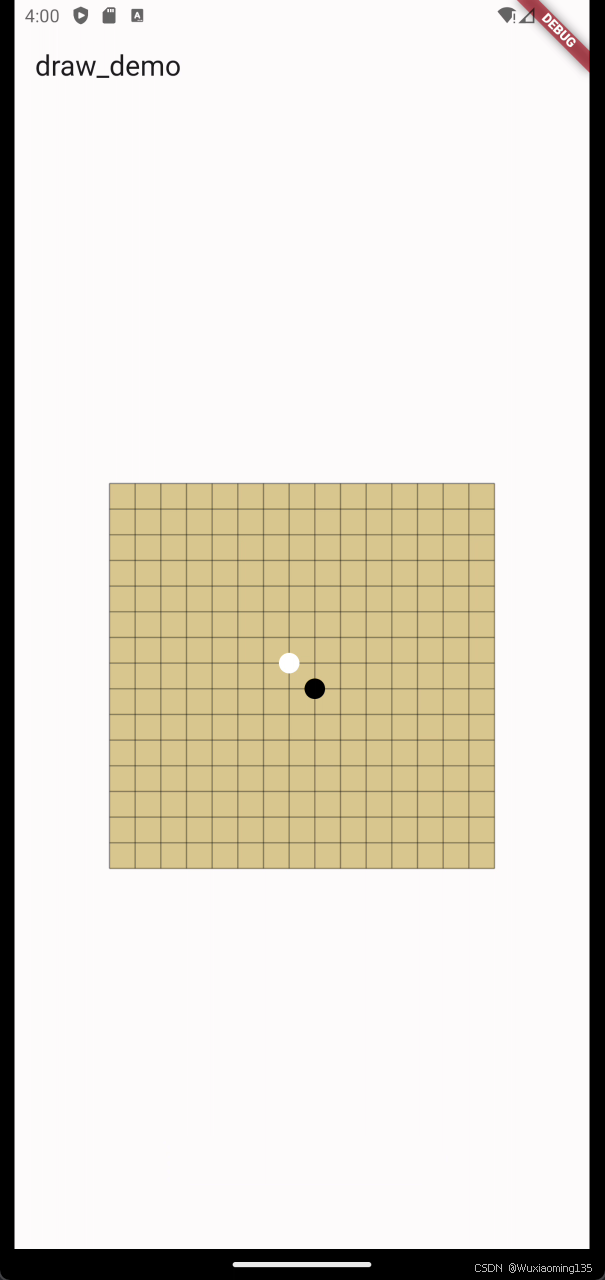

效果：
