Wallys/DR3G11&DR2G41

Wallys/DR3G11&DR2G41

1.DR3G11

https://www.wallystech.com/Routerboard/DR3G11-Linux-PCIe-adapter-for-M.2-WiFi-modules-PCIe-adapter-support-AX200NGW.html

Features

Support 1 pcs M.2 card

Support AX200NGW

Support DR9074-6E

RoHS compliance ensure a high level protection of human health and the

environment from risks that can be posed by chemicals

Product Description

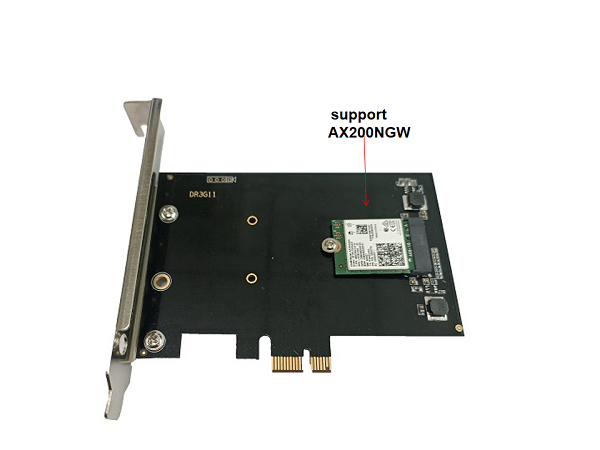

DR3G11 is an adapter card with one M.2 slot. It can be used in a PC with a PCIe slot. Use this new adapter to expand your connectivity and upgrade y**ice to use the latest m.2 interface cards. Each comes with both low and regular profile brackets.

Brackets include holes for mounting SMA connectors, or for using as cable exit holes.

Specifications

Parameter Rating Unit

Input voltage 12 V

Output Voltage 3.3 V

Operating Temperature -40 to +70 ºC

Operating Humidity Range 5 to +95 (non-condensing) %

Storage Humidity Range 0 to +90 (non-condensing) %

ROHS Compliance YES

2.DR2G41

https://www.wallystech.com/Routerboard/DR2G41-Linux-PCIe-adapter-for-miniPCIe-and-M.2-WiFi-modules-4-miniPCIE-slot-to-PCIe-adapter.html

Features

Support 4pcs Mini PCIE cards or 4 pcs M.2 cards

RoHS compliance ensure a high level protection of human health and the

environment from risks that can be posed by chemicals

Product Description

DR2G41 is an adapter card with four MiniPCIe and four M.2 slots. It can be used in a PC with a PCIe slot. Use this new adapter to expand your connectivity and upgrade y**ice to use the latest miniPCIe and m.2 interface cards. Each comes with both low and regular profile brackets.

Brackets include holes for mounting SMA connectors, or for using as cable exit holes.

Specifications

Parameter Rating Unit

Input voltage 12 V

Output Voltage 3.3 V

Operating Temperature -40 to +70 ºC

Operating Humidity Range 5 to +95 (non-condensing) %

Storage Humidity Range 0 to +90 (non-condensing) %

ROHS Compliance YES

Switch control instruction

Switch up/down Operation

Switch 1 up M.2-1

down MiniPCIE-1

Switch 2 up M.2-2

down MiniPCIE-2

Switch 3 up M.2-3

down MiniPCIE-3

Switch 4 N/A M.2-4 and MiniPCIE-4 can work simultaneously,not controlled by the switch
