DR9074E是基于QCN90X4芯片的企业级4x4MU-MIMO双频无线模块，设计用于提供高带宽视频流、语音和数据传输。适用于办公室和具有挑战性的RF环境，如工厂、仓库等。产品支持5.180~7.125GHz频段，最大数据速率可达4949Mbps，具备PCIExpress3.0接口，可应用于安全监控、商业无线电覆盖等领域。其变种DR9074-6E在6GHz频段提供相似功能，采用M.2E-Key接口。
Link here get more information:https://link.segmentfault.com
Product Description

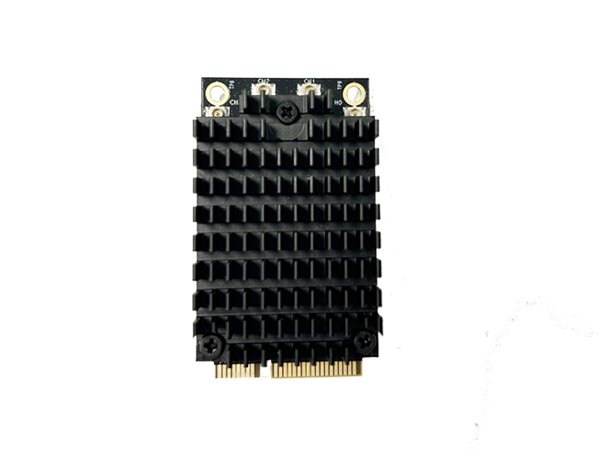

DR9074E based on QCN90X4 Chipset is an enterprise wireless module integrated with 4x4 MU-MIMO Dual Band Wireless Module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment in factories, warehouses establishment.
Features
■ Qualcomm Atheros QCN90X4
■ Maxim Tx power 20dBm per chain
■ Data Rateup to 4949Mbps
■ Support 5.180~5.825Ghz or 5.925GHz-7.125GHz or 5.180GHz- 7.125GHz
■ MiniPCIe connector
■ PCI Express 3.0 Interface
Applications
■ Security Surveillance
■ Commercial radio coverage
■ Hotel Wireless application
■ Forest fire protection engineering
■ Country coverage
■ Some special scene application
Absolute Maximum Rating
Parameter Rating Unit
Operating Temperature Range -20 to 70ºC
Storage Temperature Range -40 to 90ºC
Operating Humidity Range 5 to +95 (non-condensing) %
Storage Humidity Range 0 to +90 (non-condensing)%
Hardware Specifications
Symbol Parameter
Qualcomm Atheros QCN9074(QCN9024)
WLAN Host Interface PCI Express 3.0 Interface
System Memory 2Mbit serial I²C bus EEPROM
Standard Operating Voltage 3.3V
Operating Systems QSDK
Host Interface MiniPCIE
Antenna Cable / Port 4 x MMCX Connectors,4T4R
Frequency Range 5.180GHz-5.852GHz or 5.952GHz-7.125GHz
Data Rates for WALN Maxim TX power 20dBm per chain, up to 4949Mbps
Channel Spectrum Widths for WLAN Support 20/40/80/160MHz
Modulation Techniques OFDMA: BPSK, QPSK, DBPSK, DQPSK,16-QAM, 64-QAM, 256-QAM,1024-QAM, 4096-QAM
Temperature Range Operating: -20°C to 70°C, Storage: -40°C to 90°C
Humidity Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)
Certification TBD
Power Consumption 15W（Maximum），9.5W(Normally)
Dimensions (WxHxD) 30mm x 50mm x 14.5mm

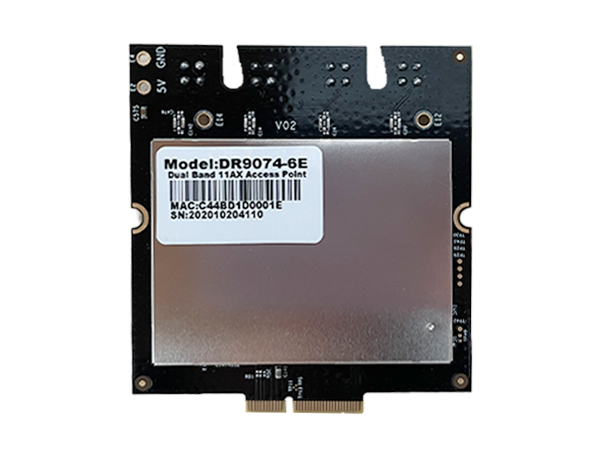

DR9074-6E(PN02.7)
Features
■ Qualcomm Atheros QCN9074
■ 6GHz, max 23dBm per chain, up to 4949Mbps
■ Single Band 6GHz 4x4 WiFi 6E (802.11ax)
■ 4 spatial streams (4SS)
■ M.2 E Key Interface
■ PCI Express 3.0 Interface
Absolute Maximum Rating
Parameter Rating Unit
Operating Temperature Range -20 to 70 ºC
Storage Temperature Range -40 to 90 ºC
Operating Humidity Range 5 to +95 (non-condensing) %
Storage Humidity Range 0 to +90 (non-condensing) %
Hardware Specifications
Symbol Parameter Chipset
Qualcomm Atheros QCN9074
WLAN Host Interface PCI Express 3.0 Interface
System Memory 2Mbit serial I²C bus EEPROM
Standard Operating Voltage 5V
Operating Systems QSDK
Host Interface M.2 E Key
Antenna Cable / Port 4 x MMCX Connectors,4T4R
Frequency Range 5.925GHz-7.125GHz
Data Rates for WALN 6GHz, max 23dBm per chain, up to 4949Mbps
Channel Spectrum Widths for WLAN Support 20/40/80/160MHz at 6GHz
Modulation Techniques OFDMA: BPSK, QPSK, DBPSK, DQPSK,16-QAM, 64-QAM, 256-QAM,1024-QAM, 4096-QAM
Temperature Range Operating: -20°C to 70°C, Storage: -40°C to 90°C
Humidity Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)
Certification TBD
Power Consumption TBD
Reference Design PN02.7
Dimensions (WxHxD) 57mm x 63mm x 6mm
