            deviceTmp = findDeviceByName("livingroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
        }
        else if (strstr(voiceHandler->comand, "kysd") != NULL)
        {
            printf("打开浴室灯光\n");
            deviceTmp = findDeviceByName("bathroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
        }
        else if (strstr(voiceHandler->comand, "gysd") != NULL)
        {
            printf("关闭浴室灯光\n");
            deviceTmp = findDeviceByName("bathroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
        }
        else if (strstr(voiceHandler->comand, "kktd") != NULL)
        {
            printf("打开客厅灯光\n");
            deviceTmp = findDeviceByName("upstairLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
        }
        else if (strstr(voiceHandler->comand, "gktd") != NULL)
        {
            printf("关闭客厅灯光\n");
            deviceTmp = findDeviceByName("upstairLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
        }
        else if (strstr(voiceHandler->comand, "kctd") != NULL)
        {
            printf("打开餐厅灯光\n");
            deviceTmp = findDeviceByName("restaurantLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
        }
        else if (strstr(voiceHandler->comand, "gctd") != NULL)
        {
            printf("关闭餐厅灯光\n");
            deviceTmp = findDeviceByName("restaurantLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
        }
        else if (strstr(voiceHandler->comand, "kycd") != NULL) //开泳灯指令
        {
            printf("打开泳池灯光\n");
            deviceTmp = findDeviceByName("yong", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
        }
        else if (strstr(voiceHandler->comand, "gqbd") != NULL) //关闭全部灯指令
        {
            printf("关闭所有灯光\n");
            deviceTmp = findDeviceByName("chu", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum); //关闭餐厅灯
            deviceTmp = findDeviceByName("bathroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum); //关闭浴室灯
            deviceTmp = findDeviceByName("upstairLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum); //关闭客厅灯
            deviceTmp = findDeviceByName("livingroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum); //关闭卧室灯
        }
        else if (strstr(voiceHandler->comand, "kqbd") != NULL)
        {
            printf("打开所有灯光\n");
            deviceTmp = findDeviceByName("restaurantLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
            deviceTmp = findDeviceByName("bathroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
            deviceTmp = findDeviceByName("upstairLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
            deviceTmp = findDeviceByName("livingroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
        }
        else if (strstr(voiceHandler->comand, "gycd") != NULL) //关泳池灯指令
        {
            printf("关闭泳池灯光\n");
            deviceTmp = findDeviceByName("yong", pdeviceHead); //搜索泳池灯设备
            deviceTmp->deviceInit(deviceTmp->pinNum);          //泳池灯设备初始化
            deviceTmp->close(deviceTmp->pinNum);               //关泳池灯
        }
        else if (strstr(voiceHandler->comand, "kdfs") != NULL) //开电风扇指令
        {
            printf("打开电风扇\n");
            deviceTmp = findDeviceByName("fan", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
        }
        else if (strstr(voiceHandler->comand, "gdfs") != NULL) //关电风扇指令
        {
            printf("关闭电风扇\n");
            deviceTmp = findDeviceByName("fan", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
        }
        else if (strstr(voiceHandler->comand, "ks") != NULL) //开锁指令
        {
            printf("打开门锁\n");
            deviceTmp = findDeviceByName("lock", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
            delay(3000);
            deviceTmp->close(deviceTmp->pinNum);
        }

    }

    pthread_mutex_unlock(&mutex); //解锁
}

}

void *write_thread(void *datas) //通知线程，向客服端发送消息
{
while (1)
{
delay(500);
write(c_fd, Message, 500);
}
}

void *read_thread(void *datas) //通过socket读取客户端发来的数据
{

int n_read;
struct Devices *deviceTmp = NULL;

while (1)
{
    memset(socketHandler->comand, '\0', sizeof(socketHandler->comand));

    n_read = read(c_fd, socketHandler->comand, sizeof(socketHandler->comand)); //读取客户端发来的数据
    if (n_read == -1)
    {
        perror("read_thread");
    }
    else if (n_read > 0)
    {
        printf("客户端指令:%s\n", socketHandler->comand);
        //处理客户端读到的命令
        if (strstr(socketHandler->comand, "kws") != NULL) //开卧室灯
        {
            printf("开卧室灯\n");
            deviceTmp = findDeviceByName("livingroomLight", pdeviceHead); //查找卧室灯设备
            deviceTmp->deviceInit(deviceTmp->pinNum);          //卧室灯设备初始化
            deviceTmp->open(deviceTmp->pinNum);                //打开卧室灯
        }
        else if (strstr(socketHandler->comand, "gws") != NULL) //关卧室灯
        {
            printf("关卧室灯\n");
            deviceTmp = findDeviceByName("livingroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
        }
        else if (strstr(socketHandler->comand, "kys") != NULL) //开浴室灯
        {
            printf("开浴室灯\n");
            deviceTmp = findDeviceByName("bathroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
        }
        else if (strstr(socketHandler->comand, "gys") != NULL) //关浴室灯
        {
            printf("关浴室灯\n");
            deviceTmp = findDeviceByName("bathroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
        }
        else if (strstr(socketHandler->comand, "kkt") != NULL) //开客厅灯
        {
            printf("开客厅灯\n");
            deviceTmp = findDeviceByName("upstairLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
        }
        else if (strstr(socketHandler->comand, "gkt") != NULL) //关客厅灯
        {
            printf("关客厅灯\n");
            deviceTmp = findDeviceByName("upstairLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
        }
        else if (strstr(socketHandler->comand, "kct") != NULL) //开餐厅灯
        {
            printf("开餐厅灯\n");
            deviceTmp = findDeviceByName("chu", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
        }
        else if (strstr(socketHandler->comand, "gct") != NULL) //关餐厅灯
        {
            printf("关餐厅灯\n");
            deviceTmp = findDeviceByName("restaurantLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
        }

        else if (strstr(socketHandler->comand, "kfs") != NULL) //开风扇
        {
            printf("开电风扇\n");
            deviceTmp = findDeviceByName("fan", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
        }
        else if (strstr(socketHandler->comand, "gfs") != NULL) //关风扇
        {
            printf("关电风扇\n");
            deviceTmp = findDeviceByName("fan", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
        }
        else if (strstr(socketHandler->comand, "kqb") != NULL) //开室内全部灯
        {
            printf("开室内全部灯\n");
            deviceTmp = findDeviceByName("restaurantLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
            deviceTmp = findDeviceByName("bathroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
            deviceTmp = findDeviceByName("upstairLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
            deviceTmp = findDeviceByName("livingroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
        }
        else if (strstr(socketHandler->comand, "gqb") != NULL) //关室内全部灯
        {
            printf("关室内全部灯\n");
            deviceTmp = findDeviceByName("restaurantLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
            deviceTmp = findDeviceByName("bathroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
            deviceTmp = findDeviceByName("upstairLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
            deviceTmp = findDeviceByName("livingroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
        }
        else if (strstr(socketHandler->comand, "ks") != NULL) //开锁
        {
            printf("开锁\n");
            deviceTmp = findDeviceByName("lock", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
        }
        else if (strstr(socketHandler->comand, "gs") != NULL) //关锁
        {
            deviceTmp = findDeviceByName("lock", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
        }
        else if (strstr(socketHandler->comand, "kjk") != NULL) //开监控
        {
            printf("打开监控\n");
            pthread_create(&monitoringThread, NULL, monitoring_thread, NULL); //启动视频监控线程
        }
        else if (strstr(socketHandler->comand, "gjk") != NULL) //关监控
        {
            printf("关闭监控\n");
            // pthread_cancel(monitoringThread);
            system("killall -TERM mjpg_streamer"); //关闭摄像头监控功能
        }
        else if (strstr(socketHandler->comand, "khw") != NULL) //打开人体红外检测
        {
            printf("启动人体红外检测线程\n");
            beep = 3; //人体红外使用蜂鸣器
            deviceTmp = findDeviceByName("buzzser", pdeviceHead);
            deviceTmp->open(deviceTmp->pinNum);
            delay(700);
            deviceTmp->close(deviceTmp->pinNum);
            if (infrared_flag == 0)
            {
                pthread_create(&infraredThread, NULL, infrared_thread, NULL);
                infrared_flag = 1;
            }
        }
        else if (strstr(socketHandler->comand, "ghw") != NULL) //关闭人体红外检测
        {
            printf("关闭人体红外检测\n");
            memset(Message[4], 0, sizeof Message[4]); //清空数组
            sprintf(Message[4], "未启用！");

            if (infrared_flag == 1)
            {
                pthread_cancel(infraredThread); //停止人体红外线程
                infrared_flag = 0;
            }

            beep = 3; //人体红外使用蜂鸣器
            deviceTmp = findDeviceByName("buzzser", pdeviceHead);
            deviceTmp->open(deviceTmp->pinNum);
            delay(400);
            deviceTmp->close(deviceTmp->pinNum);
            delay(300);
            deviceTmp->open(deviceTmp->pinNum);
            delay(400);
            deviceTmp->close(deviceTmp->pinNum);
        }
        else if (strstr(socketHandler->comand, "gjms") != NULL) //归家模式
        {
            printf("开室内全部灯\n");
            deviceTmp = findDeviceByName("restaurantLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
            deviceTmp = findDeviceByName("bathroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
            deviceTmp = findDeviceByName("upstairLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);
            deviceTmp = findDeviceByName("livingroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->open(deviceTmp->pinNum);

            printf("关闭人体红外检测\n");
            memset(Message[4], 0, sizeof Message[4]); //清空数组
            sprintf(Message[4], "未启用！");

            if (infrared_flag == 1)
            {
                pthread_cancel(infraredThread); //停止人体红外线程
                infrared_flag = 0;
            }

            beep = 3; //人体红外使用蜂鸣器
            deviceTmp = findDeviceByName("buzzser", pdeviceHead);
            deviceTmp->open(deviceTmp->pinNum);
            delay(400);
            deviceTmp->close(deviceTmp->pinNum);
            delay(300);
            deviceTmp->open(deviceTmp->pinNum);
            delay(400);
            deviceTmp->close(deviceTmp->pinNum);
            beep = 0;
        }
        else if (strstr(socketHandler->comand, "ljms") != NULL) //离家模式
        {
            printf("关全部灯\n");
            deviceTmp = findDeviceByName("restaurantLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
            deviceTmp = findDeviceByName("bathroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
            deviceTmp = findDeviceByName("upstairLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);
            deviceTmp = findDeviceByName("livingroomLight", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);

            printf("关电风扇\n");
            deviceTmp = findDeviceByName("fan", pdeviceHead);
            deviceTmp->deviceInit(deviceTmp->pinNum);
            deviceTmp->close(deviceTmp->pinNum);

            printf("启动人体红外检测线程\n");
            beep = 3; //人体红外使用蜂鸣器
            deviceTmp = findDeviceByName("buzzser", pdeviceHead);
            deviceTmp->open(deviceTmp->pinNum);
            delay(700);
            deviceTmp->close(deviceTmp->pinNum);
            beep = 0;
            if (infrared_flag == 0)
            {
                pthread_create(&infraredThread, NULL, infrared_thread, NULL);
                infrared_flag = 1;
            }
        }
        else if (strstr(socketHandler->comand, "face") != NULL)
        {
            //启动人脸识别线程
            printf("进行人脸识别开锁\n");
            pthread_create(&cameraThread, NULL, cameraThread_func, NULL);
        }
    }
    else
    {
        printf("客户端退出\n");
        pthread_cancel(writeThread); //停止通知线程
        write_flag = 0;              //通知线程标志位置0，通知线程关闭
        pthread_exit(NULL);          //退出本线程
    }
}

}

void *socket_thread(void *datas) //开启socket服务端，并将socket服务端初始化
{

int n_read = 0;
pthread_t readPthread;

struct sockaddr_in c_addr;
memset(&c_addr, 0, sizeof(struct sockaddr_in));
int clen = sizeof(struct sockaddr_in);

socketHandler = findCommandByName("socketServer", pCommandHead); //在控制工厂找到socket
if (socketHandler == NULL)
{
    printf("查找套接字处理程序错误\n");
    pthread_exit(NULL);
}
else
{
    printf("%s 初始化成功\n", socketHandler->commandName);
}

socketHandler->Init(socketHandler, NULL, NULL); //初始化socket

while (1)
{

    c_fd = accept(socketHandler->sfd, (struct sockaddr *)&c_addr, &clen);
    printf("c_fd = %d\n", c_fd);
    if (write_flag == 0) //通知线程处于关闭状态
    {
        write_flag = 1;
        pthread_create(&writeThread, NULL, write_thread, NULL); //打开通知线程
    }
    pthread_create(&readPthread, NULL, read_thread, NULL);
}

}

//检测按键状态
void *key_thread()
{
int val;
while (1)
{
val = digitalRead(key);//获取key引脚状态给val
if (val == 0) //防止重复检测
{
delay(500);
val = digitalRead(key);
if (val == 1) //按键按下，启动人脸识别线程
{
pthread_create(&cameraThread, NULL, cameraThread_func, NULL);
}
}
}
}

int main()
{
char name[32] = {‘\0’};

//树莓派库初始化
if (wiringPiSetup() == -1)
{
    printf("硬件接口初始化失败\n");
    return -1;
}

pthread_mutex_init(&mutex, NULL); //初始化互斥量（锁）

// 1、指令工厂初始化
pCommandHead = addVoiceContrlToInputCommanderLink(pCommandHead);  //语音识别初始化
pCommandHead = addsocketContrlToInputCommanderLink(pCommandHead); //服务器初始化

// 2、设备控制工程初始化
pdeviceHead = addBathroomLightToDeviceLink(pdeviceHead);   //浴室灯光初始化
pdeviceHead = addupStairLightToDeviceLink(pdeviceHead);    //卧室灯光初始化
pdeviceHead = addlivingroomLightToDeviceLink(pdeviceHead); //客厅灯光初始化
pdeviceHead = addrestaurantLightToDeviceLink(pdeviceHead); //餐厅灯光初始化
pdeviceHead = addDoorLockToDeviceLink(pdeviceHead);        //门锁初始化
pdeviceHead = addFanToDeviceLink(pdeviceHead);             //电风扇初始化
pdeviceHead = addBuzzerToDeviceLink(pdeviceHead);          //蜂鸣器初始化
pdeviceHead = addFireToDeviceLink(pdeviceHead);            //火焰传感器初始化
pdeviceHead = addVibrateToDeviceLink(pdeviceHead);           //震动传感器初始化
pdeviceHead = addcameraToDeviceLink(pdeviceHead);          //摄像头模块初始化
pdeviceHead = addInfraredToDeviceLink(pdeviceHead);           //人体感应传感器初始化

pthread_create(&voiceThread, NULL, voice_thread, NULL);   // 语音线程启动
pthread_create(&socketThread, NULL, socket_thread, NULL); // socket服务器线程启动
pthread_create(&fireThread, NULL, fire_thread, NULL);     //火灾报警线程启动
pthread_create(&vibrateThread, NULL, vibrate_thread, NULL);   //震动报警线程启动
pthread_create(&keyThread, NULL, key_thread, NULL);       //按键检测线程启动
pthread_create(&dht11Thread, NULL, dht11_thread, NULL);   // 温湿度检测线程启动

pthread_join(voiceThread, NULL);
pthread_join(socketThread, NULL);
pthread_join(fireThread, NULL);
pthread_join(vibrateThread, NULL);
pthread_join(infraredThread, NULL);
pthread_join(keyThread, NULL);
pthread_join(cameraThread, NULL);
pthread_join(monitoringThread, NULL);
pthread_join(clientWemosThread, NULL);
pthread_join(dht11Thread, NULL);
pthread_join(writeThread, NULL);

pthread_mutex_destroy(&mutex); //销毁互斥量

return 0;

}


#### bathroomLight.c(浴室灯)

#include “contrlDevices.h”

int bathroomLightOpen(int pinNum)
{
digitalWrite(pinNum, HIGH);
}

int bathroomLightClose(int pinNum)
{
digitalWrite(pinNum, LOW);
}

int bathroomLightCloseInit(int pinNum)
{
pinMode(pinNum, OUTPUT);
digitalWrite(pinNum, LOW);
// printf(“浴室灯初始化成功\n”);
}

int bathroomLightCloseStatus(int status)
{
}

struct Devices bathroomLight = {
.deviceName = “bathroomLight”,
.pinNum = 24,
.open = bathroomLightOpen,
.close = bathroomLightClose,
.deviceInit = bathroomLightCloseInit,
.changStatus = bathroomLightCloseStatus};

struct Devices *addBathroomLightToDeviceLink(struct Devices *phead)
{
if (phead == NULL)
{
return &bathroomLight;
}
else
{
bathroomLight.next = phead;
phead = &bathroomLight;
}
return phead;
}


#### buzzer.c(蜂鸣器)

#include “contrlDevices.h”

int buzzerOpen(int pinNum)
{
digitalWrite(pinNum, LOW);
}

int buzzerClose(int pinNum)
{
digitalWrite(pinNum, HIGH);
}

int buzzerInit(int pinNum)
{
pinMode(pinNum, OUTPUT);
digitalWrite(pinNum, HIGH);
}

struct Devices buzzer = {
.deviceName = “buzzser”,
.pinNum = 7,
.open = buzzerOpen,
.close = buzzerClose,
.deviceInit = buzzerInit};

struct Devices *addBuzzerToDeviceLink(struct Devices *phead)
{
if (phead == NULL)
{
return &buzzer;
}
else
{
buzzer.next = phead;
phead = &buzzer;
}
return phead;
}


#### camera.c(监控)

#include “contrlDevices.h”
#include <stdio.h>
#include <unistd.h>
#include <string.h>
#include <stdlib.h>
#include <curl/curl.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <sys/types.h>
#include <unistd.h>
#define door_lock 29 //门锁
void postUrl();
size_t readData1(void *ptr, size_t size, size_t nmemb, void *stream);
char *getFace1();
char *getPicFromOCRBase641(char *Filepath);
struct Devices *addcameraToDeviceLink(struct Devices *phead);

char ocrRetBuf[1024] = {‘\0’}; //全局变量，用来接收对比两张照片结果的数据

size_t readData1(void *ptr, size_t size, size_t nmemb, void *stream)
//回调函数，把从后台的数据拷贝给ocrRetBuf
{
strncpy(ocrRetBuf, ptr, 1024);
}

char *getFace1()
{
printf(“拍照中…\n”);
system(“raspistill -q 5 -t 1 -o image.jpg”); //-q 是图片质量，在0~100之间，我们调成5，压缩图片质量,生成的照片名字为imag.jpg
//-t 是拍照延时，设定1s后拍照

while (access("./image.jpg", F_OK) != 0);    //判断是否拍照完毕

printf("拍照完成\n");

char *base64BufFaceRec = getPicFromOCRBase641("./image.jpg");
// system("rm image.jpg");

return base64BufFaceRec; //返回刚才拍照的base64

}

char *getPicFromOCRBase641(char *Filepath)
{
int fd;
int filelen;
char cmd[128] = {‘\0’};

sprintf(cmd, "base64 %s > tmpFile", Filepath);//拼凑字符 执行base64+照片名 结果存放在tmpFile
system(cmd);                                  //执行
fd = open("./tmpFile", O_RDWR);
filelen = lseek(fd, 0, SEEK_END);             //计算指针偏移量 就是数据大小
lseek(fd, 0, SEEK_SET);                       //移动光标
char *bufpic = (char *)malloc(filelen + 2);
memset(bufpic, '\0', filelen + 2);
read(fd, bufpic, filelen + 128);              //读到bufpic中
system("rm -rf tmpFile");
close(fd);

return bufpic;                                //返回读的内容

}

void postUrl()
{
CURL *curl;
CURLcode res;

struct Devices *deviceTmp = NULL;

//分开定义，然后字符串拼接
char *key = "*******************";
char *secret = "********************";
int typeId = 21;
char *format = "xml";

char *base64BufPic1 = getFace1();                      //摄像头拍的
char *base64BufPic2 = getPicFromOCRBase641("nb.jpg");//房主照片

int len = strlen(key) + strlen(secret) + strlen(base64BufPic1) + strlen(base64BufPic2) + 128; //分配空间不够会导致栈溢出
char *postString = (char *)malloc(len);
memset(postString, '\0', len); //因为postString是一个指针，不能用sizeof来计算其指向的大小

sprintf(postString, "img1=%s&img2=%s&key=%s&secret=%s&typeId=%d&format=%s", base64BufPic1, base64BufPic2, key, secret, typeId, format); //根据平台的传参格式编写

curl = curl_easy_init();

if (curl)
{
    curl_easy_setopt(curl, CURLOPT_POSTFIELDS, postString);                   //指定post内容，传入参数
    curl_easy_setopt(curl, CURLOPT_URL, "https://netocr.com/api/faceliu.do"); // 指定url
    curl_easy_setopt(curl, CURLOPT_WRITEFUNCTION, readData1);                 //回调函数readDate读取返回值
    res = curl_easy_perform(curl);                                            //类似于状态码
    printf("OK:%d\n", res);

    if (strstr(ocrRetBuf, "是") != NULL)
    { //判断翔云后台返回的字符串中有没有“是”
        printf("是同一个人\n");
        digitalWrite(door_lock, LOW);  //打开门锁
        delay(3000);                   //等待3s
        digitalWrite(door_lock, HIGH); //关闭门锁
    }
    else
    {
        printf("不是同一个人\n");
    }
    curl_easy_cleanup(curl);
}

}

struct Devices camera = {

.deviceName = "camera",
.justDoOnce = postUrl,
.getFace = getFace1,
.getPicFromOCRBase64 = getPicFromOCRBase641,
.readData = readData1

};

struct Devices *addcameraToDeviceLink(struct Devices *phead)
{
if (phead == NULL)
{
return &camera;
}
else
{
camera.next = phead;
phead = &camera;
}
}


#### doorLock.c(门锁)

#include “contrlDevices.h”

int doorLockOpen(int pinNum)
{
//digitalWrite(pinNum, LOW);
for(int i=0;i<20;i++)
{
digitalWrite(pinNum,HIGH);
delay(2);
digitalWrite(pinNum,LOW);
delay(18);
}
pinMode(pinNum,INPUT);
pinMode(pinNum,OUTPUT);
}

int doorLockClose(int pinNum)
{
digitalWrite(pinNum, HIGH);
}

int doorLockCloseInit(int pinNum)
{
pinMode(pinNum, OUTPUT);
digitalWrite(pinNum, HIGH);
}

int doorLockCloseStatus(int status)
{
}
//门锁
struct Devices doorLock = {
.deviceName = “lock”,
.pinNum = 28,
.open = doorLockOpen,
.close = doorLockClose,
.deviceInit = doorLockCloseInit,
.changStatus = doorLockCloseStatus};

struct Devices *addDoorLockToDeviceLink(struct Devices *phead)
{
if (phead == NULL)
{
return &doorLock;
}
else
{
doorLock.next = phead;
phead = &doorLock;
}
return phead;
}


#### fan.c(风扇)

#include “contrlDevices.h”

int fanOpen(int pinNum)
{
pinMode(pinNum, OUTPUT);
}

int fanClose(int pinNum)
{
pinMode(pinNum, INPUT);
}

int fanCloseInit(int pinNum) //风扇有问题 设为输出就转 输入就停 高低电平影响不了
{
pinMode(pinNum, INPUT);
printf(“电风扇初始化成功\n”);
}

int fanCloseStatus(int status)
{
}

struct Devices fan = {
.deviceName = “fan”,
.pinNum = 26,
.open = fanOpen,
.close = fanClose,
.deviceInit = fanCloseInit,
.changStatus = fanCloseStatus
};

struct Devices *addFanToDeviceLink(struct Devices *phead)
{
if (phead == NULL)
{
return &fan;
}
else
{
fan.next = phead;
phead = &fan;
}
return phead;
}


#### fire.c(火焰传感)

#include “contrlDevices.h”

int fireInit(int pinNum)
{
pinMode(pinNum, INPUT);
digitalWrite(pinNum, HIGH);
}

int readFireStatus(int pinNum)
{
return digitalRead(pinNum);
}

struct Devices fire = {
.deviceName = “fire”,
.pinNum = 25,
.deviceInit = fireInit,
.readStatus = readFireStatus
};

struct Devices *addFireToDeviceLink(struct Devices *phead)
{
if (phead == NULL)
{
return &fire;
}
else
{
fire.next = phead;
phead = &fire;
}

return phead;

}


#### infrared.c(人体红外)

#include “contrlDevices.h”

int infraredInit(int pinNum)
{
pinMode(pinNum, INPUT);
digitalWrite(pinNum, HIGH);
// printf(“人体感应传感器初始化成功\n”);
}

int readinfraredStatus(int pinNum)
{
return digitalRead(pinNum);
}

struct Devices infrared = {
.deviceName = “infrared”,
.pinNum = 5,
.deviceInit = infraredInit,
.readStatus = readinfraredStatus};

struct Devices *addInfraredToDeviceLink(struct Devices *phead)
{
if (phead == NULL)
{
return &infrared;
}
else
{
infrared.next = phead;
phead = &infrared;
}
return phead;
}


#### livingroomLight.c(卧室灯)

#include “contrlDevices.h”

int livingroomLightOpen(int pinNum)
{
digitalWrite(pinNum, HIGH);
}

int livingroomLightClose(int pinNum)
{
digitalWrite(pinNum, LOW);
}

int livingroomLightCloseInit(int pinNum)
{
pinMode(pinNum, OUTPUT);
digitalWrite(pinNum, LOW);
}

int livingroomLightCloseStatus(int status)
{
}

struct Devices livingroomLight = {
.deviceName = “livingroomLight”,
.pinNum = 21,
.open = livingroomLightOpen,
.close = livingroomLightClose,
.deviceInit = livingroomLightCloseInit,
.changStatus = livingroomLightCloseStatus};

struct Devices *addlivingroomLightToDeviceLink(struct Devices *phead)
{
if (phead == NULL)
{
return &livingroomLight;
}
else
{
livingroomLight.next = phead;
phead = &livingroomLight;
}
return phead;
}


#### restaurantLight.c(餐厅灯)

#include “contrlDevices.h”

int restaurantLightOpen(int pinNum)
{
digitalWrite(pinNum, HIGH);
}

int restaurantLightClose(int pinNum)
{
digitalWrite(pinNum, LOW);
}

int restaurantLightCloseInit(int pinNum)
{
pinMode(pinNum, OUTPUT);
digitalWrite(pinNum, LOW);
}

int restaurantLightCloseStatus(int status)
{
}

struct Devices restaurantLight = {
.deviceName = “restaurantLight”,
.pinNum = 23,
.open = restaurantLightOpen,
.close = restaurantLightClose,
.deviceInit = restaurantLightCloseInit,
.changStatus = restaurantLightCloseStatus};

struct Devices *addrestaurantLightToDeviceLink(struct Devices *phead)
{
if (phead == NULL)
{
return &restaurantLight;
}
else
{
restaurantLight.next = phead;
phead = &restaurantLight;
}
return phead;
}


#### socketContrl.c(socket控制)

#include <wiringPi.h>
#include <stdio.h>
#include <stdlib.h>
#include <wiringSerial.h>
#include <unistd.h>

#include <sys/types.h>
#include <sys/socket.h>
#include <arpa/inet.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <string.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>

#include “inputCommand.h”

int socketgetCommand(struct InputCommander *socketMes)
{
int c_fd;
int n_read;

struct sockaddr_in c_addr;
memset(&c_addr, 0, sizeof(struct sockaddr_in));
int clen = sizeof(struct sockaddr_in);

// 4.accept
c_fd = accept(socketMes->sfd, (struct sockaddr *)&c_addr, &clen);

n_read = read(c_fd, socketMes->comand, sizeof(socketMes->comand));
if (n_read == -1)
{
    perror("读");
}
else if (n_read > 0)
{
    printf("\n获取:%d\n", n_read);
}
else
{
    printf("客户端退出\n");
}


return n_read;

}

int socketInit(struct InputCommander *socketMes, char *ipAdress, char *port)
{

int s_fd;
struct sockaddr_in s_addr;

memset(&s_addr, 0, sizeof(struct sockaddr_in));

// 1.socket
s_fd = socket(AF_INET, SOCK_STREAM, 0);
if (s_fd == -1)
{
    perror("socket");
    exit(-1);
}

s_addr.sin_family = AF_INET;
s_addr.sin_port = htons(atoi(socketMes->port));
inet_aton(socketMes->ipAdress, &s_addr.sin_addr);

//解决服务器程序结束后端口被占用的情况
int opt = 1;
setsockopt(s_fd, SOL_SOCKET, SO_REUSEADDR, &opt, sizeof(opt));

// 2.bind
bind(s_fd, (struct sockaddr *)&s_addr, sizeof(struct sockaddr_in));

// 3.listen
listen(s_fd, 10);
printf("套接字服务器侦听......\n");
socketMes->sfd = s_fd;

return s_fd;

}

struct InputCommander socketContrl = {
.commandName = “socketServer”,
.comand = {‘\0’},
.port = “8088”,
.ipAdress = “192.168.137.167”,
.Init = socketInit,
.getCommand = socketgetCommand,
.log = {‘\0’},
.next = NULL};

struct InputCommander *addsocketContrlToInputCommanderLink(struct InputCommander *phead)
{
if (phead == NULL)
{
return &socketContrl;
}
else
{
socketContrl.next = phead;
phead = &socketContrl;
}

return phead;

}


#### upstairLight.c(客厅灯)

#include <stdlib.h>
#include <fcntl.h>
#include “contrlDevices.h”

int upstairLightOpen(int pinNum) //打开客厅灯函数
{
digitalWrite(pinNum, HIGH);
}

int upstairLightClose(int pinNum) //关闭客厅灯函数
{
digitalWrite(pinNum, LOW);
}

int upstairLightCloseInit(int pinNum) //初始化函数
{
pinMode(pinNum, OUTPUT); //配置引脚为输出引脚
digitalWrite(pinNum, LOW); //引脚输出高电平，即默认为关闭状态
}

int upstairLightCloseStatus(int status)
{
}

struct Devices upstairLight = { //客厅灯设备链表节点
.deviceName = “upstairLight”,
.pinNum = 22,
.open = upstairLightOpen,
.close = upstairLightClose,
.deviceInit = upstairLightCloseInit,
.changStatus = upstairLightCloseStatus
};

struct Devices *addupStairLightToDeviceLink(struct Devices *phead) //头插法将设备节点加入设备工厂链表函数
{
if (phead == NULL)
{
return &upstairLight;
}
else
{
upstairLight.next = phead;
phead = &upstairLight;
}
}


#### vibrate.c(震动传感器)

#include “contrlDevices.h”

int vibrateInit(int pinNum)
{
pinMode(pinNum, INPUT);
digitalWrite(pinNum, HIGH);
}

int readvibrateStatus(int pinNum)
{
return digitalRead(pinNum);
}

struct Devices vibrate = {
.deviceName = “vibrate”,
.pinNum = 1,
.deviceInit = vibrateInit,
.readStatus = readvibrateStatus};

struct Devices *addVibrateToDeviceLink(struct Devices *phead)
{
if (phead == NULL)
{
return &vibrate;
}
else
{
vibrate.next = phead;
phead = &vibrate;
}
return phead;
}


#### voiceContrl.c(语音模块)

#include <wiringPi.h>
#include <stdio.h>
#include <stdlib.h>
#include <wiringSerial.h>
#include <unistd.h>

最后

自我介绍一下，小编13年上海交大毕业，曾经在小公司待过，也去过华为、OPPO等大厂，18年进入阿里一直到现在。

深知大多数Java工程师，想要提升技能，往往是自己摸索成长，自己不成体系的自学效果低效漫长且无助。

因此收集整理了一份《2024年嵌入式&物联网开发全套学习资料》，初衷也很简单，就是希望能够帮助到想自学提升又不知道该从何学起的朋友，同时减轻大家的负担。







既有适合小白学习的零基础资料，也有适合3年以上经验的小伙伴深入学习提升的进阶课程，基本涵盖了95%以上嵌入式&物联网开发知识点，真正体系化！

如果你觉得这些内容对你有帮助，需要这份全套学习资料的朋友可以戳我获取！！

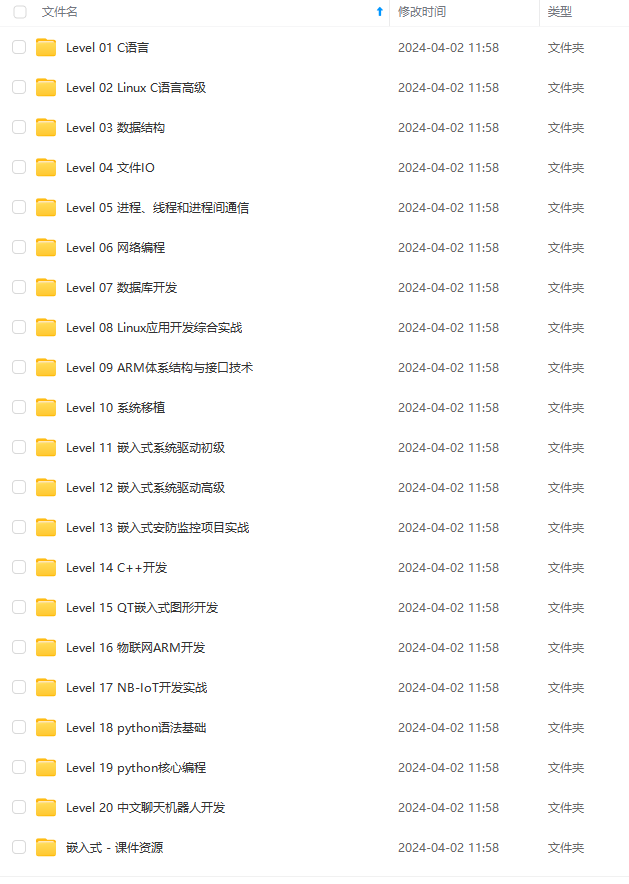

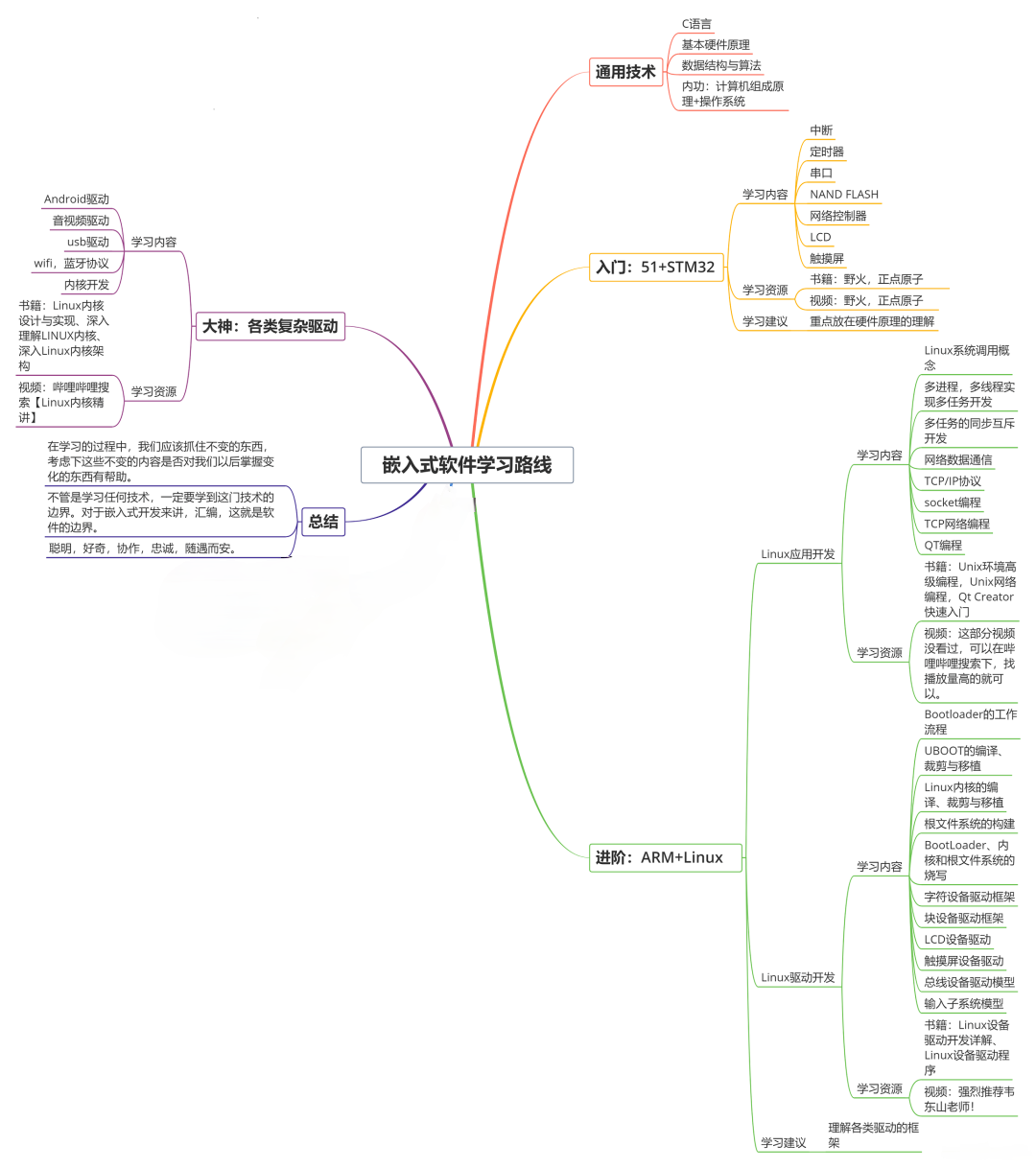

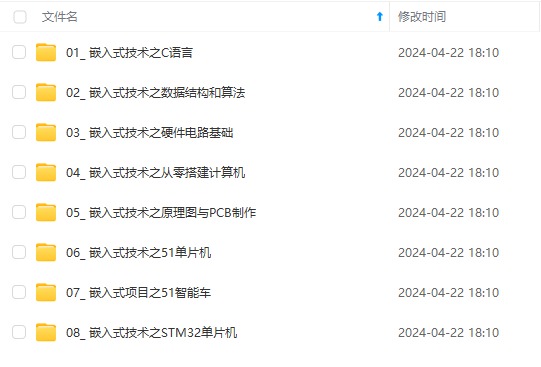

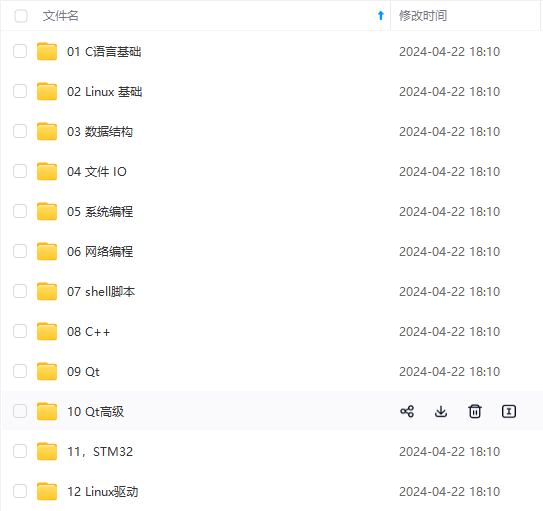

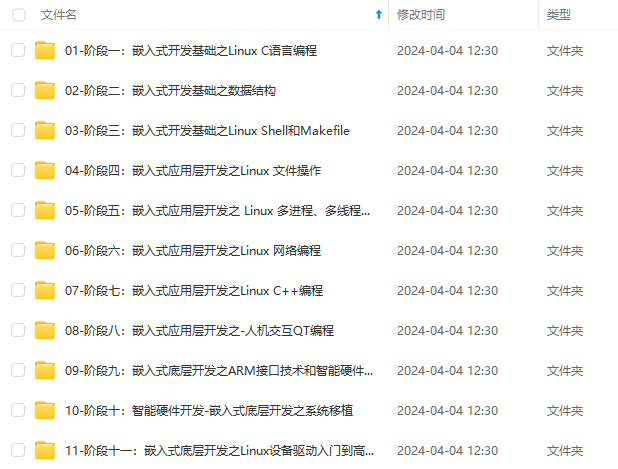

由于文件比较大，这里只是将部分目录大纲截图出来，每个节点里面都包含大厂面经、学习笔记、源码讲义、实战项目、讲解视频，并且后续会持续更新！！

vices vibrate = {
.deviceName = “vibrate”,
.pinNum = 1,
.deviceInit = vibrateInit,
.readStatus = readvibrateStatus};

struct Devices *addVibrateToDeviceLink(struct Devices *phead)
{
if (phead == NULL)
{
return &vibrate;
}
else
{
vibrate.next = phead;
phead = &vibrate;
}
return phead;
}


#### voiceContrl.c(语音模块)

#include <wiringPi.h>
#include <stdio.h>
#include <stdlib.h>
#include <wiringSerial.h>
#include <unistd.h>

最后

自我介绍一下，小编13年上海交大毕业，曾经在小公司待过，也去过华为、OPPO等大厂，18年进入阿里一直到现在。

深知大多数Java工程师，想要提升技能，往往是自己摸索成长，自己不成体系的自学效果低效漫长且无助。

因此收集整理了一份《2024年嵌入式&物联网开发全套学习资料》，初衷也很简单，就是希望能够帮助到想自学提升又不知道该从何学起的朋友，同时减轻大家的负担。

[外链图片转存中…(img-nCbMUSk9-1715586151620)]

[外链图片转存中…(img-RCPAlGy8-1715586151621)]

[外链图片转存中…(img-H1LF6bUx-1715586151622)]

[外链图片转存中…(img-ezozHgMj-1715586151622)]

[外链图片转存中…(img-gEIjWXBb-1715586151623)]

[外链图片转存中…(img-Tz6L3yUK-1715586151624)]

[外链图片转存中…(img-MpQtJX0O-1715586151625)]

既有适合小白学习的零基础资料，也有适合3年以上经验的小伙伴深入学习提升的进阶课程，基本涵盖了95%以上嵌入式&物联网开发知识点，真正体系化！

如果你觉得这些内容对你有帮助，需要这份全套学习资料的朋友可以戳我获取！！

由于文件比较大，这里只是将部分目录大纲截图出来，每个节点里面都包含大厂面经、学习笔记、源码讲义、实战项目、讲解视频，并且后续会持续更新！！

基于树莓派4B设计的智能家居系统(华为云IOT)
09-05 2万+
本次设计主要以树莓派为主要的硬件开发平台，以Raspbian操作系统为软件开发平台。主板树莓派通过HTTP协议和MQTT协议分别与上位机和下位机通信，搭建的服务器用来储存数据和日志记录。搭配有线和无线组合通信方式设计出一套完整的智能家居系统。
linux项目—基于树莓派的智能家居系统
最新发布
2401_84009192的博客
05-13 668
自我介绍一下，小编13年上海交大毕业，曾经在小公司待过，也去过华为、OPPO等大厂，18年进入阿里一直到现在。深知大多数Java工程师，想要提升技能，往往是自己摸索成长，自己不成体系的自学效果低效漫长且无助。因此收集整理了一份《2024年嵌入式&物联网开发全套学习资料》，初衷也很简单，就是希望能够帮助到想自学提升又不知道该从何学起的朋友，同时减轻大家的负担。既有适合小白学习的零基础资料，也有适合3年以上经验的小伙伴深入学习提升的进阶课程，基本涵盖了95%以上嵌入式&物联网开发知识点，真正体系化！
基于树莓派4B设计的智能家居系统(华为云IOT)_树莓派用mq2
disrm84160的博客
04-06 1129
IP地址：117.78.5.125端口号：1883订阅主题：$oc/devices/64000697352830580e48df07_dev1/sys/messages/down发布主题：$oc/devices/64000697352830580e48df07_dev1/sys/properties/report。
基于树莓派的智能家居
m0_70987863的博客
03-16 2710
智能家居
linux项目—基于树莓派的智能家居系统(1)
2301_79099460的博客
05-13 813
自我介绍一下，小编13年上海交大毕业，曾经在小公司待过，也去过华为、OPPO等大厂，18年进入阿里一直到现在。深知大多数Java工程师，想要提升技能，往往是自己摸索成长，自己不成体系的自学效果低效漫长且无助。因此收集整理了一份《2024年嵌入式&物联网开发全套学习资料》，初衷也很简单，就是希望能够帮助到想自学提升又不知道该从何学起的朋友，同时减轻大家的负担。既有适合小白学习的零基础资料，也有适合3年以上经验的小伙伴深入学习提升的进阶课程，基本涵盖了95%以上嵌入式&物联网开发知识点，真正体系化！
基于树莓派3B+和QT的一个智能家居监控系统完整项目源码+项目说明.zip
05-25
【文件介绍】 Linux 目录存放服务器（树莓派）的代码 QT 目录存放客户端（PC）的代码 【物理连接】 ...本项目实现了家庭监控系统的基本功能，包括温湿度显示、视频显示、有人提醒、火灾报警、日志功能
基于树莓派的智能家居系统 (1).pdf
07-15
树莓派与智能家居系统的结合，充分利用了树莓派的开源性和硬件接口的灵活性，通过编程实现家居设备的智能控制，以下是基于树莓派智能家居系统的主要技术知识点。 首先，智能家居系统的核心组件包括灯光控制、窗帘...
基于树莓派的智能家居系统.pdf
07-15
基于树莓派的智能家居系统.pdf
2015.06毕业设计 ---《基于树莓派开发板的智能家居系统的设计和实现》
12-02
本文是作者的本科毕业设计，基于树莓派2代开发板实现的简单的智能家居系统，其中包括：温湿度测量报警，步进电机的控制，光线、距离感应，声音识别以及文本转语音等模块的实现。基于C/S模型开发，有基于Qt的PC控制界面和运行在Raspberrypi 2上的服务器，欢迎下载（内附配套代码下载地址）......
基于树莓派的智能家居系统开发设计.pdf
07-15
基于树莓派的智能家居系统开发设计.pdf
2015.05毕业设计 ---《基于树莓派开发板的智能家居系统的设计和实现_and_配套代码
06-14
本文是作者的本科毕业设计，基于树莓派2代开发板实现的简单的智能家居系统，其中包括：温湿度测量报警，步进电机的控制，光线、距离感应，声音识别以及文本转语音等模块的实现。基于C/S模型开发，有基于Qt的PC控制界面和运行在Raspberrypi 2上的服务器，欢迎下载（内附配套代码）......
基于树莓派开发的智能家居控制系统
Li_t0010的博客
10-25 6558
基于树莓派开发的智能家居控制系统
基于树莓派实现 --- 智能家居
mjmmm的博客
03-19 3802
到目前为止，对于linux的嵌入式软件开发，从底层到上层都有了一定的认识。这个项目的初衷就是整合知识并以工厂模式的架构开发项目
基于树莓派的智能家居控制系统设计
热门推荐
G1842965496的博客
06-27 1万+
1.通过手机APP、语音识别等控制家电，对门锁，灯光、电风扇等设备进行控制，开发回家模式，睡觉模式等应用场景。 2.通过视频监控、火灾报警、震动报警和人体感应报警保证家居的安全。 3.将温湿度检测数据和家居安防状况实时同步到用户的手机APP进行显示。 4.遥控控制可以保证在没有网络的情况下也可以对家居进行控制。 5.通过翔云平台提供的人脸对比服务完成人脸识别开锁1.家居模型实物 2.部分功能展示 火灾测试 火灾报警 视频监控 温湿度检测 人脸识别按钮 人脸识别开锁1.主程序mainPro.c 2.摄像
基于树莓派4B的智能家居系统设计
wei_Embedded_z的博客
03-07 3210
该项目主控为树莓派4B开发板，使用 wiringPi 库结合 DHT11 温湿度传感器、火焰传感器、振动传感器、烟雾传感器、蓝牙模块、L298N电机驱动模块、继电器组模块、SU-03T语音模块、CSI 摄像头模块、风扇模块等，可实现语音控制、网络控制、自制蓝牙手机APP或者安卓APP控制继电器状态从而控制灯、风扇、警报器的开关，可以结合 mjpg-streamer 库，CSI 摄像头实现视频监控和通过翔云人工智能开放平台或阿里云进行人脸识别进而通过 PWM 控制舵机旋转模拟开关门状态，当有火
Home Assistant + 树莓派：强大的智能家居系统
hardihuang的博客
06-19 3910
项目介绍：制作一个智能家居系统，可以通过web软件界面或天猫精灵控制家里的灯、空调等设备。 硬件：树莓派+home assistant、esp8266+IR sender(控制空调)+relay(控制灯)
树莓派智能家居语音控制系统设计与实现
综合上述知识点，本项目是一个结合了树莓派硬件平台、百度Dueros语音控制技术以及PYQT界面设计的智能家居解决方案。它展示了如何通过现代软件技术和硬件接口，实现一个具有人性化交互和远程控制能力的智能家居系统。
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
