本文详细介绍了一个基于Struts2、Spring和Hibernate（SSH）框架的整合步骤，从搭建环境到核心配置，包括web.xml、struts.xml、Hibernate.cfg.xml、applicationContext.xml等关键文件的设置，以及各层代码实现。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

1 整合步骤

1.1 手动创建web.xml

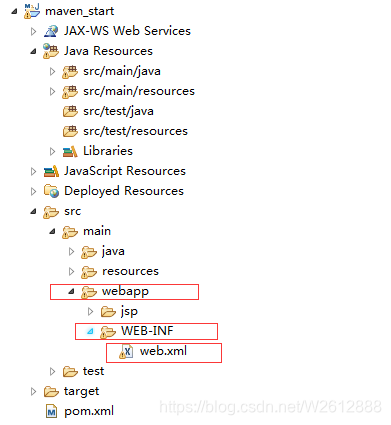

首先新建一个maven工程，在创建的webapp路径下新建一个WEB-INF文件夹，并在该文件夹下新建一个web.xml文件

1.2 添加依赖

在pom.xml中添加关于Struts2、Spring、Hibernate等完成的依赖，添加依赖时注意它的四个原则(https://blog.youkuaiyun.com/W2612888/article/details/86726664)

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.itykd</groupId>
  <artifactId>ssh-parent</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>pom</packaging>

    <!-- 属性 -->
	<properties>
		<spring.version>4.2.4.RELEASE</spring.version>
		<hibernate.version>5.0.7.Final</hibernate.version>
		<struts.version>2.3.24</struts.version>
	</properties>

	<!-- 锁定版本，struts2-2.3.24、spring4.2.4、hibernate5.0.7 -->
	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework</groupId>
				<artifactId>spring-context</artifactId>
				<version>${spring.version}</version>
			</dependency>
			<dependency>
				<groupId>org.springframework</groupId>
				<artifactId>spring-aspects</artifactId>
				<version>${spring.version}</version>
			</dependency>
			<dependency>
				<groupId>org.springframework</groupId>
				<artifactId>spring-orm</artifactId>
				<version>${spring.version}</version>
			</dependency>
			<dependency>
				<groupId>org.springframework</groupId>
				<artifactId>spring-test</artifactId>
				<version>${spring.version}</version>
			</dependency>
			<dependency>
				<groupId>org.springframework</groupId>
				<artifactId>spring-web</artifactId>
				<version>${spring.version}</version>
			</dependency>
			<dependency>
				<groupId>org.hibernate</groupId>
				<artifactId>hibernate-core</artifactId>
				<version>${hibernate.version}</version>
			</dependency>
			<dependency>
				<groupId>org.apache.struts</groupId>
				<artifactId>struts2-core</artifactId>
				<version>${struts.version}</version>
			</dependency>
			<dependency>
				<groupId>org.apache.struts</groupId>
				<artifactId>struts2-spring-plugin</artifactId>
				<version>${struts.version}</version>
			</dependency>
		</dependencies>
	</dependencyManagement>
	<!-- 依赖管理 -->
	<dependencies>
		<!-- spring -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-aspects</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-orm</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-test</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-web</artifactId>
		</dependency>
		<!-- hibernate -->
		<dependency>
			<groupId>org.hibernate</groupId>
			<artifactId>hibernate-core</artifactId>
		</dependency>

		<!-- 数据库驱动 -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>5.1.6</version>
			<scope>runtime</scope>
		</dependency>
		<!-- c3p0 -->

		<dependency>
			<groupId>c3p0</groupId>
			<artifactId>c3p0</artifactId>
			<version>0.9.1.2</version>
		</dependency>


		<!-- 导入 struts2 -->
		<dependency>
			<groupId>org.apache.struts</groupId>
			<artifactId>struts2-core</artifactId>
		</dependency>
		<dependency>
			<groupId>org.apache.struts</groupId>
			<artifactId>struts2-spring-plugin</artifactId>
		</dependency>

		<!-- servlet jsp -->
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>servlet-api</artifactId>
			<version>2.5</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jsp-api</artifactId>
			<version>2.0</version>
			<scope>provided</scope>
		</dependency>
		<!-- 日志 -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-log4j12</artifactId>
			<version>1.7.2</version>
		</dependency>
		<!-- junit -->
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>4.9</version>
			<scope>test</scope>
		</dependency>
		<!-- jstl -->
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jstl</artifactId>
			<version>1.2</version>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<!-- 设置编译版本为1.8 -->
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-compiler-plugin</artifactId>
				<version>3.5.1</version>
				<configuration>
					<source>1.8</source>
					<target>1.8</target>
					<encoding>UTF-8</encoding>
				</configuration>
			</plugin>

 			<plugin>
				<groupId>org.apache.tomcat.maven</groupId>
				<artifactId>tomcat7-maven-plugin</artifactId>
				<version>2.2</version>
				<configuration>
				    <!-- 可以灵活配置工程路径 -->
					<path>/ssh</path>
					<!-- 可以灵活配置端口号 -->
					<port>8081</port>
				</configuration>
			</plugin>
		</plugins>
	</build>
</project>

1.3 Hibernate文件的配置

1.3.1 Hibernate.cfg.xml

<?xml version='1.0' encoding='utf-8'?>
<!DOCTYPE hibernate-configuration PUBLIC
	"-//Hibernate/Hibernate Configuration DTD 3.0//EN"
	"http://www.hibernate.org/dtd/hibernate-configuration-3.0.dtd">

<hibernate-configuration>
	<!-- 会话工厂 -->
	<session-factory>
		<!-- 数据库方言，根据数据库选择 -->
	    <property name="hibernate.dialect">org.hibernate.dialect.MySQL5Dialect</property>

		<!--为了方便调试是否在运行hibernate时在日志中输出sql语句 -->
		<property name="hibernate.show_sql">true</property>
		<!-- 是否对日志中输出的sql语句进行格式化 -->
		<property name="hibernate.format_sql">true</property>

		<property name="hibernate.hbm2ddl.auto">none</property>

		<!-- 加载映射文件 -->
		<mapping resource="com/itykd/entity/Customer.hbm.xml"/>
	</session-factory>
</hibernate-configuration>

1.3.2 mapper.hbm.xml

<?xml version="1.0"?>
<!DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
"http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd">

<hibernate-mapping>
    <class name="com.itykd.entity.Customer" table="cst_customer"  optimistic-lock="version">
        <id name="custId" type="java.lang.Long">
            <column name="cust_id" />
            <generator class="identity" />
        </id>
        <property name="custName" type="string">
            <column name="cust_name" length="32" not-null="true"></column>
        </property>
        <property name="custUserId" type="java.lang.Long">
            <column name="cust_user_id"></column>
        </property>
        <property name="custCreateId" type="java.lang.Long">
            <column name="cust_create_id"></column>
        </property>
        <property name="custIndustry" type="string">
            <column name="cust_industry" length="32"></column>
        </property>
        <property name="custLevel" type="string">
            <column name="cust_level" length="32"></column>
        </property>
        <property name="custLinkman" type="string">
            <column name="cust_linkman" length="64"></column>
        </property>
        <property name="custPhone" type="string">
            <column name="cust_phone" length="64"></column>
        </property>
        <property name="custMobile" type="string">
            <column name="cust_mobile" length="16"></column>
        </property>
    </class>
</hibernate-mapping>

1.4 applicationContext.xml

<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context.xsd
	http://www.springframework.org/schema/aop
	http://www.springframework.org/schema/aop/spring-aop.xsd
	http://www.springframework.org/schema/tx
	http://www.springframework.org/schema/tx/spring-tx.xsd">


	<!-- 数据库连接池 -->
	<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
		<property name="driverClass" value="com.mysql.jdbc.Driver" />
		<property name="jdbcUrl" value="jdbc:mysql://localhost:3306/maven" />
		<property name="user" value="root" />
		<property name="password" value="NULIFENDOU520" />
	</bean>
	<!-- 开启注解属性 -->
	<context:annotation-config />
	<!-- 配置sessionFactory -->
	<bean id="sessionFactory" class="org.springframework.orm.hibernate5.LocalSessionFactoryBean">
		<!-- 依赖dataSource -->
		<property name="dataSource" ref="dataSource"/>
		<!-- 创建工厂需要加载hibernate映射文件 -->
		<property name="configLocations" value="classpath:hibernate.cfg.xml"></property>
	</bean>

	<bean id="customerDao" class="com.itykd.dao.impl.CustomerDaoImpl">
	 <property name="sessionFactory" ref="sessionFactory"></property>
	</bean>
	<bean id="customerService" class="com.itykd.service.impl.CustomerServiceImpl"/>
	<bean id="customerAction" class="com.itykd.web.action.CustomerAction" scope="prototype" />
</beans>

1.5 struts.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE struts PUBLIC
	"-//Apache Software Foundation//DTD Struts Configuration 2.3//EN"
	"http://struts.apache.org/dtds/struts-2.3.dtd">
<struts>
	<package name="demo" namespace="/" extends="struts-default" >
	    <action name="customer_*" class="customerAction" method="{1}">
	        <result name="success">/jsp/demo2.jsp</result>
	    </action>
	</package>
</struts>

1.6 web.xml

在web.xml文件中添加struts2的核心过滤器(StrutsPrepareAndExecuteFilter)和spring的核心监听器(ContextLoaderListener)

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" id="WebApp_ID" version="2.5">
  <display-name>maven_start</display-name>
  <welcome-file-list>
    <welcome-file>index.html</welcome-file>
    <welcome-file>index.htm</welcome-file>
    <welcome-file>index.jsp</welcome-file>
    <welcome-file>default.html</welcome-file>
    <welcome-file>default.htm</welcome-file>
    <welcome-file>default.jsp</welcome-file>
  </welcome-file-list>
  <filter>
    <filter-name>struts2</filter-name>
  	<filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
  </filter>
  <filter-mapping>
  	<filter-name>struts2</filter-name>
  	<url-pattern>/*</url-pattern>
  </filter-mapping>
  <!-- spring的核心监听器 -->
  <listener>
      <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
  <context-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:applicationContext.xml</param-value>
  </context-param>
</web-app>

2 示例

2.1 web层

package com.itykd.web.action;

import javax.annotation.Resource;

import org.springframework.stereotype.Controller;

import com.itykd.entity.Customer;
import com.itykd.service.CustomerService;
import com.opensymphony.xwork2.ActionSupport;

public class CustomerAction extends ActionSupport{

	@Resource(name="customerService")
	private CustomerService customerService;
	private Customer customer;
	private Long custId;

		public Customer getCustomer() {
			return customer;
		}
		public void setCustomer(Customer customer) {
			this.customer = customer;
		}

		public Long getCustId() {
			return custId;
		}
		public void setCustId(Long custId) {
			this.custId = custId;
		}
		public String findById(){
			customer = customerService.getById(custId);
			System.out.println("哈哈哈哈...");
			return SUCCESS;
		}
}

2.2 service层

package com.itykd.service.impl;

import javax.annotation.Resource;

import com.itykd.dao.CustomerDao;
import com.itykd.entity.Customer;
import com.itykd.service.CustomerService;

public class CustomerServiceImpl implements CustomerService{

	@Resource(name="customerDao")
	private CustomerDao customerDao;

	@Override
	public Customer getById(Long id) {

		return customerDao.getById(id);
	}

}

2.3 dao层

package com.itykd.dao.impl;

import org.springframework.orm.hibernate5.support.HibernateDaoSupport;

import com.itykd.dao.CustomerDao;
import com.itykd.entity.Customer;

public class CustomerDaoImpl extends HibernateDaoSupport implements CustomerDao{

	@Override
	public Customer getById(Long id) {
		return this.getHibernateTemplate().get(Customer.class, id);
	}

}
