WPF RichTextBox 实现自定义表达式的编辑器

项目里需要实现一个表达式编辑的功能 其中可以嵌入自定义表达式参数为各种信号

如：up.Signal(10) + down.Signal(10,20,30) > 0

于是废了半天时间写了个表达式编辑器 使用的是RichTextBox 没有找到其他比较好的富文本编辑框

up.Signal(10) 和down.Signal(10,20,30)  在载入、添加表达式时翻译成黑框并根据表达式内容显示描述

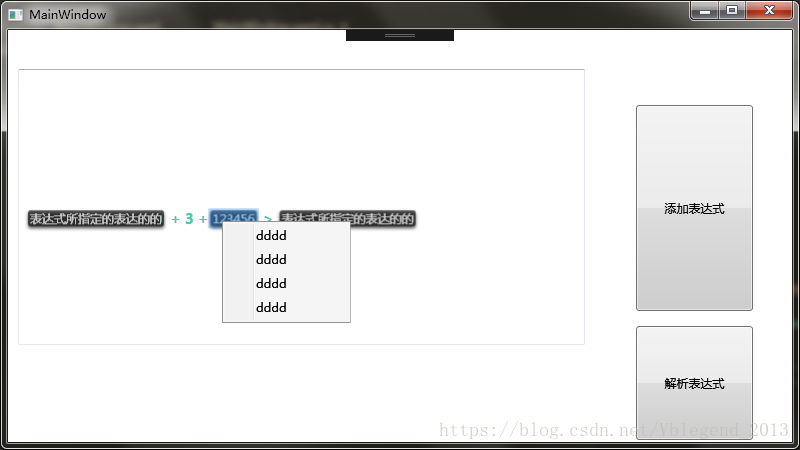

效果

测试代码

XAML

<Window x:Class="WpfApp2.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp2"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <Window.ContextMenu>
        <ContextMenu>
            <MenuItem Header="dddd"/>
            <MenuItem Header="dddd"/>
            <MenuItem Header="dddd"/>
            <MenuItem Header="dddd"/>
        </ContextMenu>
    </Window.ContextMenu>
    <Grid>
        <RichTextBox Name="RichTextBoxOutput"
                     VerticalContentAlignment="Center" HorizontalAlignment="Left"
                     Foreground="#FF4EC9B0"
                     IsDocumentEnabled="True"
                     Height="276" Margin="10,39,0,0" VerticalAlignment="Top" Width="567" FontSize="14" FontWeight="Bold">
            <RichTextBox.Resources>
                <Style TargetType="{x:Type Paragraph}">
                    <Setter Property="Margin" Value="0,1,0,1"/>
                </Style>
                <Style TargetType="{x:Type Run}">
                    <Setter Property="BaselineAlignment" Value="Center"/>
                </Style>
            </RichTextBox.Resources>
            <FlowDocument>
                <Paragraph>
                    <Run Text="RichTextBox"/>
                </Paragraph>
            </FlowDocument>
        </RichTextBox>
        <Button Content="添加表达式" HorizontalAlignment="Left" Margin="628,75,0,0" VerticalAlignment="Top" Width="117" Height="206" Click="Button_Click"/>
        <Button Content="解析表达式" HorizontalAlignment="Left" Margin="628,296,0,0" VerticalAlignment="Top" Width="117" Height="114" Click="Button_Click_1"/>
    </Grid>
</Window>

后台

using System;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Effects;

namespace WpfApp2
{
    /// <summary>
    /// MainWindow.xaml 的交互逻辑
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            RichTextBoxOutput.Document = new FlowDocument(new Paragraph());
        }

        private void Button_Click(object sender, RoutedEventArgs e)
        {
            Border border = new Border();
            border.Child = new TextBlock()
            {
                FontSize = 12,
                FontStyle = FontStyles.Normal,
                FontWeight = FontWeights.Normal,
                Text = "表达式所指定的表达的的",
                Margin = new Thickness(2, 0, 2, 0),
                Foreground = new SolidColorBrush(Colors.White),
            };
            border.CornerRadius = new CornerRadius(3, 3, 3, 3);
            border.BorderThickness = new Thickness(2, 2, 2, 2);
            border.Background = new SolidColorBrush(Color.FromArgb(255, 30, 30, 30));
            border.Opacity = 0.7;
            border.Effect = new DropShadowEffect() { BlurRadius = 5, ShadowDepth = 2, Direction = -90 };
            InlineUIContainer container = new InlineUIContainer(border);
            container.MouseLeftButtonDown += Container_MouseLeftButtonDown1;
            container.ContextMenu = this.ContextMenu;
            var Paragraph = RichTextBoxOutput.Document.Blocks.LastBlock as Paragraph;
            Paragraph.Inlines.Add(container);
        }

        private void Container_MouseLeftButtonDown1(object sender, MouseButtonEventArgs e)
        {
            var send = sender as InlineUIContainer;
            var b = send.Child as Border;
            var text = b.Child as TextBlock;
            text.Text = "123456";
        }


        private void Button_Click_1(object sender, RoutedEventArgs e)
        {
            var doc = this.RichTextBoxOutput.Document;
            foreach (Paragraph item in doc.Blocks)
            {
                foreach (var iline in item.Inlines)
                {
                    var lpRun = iline as Run;
                    var lpInLine = iline as InlineUIContainer;
                    if (lpInLine != null)
                    {
                        Console.WriteLine(lpInLine.Child);
                    }else if (lpRun != null)
                    {
                        Console.WriteLine(lpRun.Text);
                    }
                    else
                    {
                        throw new Exception("");
                    }
                }
            }
        }
    }
}











 鉴于 wpf 里 RichTextBox的Document 是没法在Xaml里面绑定的

  于是 继承RichTextBox 重写一下 Document属性

using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;


public class RichTextBoxEx : RichTextBox
{
    public new FlowDocument Document
    {
        get { return (FlowDocument)GetValue(DocumentProperty); }
        set { SetValue(DocumentProperty, value); }
    }

    public static readonly DependencyProperty DocumentProperty = DependencyProperty.Register("Document", typeof(FlowDocument), typeof(RichTextBoxEx), new FrameworkPropertyMetadata(null, new PropertyChangedCallback(OnDucumentChanged)));

    private static void OnDucumentChanged(DependencyObject target, DependencyPropertyChangedEventArgs e)
    {
        ((RichTextBox)target).Document = (FlowDocument)e.NewValue;
    }
}
