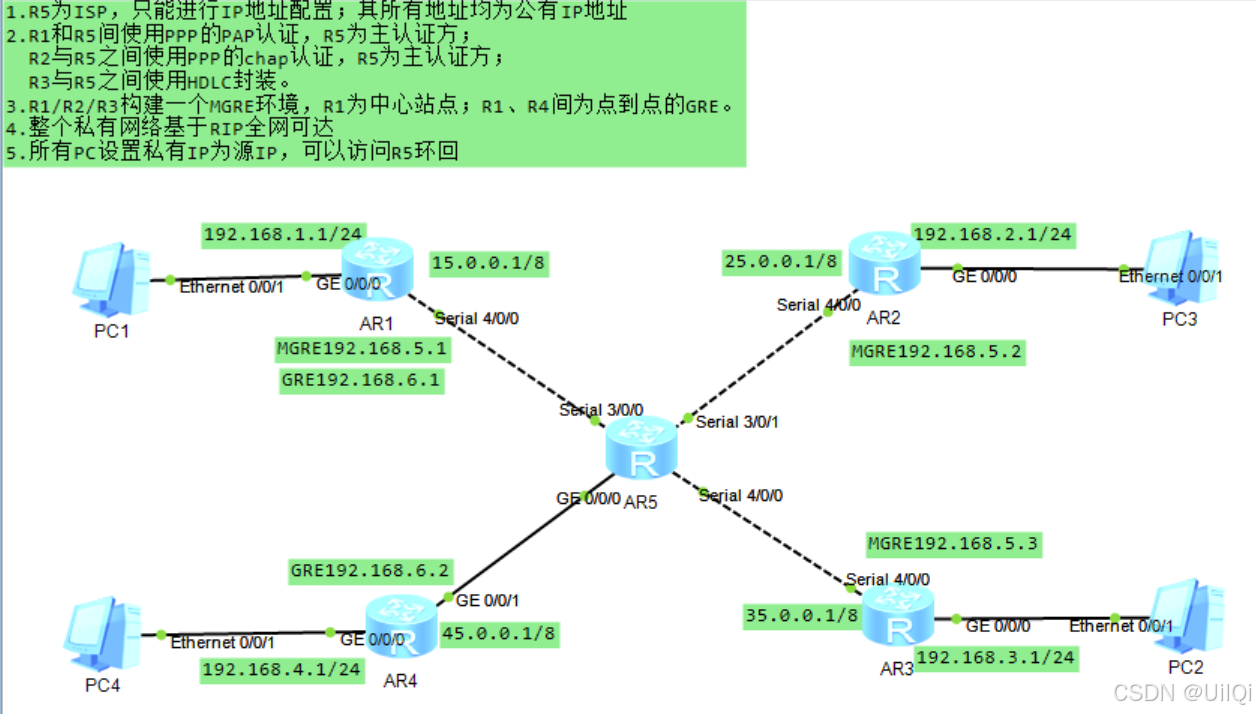

RIP环境下的MGRE网络

1.R5为ISP，只能进行IP地址配置；其所有地址均为公有IP地址

[ISP-Serial3/0/0]ip address 15.0.0.2 8
[ISP-Serial3/0/1]ip add 25.0.0.2 8
[ISP-Serial4/0/0]ip add 35.0.0.2 8
[ISP-GigabitEthernet0/0/0]ip add 45.0.0.2 8

2.R1和R5间使用PPP的PAP认证，R5为主认证方；

[r1]ip route-static 0.0.0.0 0 15.0.0.2
[r2]ip route-static 0.0.0.0 0 25.0.0.2
[r3]ip route-static 0.0.0.0 0 35.0.0.2
[r4]ip route-static 0.0.0.0 0 45.0.0.2

[ISP-aaa]local-user huawei password cipher 123456
Info: Add a new user.
[ISP-aaa]local-user huawei service-type ppp

[ISP-Serial3/0/0]ppp authentication-mode pap
[r1-Seria4/0/0]ppp pap local-user huawei password cipher 123456

  R2与R5之间使用PPP的chap认证，R5为主认证方；
[ISP-Serial3/0/1]ppp authentication-mode chap
[r2-Seria4/0/0]ppp chap user huawei
[r2-Seria4/0/0]ppp chap password cipher 123456

  R3与R5之间使用HDLC封装。

[ISP-Serial4/0/0]display this
[V200R003C00]
#
interface Serial4/0/0
 link-protocol hdlc
 ip address 35.0.0.2 255.0.0.0
#
Return

[r3-Serial4/0/0]display this
[V200R003C00]
#
interface Serial4/0/0
 link-protocol hdlc
 ip address 35.0.0.1 255.255.255.0
#
return

3.R1/R2/R3构建一个MGRE环境，R1为中心站点；R1、R4间为点到点的GRE。

[r1-Tunnel0/0/0]display this
[V200R003C00]
#
interface Tunnel0/0/0
 ip address 192.168.5.1 255.255.255.0
 tunnel-protocol gre p2mp
 source Serial4/0/0
 nhrp network-id 10
#
Return

[r2-Tunnel0/0/0]display this
[V200R003C00]
#
interface Tunnel0/0/0
 ip address 192.168.5.2 255.255.255.0
 tunnel-protocol gre p2mp
 source Serial4/0/0
 nhrp network-id 10
 nhrp entry 192.168.5.1 15.0.0.1 register
#
return

[r3-Tunnel0/0/0]display this
[V200R003C00]
#
interface Tunnel0/0/0
 ip address 192.168.5.3 255.255.255.0
 tunnel-protocol gre p2mp
 source Serial4/0/0
 nhrp network-id 10
 nhrp entry 192.168.5.1 15.0.0.1 register
#
Return

[r1-Tunnel0/0/1]display this
[V200R003C00]
#
interface Tunnel0/0/1
 ip address 192.168.6.1 255.255.255.0
 tunnel-protocol gre
 source Serial4/0/0
 destination 45.0.0.1
#
Return

[R4-Tunnel0/0/0]display this
[V200R003C00]
#
interface Tunnel0/0/0
 ip address 192.168.6.2 255.255.255.0
 tunnel-protocol gre
 source GigabitEthernet0/0/1
 destination 15.0.0.1
#
return

4.整个私有网络基于RIP全网可达

[r1-rip-1]display this
[V200R003C00]
#
rip 1
 version 2
 network 192.168.1.0
 network 192.168.5.0
 network 192.168.6.0
#
Return

[r1-Tunnel0/0/0]display this
[V200R003C00]
#
interface Tunnel0/0/0
 ip address 192.168.5.1 255.255.255.0
 undo rip split-horizon
 tunnel-protocol gre p2mp
 source Serial4/0/0
 nhrp entry multicast dynamic
 nhrp network-id 10
#
Return

[r2-rip-1]display this
[V200R003C00]
#
rip 1
 version 2
 network 192.168.2.0
 network 192.168.5.0
#
Return

[r3-rip-1]display this
[V200R003C00]
#
rip 1
 version 2
 network 192.168.3.0
 network 192.168.5.0
#
Return

[R4-rip-1]display this
[V200R003C00]
#
rip 1
 version 2
 network 192.168.4.0
 network 192.168.6.0
#
Return

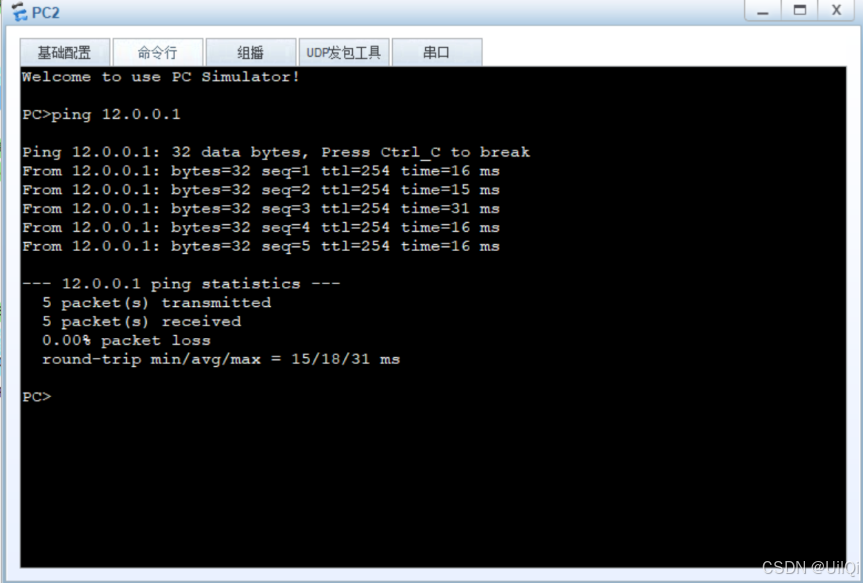

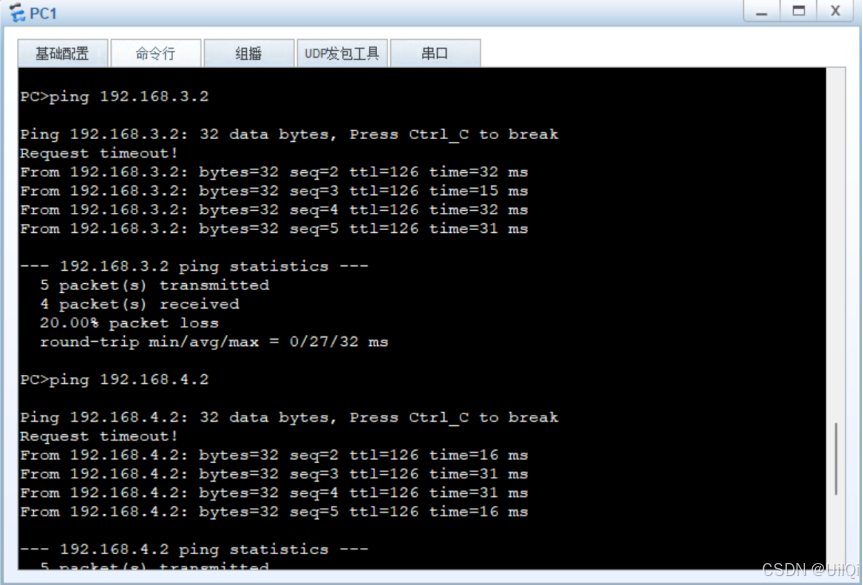

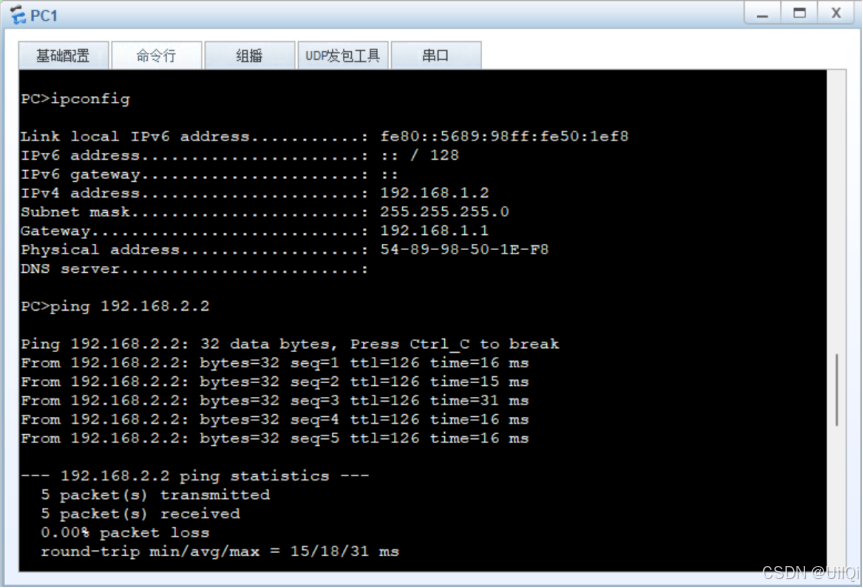

5.所有PC设置私有IP为源IP，可以访问R5环回

[ISP-LoopBack0]display this
[V200R003C00]
#
interface LoopBack0
 ip address 12.0.0.1 255.255.255.0
#
Return

[r1-acl-basic-2000]rule permit source 192.168.1.0 0.0.0.255
[r1-Serial4/0/0]nat outbound 2000

[r2-acl-basic-2000]rule permit source 192.168.2.0 0.0.0.255
[r2-Serial4/0/0]nat outbound 2000

[r3-acl-basic-2000]rule permit source 192.168.3.0 0.0.0.255
[r3-Serial4/0/0]nat outbound 2000

[R4-acl-basic-2000]rule permit source 192.168.4.0 0.0.0.255
[R4-GigabitEthernet0/0/1]nat outbound 2000
