2.16VINETIC需要解决的问题

原创于 2019-09-07 14:12:28 发布 · 393 阅读

0 ·

CC 4.0 BY-SA版权

本文详细介绍了SVIP驱动在UGW-6.1.1环境中的移植过程，包括模块添加、targetprofile配置及内核信息调整。同时探讨了DSP的Vmmc组件去除策略，为嵌入式系统的优化提供参考。

/************************************************************************

Elvins Fu

2016年6月1日

*************************************************************************/

需要解决的问题

重点：

1.驱动的移植（重点把SVIP16的资源添加到UGW-6.1.1的环境中去）

2.DSP的Vmmc的去除

-------------------------------------------------------------------------------------------------

1.驱动的移植

1.模块的添加

root@sky:~/workspace/VINETIC/OpenWrt-SDK-SVIP-2.6-be-7.0.6-for-Linux-i686# ./scripts/ltq_change_environment.sh switch

active config: ./config/lantiq/easy336_svip

[0] Abort

[1] ./config/lantiq/easy336_svip

choice[0-1?]: 1

ubuntu@sky:~/workspace/MKBGRX288/UGW-6.1.1-SW-CD/Software/Sources/UGW-6.1.1$ ./scripts/ltq_change_environment.sh switch

active config: ./config/GRX288_GW_HE_ETHWAN_LTE_SAMPLE

[0] Abort

[01] ./config/ARX388_GW_HE_ADSL_SAMPLE

[02] ./config/GRX220_GW_EL_ETHWAN_LTE

[03] ./config/GRX288_GW_HE_ETHWAN_LTE_SAMPLE

[04] ./config/GRX300_GW_HE_ETHWAN_16K_SAMPLE

[05] ./config/GRX300_GW_HE_VDSL_LTE

[06] ./config/GRX300_GW_HE_VDSL_LTE_DEBUG_SAMPLE

[07] ./config/GRX300_GW_HE_VDSL_LTE_WITH_COMPACTION_SAMPLE

[08] ./config/GRX300_RT_HE_ETHWAN_LTE

[09] ./config/GRX330_GW_HE_GFAST_ETHWAN_SAMPLE

[10] ./config/GRX330_GW_HE_VDSL_LTE_BLNR_SAMPLE

[11] ./config/GRX330_GW_HE_VDSL_LTE

[12] ./config/GRX330_GW_HE_VDSL_LTE_QTN_2RGMII_SAMPLE

[13] ./config/GRX330_GW_HE_VDSL_LTE_QTN_RGMII_SAMPLE

[14] ./config/GRX330_RT_HE_ETHWAN_LTE

[15] ./config/VRX220_GW_EL_VDSL_SPI

[16] ./config/VRX220_RT_EL_VDSL

[17] ./config/VRX288_GW_HE_VDSL_LTE

[18] ./config/VRX288_GW_HE_VDSL_LTE_NFS_SAMPLE

创建EASY366 SVIP的model 存放需要的模块的资源

bule@sky:~/workspace/FGW16VINE/UGW-6.1.1-SW-CD/Software/Sources/UGW-6.1.1$ ce_new ./config/EASY366_GW_F16VINE_LTE_SAMPLE

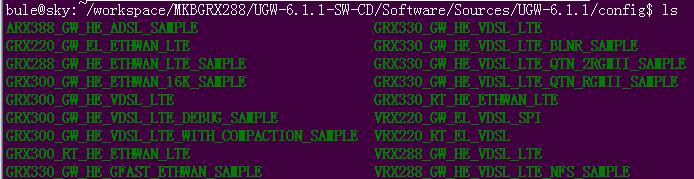

bule@sky:~/workspace/FGW16VINE/UGW-6.1.1-SW-CD/Software/Sources/UGW-6.1.1/config$ ls

ARX388_GW_HE_ADSL_SAMPLE GRX330_GW_HE_VDSL_LTE

EASY366_GW_F16VINE_LTE_SAMPLE GRX330_GW_HE_VDSL_LTE_BLNR_SAMPLE

--------------------------------------------------------------------------------------------------------------------

2.增加target profile

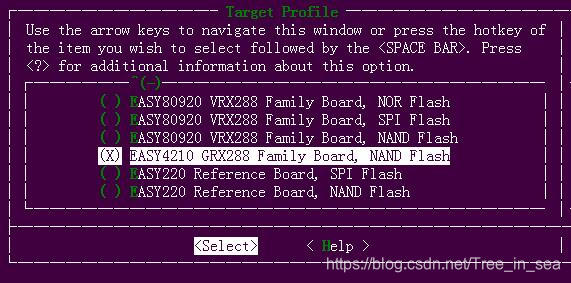

原始target profile

bule@sky:~/workspace/FGW16VINE/UGW-6.1.1-SW-CD/Software/Sources/UGW-6.1.1$ grep -rn " EASY4210 GRX288 Family Board, NAND Flash" ./

./tmp/.targetinfo:582:Target-Profile-Name: EASY4210 GRX288 Family Board, NAND Flash

./tmp/info/.targetinfo-lantiq:582:Target-Profile-Name: EASY4210 GRX288 Family Board, NAND Flash

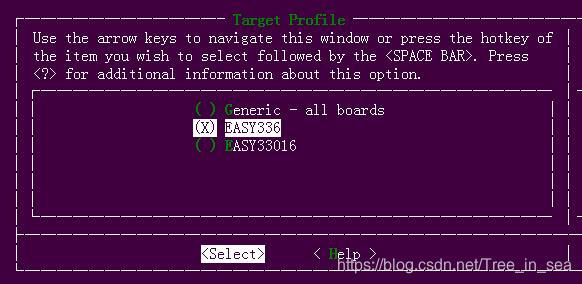

新资源SVIP

bule@sky:~/workspace/VINETIC/OpenWrt-SDK-SVIP-2.6-be-7.0.6-for-Linux-i686$ grep -rn "EASY33016" ./

./tmp/.targetinfo:1131:Target-Profile: EASY33016

./tmp/.targetinfo:1132:Target-Profile-Name: EASY33016

./tmp/.targetinfo:1138: Lantiq EASY33016 evalkit

./tmp/info/.targetinfo-lantiq:434:Target-Profile: EASY33016

./tmp/info/.targetinfo-lantiq:435:Target-Profile-Name: EASY33016

./tmp/info/.targetinfo-lantiq:441: Lantiq EASY33016 evalkit

--------------------------------------------------------target system---------------------------------------------

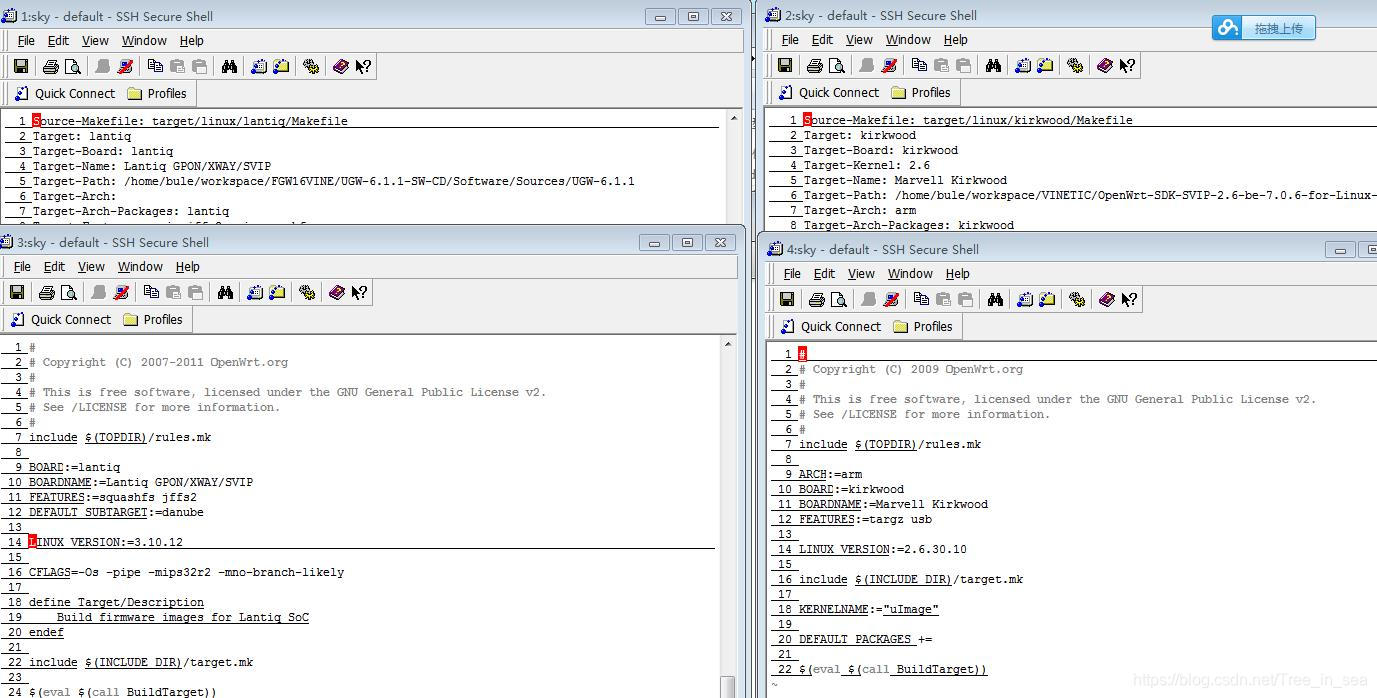

makefile位置内核信息

---------------------------------------------------------------------------------------------------------------------

-------------------------------------Subtarget （芯片系列）----------------------------------

--------------------------------------target Profile （SoC)------------------------------------

----------------------------------------------------VINETIC------------------------------------

1109 @@

1110 Default-Packages: base-files libc libgcc busybox dropbear mtd uci opkg udevtrigger hotplug2 ubo

1111 Target-Profile: Generic

1096 Target-Kernel: 2.6

1097 Target-Name: SVIP Big Endian

1098 Target-Path: target/linux/lantiq

1099 Target-Arch: mips

1100 Target-Arch-Packages: lantiq

1101 Target-Features: gpio jffs2 squashfs

1102 Target-Depends:

1103 Target-Optimization: -Os -pipe -mips32r2 -mtune=mips32r2 -fno-caller-saves

1104 Linux-Version: 2.6.32.60

1105 Linux-Release: 1

1106 Linux-Kernel-Arch: mips

1107 Target-Description:

1108 Lantiq SVIP Big Endian

下面配置的targetinfo

1116 @@

1117 Target-Profile-Description:

1118

1119 @@

1120

1121 Target-Profile: EASY336

1122 Target-Profile-Name: EASY336

1123 Target-Profile-Packages:

1124 Target-Profile-Config:

1125

1126 @@

1127 Target-Profile-Description:

1128 Lantiq EASY336 evalkit

1129 @@

1130

1131 Target-Profile: EASY33016

1132 Target-Profile-Name: EASY33016

1133 Target-Profile-Packages:

1134 Target-Profile-Config:

1135

1136 @@

1137 Target-Profile-Description:

1138 Lantiq EASY33016 evalkit

1139 @@

1140

------------------------------------------MKBGRX288------------------------------------

443 Target: lantiq/svip_be

444 Target-Board: lantiq

445 Target-Name: SVIP Big Endian

446 Target-Path: target/linux/lantiq

447 Target-Arch: mips

448 Target-Arch-Packages: lantiq

449 Target-Features: gpio jffs2 pci squashfs usb

450 Target-Depends:

451 Target-Optimization: -Os -pipe -mips32r2 -mno-branch-likely -mtune=mips32r2

452 Linux-Version: 3.10.12

453 Linux-Release: 1

454 Linux-Kernel-Arch: mips

455 Target-Description:

456 Lantiq SVIP Big Endian

457 @@

458 Default-Packages: base-files libc libgcc busybox dropbear mtd uci opkg hotplug2 netifd uboot-svip hos

459 Target-Profile: Generic

460 Target-Profile-Name: Generic - all boards

461 Target-Profile-Packages:

462 Target-Profile-Config:

463

下面配置的targetinfo

464 @@

465 Target-Profile-Description:

466

467 @@

468

469 Target-Profile: EASY336

470 Target-Profile-Name: EASY336

471 Target-Profile-Packages:

472 Target-Profile-Config:

473

474 @@

475 Target-Profile-Description:

476 Lantiq EASY336 evalkit

477 @@

478

479 Target-Profile: EASY33016

480 Target-Profile-Name: EASY33016

481 Target-Profile-Packages: kmod-ifxos ifx-vos ifx-evtlog svip-switch voice-lib-tapi voice-lib-cli voice

482 Target-Profile-Config:

-------------------------------------------------------------------------------------------------

----------------------------------------Target Image-----------------------------------------

./.config:121:# Target Images

./Config.in:15:menu "Target Images"

576 source "toolchain/Config.in"

577

578 source "target/imagebuilder/Config.in"

579 source "target/sdk/Config.in"

580 source "target/toolchain/Config.in"

581

582 source "tmp/.config-package.in"

---------------------------------------------------------------------------------------------

----------------------- Advanced configuration options (for developers)-------------

x x [*] Automatic rebuild of packages x x

x x (grx288_gw_he_ethwan_lte_sample) Build suffix to append to the BUILD_DIR variable x x

bule@sky:~/workspace/FGW16VINE/UGW-6.1.1-SW-CD/Software/Sources/UGW-6.1.1$ grep -rn grx288_gw_he_ethwan_lte_sample ./

./config/EASY366_GW_F16VINE_LTE_SAMPLE/.config:4:CONFIG_BUILD_SUFFIX="grx288_gw_he_ethwan_lte_sample"

./config/GRX288_GW_HE_ETHWAN_LTE_SAMPLE/.config:8:CONFIG_BUILD_SUFFIX="grx288_gw_he_ethwan_lte_sample"

grep: ./staging_dir/toolchain-mips_r2_gcc-4.8-linaro_uClibc-0.9.33.2/lib/lib: Too many levels of symbolic links

grep: ./staging_dir/toolchain-mips_r2_gcc-4.8-linaro_uClibc-0.9.33.2/lib64/lib: Too many levels of symbolic links

./.config:195:CONFIG_BUILD_SUFFIX="grx288_gw_he_ethwan_lte_sample"

./.config.diff:9:CONFIG_BUILD_SUFFIX="grx288_gw_he_ethwan_lte_sample"

./.config.old:214:CONFIG_BUILD_SUFFIX="grx288_gw_he_ethwan_lte_sample"
