Spring boot集成xxl-job以及动态任务配置

拉取项目

从git上拉取xxl-job到本地:

https://gitee.com/xuxueli0323/xxl-job.git

修改配置启动项目

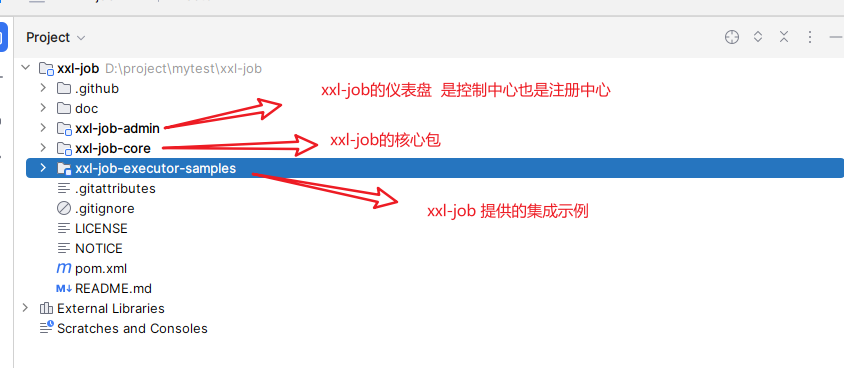

xxl-job的包结构如下:

修改xxl-job的配置信息

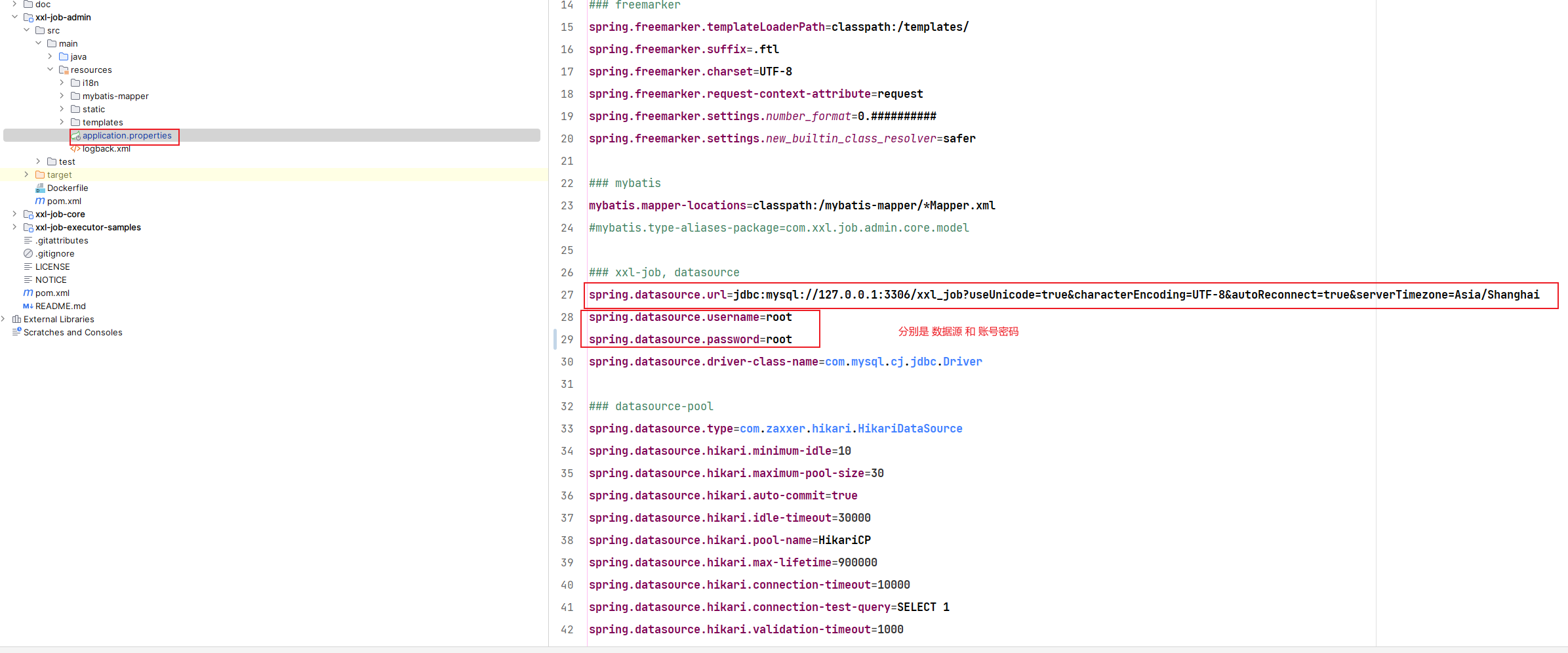

1、配置数据库

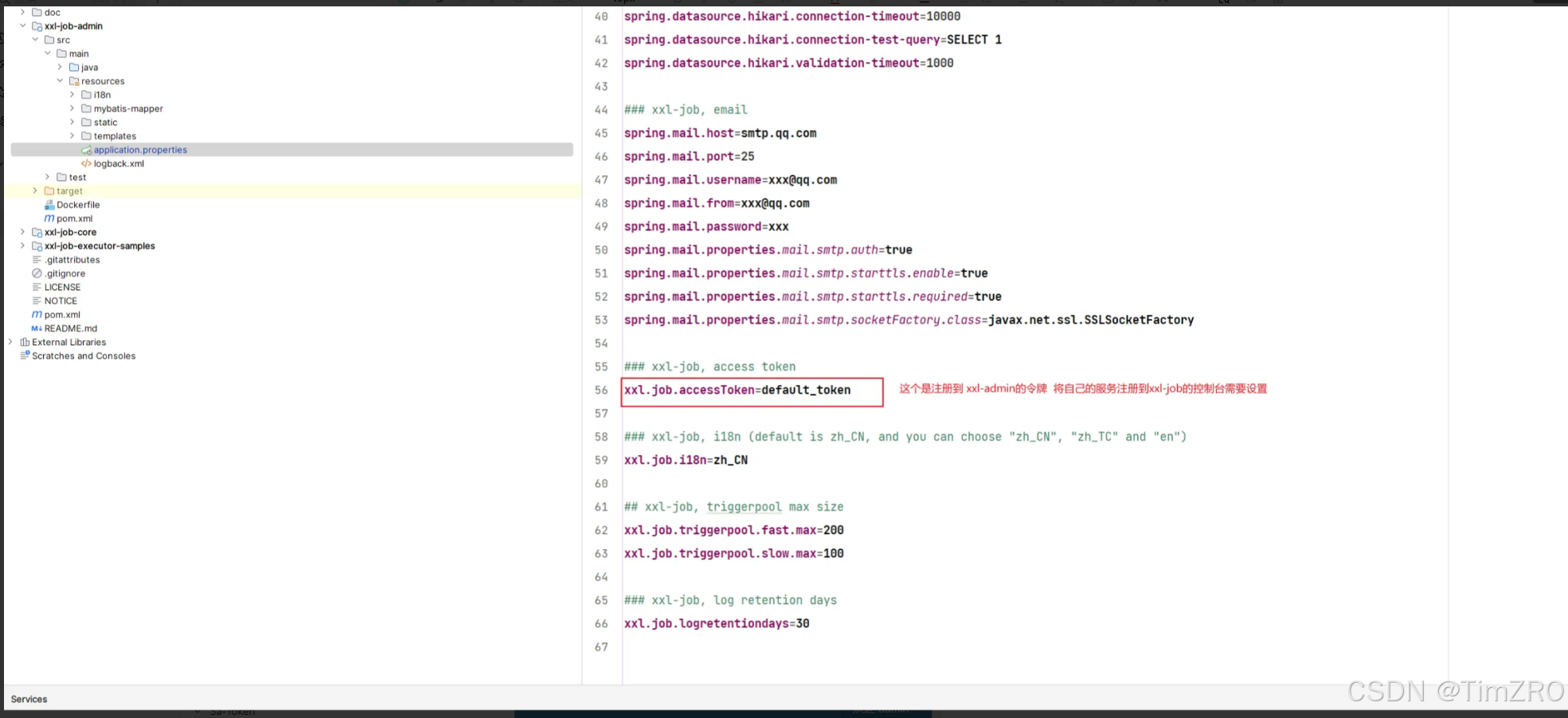

2、配置令牌

在这里插入图片描述

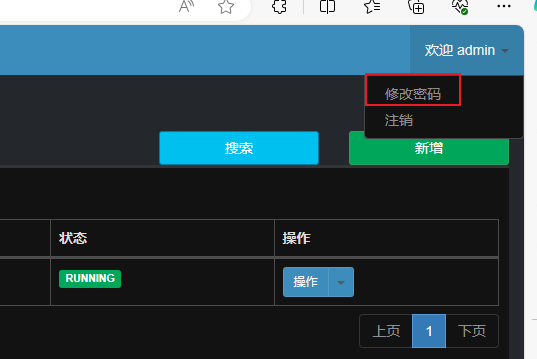

3、启动xxl-job-admin控制台,通过http://localhost:8080/xxl-job-admin 访问,

默认用户名:admin

密码:123456

在自己的项目中集成xxl-job

1、在自己的项目中导入xxl-job的依赖,比如:

<dependency>
  <groupId>com.xuxueli</groupId>
  <artifactId>xxl-job-core</artifactId>
  <version>2.3.0</version>
</dependency>

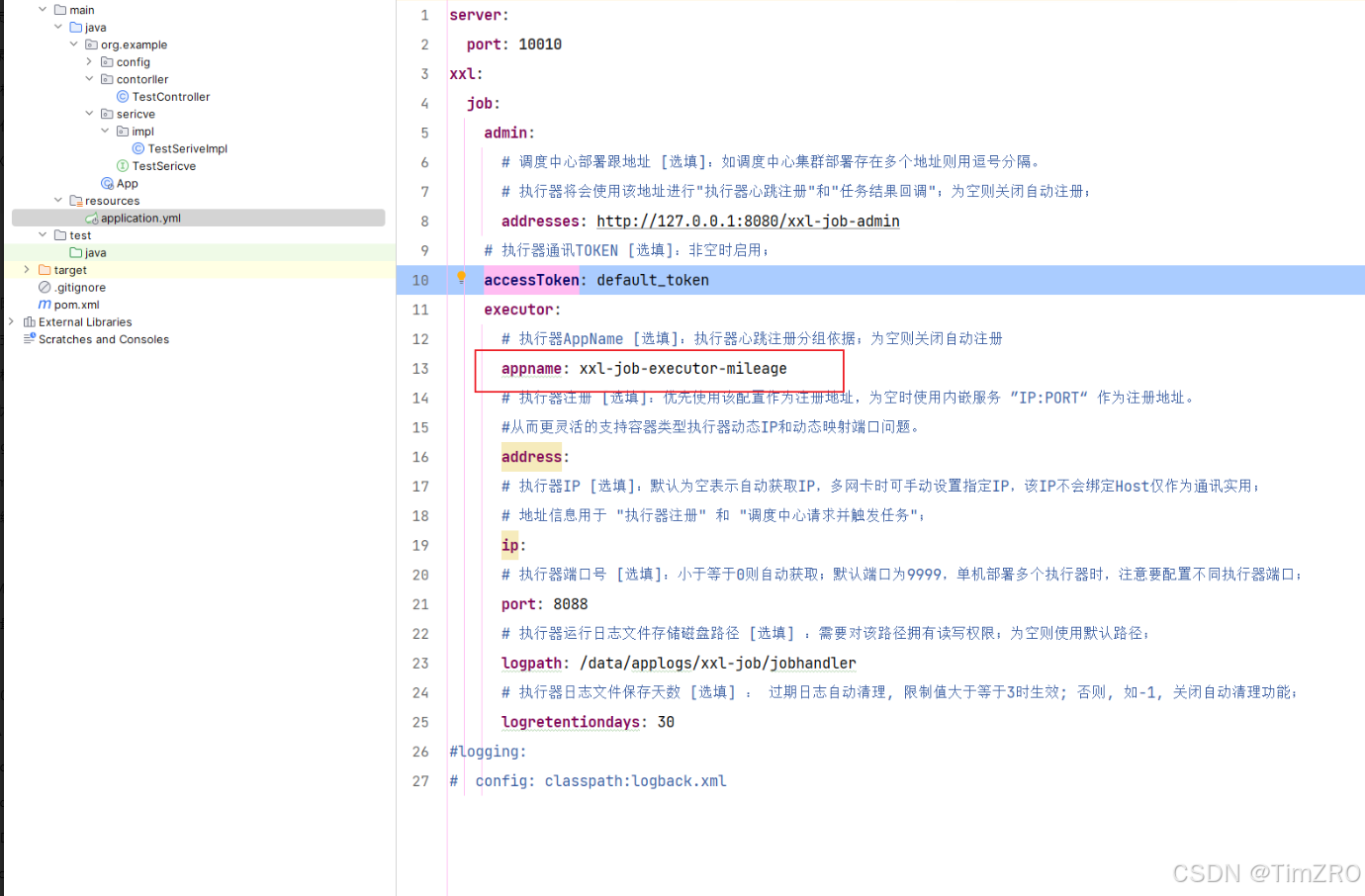

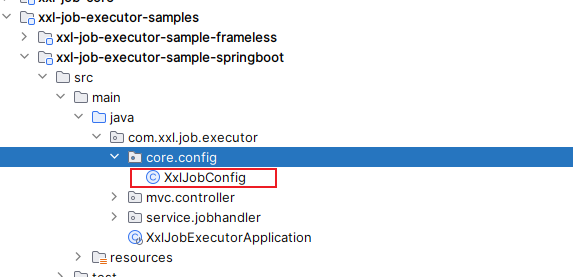

2、将xxl-job中提供的配置复制到自己项目中

这个配置类原封不动复制过来就可以,有需要也可以按需修改,同时需要在自己的项目中配置xxl-job的信息,特别注意,如果你在 xxl-job-admin的配置中修改了 配置的 accessToken 一定要和之前修改到的一致,否则在自己的项目会看到注册失败的日志,同时在xxl-job的控制台也无法调度你的任务。

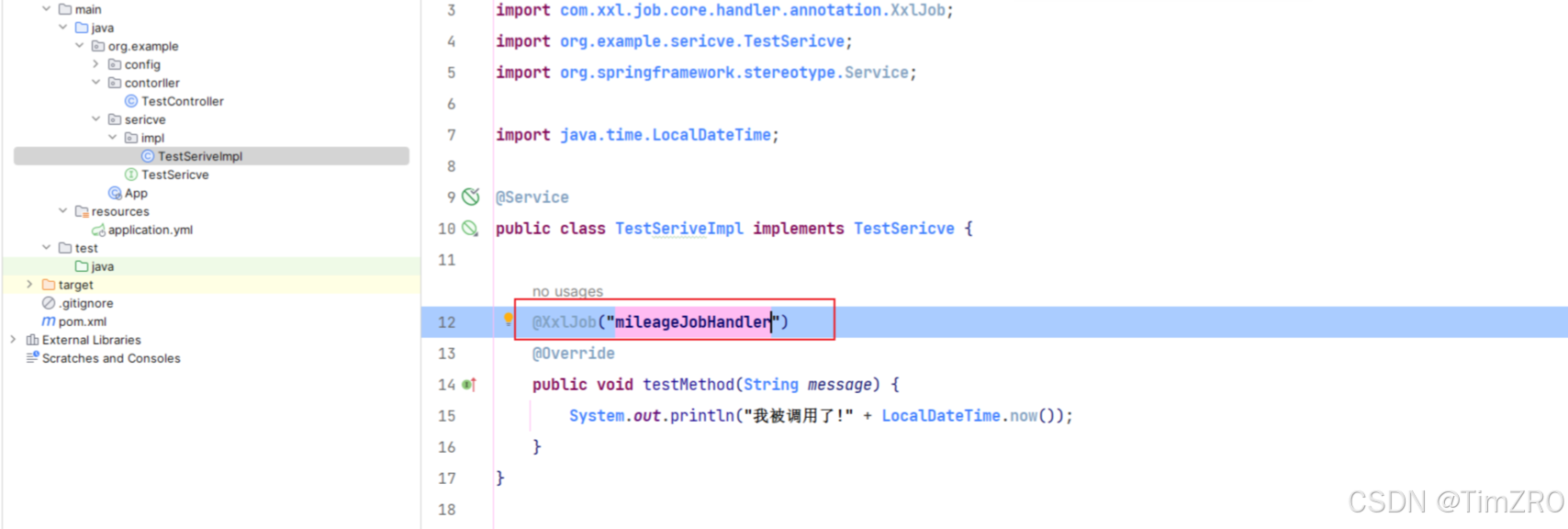

3、在自己项目中需要定时执行的方法上加上@XxlJob(“任务名”)

在这里插入图片描述

括号里面的是自己定义的任务名,在执行的时候需要用到

4、配置执行器

在这里插入图片描述

appName就是在自己项目中配置的appname

名称 可以自定义

注册方式可以手动也可以自动,自动注册就是通过配置的信息注册,无特别需求可以使用自动注册

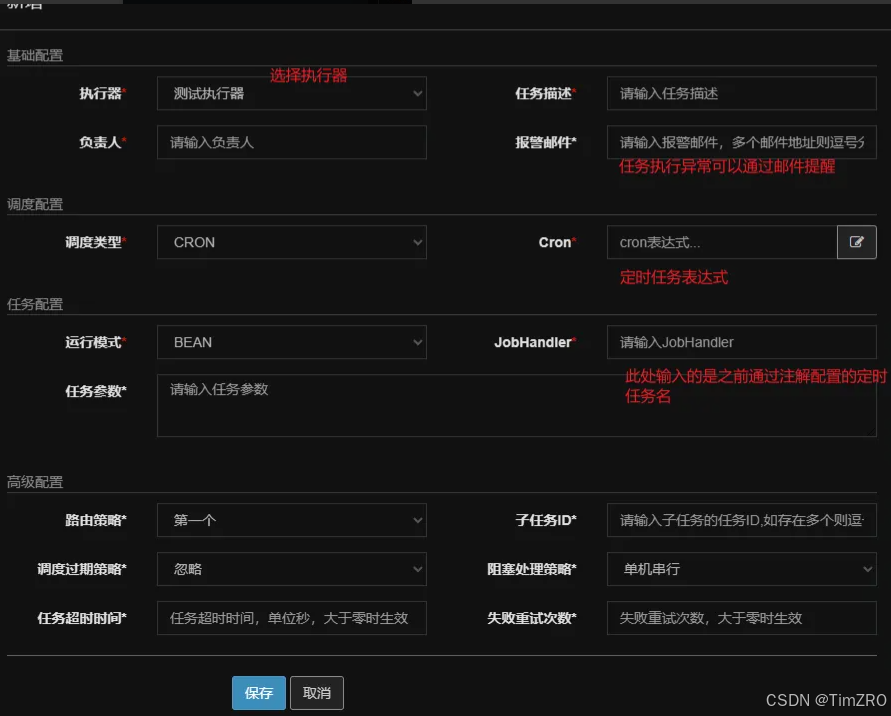

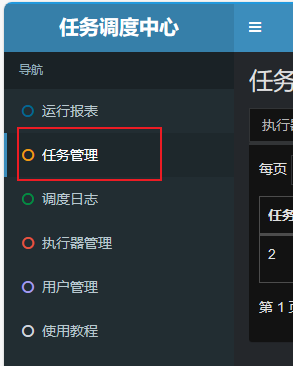

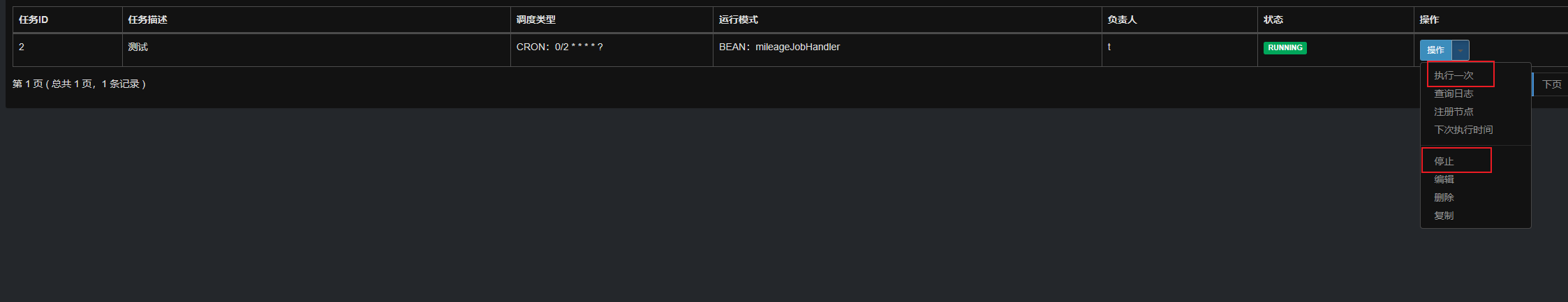

5、注册定时任务

在这里插入图片描述

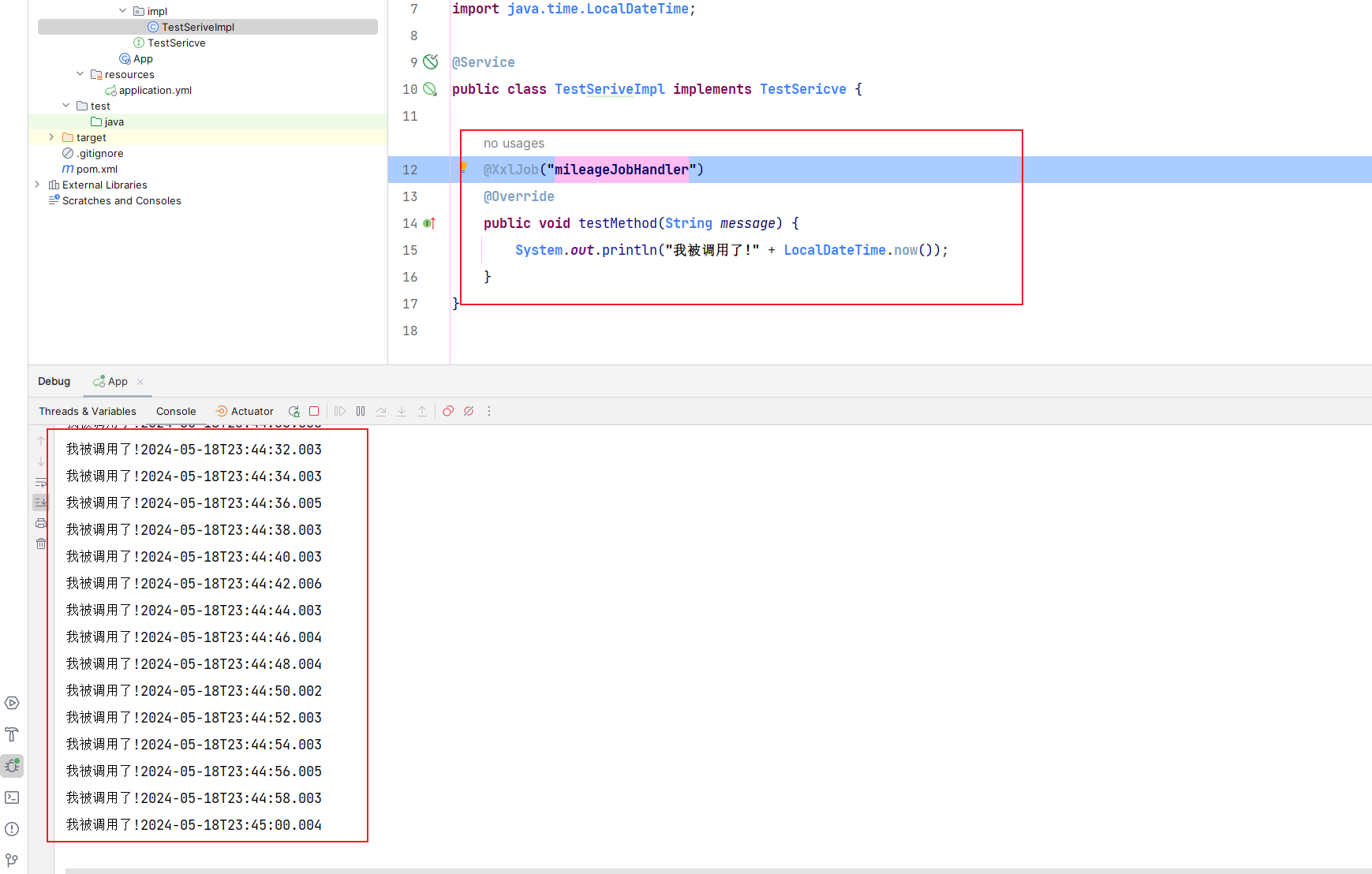

配置好之后就可以 直接启动定时任务,然后在自己的项目中看到效果了

在自己项目中动态注册定时任务

XXL-jobxxl-job-adminJobInfoController 中提供了一系列的新增、修改、删除、启动、停止等方法,但是这些方法是需要登录才能够调用,XXL-job本身提供了越过登录校验的方法。

在接口上加上@PermissionLimt(limt = false) (没记错的话是这个注解)就可以跳过登录,但是这样存在一定安全风险。

建议先调用登录接口,获取cookie,然后缓存下来,在调用XXL-job接口的时候就可以带上。

参考文章xxl-job动态配置任务,彻底解放双手

下面给出部分调度任务的demo

public class XxlJobUtil {

    // 此处的name 是xxl-job 存入cookie时设置的名字 必须一致
    private static final String cookieName = "XXL_JOB_LOGIN_IDENTITY";

    private static String getCookie() {
        return login();
    }

    /**
     * 登录方法
     * 可以将获取到的cookie缓存
     * @return cookie
     */
    private static String login() {
        String url = "http://xxxxx/xxl-job-admin/login";
        String userName = "xxx";
        String password = "xxx@xx";
        try (
                HttpResponse response = HttpUtil.createPost(url)
                        .header("Content-Type", "application/x-www-form-urlencoded; charset=UTF-8")
                        .form("userName", userName)
                        .form("password", password).execute();
                ){

            if (response.getStatus() != 200) {
                throw new RuntimeException("登录xxl-job失败!网络请求异常,状态码:" + response.getStatus());
            }

            String setCookie = response.header("Set-Cookie");
            // 提取 XXL_JOB_LOGIN_IDENTITY cookie
            if (setCookie != null) {

                String[] cookies = setCookie.split(";");

                for (String cookie : cookies) {
                    if (cookie != null && cookie.trim().startsWith(cookieName)) {
                        return cookie.split("=")[1];
                    }
                }
            }

            throw new RuntimeException("登录xxl-job失败,未获取到cookie");

        } catch (Exception e) {
           throw new RuntimeException("登录xxl-job失败," + e.getMessage());
        }
    }

    /**
     * 启动
     */
    public static boolean start(int id) {
        String url = "http://xxxxx/xxl-job-admin/jobinfo/start";

        try (
                HttpResponse response = HttpUtil.createPost(url)
                        .header("Content-Type", "application/x-www-form-urlencoded; charset=UTF-8")
                        .header("Cookie",String.format("%s=%s", cookieName, getCookie()))
                        .form("id", id).execute()
                ) {
            if (response.getStatus() == 200) {
                JSONObject body = JSON.parseObject(response.body());
                Integer code = body.getInteger("code");
                if (code == 200) {
                    // 调度成功
                    return true;
                }
            }
        } catch (Exception e) {
            throw new RuntimeException("定时任务调度失败," + e.getMessage());
        }
        return false;
    }

    /**
     * 停止
     */
    public static boolean stop(int id) {
        String url = "http://xxxxxx/xxl-job-admin/jobinfo/stop";

        try (
                HttpResponse response = HttpUtil.createPost(url)
                        .header("Content-Type", "application/x-www-form-urlencoded; charset=UTF-8")
                        .header("Cookie",String.format("%s=%s", cookieName, getCookie()))
                        .form("id", id).execute()
        ) {
            if (response.getStatus() == 200) {
                JSONObject body = JSON.parseObject(response.body());
                Integer code = body.getInteger("code");
                if (code == 200) {
                    // 调度成功
                    return true;
                }
            }
        } catch (Exception e) {
            throw new RuntimeException("定时任务调度失败," + e.getMessage());
        }
        return false;
    }

    /**
     * 执行一次
     * @param id 任务id
     * @param executorParam 任务参数 非必填
     * @param addressList 机器地址 多个地址用逗号分隔 不填从执行器中获取
     */
    public static boolean trigger(int id, String executorParam, String addressList) {
        String url = "http://xxxxx/xxl-job-admin/jobinfo/trigger";
        try (
                HttpResponse response = HttpUtil.createPost(url)
                        .header("Content-Type", "application/x-www-form-urlencoded; charset=UTF-8")
                        .header("Cookie",String.format("%s=%s", cookieName, getCookie()))
                        .form("id", id)
                        .form("executorParam", executorParam)
                        .form("addressList", addressList).execute()
                ){
            if (response.getStatus() == 200) {
                JSONObject body = JSON.parseObject(response.body());
                Integer code = body.getInteger("code");
                if (code == 200) {
                    // 调度成功
                    return true;
                }
            }
        } catch (Exception e) {
            throw new RuntimeException("定时任务调度失败!" + e.getMessage());
        }
        return false;
    }

}
