Spring框架学习之 IOC & AOP

回顾：
hibernate 主配置文件、元数据文件mapping

struts2 主配置文件 package 不能重名
拦截器、异常处理、全局结果 - 针对当前包

spring管理对象的容器
spring搭建步骤
1.导包。4 + 2

beans+context+core+expression
log4j+apache-commons-logging
2.实体类
3.配置文件管理对象
约束：xsi + beans-prefix空
beans - bean[name class]
4.开启容器
ApplicationContext ClassPathXmlApplicationContext
5.获得对象 getBean

src下的配置文件applicationContext.xml可以引入其他模块

< !-- 引入其他模块 -->
< import resource=“b_create/applicationContext.xml”/>

例如：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://www.springframework.org/schema/beans"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
			http://www.springframework.org/schema/beans/spring-beans-4.3.xsd ">

	<!-- 引入其他模块 -->
	<import resource="b_create/applicationContext.xml"/>

</beans>

spring管理对象的方式

IOC：Inverse Of Control
反转控制 - 原理反射
主动创建对象，然后自己进行依赖注入

将创建对象的权限、依赖的注入操作交给Spring容器，
程序员只需要向容器索要对象
IOC需要有DI做支持：Dependency Injection
set方法
构造器
成员变量

基本类型：基本数据类型+String
引用类型
集合类型 array list set map properties

Spring中的DI 4种

容器：
ApplicationContext

spring容器创建对象的方式 3种

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://www.springframework.org/schema/beans"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
			http://www.springframework.org/schema/beans/spring-beans-4.3.xsd ">

	<!-- 管理对象 -->
	<!-- spring容器创建对象的方式 3 种 -->
	<!-- 1.构造器创建 -->
	<bean name="user" class="domain.User"></bean>

	<!-- 2.静态工厂方式：工厂类中提供静态方法 -->
	<bean name="user1" class="b_create.Factory" factory-method="getUser" ></bean>

	<!-- 3.工厂方法方式：工厂类中提供普通方法 -->
	<!-- 管理factory对象 -->
	<bean name="factory" class="b_create.Factory"></bean>
	<bean name="user2" factory-method="newUser" factory-bean="factory"></bean>
</beans>

工厂创建对象 Factory.java

package b_create;

import domain.User;

public class Factory {
	// 提供一个静态方法，获得对象
	public static User getUser() {
		System.out.println("static Factory");
		return new User();
	}

	// 提供普通方法
	public User newUser() {
		System.out.println("Factory method");
		return new User();
	}
}

获得对象 Test02.java

package b_create;

import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

import domain.User;

public class Test02 {
	@Test
	public void test01() {
		// 1.开启spring容器 - 加载配置文件
		ApplicationContext ac = new ClassPathXmlApplicationContext("applicationContext.xml");

		// 2.索要对象 - 通过无参构造器实例化
		User user = (User) ac.getBean("user2");

		System.out.println(user);
	}
}

注入方式：

1.set注入(重点掌握) < bean name="" class="" scope="" init-method="" destroy-method="" p:属性> //p属性是在p命名空间时使用的

2.构造器注入(掌握)
3.p命名空间 - 添加命名空间(了解)
4.spel注入(了解)

5.复杂类型注入

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://www.springframework.org/schema/beans"
	xmlns:p="http://www.springframework.org/schema/p"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.3.xsd">

	<!-- 1.set注入 -->
	<bean name="user" class="domain.User">
		<!-- property属性
				|- name: 属性名
				|- value: 基本类型 值
				|- ref: 注入的对象name
		 -->
		<property name="name" value="lucy"></property>
		<property name="age" value="19"></property>
		<property name="car" ref="car1"></property>
	</bean>

	<bean name="car1" class="domain.Car" >
		<property name="name" value="兰博基尼"></property>
		<property name="color" value="黄色"></property>
	</bean>
	<!-- 2.构造器注入 -->
	<bean name="user1" class="domain.User">
		<!-- 构造器参数：
				|— type：参数类型 - 完整类型
				|- value：普通类型值
				|- ref：引用类型值 对象name
				|- index：参数的索引
		 -->
		<constructor-arg type="String" value="tom" index="1" ></constructor-arg>
		<constructor-arg type="Integer" value="20"></constructor-arg>
	</bean>

	<!-- 3.p命名空间注入 - 了解 -->
	<bean name="user2" class="domain.User"
		p:age="23" p:name="jack" p:car-ref="car1">
	</bean>

	<!-- 4.表达式spel注入 - 了解 -->
	<bean name="user3" class="domain.User">
		<property name="name" value="#{user1.name}"></property>
		<property name="age" value="#{user.age}"></property>
	</bean>

	<!-- 复杂类型注入 -->
	<bean name="user4" class="domain.User">
		<!-- list类型 -->
		<!-- 集合中只有一个值 -->
		<!-- <property name="list" value="haha" ></property> -->
		<!-- 集合中多个值 -->
		<property name="list">
			<list>
				<value>haha</value>
				<value>haha</value>
				<value>haha</value>
				<!-- <ref bean=""/> -->
			</list>
		</property>

		<!-- array类型和list完全一样 -->
		<!-- <property name="arr" value="lucy"></property> -->
		<property name="arr">
			<array>
				<value>lucy</value>
				<value>tom</value>
			</array>
		</property>

		<!-- set类型和list、array一致，标签由list变为set标签 -->

		<!-- map类型 -->
		<property name="map">
			<map>
				<entry key="user1" value-ref="user"></entry>
			</map>
		</property>

		<!-- properties类型,泛型全都是String -->
		<property name="pros">
			<props>
				<prop key="driver">com.mysql.jdbc.Driver</prop>
			</props>
		</property>

	</bean>

</beans>

实体类User.java

package domain;

import java.util.List;
import java.util.Map;
import java.util.Properties;

public class User {
	private String name;
	private Integer age;
	private Car car;//引用

	private List<String> list;//集合

	private String[] arr;//数组

	private Map<String, User> map;//Map

	private Properties pros;//Properties 类似 Map<String,String>

	public Properties getPros() {
		return pros;
	}
	public void setPros(Properties pros) {
		this.pros = pros;
	}
	public Map<String, User> getMap() {
		return map;
	}
	public void setMap(Map<String, User> map) {
		this.map = map;
	}
	public String[] getArr() {
		return arr;
	}
	public void setArr(String[] arr) {
		this.arr = arr;
	}
	public List<String> getList() {
		return list;
	}
	public void setList(List<String> list) {
		this.list = list;
	}
	public User(Integer age, String name) {
		super();
		System.out.println("age --- name");
		this.name = name;
		this.age = age;
	}
	public User(String name, Integer age) {
		super();
		System.out.println("name --- age");
		this.name = name;
		this.age = age;
	}

	public Car getCar() {
		return car;
	}
	public void setCar(Car car) {
		this.car = car;
	}
	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public Integer getAge() {
		return age;
	}
	public void setAge(Integer age) {
		this.age = age;
	}
	public User() {
		super();
		System.out.println("User init");
	}
	// 为了实例化对象后，做的一些初始化动作
	public void haha() {
		System.out.println("haha");
	}

	// 为了在对象销毁之前执行的动作
	public void destroy() {
		System.out.println("User destroy");
	}
	@Override
	public String toString() {
		return "User [name=" + name + ", age=" + age + ", car=" + car + "]";
	}
}

实体类Car.java

package domain;

public class Car {
	private String name;
	private String color;
	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public String getColor() {
		return color;
	}
	public void setColor(String color) {
		this.color = color;
	}
	@Override
	public String toString() {
		return "Car [name=" + name + ", color=" + color + "]";
	}
	public Car() {
		super();
		// TODO Auto-generated constructor stub
	}
}

测试类 Test03.java

package c_injection;

import java.util.Arrays;

import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

import domain.User;

public class Test03 {
	@Test
	public void test01() {
		// 1.开启spring容器 - 加载配置文件
		ApplicationContext ac = new ClassPathXmlApplicationContext("c_injection/applicationContext.xml");

		// 2.索要对象 - 通过无参构造器实例化
		User user = (User) ac.getBean("user4");

		// 容器中只有一个User类型的对象
		//User bean = ac.getBean(User.class);

//		System.out.println(bean);

		System.out.println(user.getList());
		System.out.println(Arrays.toString(user.getArr()));
		System.out.println(user.getPros().getProperty("driver"));
	}
}

注解取代配置文件中部分配置信息

注解：包 + aop
添加context命名空间
<context:component-scan base-package=""

使用注解需要在配置文件中开启文件扫描 - 需要在约束中加 context

base-package - 指定注解扫描的包，包下面所有的后代包都会被扫描

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://www.springframework.org/schema/beans"
	xmlns:p="http://www.springframework.org/schema/p"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.3.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd ">

	<!-- 开启注解扫描
		 base-package: 指定注解扫描的包
		 		包下面所有的后代包都会被扫描
	 -->
	<context:component-scan base-package="d_annotation"></context:component-scan>

	<bean name="user1" class="d_annotation.User"  >
		<property name="name" value="jack"></property>
		<property name="age" value="30"></property>
	</bean>

	<bean name="car1" class="d_annotation.Car">
		<property name="name" value="帕拉梅拉"></property>
		<property name="color" value="土豪金"></property>
	</bean>

</beans>

@Component(“name”)
Repository 持久层
Service 业务层
Controller 控制层(web) 这四个同一等级

@Value
@AutoWired
@Qualifier(“name”)
@Resource(name="")

@Scope(scopeName=“singleton”)

@PostConstrut
@PreDestroy

Car.java实体类使用注解

package d_annotation;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

@Component
public class Car {
	@Value("玛莎拉蒂")
	private String name;
	@Value("绿色")
	private String color;
	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public String getColor() {
		return color;
	}
	public void setColor(String color) {
		this.color = color;
	}
	@Override
	public String toString() {
		return "Car [name=" + name + ", color=" + color + "]";
	}
	public Car() {
		super();
		// TODO Auto-generated constructor stub
	}
}

User.java实体类使用注解

package d_annotation;

import java.util.List;
import java.util.Map;
import java.util.Properties;

import javax.annotation.PostConstruct;
import javax.annotation.PreDestroy;
import javax.annotation.Resource;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Scope;
import org.springframework.stereotype.Component;
import org.springframework.stereotype.Controller;
import org.springframework.stereotype.Repository;
import org.springframework.stereotype.Service;

@Component("user") // 默认添加名字 user - 类名首字母小写
//	@Controller // web
//	@Service    // service
//	@Repository // dao
@Scope(scopeName = "prototype")
public class User {
	@Value("zhangsan")
	private String name;
	@Value("10")
	private Integer age;
//	@Autowired // 自动装配
//	@Qualifier("car1")

	@Resource(name = "car1")
	private Car car;

	private List<String> list;

	private String[] arr;

	private Map<String, User> map;

	private Properties pros;

	// 为了实例化对象后，做的一些初始化动作
	@PostConstruct // init-method
	public void haha() {
		System.out.println("haha");
	}

	// 为了在对象销毁之前执行的动作
	@PreDestroy // destroy-method
	public void destroy() {
		System.out.println("User destroy");
	}

	public Properties getPros() {
		return pros;
	}

	public void setPros(Properties pros) {
		this.pros = pros;
	}

	public Map<String, User> getMap() {
		return map;
	}

	public void setMap(Map<String, User> map) {
		this.map = map;
	}

	public String[] getArr() {
		return arr;
	}

	public void setArr(String[] arr) {
		this.arr = arr;
	}

	public List<String> getList() {
		return list;
	}

	public void setList(List<String> list) {
		this.list = list;
	}

	public User(Integer age, String name) {
		super();
		System.out.println("age --- name");
		this.name = name;
		this.age = age;
	}

	public User(String name, Integer age) {
		super();
		System.out.println("name --- age");
		this.name = name;
		this.age = age;
	}

	public Car getCar() {
		return car;
	}

	public void setCar(Car car) {
		this.car = car;
	}

	public String getName() {
		return name;
	}
//	@Value("zhangsan") // 符合属性封装的特点
	public void setName(String name) {
		this.name = name;
	}

	public Integer getAge() {
		return age;
	}

	public void setAge(Integer age) {
		this.age = age;
	}

	public User() {
		super();
		System.out.println("User init");
	}

	@Override
	public String toString() {
		return "User [name=" + name + ", age=" + age + ", car=" + car + "]";
	}

}

Test04.java测试类

package d_annotation;

import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class Test04 {
	@Test
	public void test01() {
		// 1.开启spring容器 - 加载配置文件
		ApplicationContext ac = new ClassPathXmlApplicationContext("d_annotation/applicationContext.xml");

		// 2.索要对象 - 通过无参构造器实例化
		User user = (User) ac.getBean("user");
		System.out.println(user);
	}
}

Spring和JUnit的整合

Dao
service
导包：test // spring-test-4.3.9.RELEASE.jar

整合时重点需要在测试类中加上

@RunWith(SpringJUnit4ClassRunner.class)

// 指定容器对应的配置文件
@ContextConfiguration(locations = “classpath:e_junit/applicationContext.xml”)

applicationContext.xml配置文件同样 使用注解需要在配置文件中开启注解扫描

< context:component-scan base-package=“e_junit”>< /context:component-scan>

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://www.springframework.org/schema/beans"
	xmlns:p="http://www.springframework.org/schema/p"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.3.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd ">

	<!-- 开启注解扫描
		 base-package: 指定注解扫描的包
		 		包下面所有的后代包都会被扫描
	 -->
	<context:component-scan base-package="e_junit"></context:component-scan>

</beans>

UserDaoTest.java 测试类

package e_junit;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

// 将junit和 spring 容器进行整合
@RunWith(SpringJUnit4ClassRunner.class)
// 指定容器对应的配置文件
@ContextConfiguration(locations = "classpath:e_junit/applicationContext.xml")
public class UserDaoTest {
	@Autowired
	UserDao ud;
	@Autowired
	User u;

	@Test
	public void test01() {
		User user = ud.getUser();
		System.out.println(user);
		System.out.println(u);
	}
	@Test
	public void test02() {
		User user = ud.getUser();
		System.out.println(user);
	}

	public void test03() {
		User user = ud.getUser();
		System.out.println(user);
	}
}

User.java 实体类

package e_junit;

import java.util.List;
import java.util.Map;
import java.util.Properties;

import javax.annotation.PostConstruct;
import javax.annotation.PreDestroy;
import javax.annotation.Resource;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Scope;
import org.springframework.stereotype.Component;
import org.springframework.stereotype.Controller;
import org.springframework.stereotype.Repository;
import org.springframework.stereotype.Service;

@Component("user") // 默认添加名字 user - 类名首字母小写
public class User {
	private String name;
	private Integer age;

	@Resource(name = "car")
	private Car car;

	public User(Integer age, String name) {
		super();
		System.out.println("age --- name");
		this.name = name;
		this.age = age;
	}

	public User(String name, Integer age) {
		super();
		System.out.println("name --- age");
		this.name = name;
		this.age = age;
	}

	public Car getCar() {
		return car;
	}

	public void setCar(Car car) {
		this.car = car;
	}

	public String getName() {
		return name;
	}
//	@Value("zhangsan") // 符合属性封装的特点
	public void setName(String name) {
		this.name = name;
	}

	public Integer getAge() {
		return age;
	}

	public void setAge(Integer age) {
		this.age = age;
	}

	public User() {
		super();
		System.out.println("User init");
	}

	@Override
	public String toString() {
		return "User [name=" + name + ", age=" + age + ", car=" + car + "]";
	}

}

Car.java 实体类

package e_junit;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

@Component
public class Car {
	@Value("玛莎拉蒂")
	private String name;
	@Value("绿色")
	private String color;
	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public String getColor() {
		return color;
	}
	public void setColor(String color) {
		this.color = color;
	}
	@Override
	public String toString() {
		return "Car [name=" + name + ", color=" + color + "]";
	}
	public Car() {
		super();
		// TODO Auto-generated constructor stub
	}
}

UserDaoImpl.java实现类

package e_junit;

import org.springframework.stereotype.Repository;

@Repository
public class UserDaoImpl implements UserDao {

	@Override
	public User getUser() {
		// 模拟方法
		System.out.println("UserDao getUser");
		return new User("rose", 23);
	}
}

1.IOC
创建对象三种方式:(1)构造器创建(2)静态工厂方式创建(3)工厂方法创建
DI:4种方式 set注入构造器注入 p命名空间注入(了解) spel注入(了解)
2.注解取代配置文件
3.Spring + JUnit整合
4.AOP
代理
动态代理
Cglib代理

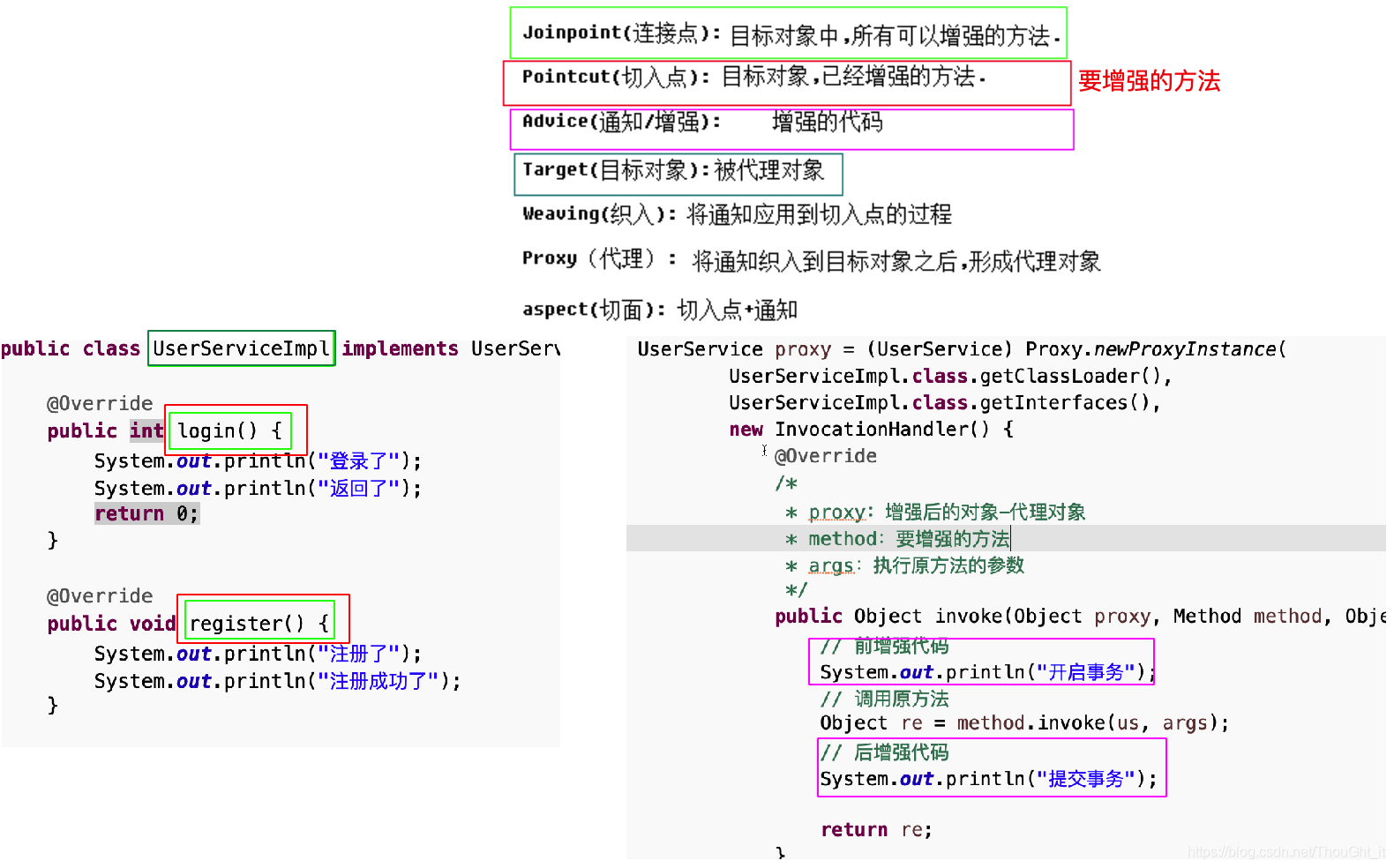

AOP:面向切面编程以下是可以观光的内容了涉及源码思路

UserServiceImpl.java实现类

package f_aop;

public class UserServiceImpl implements UserService {

	@Override
	public int login() {
		System.out.println("登录了");
		System.out.println("返回了");
		return 0;
	}

	@Override
	public void register() {
		System.out.println("注册了");
		System.out.println("注册成功了");
	}
}

模拟AOP代理模式中动态代理:代理对象和被代理对象拥有相同的父接口

ProxyTest1.java

package f_aop;

import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.lang.reflect.Proxy;

// 动态代理 => 观光代码
// 代理对象和被代理对象拥有相同父接口
public class ProxyTest1 {
	public static void main(String[] args) {
		UserService us = new UserServiceImpl();
		int login = us.login();
		System.out.println(login);

		System.out.println("--------");
		// 运行时，生成的是代理对象
		/*
		 * loader: 类加载器
		 * interfaces: 被代理对象所有的父接口
		 * InvocationHandler: 代理后的增强方法
		 */
		UserService proxy = (UserService) Proxy.newProxyInstance(
				UserServiceImpl.class.getClassLoader(),
				UserServiceImpl.class.getInterfaces(),
				new InvocationHandler() {
					@Override
					/*
					 * proxy：增强后的对象-代理对象
					 * method：要增强的方法
					 * args：执行原方法的参数
					 */
					public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
						// 前增强代码
						System.out.println("开启事务");
						// 调用原方法
						Object re = method.invoke(us, args);
						// 后增强代码
						System.out.println("提交事务");

						return re;
					}
				});
		int login2 = proxy.login();
		System.out.println(login2);

		System.out.println(proxy instanceof UserServiceImpl);
	}
}

模拟AOP代理模式中 Cglib代理：代理对象继承被代理对象

package f_aop;

import org.springframework.cglib.proxy.Enhancer;
import org.springframework.cglib.proxy.MethodInterceptor;

// cglib代理 => 观光代码
// 代理对象继承被代理对象
public class ProxyTest2 {
	public static void main(String[] args) {
		Enhancer eh = new Enhancer();

		// 1.设置父类
		eh.setSuperclass(UserServiceImpl.class);
		// 2.增强代码
		eh.setCallback((MethodInterceptor) (arg0, arg1, arg2, arg3) -> {
			// 前增强
			System.out.println("开启事务");
			// 原来方法调用
			Object re = arg3.invokeSuper(arg0, arg2);
			// 后增强
			System.out.println("提交事务");
			return re;
		});
		// 3.创建对象
		UserServiceImpl us = (UserServiceImpl) eh.create();
		us.register();

		System.out.println(us instanceof UserServiceImpl);
	}
}
