一、例子说明
1.1、概述
这是个例子，将输入写入kafka，flink消费kafka，并实时写入doris。
1.1、所需环境
| 软件 | 版本 | 备注 | |
| kafka_2.12-3.5.0 | kafka_2.12-3.5.0 | 使用自带的zookeeper | |
| flink-1.17.1 | flink-1.17.1 | ||
| jdk | 1.8.0_202 | ||
| doris | 1.2.6 ( Stable ) | ||
spring-boot | 2.1.17.RELEASE | syslog-kafka-es-avro | |
| spring-boot | 2.4.5 | flink-do-doris | |
flink-doris-connector-1.17 | 1.4.0 | ||
| elasticsearch | 7.6.2 | ||
| 基础目录 | /home | ||
| 服务器 | 10.10.10.99 | centos 7.x |
1.2、执行流程

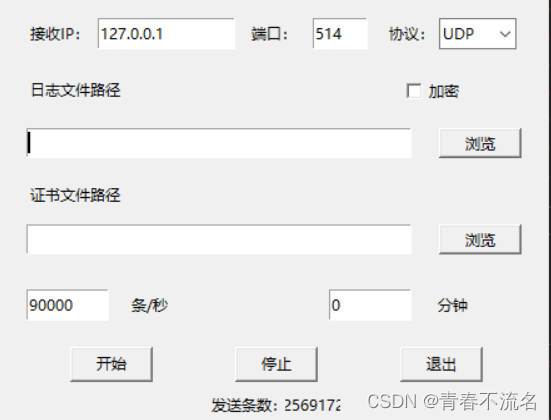

①、工具发送数据
②、spring-boot基于netty开启某端口监听，接收发送的消息内容，进行数据清洗、标准化
③、kafka product组件接收上一步产生的数据，已avro格式保存到kafka某topic上。

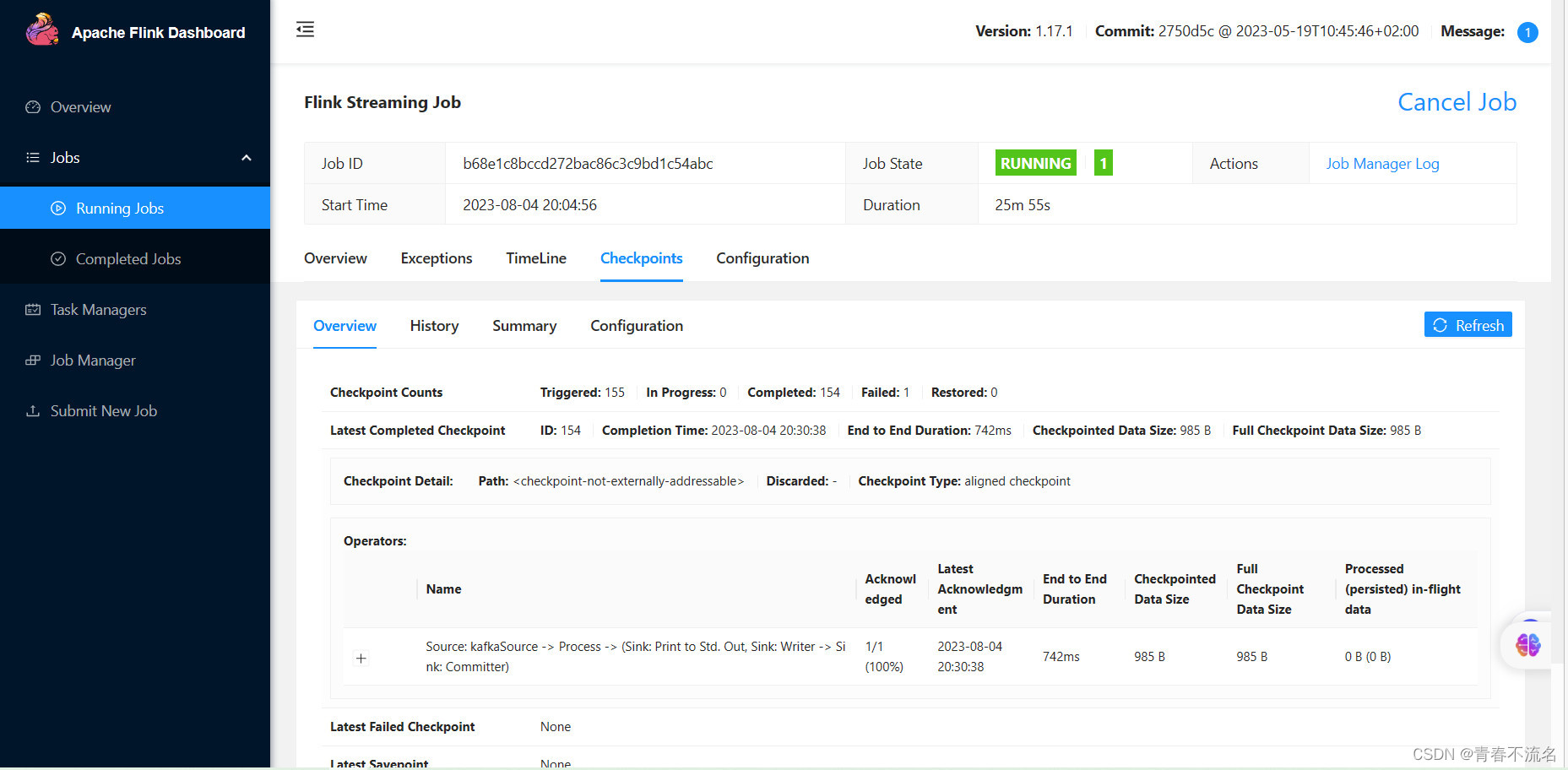

④、flink实时消费kafka某topic，以流的方式进行处理，输出源设置为doris

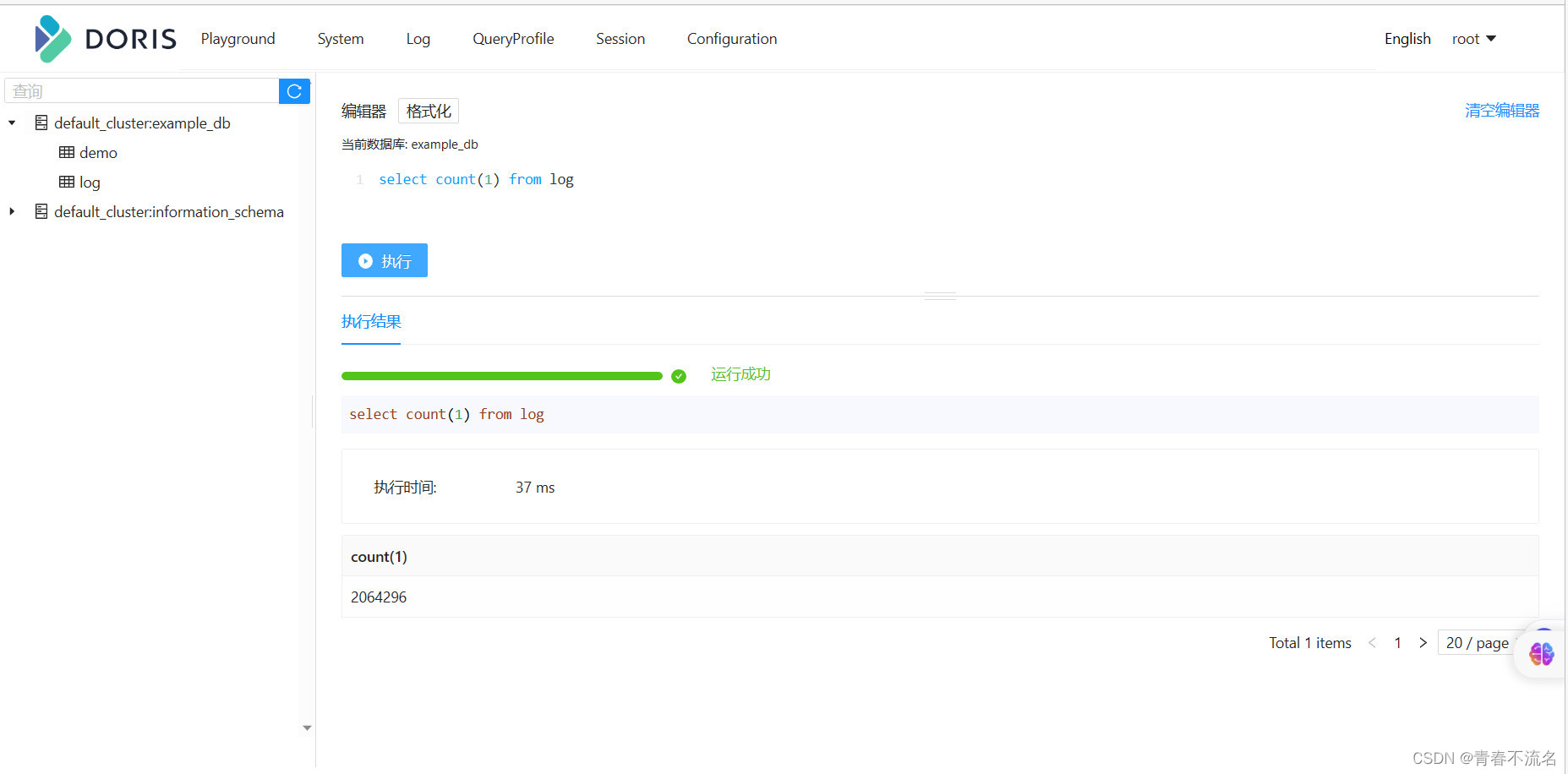

⑤、终端数据可在doris的fe页面上实时查询。
二、部署环境
2.1、中间件部署
2.1.1部署kakfa
2.1.1.1 上传解压kafka安装包
将安装包kafka_2.12-3.5.0.tar.gz上传到/home目录
tar -zxvf kafka_2.12-3.5.0.tar.gz
mv kafka_2.12-3.5.0 kafka
2.1.1.2 修改zookeeper.properties
路径：/home/kafka/config/zookeeper.properties
dataDir=/home/kafka/zookeeper
clientPort=2181
maxClientCnxns=0
admin.enableServer=false
# admin.serverPort=8080
2.1.1.3 修改server.properties
路径：/home/kafka/config/server.properties
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements. See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.#
# This configuration file is intended for use in ZK-based mode, where Apache ZooKeeper is required.
# See kafka.server.KafkaConfig for additional details and defaults
############################## Server Basics #############################
# The id of the broker. This must be set to a unique integer for each broker.
broker.id=0############################# Socket Server Settings #############################
# The address the socket server listens on. If not configured, the host name will be equal to the value of
# java.net.InetAddress.getCanonicalHostName(), with PLAINTEXT listener name, and port 9092.
# FORMAT:
# listeners = listener_name://host_name:port
# EXAMPLE:
# listeners = PLAINTEXT://your.host.name:9092
listeners=PLAINTEXT://:9092# Listener name, hostname and port the broker will advertise to clients.
# If not set, it uses the value for "listeners".
advertised.listeners=PLAINTEXT://10.10.10.99:9092# Maps listener names to security protocols, the default is for them to be the same. See the config documentation for more details
#listener.security.protocol.map=PLAINTEXT:PLAINTEXT,SSL:SSL,SASL_PLAINTEXT:SASL_PLAINTEXT,SASL_SSL:SASL_SSL# The number of threads that the server uses for receiving requests from the network and sending responses to the network
num.network.threads=3# The number of threads that the server uses for processing requests, which may include disk I/O
num.io.threads=8# The send buffer (SO_SNDBUF) used by the socket server
socket.send.buffer.bytes=102400# The receive buffer (SO_RCVBUF) used by the socket server
socket.receive.buffer.bytes=102400# The maximum size of a request that the socket server will accept (protection against OOM)
socket.request.max.bytes=104857600
############################# Log Basics ############################## A comma separated list of directories under which to store log files
log.dirs=/home/kafka/kafka-logs# The default number of log partitions per topic. More partitions allow greater
# parallelism for consumption, but this will also result in more files across
# the brokers.
num.partitions=1# The number of threads per data directory to be used for log recovery at startup and flushing at shutdown.
# This value is recommended to be increased for installations with data dirs located in RAID array.
num.recovery.threads.per.data.dir=1############################# Internal Topic Settings #############################
# The replication factor for the group metadata internal topics "__consumer_offsets" and "__transaction_state"
# For anything other than development testing, a value greater than 1 is recommended to ensure availability such as 3.
offsets.topic.replication.factor=1
transaction.state.log.replication.factor=1
transaction.state.log.min.isr=1############################# Log Flush Policy #############################
# Messages are immediately written to the filesystem but by default we only fsync() to sync
# the OS cache lazily. The following configurations control the flush of data to disk.
# There are a few important trade-offs here:
# 1. Durability: Unflushed data may be lost if you are not using replication.
# 2. Latency: Very large flush intervals may lead to latency spikes when the flush does occur as there will be a lot of data to flush.
# 3. Throughput: The flush is generally the most expensive operation, and a small flush interval may lead to excessive seeks.
# The settings below allow one to configure the flush policy to flush data after a period of time or
# every N messages (or both). This can be done globally and overridden on a per-topic basis.# The number of messages to accept before forcing a flush of data to disk
log.flush.interval.messages=10000# The maximum amount of time a message can sit in a log before we force a flush
log.flush.interval.ms=1000############################# Log Retention Policy #############################
# The following configurations control the disposal of log segments. The policy can
# be set to delete segments after a period of time, or after a given size has accumulated.
# A segment will be deleted whenever *either* of these criteria are met. Deletion always happens
# from the end of the log.# The minimum age of a log file to be eligible for deletion due to age
log.retention.hours=168# A size-based retention policy for logs. Segments are pruned from the log unless the remaining
# segments drop below log.retention.bytes. Functions independently of log.retention.hours.
#log.retention.bytes=1073741824# The maximum size of a log segment file. When this size is reached a new log segment will be created.
#log.segment.bytes=1073741824# The interval at which log segments are checked to see if they can be deleted according
# to the retention policies
log.retention.check.interval.ms=300000############################# Zookeeper #############################
# Zookeeper connection string (see zookeeper docs for details).
# This is a comma separated host:port pairs, each corresponding to a zk
# server. e.g. "127.0.0.1:3000,127.0.0.1:3001,127.0.0.1:3002".
# You can also append an optional chroot string to the urls to specify the
# root directory for all kafka znodes.
zookeeper.connect=localhost:2181# Timeout in ms for connecting to zookeeper
zookeeper.connection.timeout.ms=18000
############################# Group Coordinator Settings ############################## The following configuration specifies the time, in milliseconds, that the GroupCoordinator will delay the initial consumer rebalance.
# The rebalance will be further delayed by the value of group.initial.rebalance.delay.ms as new members join the group, up to a maximum of max.poll.interval.ms.
# The default value for this is 3 seconds.
# We override this to 0 here as it makes for a better out-of-the-box experience for development and testing.
# However, in production environments the default value of 3 seconds is more suitable as this will help to avoid unnecessary, and potentially expensive, rebalances during application startup.
group.initial.rebalance.delay.ms=0
2.1.1.3 启动kafka
①、先启动kafka自带的zookeeper
nohup /home/kafka/bin/zookeeper-server-start.sh /home/kafka/config/zookeeper.properties 2>&1 &
验证启动情况ps -ef | grep zookeeper
②启动kafka
/home/kafka/bin/kafka-server-start.sh -daemon /home/kafka/config/server.properties
验证启动情况
etstat -ntulp | grep 9092
或者ps -ef | grep kafka
2.1.2、部署flink
2.1.2.1 上传解压flink安装包
下载地址https://dlcdn.apache.org/flink/flink-1.17.1/flink-1.17.1-bin-scala_2.12.tgz
下载完成后将flink-1.17.1-bin-scala_2.12.tgz上传到/home目录下，解压并重命名为flink
2.1.2.1 修改flink配置
配置文件路径/home/flink/conf/flink-conf.yaml
################################################################################
# Licensed to the Apache Software Foundation (ASF) under one
# or more contributor license agreements. See the NOTICE file
# distributed with this work for additional information
# regarding copyright ownership. The ASF licenses this file
# to you under the Apache License, Version 2.0 (the
# "License"); you may not use this file except in compliance
# with the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
################################################################################
#==============================================================================
# Common
#==============================================================================# The external address of the host on which the JobManager runs and can be
# reached by the TaskManagers and any clients which want to connect. This setting
# is only used in Standalone mode and may be overwritten on the JobManager side
# by specifying the --host <hostname> parameter of the bin/jobmanager.sh executable.
# In high availability mode, if you use the bin/start-cluster.sh script and setup
# the conf/masters file, this will be taken care of automatically. Yarn
# automatically configure the host name based on the hostname of the node where the
# JobManager runs.jobmanager.rpc.address: localhost
# The RPC port where the JobManager is reachable.
jobmanager.rpc.port: 6123
# The host interface the JobManager will bind to. By default, this is localhost, and will prevent
# the JobManager from communicating outside the machine/container it is running on.
# On YARN this setting will be ignored if it is set to 'localhost', defaulting to 0.0.0.0.
# On Kubernetes this setting will be ignored, defaulting to 0.0.0.0.
#
# To enable this, set the bind-host address to one that has access to an outside facing network
# interface, such as 0.0.0.0.jobmanager.bind-host: 0.0.0.0
# The total process memory size for the JobManager.
#
# Note this accounts for all memory usage within the JobManager process, including JVM metaspace and other overhead.jobmanager.memory.process.size: 1600m
# The host interface the TaskManager will bind to. By default, this is localhost, and will prevent
# the TaskManager from communicating outside the machine/container it is running on.
# On YARN this setting will be ignored if it is set to 'localhost', defaulting to 0.0.0.0.
# On Kubernetes this setting will be ignored, defaulting to 0.0.0.0.
#
# To enable this, set the bind-host address to one that has access to an outside facing network
# interface, such as 0.0.0.0.taskmanager.bind-host: 0.0.0.0
# The address of the host on which the TaskManager runs and can be reached by the JobManager and
# other TaskManagers. If not specified, the TaskManager will try different strategies to identify
# the address.
#
# Note this address needs to be reachable by the JobManager and forward traffic to one of
# the interfaces the TaskManager is bound to (see 'taskmanager.bind-host').
#
# Note also that unless all TaskManagers are running on the same machine, this address needs to be
# configured separately for each TaskManager.taskmanager.host: localhost
# The total process memory size for the TaskManager.
#
# Note this accounts for all memory usage within the TaskManager process, including JVM metaspace and other overhead.taskmanager.memory.process.size: 1728m
# To exclude JVM metaspace and overhead, please, use total Flink memory size instead of 'taskmanager.memory.process.size'.
# It is not recommended to set both 'taskmanager.memory.process.size' and Flink memory.
#
# taskmanager.memory.flink.size: 1280m# The number of task slots that each TaskManager offers. Each slot runs one parallel pipeline.
taskmanager.numberOfTaskSlots: 1
# The parallelism used for programs that did not specify and other parallelism.
parallelism.default: 1
# The default file system scheme and authority.
#
# By default file paths without scheme are interpreted relative to the local
# root file system 'file:///'. Use this to override the default and interpret
# relative paths relative to a different file system,
# for example 'hdfs://mynamenode:12345'
#
# fs.default-scheme#==============================================================================
# High Availability
#==============================================================================# The high-availability mode. Possible options are 'NONE' or 'zookeeper'.
#
# high-availability.type: zookeeper# The path where metadata for master recovery is persisted. While ZooKeeper stores
# the small ground truth for checkpoint and leader election, this location stores
# the larger objects, like persisted dataflow graphs.
#
# Must be a durable file system that is accessible from all nodes
# (like HDFS, S3, Ceph, nfs, ...)
#
# high-availability.storageDir: hdfs:///flink/ha/# The list of ZooKeeper quorum peers that coordinate the high-availability
# setup. This must be a list of the form:
# "host1:clientPort,host2:clientPort,..." (default clientPort: 2181)
#
# high-availability.zookeeper.quorum: localhost:2181
# ACL options are based on https://zookeeper.apache.org/doc/r3.1.2/zookeeperProgrammers.html#sc_BuiltinACLSchemes
# It can be either "creator" (ZOO_CREATE_ALL_ACL) or "open" (ZOO_OPEN_ACL_UNSAFE)
# The default value is "open" and it can be changed to "creator" if ZK security is enabled
#
# high-availability.zookeeper.client.acl: open#==============================================================================
# Fault tolerance and checkpointing
#==============================================================================# The backend that will be used to store operator state checkpoints if
# checkpointing is enabled. Checkpointing is enabled when execution.checkpointing.interval > 0.
#
# Execution checkpointing related parameters. Please refer to CheckpointConfig and ExecutionCheckpointingOptions for more details.
#
# execution.checkpointing.interval: 3min
# execution.checkpointing.externalized-checkpoint-retention: [DELETE_ON_CANCELLATION, RETAIN_ON_CANCELLATION]
# execution.checkpointing.max-concurrent-checkpoints: 1
# execution.checkpointing.min-pause: 0
# execution.checkpointing.mode: [EXACTLY_ONCE, AT_LEAST_ONCE]
# execution.checkpointing.timeout: 10min
# execution.checkpointing.tolerable-failed-checkpoints: 0
# execution.checkpointing.unaligned: false
#
# Supported backends are 'hashmap', 'rocksdb', or the
# <class-name-of-factory>.
#
# state.backend.type: hashmap# Directory for checkpoints filesystem, when using any of the default bundled
# state backends.
#
# state.checkpoints.dir: hdfs://namenode-host:port/flink-checkpoints# Default target directory for savepoints, optional.
#
# state.savepoints.dir: hdfs://namenode-host:port/flink-savepoints# Flag to enable/disable incremental checkpoints for backends that
# support incremental checkpoints (like the RocksDB state backend).
#
# state.backend.incremental: false# The failover strategy, i.e., how the job computation recovers from task failures.
# Only restart tasks that may have been affected by the task failure, which typically includes
# downstream tasks and potentially upstream tasks if their produced data is no longer available for consumption.jobmanager.execution.failover-strategy: region
#==============================================================================
# Rest & web frontend
#==============================================================================# The port to which the REST client connects to. If rest.bind-port has
# not been specified, then the server will bind to this port as well.
#
rest.port: 8081# The address to which the REST client will connect to
#
rest.address: 10.10.10.99# Port range for the REST and web server to bind to.
#
#rest.bind-port: 8080-8090# The address that the REST & web server binds to
# By default, this is localhost, which prevents the REST & web server from
# being able to communicate outside of the machine/container it is running on.
#
# To enable this, set the bind address to one that has access to outside-facing
# network interface, such as 0.0.0.0.
#
rest.bind-address: 0.0.0.0# Flag to specify whether job submission is enabled from the web-based
# runtime monitor. Uncomment to disable.web.submit.enable: true
# Flag to specify whether job cancellation is enabled from the web-based
# runtime monitor. Uncomment to disable.web.cancel.enable: true
#==============================================================================
# Advanced
#==============================================================================# Override the directories for temporary files. If not specified, the
# system-specific Java temporary directory (java.io.tmpdir property) is taken.
#
# For framework setups on Yarn, Flink will automatically pick up the
# containers' temp directories without any need for configuration.
#
# Add a delimited list for multiple directories, using the system directory
# delimiter (colon ':' on unix) or a comma, e.g.:
# /data1/tmp:/data2/tmp:/data3/tmp
#
# Note: Each directory entry is read from and written to by a different I/O
# thread. You can include the same directory multiple times in order to create
# multiple I/O threads against that directory. This is for example relevant for
# high-throughput RAIDs.
#
# io.tmp.dirs: /tmp# The classloading resolve order. Possible values are 'child-first' (Flink's default)
# and 'parent-first' (Java's default).
#
# Child first classloading allows users to use different dependency/library
# versions in their application than those in the classpath. Switching back
# to 'parent-first' may help with debugging dependency issues.
#
# classloader.resolve-order: child-first# The amount of memory going to the network stack. These numbers usually need
# no tuning. Adjusting them may be necessary in case of an "Insufficient number
# of network buffers" error. The default min is 64MB, the default max is 1GB.
#
# taskmanager.memory.network.fraction: 0.1
# taskmanager.memory.network.min: 64mb
# taskmanager.memory.network.max: 1gb#==============================================================================
# Flink Cluster Security Configuration
#==============================================================================# Kerberos authentication for various components - Hadoop, ZooKeeper, and connectors -
# may be enabled in four steps:
# 1. configure the local krb5.conf file
# 2. provide Kerberos credentials (either a keytab or a ticket cache w/ kinit)
# 3. make the credentials available to various JAAS login contexts
# 4. configure the connector to use JAAS/SASL# The below configure how Kerberos credentials are provided. A keytab will be used instead of
# a ticket cache if the keytab path and principal are set.# security.kerberos.login.use-ticket-cache: true
# security.kerberos.login.keytab: /path/to/kerberos/keytab
# security.kerberos.login.principal: flink-user# The configuration below defines which JAAS login contexts
# security.kerberos.login.contexts: Client,KafkaClient
#==============================================================================
# ZK Security Configuration
#==============================================================================# Below configurations are applicable if ZK ensemble is configured for security
# Override below configuration to provide custom ZK service name if configured
# zookeeper.sasl.service-name: zookeeper# The configuration below must match one of the values set in "security.kerberos.login.contexts"
# zookeeper.sasl.login-context-name: Client#==============================================================================
# HistoryServer
#==============================================================================# The HistoryServer is started and stopped via bin/historyserver.sh (start|stop)
# Directory to upload completed jobs to. Add this directory to the list of
# monitored directories of the HistoryServer as well (see below).
#jobmanager.archive.fs.dir: hdfs:///completed-jobs/# The address under which the web-based HistoryServer listens.
#historyserver.web.address: 0.0.0.0# The port under which the web-based HistoryServer listens.
#historyserver.web.port: 8082# Comma separated list of directories to monitor for completed jobs.
#historyserver.archive.fs.dir: hdfs:///completed-jobs/# Interval in milliseconds for refreshing the monitored directories.
#historyserver.archive.fs.refresh-interval: 10000
# jobmanager debug端口
env.java.opts.jobmanager: "-agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=5006"
# taskmanager debug端口
env.java.opts.taskmanager: "-agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=5005"
2.1.2.3 flink单节点启动与停止命令
/home/flink/bin/stop-cluster.sh && /home/flink/bin/start-cluster.sh
2.1.3、部署doris
2.1.3.1 下载安装包并上传服务器
官方参考文档地址
将安装包上传到/home下，解压并重命名为doris
配置
vi /etc/security/limits.conf
* soft nofile 65536
* hard nofile 65536
2.1.3.2 配置doris fe（前端）
配置文件/home/doris/fe/conf/fe.conf
# Licensed to the Apache Software Foundation (ASF) under one
# or more contributor license agreements. See the NOTICE file
# distributed with this work for additional information
# regarding copyright ownership. The ASF licenses this file
# to you under the Apache License, Version 2.0 (the
# "License"); you may not use this file except in compliance
# with the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing,
# software distributed under the License is distributed on an
# "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
# KIND, either express or implied. See the License for the
# specific language governing permissions and limitations
# under the License.#####################################################################
## The uppercase properties are read and exported by bin/start_fe.sh.
## To see all Frontend configurations,
## see fe/src/org/apache/doris/common/Config.java
###################################################################### the output dir of stderr and stdout
LOG_DIR = ${DORIS_HOME}/logDATE = `date +%Y%m%d-%H%M%S`
JAVA_OPTS="-Xmx8192m -XX:+UseMembar -XX:SurvivorRatio=8 -XX:MaxTenuringThreshold=7 -XX:+PrintGCDateStamps -XX:+PrintGCDetails -XX:+UseConcMarkSweepGC -XX:+UseParNewGC -XX:+CMSClassUnloadingEnabled -XX:-CMSParallelRemarkEnabled -XX:CMSInitiatingOccupancyFraction=80 -XX:SoftRefLRUPolicyMSPerMB=0 -Xloggc:$DORIS_HOME/log/fe.gc.log.$DATE"# For jdk 9+, this JAVA_OPTS will be used as default JVM options
JAVA_OPTS_FOR_JDK_9="-Xmx8192m -XX:SurvivorRatio=8 -XX:MaxTenuringThreshold=7 -XX:+CMSClassUnloadingEnabled -XX:-CMSParallelRemarkEnabled -XX:CMSInitiatingOccupancyFraction=80 -XX:SoftRefLRUPolicyMSPerMB=0 -Xlog:gc*:$DORIS_HOME/log/fe.gc.log.$DATE:time"##
## the lowercase properties are read by main program.
### INFO, WARN, ERROR, FATAL
sys_log_level = INFO# store metadata, must be created before start FE.
# Default value is ${DORIS_HOME}/doris-meta
meta_dir = ${DORIS_HOME}/doris-meta# Default dirs to put jdbc drivers,default value is ${DORIS_HOME}/jdbc_drivers
jdbc_drivers_dir = ${DORIS_HOME}/jdbc_drivershttp_port = 8030
rpc_port = 9020
query_port = 9030
edit_log_port = 9010
mysql_service_nio_enabled = true# Choose one if there are more than one ip except loopback address.
# Note that there should at most one ip match this list.
# If no ip match this rule, will choose one randomly.
# use CIDR format, e.g. 10.10.10.0/24
# Default value is empty.
priority_networks = 10.10.10.0/24# Advanced configurations
log_roll_size_mb = 1024
sys_log_dir = ${DORIS_HOME}/log
sys_log_roll_num = 10
sys_log_verbose_modules = org.apache.doris
audit_log_dir = ${DORIS_HOME}/log
audit_log_modules = slow_query, query
audit_log_roll_num = 10
meta_delay_toleration_second = 10
qe_max_connection = 1024
max_conn_per_user = 100
qe_query_timeout_second = 300
qe_slow_log_ms = 5000
2.1.3.3 启动doris fe（前端）
/home/doris/fe/bin/start_fe.sh --daemon
2.1.3.4 配置doris be（后端）
配置文件路径/home/doris/be/conf/be.conf
# Licensed to the Apache Software Foundation (ASF) under one
# or more contributor license agreements. See the NOTICE file
# distributed with this work for additional information
# regarding copyright ownership. The ASF licenses this file
# to you under the Apache License, Version 2.0 (the
# "License"); you may not use this file except in compliance
# with the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing,
# software distributed under the License is distributed on an
# "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
# KIND, either express or implied. See the License for the
# specific language governing permissions and limitations
# under the License.PPROF_TMPDIR="$DORIS_HOME/log/"
# if JAVA_OPTS is set, it will override the jvm opts for BE jvm.
#JAVA_OPTS="-Xmx8192m -DlogPath=$DORIS_HOME/log/udf-jdbc.log -Djava.compiler=NONE -XX::-CriticalJNINatives"# since 1.2, the JAVA_HOME need to be set to run BE process.
# JAVA_HOME=/path/to/jdk/# INFO, WARNING, ERROR, FATAL
sys_log_level = INFO# ports for admin, web, heartbeat service
be_port = 9060
webserver_port = 8040
heartbeat_service_port = 9050
brpc_port = 8060# Choose one if there are more than one ip except loopback address.
# Note that there should at most one ip match this list.
# If no ip match this rule, will choose one randomly.
# use CIDR format, e.g. 10.10.10.0/24
# Default value is empty.
priority_networks = 10.10.10.0/24# data root path, separate by ';'
# you can specify the storage medium of each root path, HDD or SSD
# you can add capacity limit at the end of each root path, separate by ','
# eg:
# storage_root_path = /home/disk1/doris.HDD,50;/home/disk2/doris.SSD,1;/home/disk2/doris
# /home/disk1/doris.HDD, capacity limit is 50GB, HDD;
# /home/disk2/doris.SSD, capacity limit is 1GB, SSD;
# /home/disk2/doris, capacity limit is disk capacity, HDD(default)
#
# you also can specify the properties by setting '<property>:<value>', separate by ','
# property 'medium' has a higher priority than the extension of path
#
# Default value is ${DORIS_HOME}/storage, you should create it by hand.
storage_root_path = ${DORIS_HOME}/storage# Default dirs to put jdbc drivers,default value is ${DORIS_HOME}/jdbc_drivers
jdbc_drivers_dir = ${DORIS_HOME}/jdbc_drivers# Advanced configurations
# sys_log_dir = ${DORIS_HOME}/log
# sys_log_roll_mode = SIZE-MB-1024
# sys_log_roll_num = 10
# sys_log_verbose_modules = *
# log_buffer_level = -1
# palo_cgroups
2.1.3.5 doris启动 be（后端）
/home/doris/be/bin/start_be.sh --daemon
2.1.3.5 doris启动成功验证
curl http://10.10.10.99:8030/api/bootstrap
curl http://10.10.10.99:8040/api/health执行这两条命令，会输出success信息
2.1.3.6 doris的be在fe上注册
roris兼容mysql协议
因此使用mysql-client执行命令
mysql -h 10.10.10.99 -P 9030 -uroot
ALTER SYSTEM ADD BACKEND "10.10.10.99:9050";最后在重启下be和fe
2.1.3.6 通过doris的fe的Web UI页面创建数据库表
浏览器访问地址
http://10.10.10.99:8030/login
默认用户名是root，默认密码为空
创建测试数据库表
create database example_db;
CREATE TABLE IF NOT EXISTS example_db.demo
(
`destroy_date` DATETIME NOT NULL COMMENT "destroy_date",
`latitude` DECIMAL NOT NULL COMMENT "精度",
`longitude` DECIMAL NOT NULL COMMENT "纬度",
`city` VARCHAR(256) COMMENT "city"
)
DUPLICATE KEY(`destroy_date`, `latitude`, `longitude`)
DISTRIBUTED BY HASH(`city`) BUCKETS 1
PROPERTIES (
"replication_allocation" = "tag.location.default: 1"
);CREATE TABLE IF NOT EXISTS example_db.log
(
`APP` VARCHAR(256) COMMENT "应用",
`VERSION` VARCHAR(256) COMMENT "VERSION",
`APP_PRO` VARCHAR(256) COMMENT "APP_PRO",
`APP_TYPE` VARCHAR(256) COMMENT "APP_TYPE",
`APP_IP` VARCHAR(256) COMMENT "APP_IP",
`MSG` VARCHAR(256) COMMENT "MSG",
`CONTEXT` VARCHAR(256) COMMENT "CONTEXT",
`TAG` VARCHAR(256) COMMENT "TAG",
`TIME` VARCHAR(256) COMMENT "TIME",
`VENDOR` VARCHAR(256) COMMENT "VENDOR",
`VIDEO` VARCHAR(256) COMMENT "VIDEO",
`RESULT` VARCHAR(256) COMMENT "RESULT",
`LEVEL` VARCHAR(256) COMMENT "LEVEL",
`LOG` VARCHAR(256) NOT NULL COMMENT "LOG",
`NAME` VARCHAR(256) COMMENT "NAME",
`MAC` VARCHAR(256) NOT NULL COMMENT "MAC",
`NOTE` VARCHAR(256) NOT NULL COMMENT "NOTE",
`SERVER` VARCHAR(256) NOT NULL COMMENT "SERVER",
`UUID` VARCHAR(256) NOT NULL COMMENT "UUID",
`CREATE_TIME` DATETIME NOT NULL COMMENT "CREATE_TIME"
)
DUPLICATE KEY(`APP`, `VERSION`, `APP_PRO`)
DISTRIBUTED BY HASH(`UUID`) BUCKETS 1
PROPERTIES (
"replication_allocation" = "tag.location.default: 1"
);
2.1.4、部署spring-boot的syslog-kafka-es-avro
配置kafka地址
UDP 端口
直接启动
2.1.4.1、syslog-kafka-es-avro基于netty已UDP方式监听syslog
//表示服务器连接监听线程组，专门接受 accept 新的客户端client 连接
EventLoopGroup group = new NioEventLoopGroup();
try {
//1、创建netty bootstrap 启动类
Bootstrap serverBootstrap = new Bootstrap();
//2、设置boostrap 的eventLoopGroup线程组
serverBootstrap = serverBootstrap.group(group);
//3、设置NIO UDP连接通道
serverBootstrap = serverBootstrap.channel(NioDatagramChannel.class);
//4、设置通道参数 SO_BROADCAST广播形式
serverBootstrap = serverBootstrap.option(ChannelOption.SO_BROADCAST, true);
serverBootstrap = serverBootstrap.option(ChannelOption.SO_RCVBUF, 1024*1024*1000);
//5、设置处理类 装配流水线
serverBootstrap = serverBootstrap.handler(syslogUdpHandler);
//6、绑定server，通过调用sync（）方法异步阻塞，直到绑定成功
ChannelFuture channelFuture = serverBootstrap.bind(port).sync();
log.info("started and listened on " + channelFuture.channel().localAddress());
//7、监听通道关闭事件，应用程序会一直等待，直到channel关闭
channelFuture.channel().closeFuture().sync();
} catch (Exception e) {
log.error("初始化异常",e);
} finally {
log.warn("netty udp close!");
//8 关闭EventLoopGroup，
group.shutdownGracefully();
}
2.1.4.2、syslog-kafka-es-avro已avro格式保存数据到kafka
if (event == null || event.size() == 0) {
if (log.isDebugEnabled()) {
log.debug("解析数据为空,不执行kafka数据推送 ！");
}
return;
}
if (switchKafkaConfiguration != null && switchKafkaConfiguration.isAvroTest()) {
log.info("发送kafka前,先将数据转换成二进制,通过接口发送测试");
String filePath= "D:\\conf\\kafka\\demo.avro";
try {
AvroProcess avroProcess = AvroProcess.builder(filePath);
byte[] bytes = avroProcess.serialize(event);
String url = "http://127.0.0.1:8080/bin/receive";
HttpBinaryUtil.remoteInvoke(bytes,url);
} catch (IOException e) {
throw new RuntimeException(e);
}
}
else{
if (log.isDebugEnabled()) {
log.debug("数据发送到kafka");
}
sendProcess.innerHandle(event);
}
2.1.5、部署spring-boot的flink-do-doris
压缩成flink-do-doris-jar-with-dependencies.jar
通过10.10.10.99:8081 web ui页面提交jar文件
2.1.5.1、flink-do-doris主类
import cn.hutool.core.lang.UUID;
import cn.hutool.json.JSONUtil;
import org.apache.commons.collections.MapUtils;
import org.apache.commons.lang3.StringUtils;
import org.apache.doris.flink.cfg.DorisExecutionOptions;
import org.apache.doris.flink.cfg.DorisOptions;
import org.apache.doris.flink.cfg.DorisReadOptions;
import org.apache.doris.flink.sink.DorisSink;
import org.apache.doris.flink.sink.writer.RowDataSerializer;
import org.apache.flink.api.common.RuntimeExecutionMode;
import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.connector.kafka.source.KafkaSource;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.CheckpointConfig;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.ProcessFunction;
import org.apache.flink.table.api.DataTypes;
import org.apache.flink.table.data.GenericRowData;
import org.apache.flink.table.data.RowData;
import org.apache.flink.table.data.StringData;
import org.apache.flink.table.data.TimestampData;
import org.apache.flink.table.types.DataType;
import org.apache.flink.util.Collector;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.time.LocalDate;
import java.util.Map;
import java.util.Properties;
/**
* @author demo
*/
public class FlinkToDorisApp {
private static final Logger log = LoggerFactory.getLogger(FlinkToDorisApp.class);
private static final String KAFKA_BOOTSTRAP_SERVERS = "10.10.10.99:9092";
private static final String TOPIC = "demo";
private static final String GROUP_ID = "syslog-process-kafka-flink-doris";
private static final String KAFKA_DATASOURCE_NAME = "kafkaSource";
private static final String DORIS_FE_HOST = "10.10.10.99:8030";
//private static final String DORIS_DB_NAME = "example_db.demo";
private static final String DORIS_DB_NAME = "example_db.log";
/**
* doris安装后默认的用户名是root
*/
private static final String DORIS_USERNAME = "root";
/**
* doris安装后默认的是密码是空值
*/
private static final String DORIS_PASSWORD = "";
private static final String schema = "";
private static final String[] fields = {};
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
env.enableCheckpointing(10000);
env.setRuntimeMode(RuntimeExecutionMode.AUTOMATIC);
env.setParallelism(1);
CheckpointConfig checkpointConfig = env.getCheckpointConfig();
checkpointConfig.setCheckpointingMode(CheckpointingMode.AT_LEAST_ONCE);
checkpointConfig.setExternalizedCheckpointCleanup(CheckpointConfig.ExternalizedCheckpointCleanup.DELETE_ON_CANCELLATION);
KafkaSource<String> kafkaSource = KafkaUtils.getKafkaSource(KAFKA_BOOTSTRAP_SERVERS, TOPIC, GROUP_ID, schema);
DataStreamSource<String> kafkaDS = env.fromSource(kafkaSource, WatermarkStrategy.noWatermarks(), KAFKA_DATASOURCE_NAME);
SingleOutputStreamOperator<RowData> jsonDS = kafkaDS.process(new ProcessFunction<String, RowData>() {
@Override
public void processElement(String json, Context context, Collector<RowData> collector) {
try {
if (StringUtils.isNotBlank(json)) {
Map event = JSONUtil.toBean(json, Map.class);
GenericRowData eventData = mapping(event);
if (eventData != null) {
collector.collect(eventData);
}
}
} catch (Exception e) {
throw new RuntimeException(e);
}
}
});
DataStream<RowData> dataStream = jsonDS.forward();
dataStream.print();
DorisSink.Builder<RowData> builder = DorisSink.builder();
DorisOptions.Builder dorisBuilder = DorisOptions.builder();
dorisBuilder.setFenodes(DORIS_FE_HOST)
.setTableIdentifier(DORIS_DB_NAME)
.setUsername(DORIS_USERNAME)
.setPassword(DORIS_PASSWORD);
Properties properties = new Properties();
properties.setProperty("format", "json");
properties.setProperty("read_json_by_line", "true");
DorisExecutionOptions.Builder executionBuilder = DorisExecutionOptions.builder();
executionBuilder.setLabelPrefix("label-doris" + UUID.fastUUID()).setStreamLoadProp(properties);
DataType[] types = {DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),
DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),
DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),
DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),
DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),
DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),DataTypes.VARCHAR(256),
DataTypes.TIMESTAMP()};
builder.setDorisReadOptions(DorisReadOptions.builder().build())
.setDorisExecutionOptions(executionBuilder.build())
.setSerializer(RowDataSerializer.builder()
.setFieldNames(fields)
.setType("json")
.setFieldType(types).build())
.setDorisOptions(dorisBuilder.build());
boolean test = false;
if (test) {
DataStream<RowData> source = env.fromElements("")
.map((MapFunction<String, RowData>) value -> {
GenericRowData genericRowData = new GenericRowData(4);
genericRowData.setField(0, StringData.fromString("beijing"));
genericRowData.setField(1, 116.405419);
genericRowData.setField(2, 39.916927);
genericRowData.setField(3, new Long(LocalDate.now().toEpochDay()).intValue());
return genericRowData;
});
source.sinkTo(builder.build());
}
dataStream.sinkTo(builder.build());
log.info("doris安装后默认的用户名是root,doris安装后默认的密码是空值");
env.execute();
}
private static final int TWO_PER_SECOND = 2;
private static GenericRowData mapping(Map event) {
GenericRowData genericRowData = new GenericRowData(fields.length);
for (int i = 0; i < fields.length - TWO_PER_SECOND; i++) {
genericRowData.setField(i, StringData.fromString(MapUtils.getString(event, fields[i], "")));
}
genericRowData.setField(23, StringData.fromString(UUID.randomUUID().toString()));
genericRowData.setField(24, TimestampData.fromEpochMillis(System.currentTimeMillis()));
return genericRowData;
}
}
三、效果验证

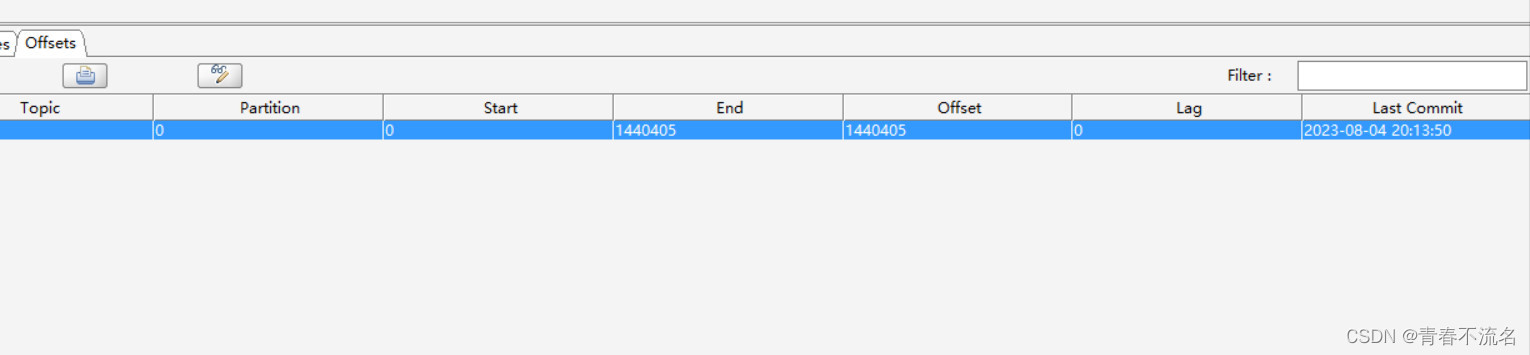

3.1、发送syslog日志，syslog-kafka-es-avro监听处理，存储到kafka
3.2 、查看flink消费kafka
3.3、 在doris上查看入库详情
扫一扫
2643
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
