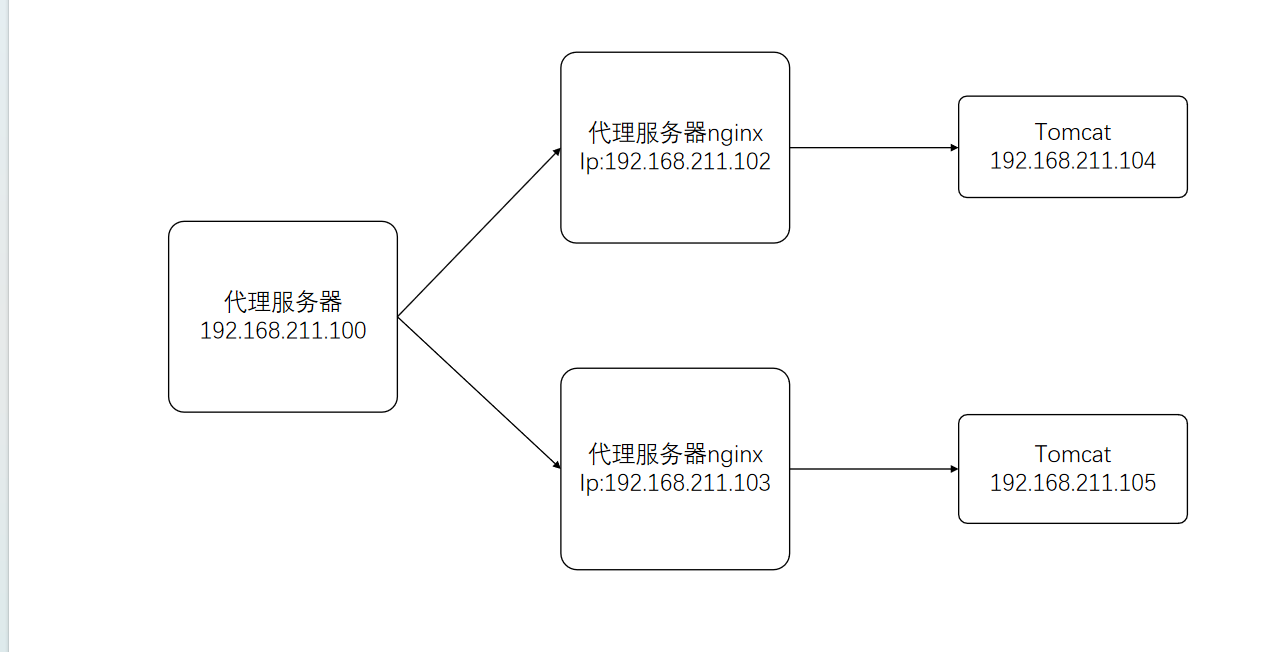

反向代理多机实验

1.配置代理服务器

1.systemctl stop firewalld

  setenforce 0

2.yum install  epel-release  -y

    yum install nginx

systemctl start nginx

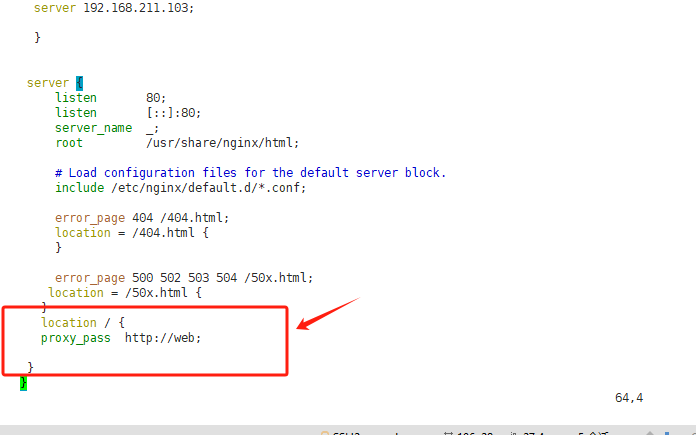

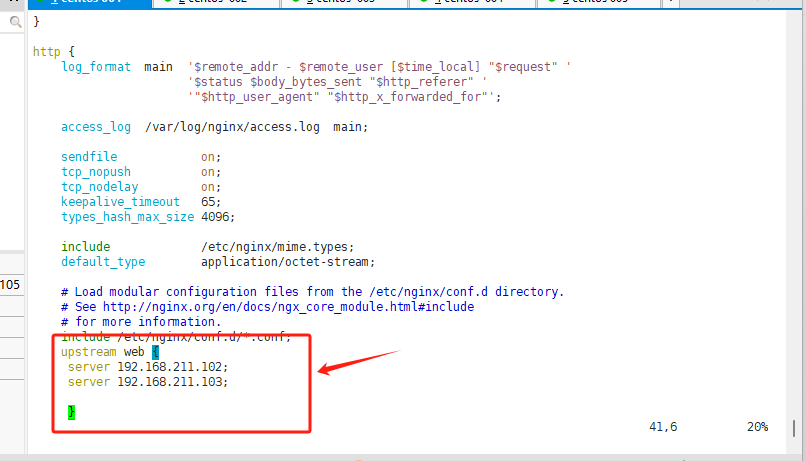

3.[root@localhost nginx]# vim /etc/nginx/nginx.conf

192.168.211.102 为nginx1服务器ip地址

192.168.211.103为nginx2服务器ip地址

systemctl  restart nginx

systemctl status nginx

2.配置nginx1服务器

1.systemctl stop firewalld

setenforce 0

2.yum install  epel-release  -y

    yum install nginx

systemctl start nginx

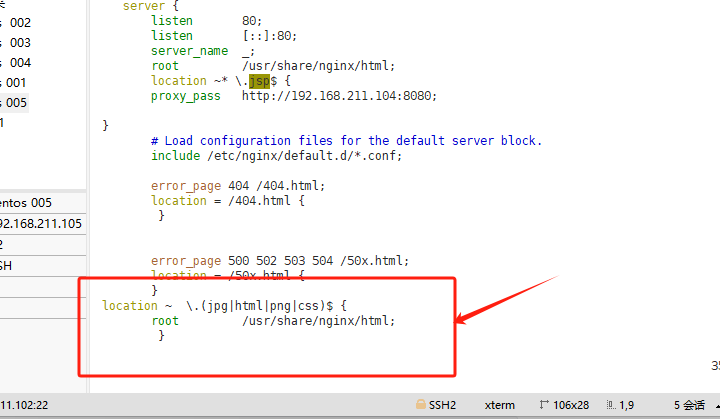

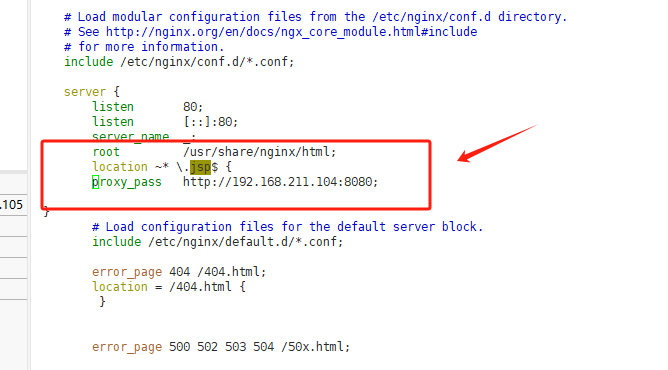

3.[root@localhost html]# vim /etc/nginx/nginx.conf

192.168.211.104为tomcat1服务器的IP地址

systemctl restart nginx

systemctl status nginx

3配置nginx2服务器

1.systemctl stop firewalld

setenforce  0

2.yum install  epel-release  -y

    yum install nginx

systemctl start nginx

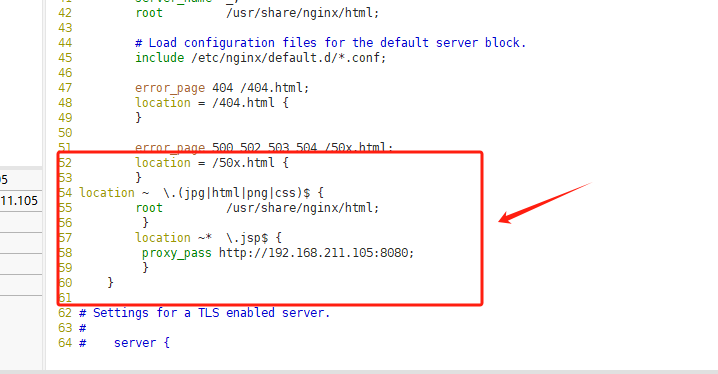

3.[root@localhost html]# vim /etc/nginx/nginx.conf

192.168.211.105为tomcat2服务器IP地址

systemctl restart nginx

4配置tomcat1服务器

systemctl stop firewalld

setenforce 0

安装tomcat

[root@localhost ~]# bash install_tomcat_.sh

[root@localhost ~]# systemctl restart tomcat
[root@localhost ~]# systemctl status tomcat

[root@localhost ~]# cd /usr/local/tomcat/webapps/ROOT/

echo 7-4>test.jsp

5配置tomcat2服务器

systemctl stop firewalld

setenforce 0

安装tomcat

[root@localhost ~]# bash install_tomcat_.sh

[root@localhost ~]# systemctl restart tomcat
[root@localhost ~]# systemctl status tomcat

[root@localhost ~]# cd /usr/local/tomcat/webapps/ROOT/

echo 7-5 >test.jsp

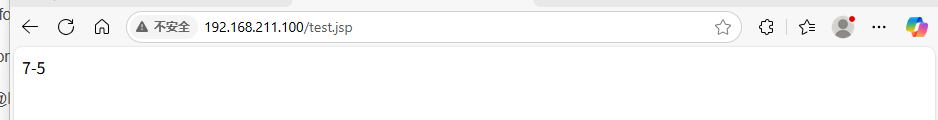

验证
