【C#】NXOpen两点创建一条直线，并改变颜色

NXOpen两点创建一条直线，并改变颜色

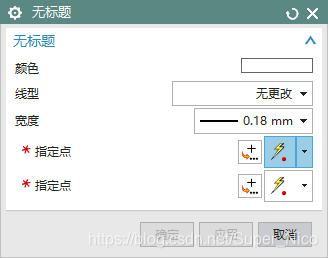

使用块UI编辑器生成模板，将模板代码复制到新建的项目中，注意***.dlx的位置

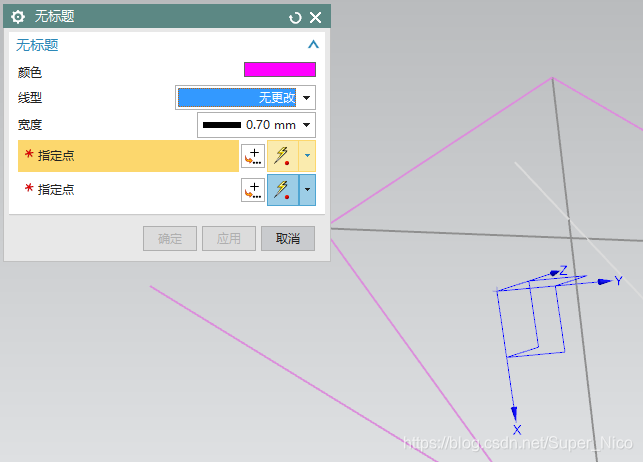

执行代码

public class Line_Creating
{
    //class members
    private static Session theSession = null;
    private static UI theUI = null;
    private string theDlxFileName;
    private NXOpen.Part workPart = null;      //创建workPard
    private NXOpen.BlockStyler.BlockDialog theDialog;
    private NXOpen.BlockStyler.Group group0;// Block type: Group
    private NXOpen.BlockStyler.LineColorFontWidth lineColorFontWidth0;// Block type: LineColorFontWidth
    private NXOpen.BlockStyler.SpecifyPoint point0;    // Block type: Specify Point 控件
    private NXOpen.BlockStyler.SpecifyPoint point1;   // Block type: Specify Point  控件

    public Line_Creating()
    {
        try
        {
            theSession = Session.GetSession();
            theUI = UI.GetUI();
            theDlxFileName = "Line_Creating.dlx";
            theDialog = theUI.CreateDialog(theDlxFileName);
            workPart=theSession.Parts.Work; //workPard为当前工作部件
        }
        catch (Exception ex)
        {
            throw ex;
        }

    public int apply_cb()
    {
        int errorCode = 0;
        try
        {
            //---- Enter your callback code here
            NXOpen.Point3d start_point = point0.Point;  //将point0的值return给start_point
            NXOpen.Point3d end_point = point1.Point;   //将point1的值return给start_point
            NXOpen.Line line = workPart.Curves.CreateLine(start_point, end_point); //通过两点生成直线
            int [] coloue_line =lineColorFontWidth0.GetProperties().GetIntegerVector("ColorValue");  //将颜色控件选择的颜色给存入数组中
            line.Color = coloue_line[0];
            workPart.ModelingViews.WorkView.Regenerate();  //重新生成当前视图，用于更新颜色
        }
        catch (Exception ex)
        {
            //---- Enter your exception handling code here -----
            errorCode = 1;
            theUI.NXMessageBox.Show("Block Styler", NXMessageBox.DialogType.Error, ex.ToString());
        }
        return errorCode;
    }
