基于Netty的WebSocket开发网页版聊天室

基于Netty的WebSocket开发网页版聊天室

代码下载

WebSocket简介

WebSocket是一种在单个TCP连接上进行全双工通信的协议。WebSocket使得客户端和服务器之间的数据交换变得更加简单,允许服务端主动向客户端推送数据。在WebSocket API中,客户端和服务器只需要完成一次握手,两者之间就直接可以创建持久性的连接,并进行双向数据传输。

应用场景十分广泛:

  • 社交订阅
  • 协同编辑/编程
  • 股票基金报价
  • 体育实况更新
  • 多媒体聊天
  • 在线教育
  • 实时地图位置
  • 实时数据流的拉取与推送

WebSocket和HTTP的区别

http协议是用在应用层的协议,他是基于tcp协议的,http协议建立连接也必须要有三次握手才能发 送信息。 http连接分为短连接,长连接,短连接是每次请求都要三次握手才能发送自己的信息。即每一 个request对应一个response。长连接是在一定的期限内保持连接。保持TCP连接不断开。客户端与服 务器通信,必须要有客户端先发起, 然后服务器返回结果。客户端是主动的,服务器是被动的。 客户端 要想实时获取服务端消息就得不断发送长连接到服务端.

WebSocket实现了多路复用,他是全双工通信。在webSocket协议下服务端和客户端可以同时发送 信息。 建立了WebSocket连接之后, 服务端可以主动发送信息到客户端。而且信息当中不必在带有head 的部分信息了与http的长链接通信来说,这种方式,不仅能降低服务器的压力。而且信息当中也减少了 部分多余的信息。

创建SpringBoot工程

创建spring boot工程。

pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.4.2</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.my</groupId>
    <artifactId>netty-springboot</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>netty-springboot</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>11</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!--整合web模块-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--整合模板引擎 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <!--引入netty依赖 -->
        <dependency>
            <groupId>io.netty</groupId>
            <artifactId>netty-all</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

yaml文件

server:
  port: 8080
netty:
  port: 8081
  path: /chat
resources:
  static-locations:
    - classpath:/static/
spring:
  thymeleaf:
    cache: false
    checktemplatelocation: true
    enabled: true
    encoding: UTF-8
    mode: HTML5
    prefix: classpath:/templates/
    suffix: .html

server.port 为spring boot项目端口

netty.port为netty通信端口

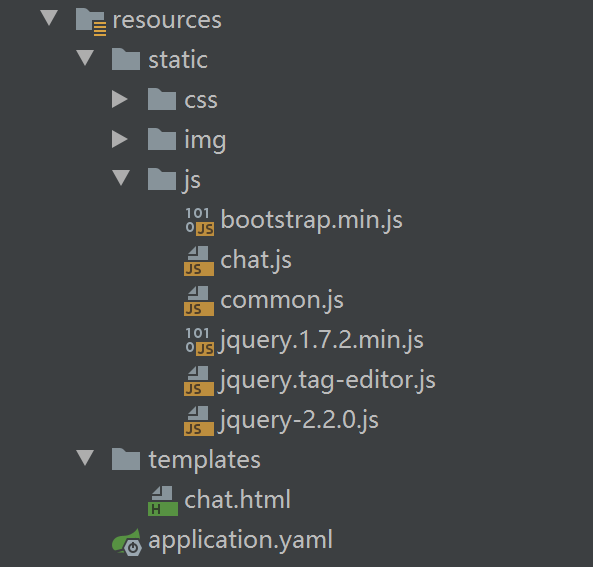

静态资源

image-20210606100556650

netty配置类

package com.my.config;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

@Component
@ConfigurationProperties(prefix = "netty")
@Data
public class NettyConfig {

    private int port;//netty监听的端口

    private String path;//websocket访问路径
}

NettyWebSocketServer开发

NettyWebSocketServer

package com.my.netty;

import com.my.config.NettyConfig;
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.logging.LogLevel;
import io.netty.handler.logging.LoggingHandler;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import javax.annotation.PreDestroy;

/**
 * Netty服务器
 */
@Component
public class NettyWebSocketServer implements Runnable {

    @Autowired
    NettyConfig nettyConfig;

    @Autowired
    WebSocketChannelInit webSocketChannelInit;


    private EventLoopGroup bossGroup = new NioEventLoopGroup(1);

    private EventLoopGroup workerGroup = new NioEventLoopGroup();

    /**
     * 资源关闭--在容器销毁是关闭
     */
    @PreDestroy
    public void close() {
        bossGroup.shutdownGracefully();
        workerGroup.shutdownGracefully();
    }

    @Override
    public void run() {
        try {
            //1.创建服务端启动助手
            ServerBootstrap serverBootstrap = new ServerBootstrap();
            //2.设置线程组
            serverBootstrap.group(bossGroup, workerGroup);
            //3.设置参数
            serverBootstrap.channel(NioServerSocketChannel.class)
                    .handler(new LoggingHandler(LogLevel.DEBUG))
                    .childHandler(webSocketChannelInit);
            //4.启动
            ChannelFuture channelFuture = serverBootstrap.bind(nettyConfig.getPort()).sync();
            System.out.println("--Netty服务端启动成功---");
            channelFuture.channel().closeFuture().sync();
        } catch (Exception e) {
            e.printStackTrace();
            bossGroup.shutdownGracefully();
            workerGroup.shutdownGracefully();
        } finally {
            bossGroup.shutdownGracefully();
            workerGroup.shutdownGracefully();
        }
    }
}

通道初始化对象ChannelInitializer

package com.my.netty;

import com.my.config.NettyConfig;
import io.netty.channel.Channel;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.handler.codec.http.HttpObjectAggregator;
import io.netty.handler.codec.http.HttpServerCodec;
import io.netty.handler.codec.http.websocketx.WebSocketServerProtocolHandler;
import io.netty.handler.stream.ChunkedWriteHandler;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

/**
 * 通道初始化对象
 */
@Component
public class WebSocketChannelInit extends ChannelInitializer {

    @Autowired
    NettyConfig nettyConfig;

    @Autowired
    WebSocketHandler webSocketHandler;

    @Override
    protected void initChannel(Channel channel) throws Exception {
        ChannelPipeline pipeline = channel.pipeline();
        //对http协议的支持.
        pipeline.addLast(new HttpServerCodec());
        // 对大数据流的支持
        pipeline.addLast(new ChunkedWriteHandler());
        //post请求分三部分. request line / request header / message body
        // HttpObjectAggregator将多个信息转化成单一的request或者response对象
        pipeline.addLast(new HttpObjectAggregator(8000));
        // 将http协议升级为ws协议. websocket的支持
        pipeline.addLast(new WebSocketServerProtocolHandler(nettyConfig.getPath()));
        // 自定义处理handler
        pipeline.addLast(webSocketHandler);

    }
}

自定义处理对象WebSocketHandler

继承SimpleChannelInboundHandler

package com.my.netty;

import io.netty.channel.Channel;
import io.netty.channel.ChannelHandler;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.handler.codec.http.websocketx.TextWebSocketFrame;
import org.springframework.stereotype.Component;

import java.util.ArrayList;
import java.util.List;

/**
 * 自定义处理类
 * TextWebSocketFrame: websocket数据是帧的形式处理
 */
@Component
@ChannelHandler.Sharable //设置通道共享
public class WebSocketHandler extends SimpleChannelInboundHandler<TextWebSocketFrame> {

    public static List<Channel> channelList = new ArrayList<>();

    /**
     * 通道就绪事件
     *
     * @param ctx
     * @throws Exception
     */
    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        Channel channel = ctx.channel();
        //当有新的客户端连接的时候, 将通道放入集合
        channelList.add(channel);
        System.out.println("有新的连接.");
    }


    /**
     * 通道未就绪--channel下线
     *
     * @param ctx
     * @throws Exception
     */
    @Override
    public void channelInactive(ChannelHandlerContext ctx) throws Exception {
        Channel channel = ctx.channel();
        //当有客户端断开连接的时候,就移除对应的通道
        channelList.remove(channel);
    }

    /**
     * 读就绪事件
     *
     * @param ctx
     * @param textWebSocketFrame
     * @throws Exception
     */
    @Override
    protected void channelRead0(ChannelHandlerContext ctx, TextWebSocketFrame textWebSocketFrame) throws Exception {
        String msg = textWebSocketFrame.text();
        System.out.println("msg:" + msg);
        //当前发送消息的通道, 当前发送的客户端连接
        Channel channel = ctx.channel();
        for (Channel channel1 : channelList) {
            //排除自身通道
            if (channel != channel1) {
                channel1.writeAndFlush(new TextWebSocketFrame(msg));
            }
        }
    }


    /**
     * 异常处理事件
     *
     * @param ctx
     * @param cause
     * @throws Exception
     */
    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        cause.printStackTrace();
        Channel channel = ctx.channel();
        //移除集合
        channelList.remove(channel);
    }
}

启动类 NettySpringbootApplication

实现CommandLineRunner,在spring boot启动后,启动netty服务。

package com.my;

import com.my.netty.NettyWebSocketServer;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class NettySpringbootApplication implements CommandLineRunner {

    @Autowired
    NettyWebSocketServer nettyWebSocketServer;

    public static void main(String[] args) {
        SpringApplication.run(NettySpringbootApplication.class, args);
    }

    @Override
    public void run(String... args) throws Exception {
        new Thread(nettyWebSocketServer).start();
    }
}

控制层ChatController

package com.my.controller;


import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

@Controller
public class ChatController {

    @RequestMapping("/")
    public String chat() {
        return "chat";
    }
}

前端js开发

$(function () {
    //这里需要注意的是,prompt有两个参数,前面是提示的话,后面是当对话框出来后,在对话框里的默认值
    var username = "";
    while (true) {
        //弹出一个输入框,输入一段文字,可以提交

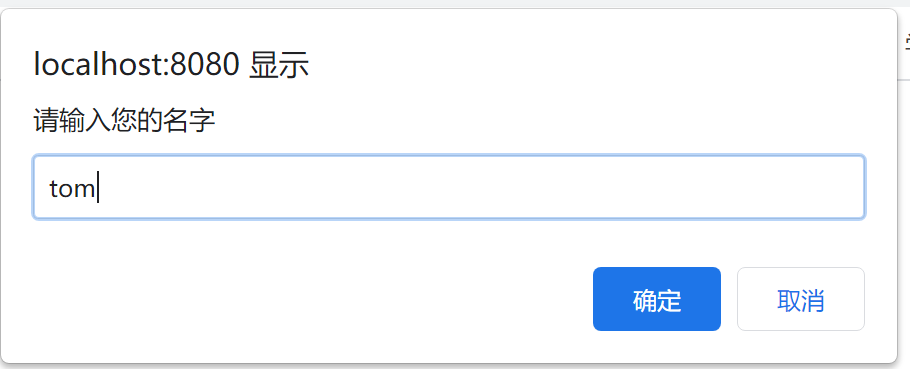

        username = prompt("请输入您的名字", ""); //将输入的内容赋给变量 name ,
        if (username.trim() === "")//如果返回的有内容
        {
            alert("名称不能输入空")
        } else {

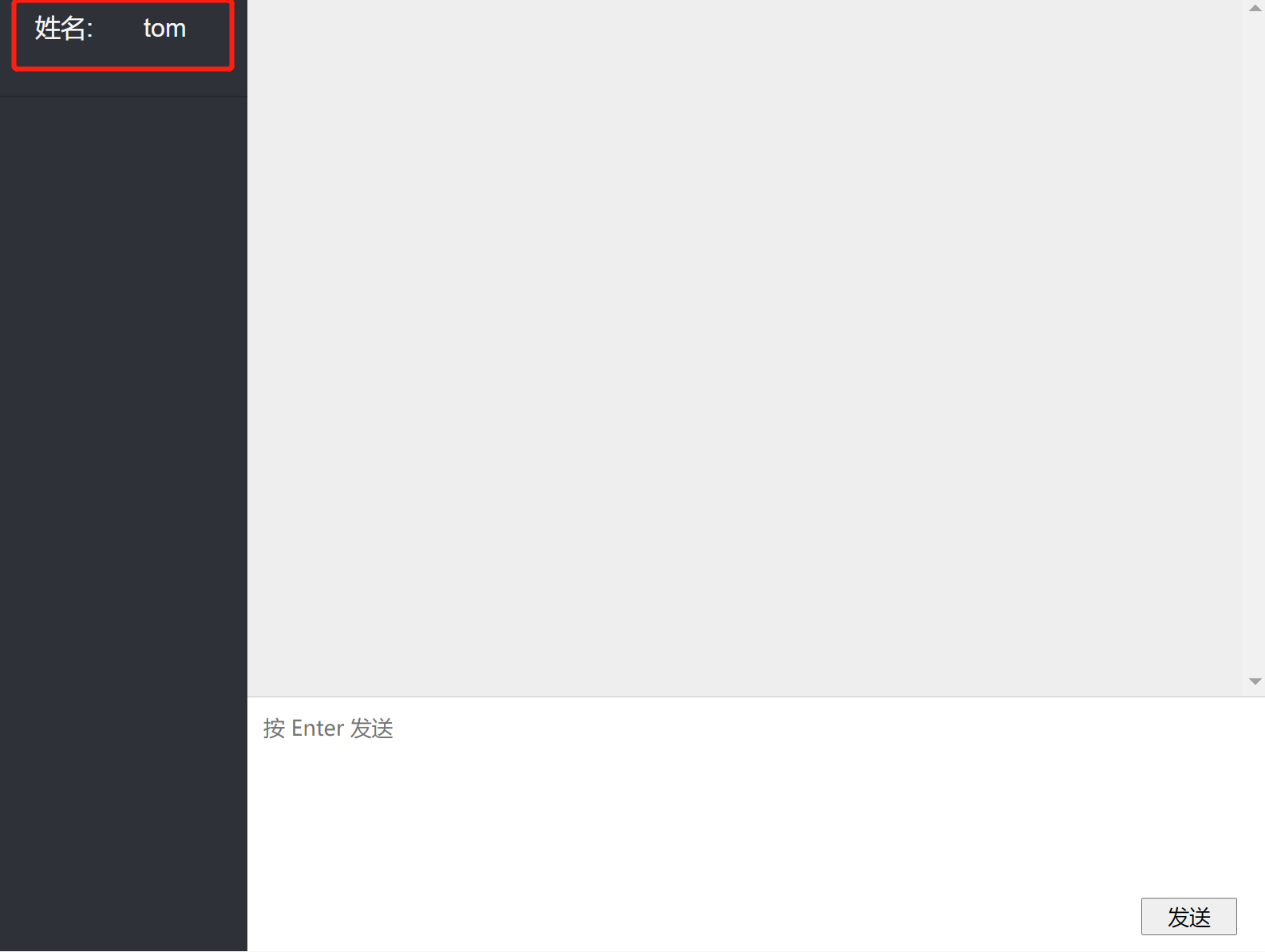

            $("#username").text(username);
            break;
        }
    }

    var ws = new WebSocket("ws://localhost:8081/chat");
    ws.onopen = function () {
        console.log("连接成功.")
    }
    ws.onmessage = function (evt) {
        showMessage(evt.data);
    }
    ws.onclose = function (){
        console.log("连接关闭")
    }

    ws.onerror = function (){
        console.log("连接异常")
    }

    function showMessage(message) {
        // 张三:你好
        var str = message.split(":");
        $("#msg_list").append(`<li class="active"}>
                                  <div class="main">
                                    <img class="avatar" width="30" height="30" src="/img/user.png">
                                    <div>
                                        <div class="user_name">${str[0]}</div>
                                        <div class="text">${str[1]}</div>
                                    </div>
                                   </div>
                              </li>`);
        // 置底
        setBottom();
    }

    $('#my_test').bind({
        focus: function (event) {
            event.stopPropagation()
            $('#my_test').val('');
            $('.arrow_box').hide()
        },
        keydown: function (event) {
            event.stopPropagation()
            if (event.keyCode === 13) {
                if ($('#my_test').val().trim() === '') {
                    this.blur()
                    $('.arrow_box').show()
                    setTimeout(() => {
                        this.focus()
                    }, 1000)
                } else {
                    $('.arrow_box').hide()
                    //发送消息
                    sendMsg();
                    this.blur()
                    setTimeout(() => {
                        this.focus()
                    })
                }
            }
        }
    });
    $('#send').on('click', function (event) {
        event.stopPropagation()
        if ($('#my_test').val().trim() === '') {
            $('.arrow_box').show()
        } else {
            sendMsg();
        }
    })

    function sendMsg() {
        var message = $("#my_test").val();
        $("#msg_list").append(`<li class="active"}>
                                  <div class="main self">
                                      <div class="text">` + message + `</div>
                                  </div>
                              </li>`);
        $("#my_test").val('');

        //发送消息
        message = username + ":" + message;
        ws.send(message);
        // 置底
        setBottom();
    }

    // 置底
    function setBottom() {
        // 发送消息后滚动到底部
        const container = $('.m-message')
        const scroll = $('#msg_list')
        container.animate({
            scrollTop: scroll[0].scrollHeight - container[0].clientHeight + container.scrollTop() + 100
        });
    }
});
  • var new WebSocket(“ws://localhost:8081/chat”);
  • ws.onopen
  • ws.onmessage
  • ws.onclose
  • ws.onerror
  • ws.send(message);

HTML

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">

<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>聊天室</title>
    <link rel="stylesheet" href="/css/chat.css">
    <script src="/js/jquery.1.7.2.min.js"></script>
    <script src="/js/chat.js"></script>
</head>

<body>
    <div id="chat">
        <div class="sidebar">
            <div class="m-card">
                <header>
                    <p class="name" >姓名:</p>
                    <p class="name" id="username"></p>
                </header>
            </div>
            <div class="m-list">
                <ul id="user_list">
                </ul>
            </div>
        </div>
        <div class="main">
            <div class="m-message">
                <ul id="msg_list">
                </ul>
            </div>
            <div class="m-text">
                <textarea placeholder="按 Enter 发送" id="my_test"></textarea>
                <div class="pager_btn">
                    <button id="send">发送</button>
                </div>
                <div class="arrow_box">
                    发送内容不能为空
                    <div class="arrow"></div>
                </div>
            </div>
        </div>
    </div>
</body>

</html>

测试结果

模拟tom 和 jerry 和 lucy聊天。

  1. 启动spring boot

  2. tom 输入网址http://localhost:8080/

    输入名字:例如tom (具体自己的页面,前端页面可自行实现)

    image-20210606102151497

image-20210606102359453

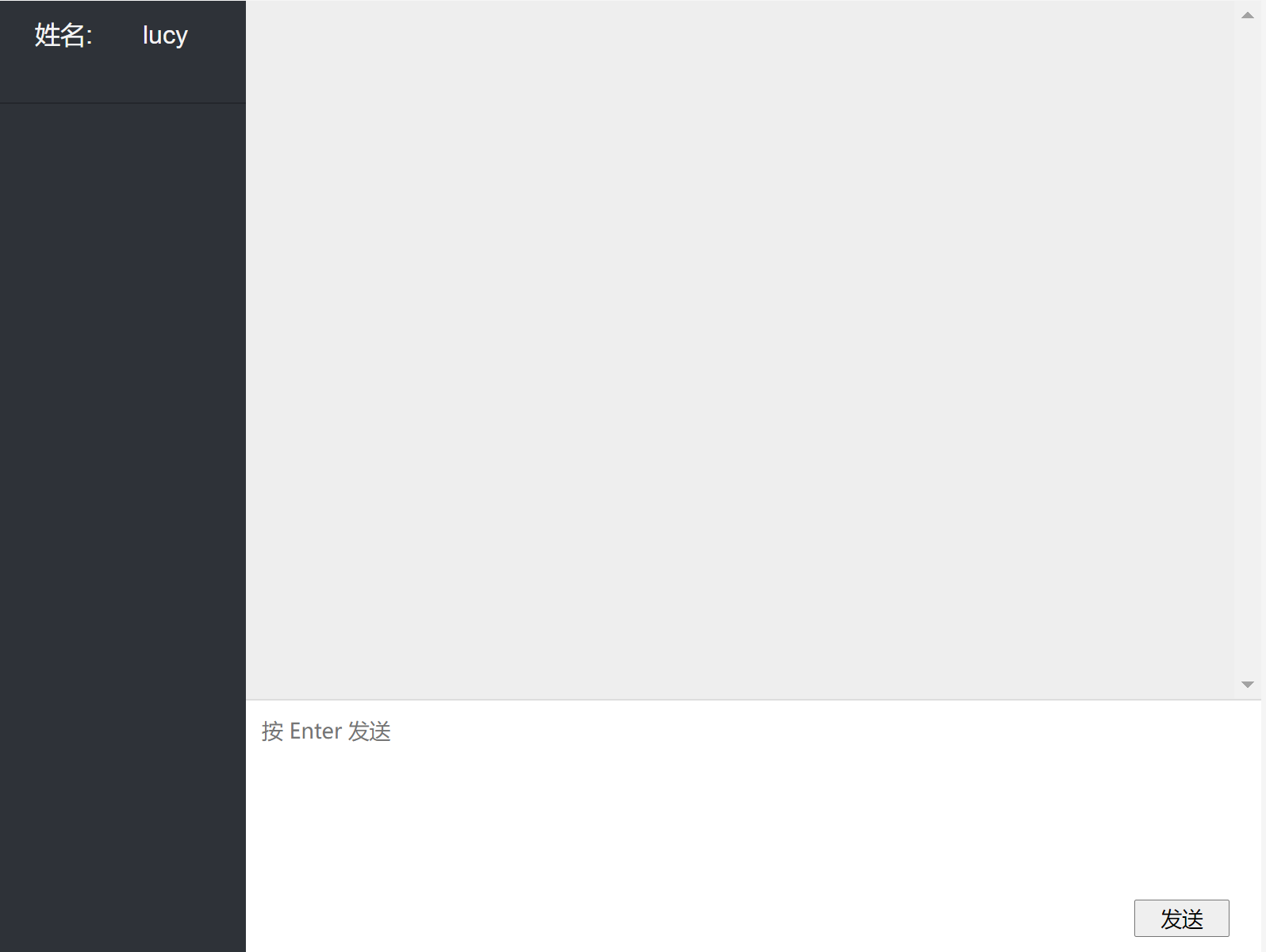

  1. jerry和lucy进行相同操作

    image-20210606102425552

image-20210606102444070

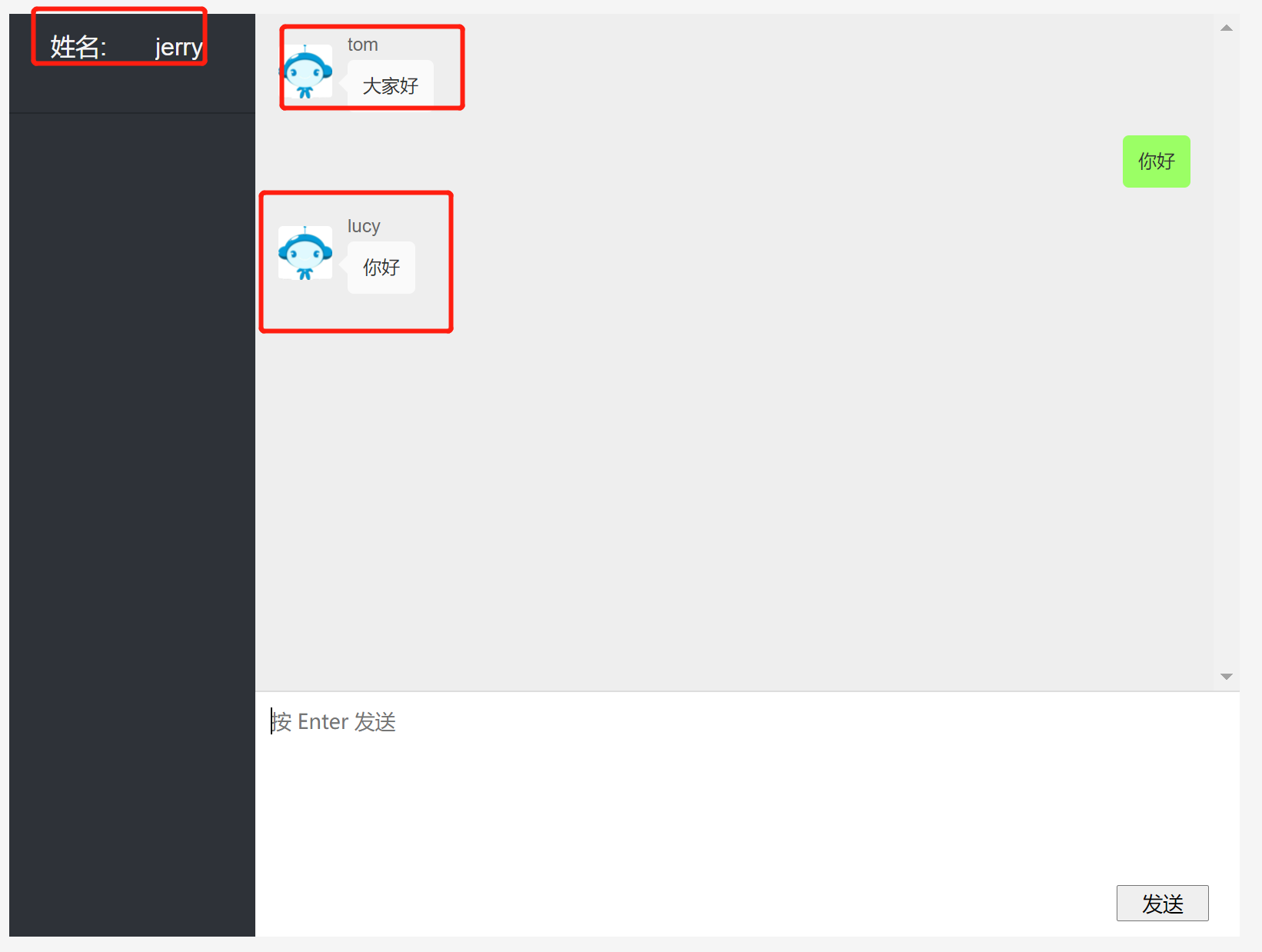

  1. tom 输入大家好, jerry 和lucy 回消息。

image-20210606102604803

评论 1
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
