springdatajpa+vue实现省市区三级联动

springdatajpa+vue实现省市区三级联动
一，编写后端代码
1、创建springboot项目，添加 web、jpa、lombok、mysql、jdbc 启动器，加载pom.xml。

（如何创建springboot项目）

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.1.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.xkxx</groupId>
    <artifactId>china</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>china</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

2、在resources下，将application.properties文件后缀改成.yml

server:
  port: 8888
spring:
  datasource:
    url: jdbc:mysql://127.0.0.1:3306/china?useSSL=false&serverTimezone=GMT%2B8
    username: root
    password: sasa
    driver-class-name: com.mysql.cj.jdbc.Driver
  jpa:
    show-sql: true
    database: mysql
    hibernate:
      ddl-auto: update
      naming:
        implicit-strategy: org.hibernate.boot.model.naming.ImplicitNamingStrategyComponentPathImpl
        physical-strategy: org.hibernate.boot.model.naming.PhysicalNamingStrategyStandardImpl
  main:
    allow-bean-definition-overriding: true

3、编写省，市，区的实体（idea使用了lombok插件），SQL等项目文件文末自取
省份实体类：Province.java

@Data
@Entity
@Table(name = "t_address_province")
public class Province {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    @Column(name = "id",unique = true,nullable = false,length = 50)
    private  Integer id;

    @Column(name = "code",nullable = false,length = 50)
    private String code;

    @Column(name = "name",nullable = false,length = 50)
    private String name;
}

城市实体类：City.java

@Data
@Entity
@Table(name = "t_address_city")
public class City {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    @Column(name = "id",unique = true,nullable = false,length = 50)
    private  Integer id;

    @Column(name = "code",nullable = false,length = 50)
    private String code;

    @Column(name = "name",nullable = false,length = 50)
    private String name;

    @Column(name = "provincecode",nullable = false,length = 50)
    private String provinceCode;
}

区域实体类：Town.java

@Data
@Entity
@Table(name ="t_address_town")
public class Town {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    @Column(name = "id",unique = true,nullable = false,length = 50)
    private  Integer id;

    @Column(name = "code",nullable = false,length = 50)
    private String code;

    @Column(name = "name",nullable = false,length = 50)
    private String name;

    @Column(name = "citycode",nullable = false,length = 50)
    private String cityCode;
}

sql语句

4、编写dao

package com.xkxx.china.dao;

import com.xkxx.china.entity.City;
import org.springframework.data.jpa.repository.JpaRepository;

public interface CityDao extends JpaRepository<City,Integer> {
}

package com.xkxx.china.dao;

import com.xkxx.china.entity.Province;
import org.springframework.data.jpa.repository.JpaRepository;

public interface ProvinceDao extends JpaRepository<Province,Integer> {
}

package com.xkxx.china.dao;
import com.xkxx.china.entity.Town;
import org.springframework.data.jpa.repository.JpaRepository;

public interface TownDao extends JpaRepository<Town,Integer> {
}

5、编写service，调用dao接口方法，返回信息

package com.xkxx.china.service;

import com.xkxx.china.dao.CityDao;
import com.xkxx.china.entity.City;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import javax.transaction.Transactional;
import java.util.List;

@Service
@Transactional
public class CityService {
    @Autowired
    private CityDao cityDao;
    public List<City> findAllCity(){
        return cityDao.findAll();
    }
}

package com.xkxx.china.service;

import com.xkxx.china.dao.ProvinceDao;
import com.xkxx.china.entity.Province;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import javax.transaction.Transactional;
import java.util.List;

@Service
@Transactional
public class ProvinceService {
    @Autowired
    private ProvinceDao provinceDao;
    public List<Province> findAllProvince(){
        return provinceDao.findAll();
    }
}

package com.xkxx.china.service;

import com.xkxx.china.dao.TownDao;
import com.xkxx.china.entity.Town;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import javax.transaction.Transactional;
import java.util.List;

@Service
@Transactional
public class TownService {
    @Autowired
    private TownDao townDao;
    public List<Town> findAllTown(){
        return townDao.findAll();
    }
}

6、编写web，调用service方法，编写省，市，区各个接口

package com.xkxx.china.web;

import com.xkxx.china.entity.City;
import com.xkxx.china.entity.Province;
import com.xkxx.china.entity.Town;
import com.xkxx.china.service.CityService;
import com.xkxx.china.service.ProvinceService;
import com.xkxx.china.service.TownService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

@RestController
public class ChinaController {
    @Autowired
    private ProvinceService provinceService;

    @Autowired
    private CityService cityService;

    @Autowired
    private TownService townService;

    /**
     * 查询所有身份信息
     * @return
     */
    @GetMapping("province")
    public List<Province> findAllProvince(){
        return provinceService.findAllProvince();
    }

    /**
     * 根据省份编号查询市级信息
     * @param provinceCode
     * @return
     */
    @GetMapping("city/{provinceCode}")
    public List<City> findAllProvince(@PathVariable("provinceCode") String provinceCode){
        return cityService.findAllCity();
    }

    /**
     * 根据市级编号查询区域信息
     * @param cityCode
     * @return
     */
    @GetMapping("town/{cityCode}")
    public List<Town> findAllTown(@PathVariable("cityCode") String cityCode){
        return townService.findAllTown();
    }
}

7、编写CorsConfig类进行前后端分离跨域请求

package com.xkxx.china.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.cors.CorsConfiguration;
import org.springframework.web.cors.UrlBasedCorsConfigurationSource;
import org.springframework.web.filter.CorsFilter;

@Configuration
public class CorsConfig {
    // 初始化 CorsConfiguration 对象并设置允许的域名、请求头部信息和请求方式
    private CorsConfiguration buildConfig() {
        CorsConfiguration corsConfiguration = new CorsConfiguration();
        corsConfiguration.addAllowedOrigin("*"); // 1 允许任何域名使用
        corsConfiguration.addAllowedHeader("*"); // 2 允许任何头
        corsConfiguration.addAllowedMethod("*"); // 3 允许任何方法（post、get 等）
        return corsConfiguration;
    }
    /**
     * 创建 CorsFilter 对象
     * @return CorsFilter
     */
    @Bean
    public CorsFilter corsFilter() {
        UrlBasedCorsConfigurationSource source = new
                UrlBasedCorsConfigurationSource();
        source.registerCorsConfiguration("/**", buildConfig()); //拦截所有请求
        return new CorsFilter(source);
    }
}

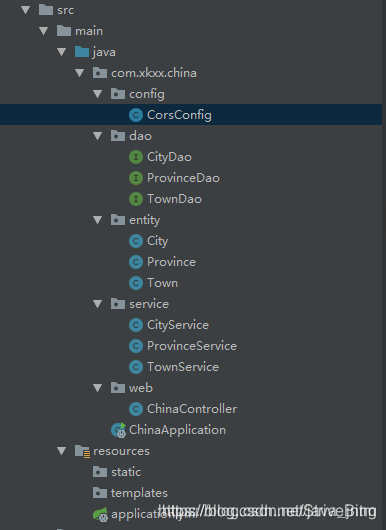

8、后端最终样式

二，前端VUE+ELEMENT
1、创建vue项目（如何创建vue项目？）

2、安装 axios 插件，在当前项目下的终端输入命令: npm install --save axios vue-axios
安装 Element 插件，在当前项目下的终端输入命令:npm i element-ui -S

3、在 src 文件夹下的程序入口 main.js 中导入

import axios from 'axios'
import VueAxios from 'vue-axios'
// element-ui 引入文件
import ElementUI from 'element-ui';
import 'element-ui/lib/theme-chalk/index.css';
//注册 VueAxios, axios
Vue.use(VueAxios, axios)
Vue.use(ElementUI)

4、创建vue文件，编写代码（下面有详细解析）

<template>
  <div>
    <el-select v-model="provinceCode" placeholder="省份">
      <el-option
        v-for="item in AddressProvince"
        :key="item.code"
        :label="item.name"
        :value="item.code"
      ></el-option>
    </el-select>

    <el-select v-model="cityCode" placeholder="城市">
      <el-option
        v-for="item  in AddressCity"
        :key="item.code"
        :label="item.name"
        :value="item.code"
      ></el-option>
    </el-select>
    <el-select v-model="value" placeholder="区域">
      <el-option
        v-for="item   in AddressTown"
        :key="item.code"
        :label="item.name"
        :value="item.code"
      ></el-option>
    </el-select>
  </div>
</template>

<script>
const axios = require("axios");
export default {
  name: 'HelloWorld',
  data () {
    return {
      AddressCity: [],
      AddressProvince: [],
      AddressTown: [],
      provinceCode: '',
      cityCode: '',
      value: ''
    }
  },
  watch: {//监控一个值的变换
    provinceCode: { //
      handler () {
        this.AddressCity = [];
        this.AddressTown = [];
        this.cityCode = "";
        this.value = "";
        this.findByprovinceCode();
      }
    },
    cityCode: {//
      handler () {
        this.findBycityCode();
      }
    }
  },
  created () {
    this.init();
  },
  methods: {
    handleChange (value) {
      console.log(value);
    },
    init () {
      var app = this;
      axios.get("http://localhost:8888/province").then(resp => {
        // handle success
        app.AddressProvince = resp.data;
      })
        .catch(function (error) {
          // handle error
          console.log(error);
        });
    },

    findByprovinceCode () {
      var app = this;
      axios.get("http://localhost:8888/city/" + app.provinceCode).then(resp => {
        // handle success
        app.AddressCity = resp.data;
      })
        .catch(function (error) {
          // handle error
          console.log(error);
        });
    },
    findBycityCode () {
      var app = this;
      axios.get("http://localhost:8888/town/" + app.cityCode).then(resp => {
        // handle success
        // app.provinceCode = '';
        // app.cityCode = '';
        app.AddressTown = resp.data;

      })
        .catch(function (error) {
          // handle error
          console.log(error);
        });
    },
  }
}
</script>

<!-- Add "scoped" attribute to limit CSS to this component only -->
<style scoped>
</style>

4_1、使用element下拉组件，编写三级下拉框，具体参数示例可参考Element官网介绍

<template>
  <div>
    <el-select v-model="provinceCode" placeholder="省份">
      <el-option
        v-for="item in AddressProvince"
        :key="item.code"
        :label="item.name"
        :value="item.code"
      ></el-option>
    </el-select>

    <el-select v-model="cityCode" placeholder="城市">
      <el-option
        v-for="item  in AddressCity"
        :key="item.code"
        :label="item.name"
        :value="item.code"
      ></el-option>
    </el-select>
    <el-select v-model="value" placeholder="区域">
      <el-option
        v-for="item   in AddressTown"
        :key="item.code"
        :label="item.name"
        :value="item.code"
      ></el-option>
    </el-select>
  </div>
</template>

4_2、上方页面使用了vue.js的v-model和v-for绑定了下方data

  data () {
    return {
      AddressProvince: [],//省份集合
      AddressCity: [],//城市集合
      AddressTown: [],//区域集合
      provinceCode: '',//获取选中时的省份编号
      cityCode: '',//获取选中时的城市编号
      value: ''}//获取选中时区域的编号

4_3、在methods中编写加载init方法

 init () {
      var app = this;
      axios.get("http://localhost:8888/province").then(resp => {
        // handle success
        app.AddressProvince = resp.data;//绑定到省份集合
      })
        .catch(function (error) {
          // handle error
          console.log(error);
        });
    }

4_4、在methods在编写，查询城市 和查询区域 方法

//查询城市信息
    findByprovinceCode () {
      var app = this;
      axios.get("http://localhost:8888/city/" + app.provinceCode).then(resp => {
        app.AddressCity = resp.data;
      })
        .catch(function (error) {
          console.log(error);
        });
    },
    //查询区域信息
    findBycityCode () {
      var app = this;
      axios.get("http://localhost:8888/town/" + app.cityCode).then(resp => {
        app.AddressTown = resp.data;
      })
        .catch(function (error) {
          console.log(error);
        });
    }

4_5、在created中调用init方法，实现初始化请求，使页面加载时查询省份信息，并绑定到AddressProvince 省份集合中，使省份下拉框具有初始值

  created () {
    this.init();
  },

4_6、在watch中编写监控省份和城市编号的方法，实现当选中省份使provinceCode值发生变化时，触发对应方法查询城市信息，区域同上

  watch: {//监控一个值的变换
    provinceCode: { //
      handler () {
      //在选中省份发生变化时，清空后方城市和区域集合的值，和绑定编号的值，
      //重新查询对应选中编号的城市和区域值
        this.AddressCity = [];
        this.AddressTown = [];
        this.cityCode = "";
        this.value = "";
        this.findByprovinceCode();
      }
    },
    cityCode: {
      handler () {
        this.findBycityCode();
      }
    }
  }

5、运行springboot、vue即可，效果如下
