docker学习（七）linux安装gitlab-runner集成CICD自动化部署

准备工作

准备两台虚拟机

192.168.1.117  （安装gitlab）
配置建议 4c8g

192.168.1.179（安装gitlab-runner、docker、maven）
配置建议 2c4g

如果装在一台机器，会出现这个问题
https://devops.stackexchange.com/questions/12866/this-job-is-stuck-because-you-dont-have-any-active-runners-online

安装gitlab

参考 https://blog.youkuaiyun.com/SpringHASh/article/details/122032311?spm=1001.2014.3001.5501

安装gitlab-runner

推荐yum安装
添加链接描述

安装gitrunner

# Download the binary for your system
 curl -L --output /usr/local/bin/gitlab-runner https://gitlab-runner-downloads.s3.amazonaws.com/latest/binaries/gitlab-runner-linux-amd64


# Give it permissions to execute
 chmod +x /usr/local/bin/gitlab-runner


# Create a GitLab CI user
 useradd --comment 'GitLab Runner' --create-home gitlab-runner --shell /bin/bash


# Install and run as service
 gitlab-runner install --user=gitlab-runner --working-directory=/home/gitlab-runner
 gitlab-runner start

#上面两步如果提示 cammand not found，需要配置环境变量，也可以忽略上面两步，直接注册
vim /etc/profile
JAVA_HOME=/opt/jdk1.8.0_211
JAVA_BIN=$JAVA_HOME/bin
JRE_HOME=$JAVA_HOME/jre
JRE_BIN=$JRE_HOME/bin
GIT_RUNNER=/usr/local/bin/git-runner
MAVEN_HOME=/opt/maven-3.3.9/bin
PATH=$JAVA_BIN:$JRE_BIN:$PATH:$GIT_RUNNER:$MAVEN_HOME
export JAVA_HOME JRE_HOME PATH

source /etc/profile

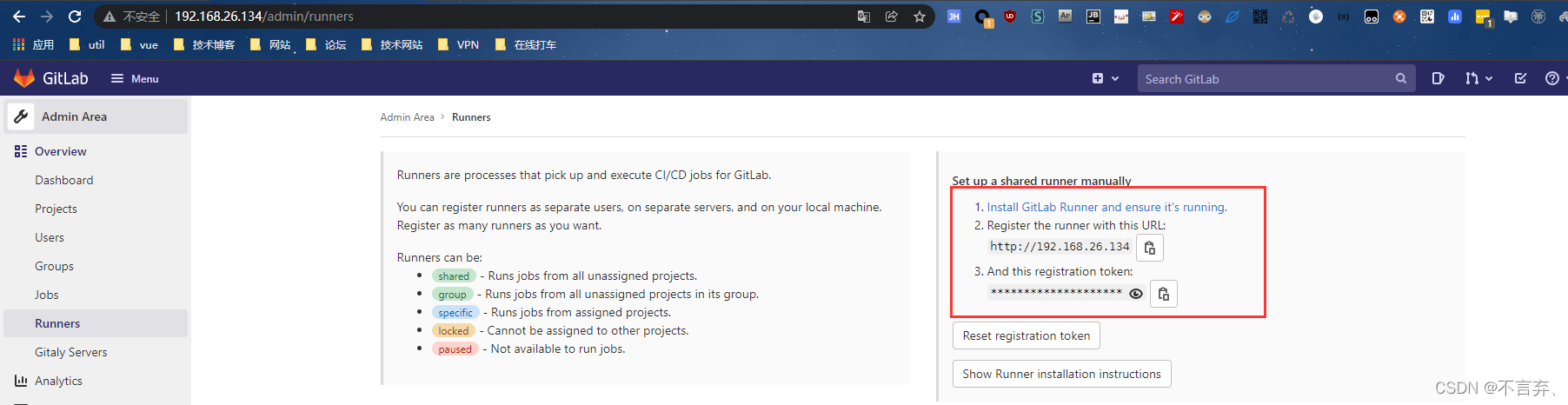

参数来源于

注册 runner

#注册 gitrunner
sudo gitlab-runner register --url http://192.168.1.117/ --registration-token $REGISTRATION_TOKEN

[root@localhost bin]# gitlab-runner register
Runtime platform                                    arch=amd64 os=linux pid=21527 revision=4e1f20da version=13.4.0
Running in system-mode.

Please enter the gitlab-ci coordinator URL (e.g. https://gitlab.com/):
http://192.168.1.117/

Please enter the gitlab-ci token for this runner:
PwF1sZPX_zsB-xChSKjH

Please enter the gitlab-ci description for this runner:
[localhost.localdomain]: demo

Please enter the gitlab-ci tags for this runner (comma separated):
demo

Registering runner... succeeded                     runner=PwF1sZPX
Please enter the executor: ssh, virtualbox, parallels, shell, docker-ssh, docker+machine, docker-ssh+machine, kubernetes, custom, docker:
shell

必要时切换权限

sudo su -

加入组权限

usermod -a -G docker gitlab-runner

安装git

yum -y install git

git -version

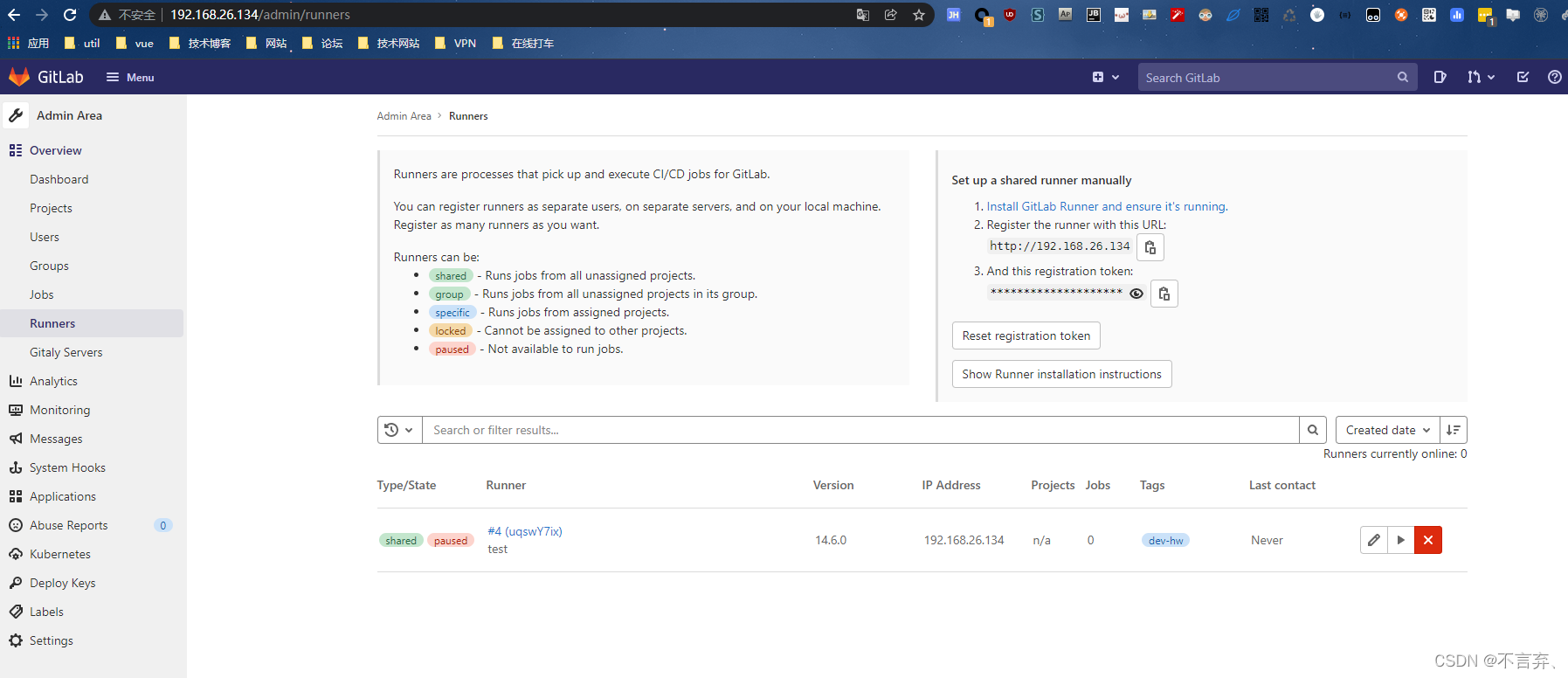

刷新gitlab页面

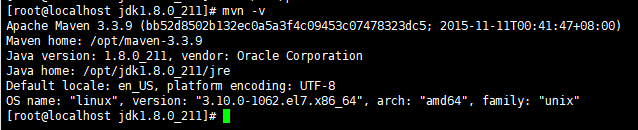

安装maven

wget https://archive.apache.org/dist/maven/maven-3/3.3.9/binaries/apache-maven-3.3.9-bin.tar.gz

tar -zxvf apache-maven-3.3.9-bin.tar.gz
mv apache-maven-3.3.9 maven-3.3.9
#参考上面的环境变量添加

#配置阿里公共云
vim /opt/maven-3.3.9/conf/settings.xml

  <mirrors>
    <!-- mirror
     | Specifies a repository mirror site to use instead of a given repository. The repository that
     | this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used
     | for inheritance and direct lookup purposes, and must be unique across the set of mirrors.
     |
    <mirror>
      <id>mirrorId</id>
      <mirrorOf>repositoryId</mirrorOf>
      <name>Human Readable Name for this Mirror.</name>
      <url>http://my.repository.com/repo/path</url>
    </mirror>
     -->


        <mirror>
          <id>alimaven</id>
          <name>aliyun maven</name>
          <url>http://maven.aliyun.com/nexus/content/groups/public/</url>
          <mirrorOf>central</mirrorOf>
        </mirror>


  </mirrors>

安装docker

参考 https://blog.youkuaiyun.com/SpringHASh/article/details/121971477?spm=1001.2014.3001.5501

快速获取springboot项目

https://gitee.com/wangLi1997/demo
