深入探討DE2-70的『Error:Can't place pins assigned to pin location Pin_AD25 (IOC_X95_Y2_N1)』錯誤訊息的原因與解決方式

本文详细解析了在使用Quartus II软件进行DE2-70 FPGA开发过程中出现的“Error: Can't place pins assigned to pin location Pin_AD25 (IOC_X95_Y2_N1)”错误。解释了错误原因,即nCEO和SW[7]共享Pin_AD25导致的冲突,并介绍了dual-purpose pins的概念。文章提供了通过GUI和Tcl脚本将nCEO设置为常规I/O pin的方法。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

以下内容贴为转载:


转载地址:http://www.cnblogs.com/oomusou/archive/2011/02/28/de2_70_dual_pin.html


Abstract
DE2-70初學者常常會遇到這個錯誤訊息,在(原創) 如何解決DE2-70的『Error: Can't place pins assigned to pin location Pin_AD25 (IOC_X95_Y2_N1)』的錯誤訊息? (SOC) (Quartus II) (DE2-70)曾經討論過解決方式,不過當時並有解釋為什麼要這樣解(因為我當時也不懂),本文重新徹底討論之。

Introduction
使用環境:Quartus II 10.1 + DE2-70 (Cyclone II EP2C70F896CN)

本文將討論以下主題:

1.『Error:Can't place pins assigned to pin location Pin_AD25 (IOC_X95_Y2_N1)』錯誤訊息的意義。

2. 什麼是Dual-Purpose Pin?

3.什麼是nCEO?

4.如何使用Quartus II GUI將nCEO設定成regular I/O pin?

5.如何使用Tcl將nCEO設定成regular I/O pin?

『Error:Can't place pins assigned to pin location Pin_AD25 (IOC_X95_Y2_N1)』錯誤訊息的意義

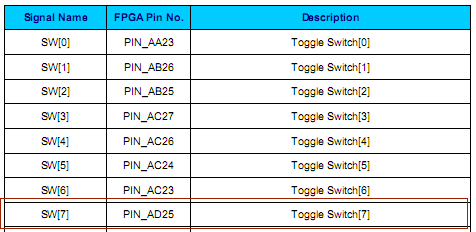

在DE2-70,若用到SW[7],根據[1] DE2-70 User Manual v1.08,在pin assignment時會指定到PIN_AD25。

dual07

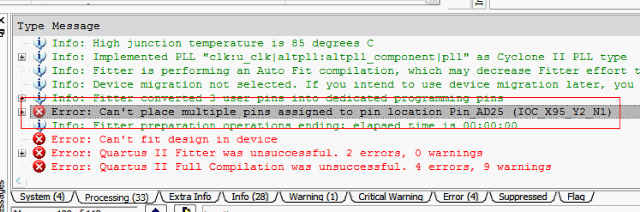

在編譯時,一定會遇到以下錯誤訊息:

 dual01

(原創) 如何解決DE2-70的『Error: Can't place pins assigned to pin location Pin_AD25 (IOC_X95_Y2_N1)』的錯誤訊息? (SOC) (Quartus II) (DE2-70)曾經討論過解決方式,基本上只要跟著做就可以解決問題,不過當初並沒有解釋為什麼要這樣做。

根據Quartus II的Help的解釋如下:

复制代码

Can't place multiple pins assigned to pin location <name> (<name>) -------------------------------------------------------------------------------- CAUSE: You assigned two or more pins to the specified location , but the Fitter cannot place all the pins in that location. ACTION: If the conflict arises from location assignments in the current project , delete or change the location assignment of one or more of the pins. If the pin location assignments come from one or more imported design partitions , delete or change the location assignment (possibly using the Virtual Pin assignments) in the lower-level designs , re-generate the Quartus II Exported Partition File(s) (.qxp) , and re-import.
复制代码

大意就是你同時對Pin_AD25做了兩次的pin assignment,導致Fitter無法作P&R。

通常會遇到這個錯誤訊息,都是自己的pin assignment有寫錯,導致對同一根pin assign了兩次,不過在這裡,很顯然不是我們自己弄錯了。

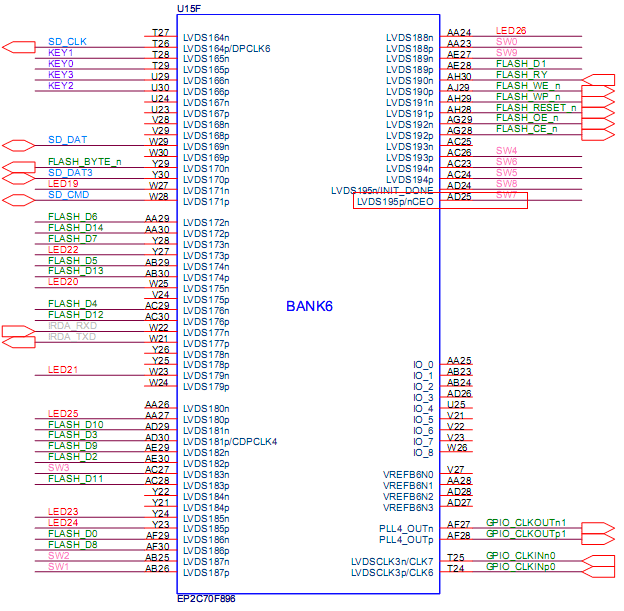

根據[2] DE2-70 Schematic v1.1的電路圖

dual08

AD25除了SW7使用外,其實nCEO也使用這個pin,這也就是為什麼SW7會與nCEO都指定到Pin_AD25的原因了。

什麼是Dual-Purpose Pins?

根據[3] Quartus II Help, dual-purpose pins


Pins that can be used as I/O pins after initialization when configuring SRAM-based devices. The number of dual-purpose pins available in all Altera devices supported by the Quartus II software except MAX 3000 and MAX 7000 devices depends on the device's configuration scheme.

我們知道FPGA基本上是由SRAM所構成,使用前必須將*.sof檔program進FPGA後才可使用,所以FPGA保留了一些pin做programming用,一旦FPGA經過program之後,這些pin就可以拿來當一般的I/O pin使用,這些pin就是dual-purpose pin,之前所遇到的nCEO就是個dual-purpose pin。

什麼是nCEO?

根據[4] Cyclone III Device Family Pin Connection Guidelines對nCEO的description為


Output that drives low when device configuration is complete.

其connection guidelines為


During multi-device configuration , this pin feeds a subsequent device's nCE pin and must be pulled high to VCCIO by external 10 -KΩ pull-up resistor. During single device configuration and for the last device in multi-device configuration , this pin can be left floating or used as regular I/O after configuration.

nCE的定義為


Dedicated active-low chip enable. When nCE is low , the device is enabled. When nCE is high , device is disabled.

其connection guidelines為


In multi-device configuration , nCE of the first device is tied directly to GND while its nCEO pin drives the nCE of the next device in the chain. In single device configuration , nCE is tied directly to GND. The nCE pin must also be held low for successful JTAG programming of the device. If you are combining JTAG and AS configuration schemes , then the nCE should be tied to GND through a 10 -KΩ resistor.

大意是說,每顆FPGA都有nCE與nCEO兩根pin,在多顆FPGA的系統中,第一顆FPGA的nCE接GND,而第一顆FPGA的nCEO將接到下一顆FPGA的nCE,如此這樣繼續接下去,而在最後一顆FPGA時,可以將nCEO floating或者當成普通I/O pin使用。而在單顆FPGA時,nCE直接接GND,nCEO可直接floating或者當普通I/O pin使用。

在DE2-70,因為只是單顆FPGA,nCEO並沒有用到,所以當成SW[7]的input pin使用

如何使用Quartus II GUI將nCEO設定成regular I/O pin?

請參考(原創) 如何解決DE2-70的『Error: Can't place pins assigned to pin location Pin_AD25 (IOC_X95_Y2_N1)』的錯誤訊息? (SOC) (Quartus II) (DE2-70)

如何使用Tcl將nCEO設定成regular I/O pin?


set_global_assignment -name CYCLONEII_RESERVE_NCEO_AFTER_CONFIGURATION " USE AS REGULAR IO "

Conclusion
在[7] MyFPGA, DE0的VGA_B[0] Pin assignment有錯有人抱怨為什麼Quartus II要default將nCEO弄成programming pin,而非regular I/O pin,害我們自己必須手動改一次,其實要怪的是設計DE2-70的人為什麼非要用nCEO這個pin不可,在pin足夠的的狀況下,應該是不會把nCEO拿來當regular I/O pin來用,除非是在pin不夠用的狀況下,且又只有單顆FPGA時,才會將nCEO也拿來用。在Terasic其他的版子也有類似的設計,熟析了其背後的道理後,也可套用到其他版子上。

Reference
[1] DE2-70 User Manual v1.08
[2] DE2-70 Schematic v1.1
[3] Quartus II Help,dual-purpose pins
[4] Cyclone III Device Family Pin Connection Guidelines
[5] AlteraForum.com,Dual Purpose Pins – nCEO
[6] Quartus II Help v10.1, Dual-Purpose Pins Page (Device and Pin Options Dialog Box)
[7] MyFPGA,DE0的VGA_B[0] Pin assignment有錯

See Also
(原創) 如何解決DE2-70的『Error: Can't place pins assigned to pin location Pin_AD25 (IOC_X95_Y2_N1)』的錯誤訊息? (SOC) (Quartus II) (DE2-70)

全文完。
